Product characteristics

·Metal aluminum alloy material, high strength & light weight

·Separate PATTERN KEY, can set various patterns,The position, size and number of images can be adjusted

·Hundreds of special effect wipes such as circle, rhombus,fan, plum blossom, shutter, etc.

·Support joystick, camera control

·Industrial grade mechanical keys,Professional feeling

·Support RJ45 remote control

·Support DCB control

·Broadcast & TV standard Tally interface

·Support GPI control

·Support pedal, control handle and other input

·Support 12xSDI input

·MULTIVIEW output: 1-CH HDMI+1-CH SDI

·PGM output: 2-CH HDMI+2-CH SDI

·2 Analog Audio inputs

·2 Analog Audio output

·Support audio follow and mix

·HDMI audio de-embedding

·MIX/FADE and other special effects  transition

·CUT and AUTO switching

·Color bar output

·One-key screen freeze function

·One-key FTB emergency blackout

·PIP/POP window function

·Chroma key and Luma key

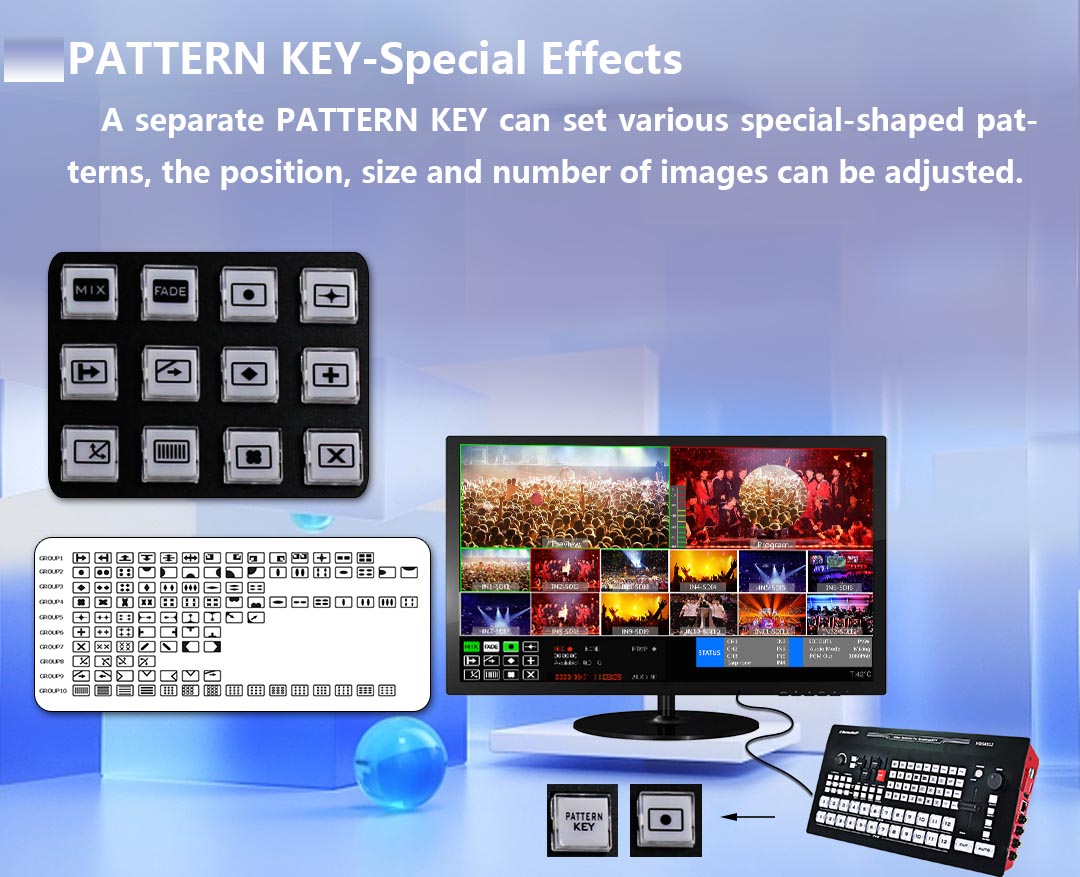

PATTERN KEY Special Effects

A separate PATTERN KEY can set various special-shaped patterns, the position, size and number of images can be adjusted.

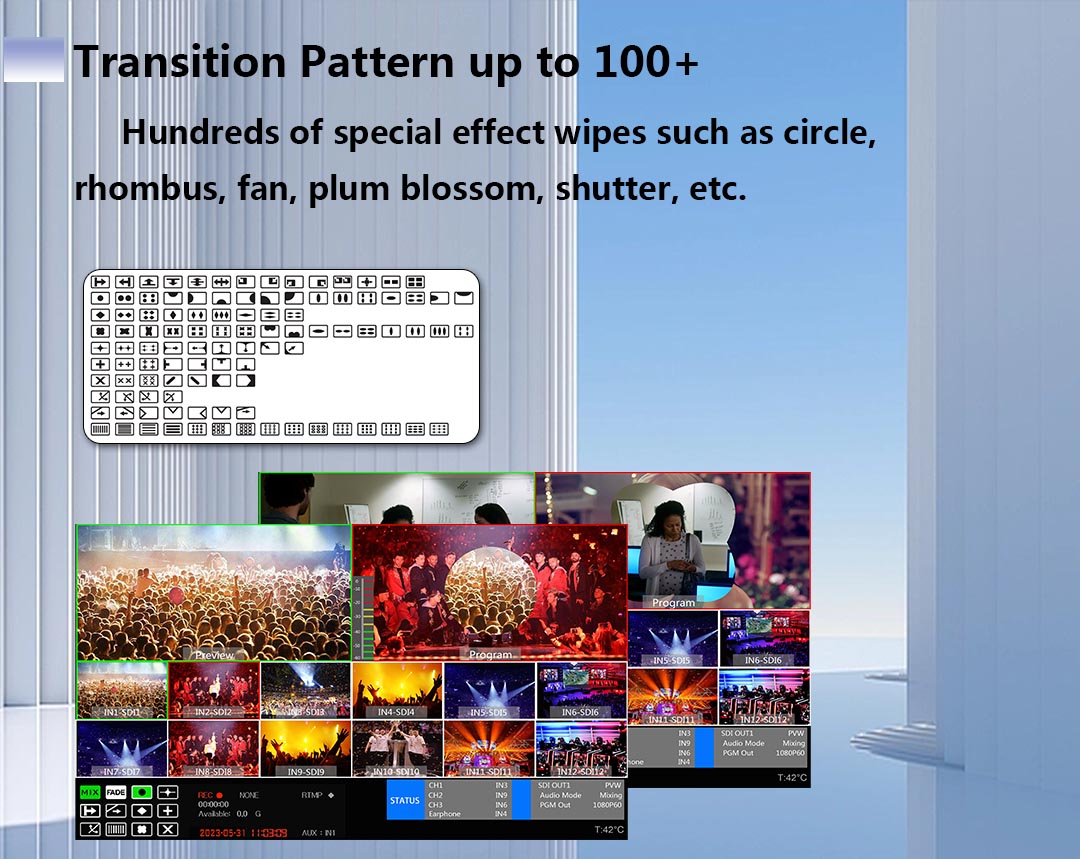

Transition Pattern up to 100+

Hundreds of special effect wipes such as circle, rhombus, fan, plum blossom, shutter, etc.

Please refer to this link for operation details

Circle effect

Plum blossom effect

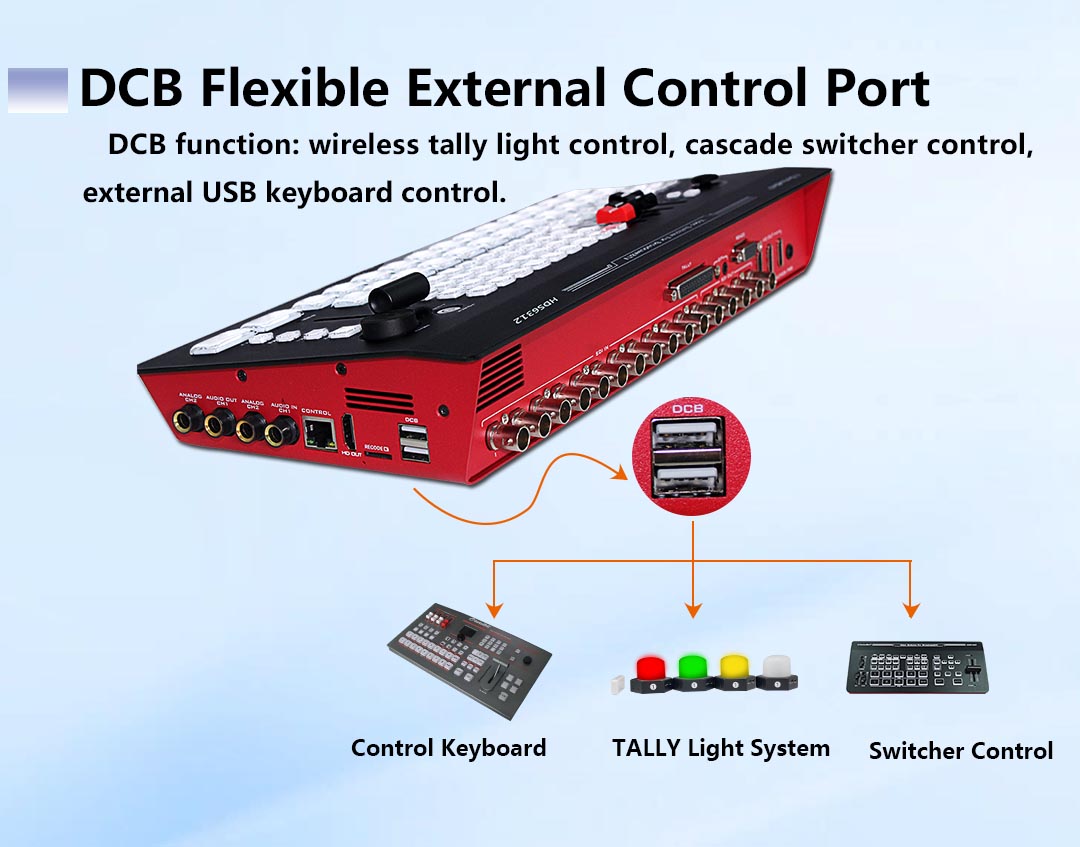

DCB Flexible External Control Port

DCB function: wireless tally light control, cascade switcher control, external USB keyboard control.

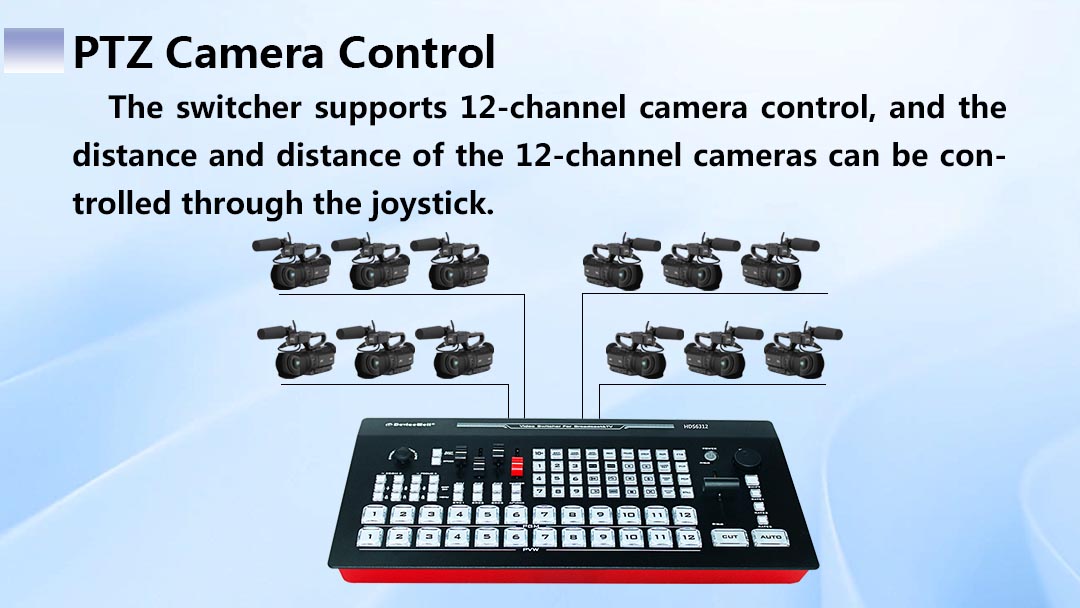

12-CH SDI camera control

DeviceWell switcher HDS6312 is a directing system with up to 12 cameras. It is suitable for many event projects. With the development of the times, especially in remote live broadcast of sports games, large-scale concerts or evening parties Especially in the event. If you want to use super multi-camera live directing operations in large-scale events, you must reach more than 12 sets of inputs on the directing system, so as to be able to present the wonderful program content to the audience from time to time, and there are so many live broadcast pictures and special effect transition. It can meet the needs of live production in various occasions and create exciting and wonderful pictures.

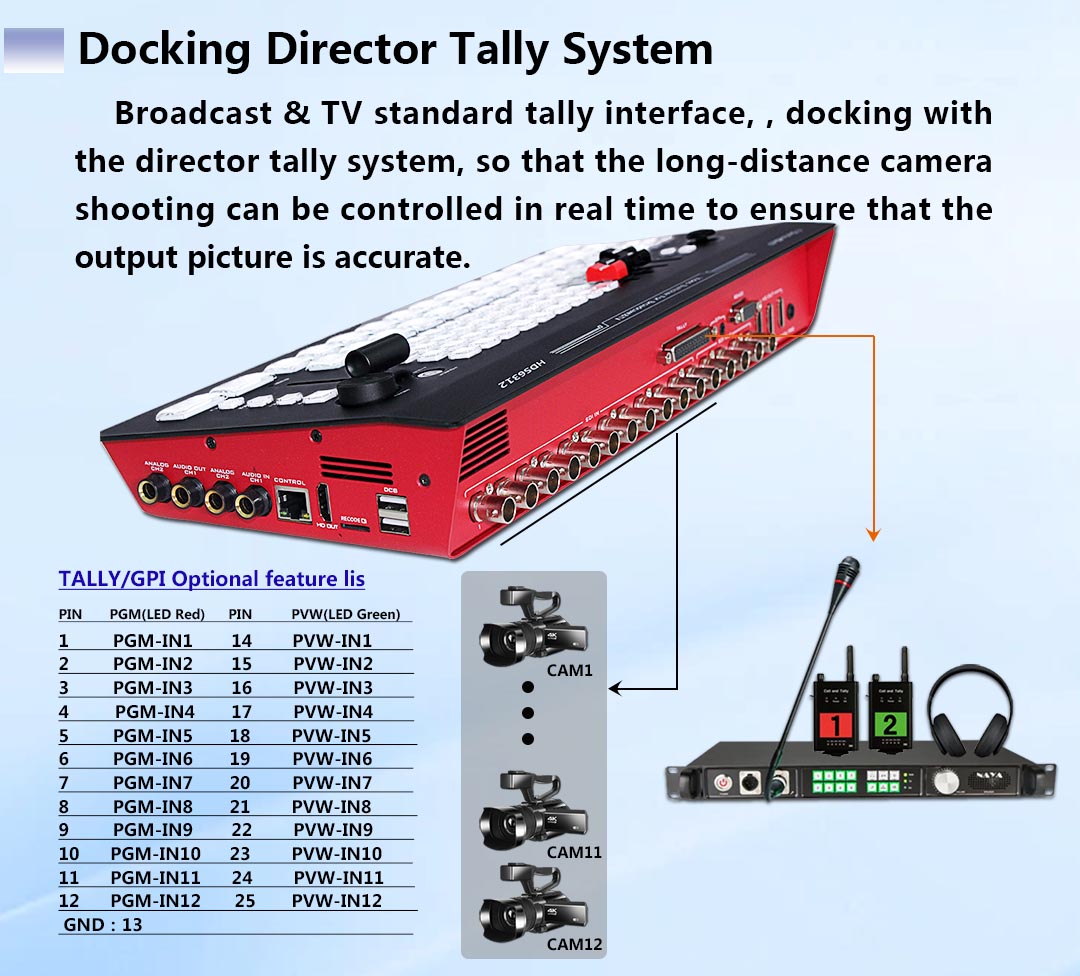

Docking Director Tally System

Broadcast & TV standard tally interface, docking with the director tally system, so that the long-distance camera shooting can be controlled in real time to ensure that the output picture is accurate.

RJ45 Streram

Broadcast & TV standard tally interface, docking with the director tally system, so that the long-distance camera shooting can be controlled in real time to ensure that the output picture is accurate.

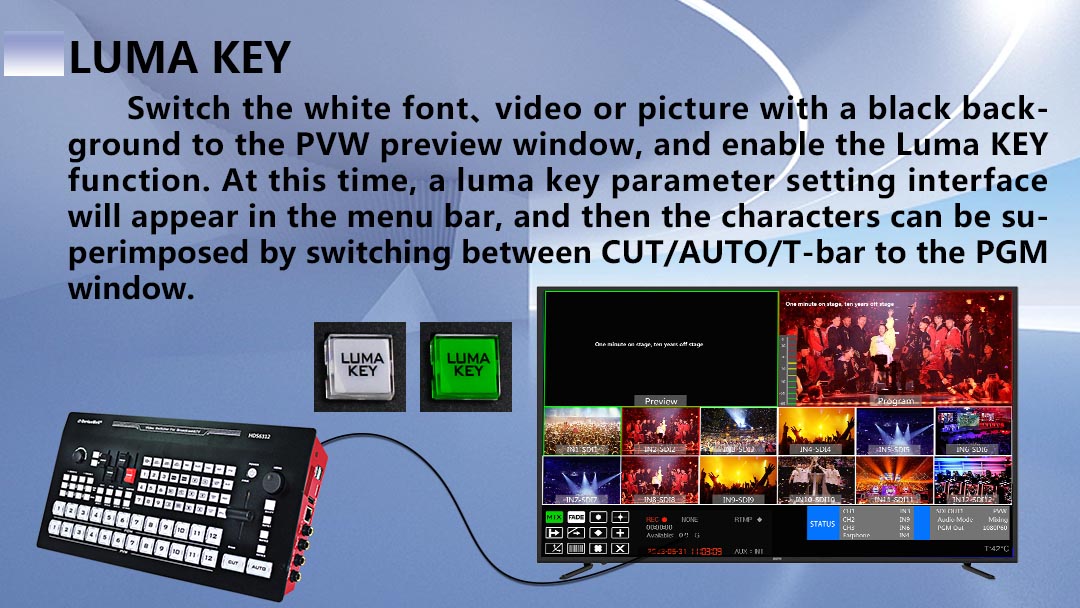

LUMA KEY

Luma KEY deducts the black part of the source, and then overlaps with the background image to achieve the purpose of keying and superimposing the background. It is mostly used in broadcast and TV programs, live speeches, superimposing subtitles in virtual studios and other scenarios.

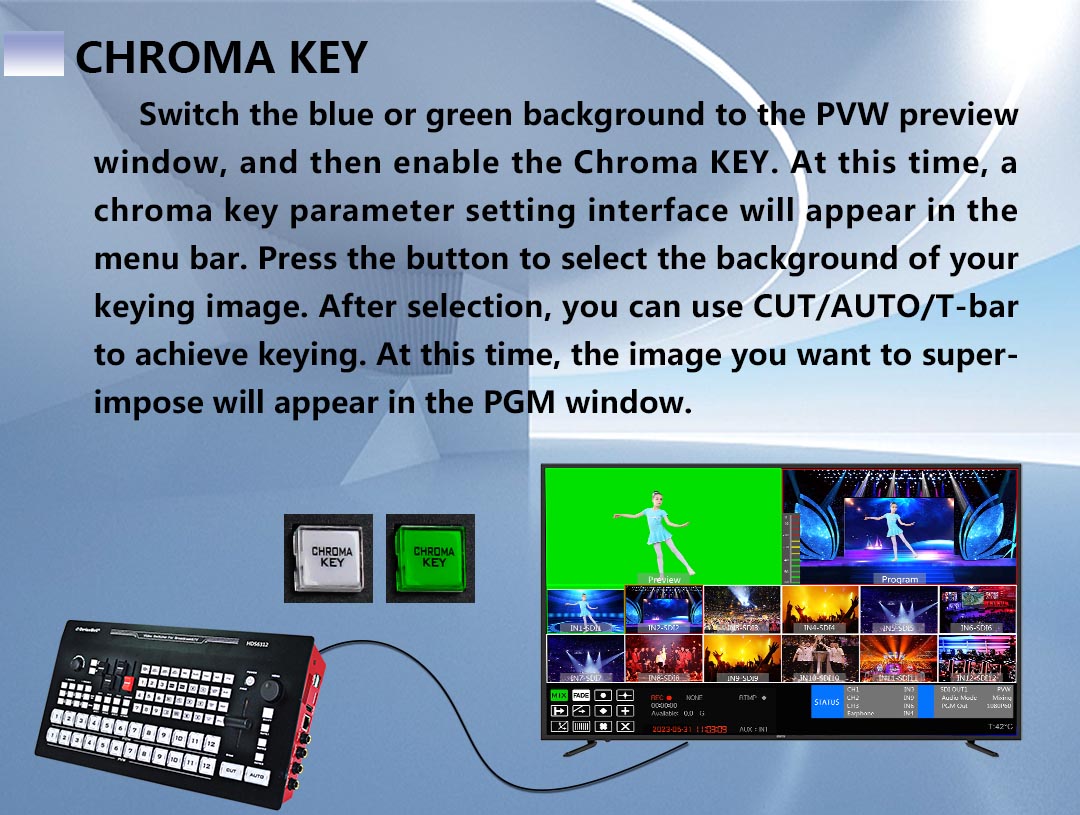

CHROMA KEY

 Chroma Key supports dynamic video source image and static source keying, key out the blue or green part of the source, keep other colors, and then overlap with the background image to achieve the purpose of keying and overlaying the background. It is mostly used in broadcast and TV programs, live speeches, superimposing subtitles in virtual studios and other scenarios.

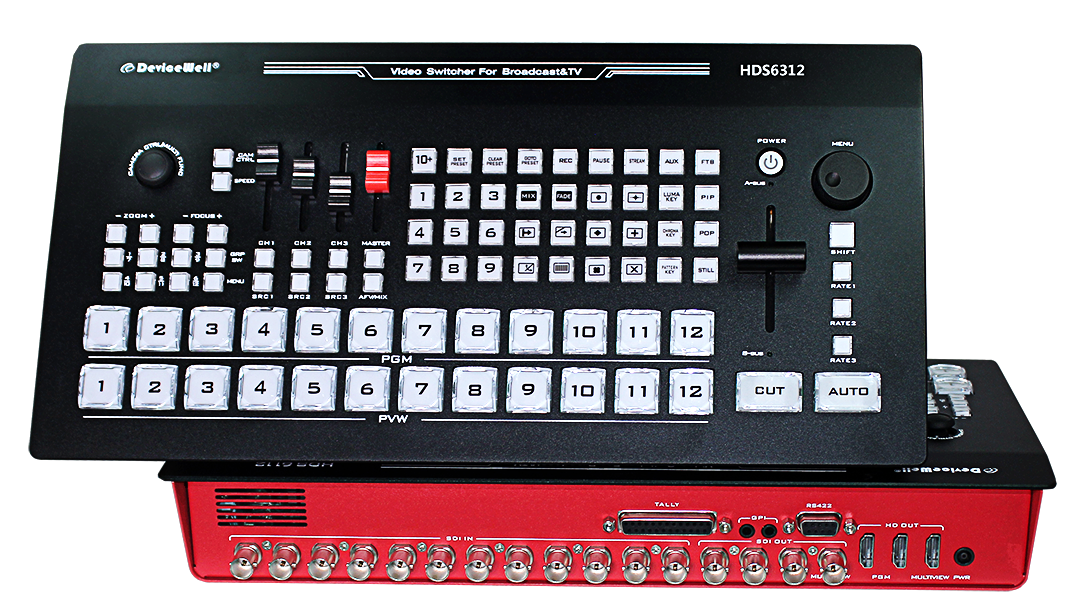

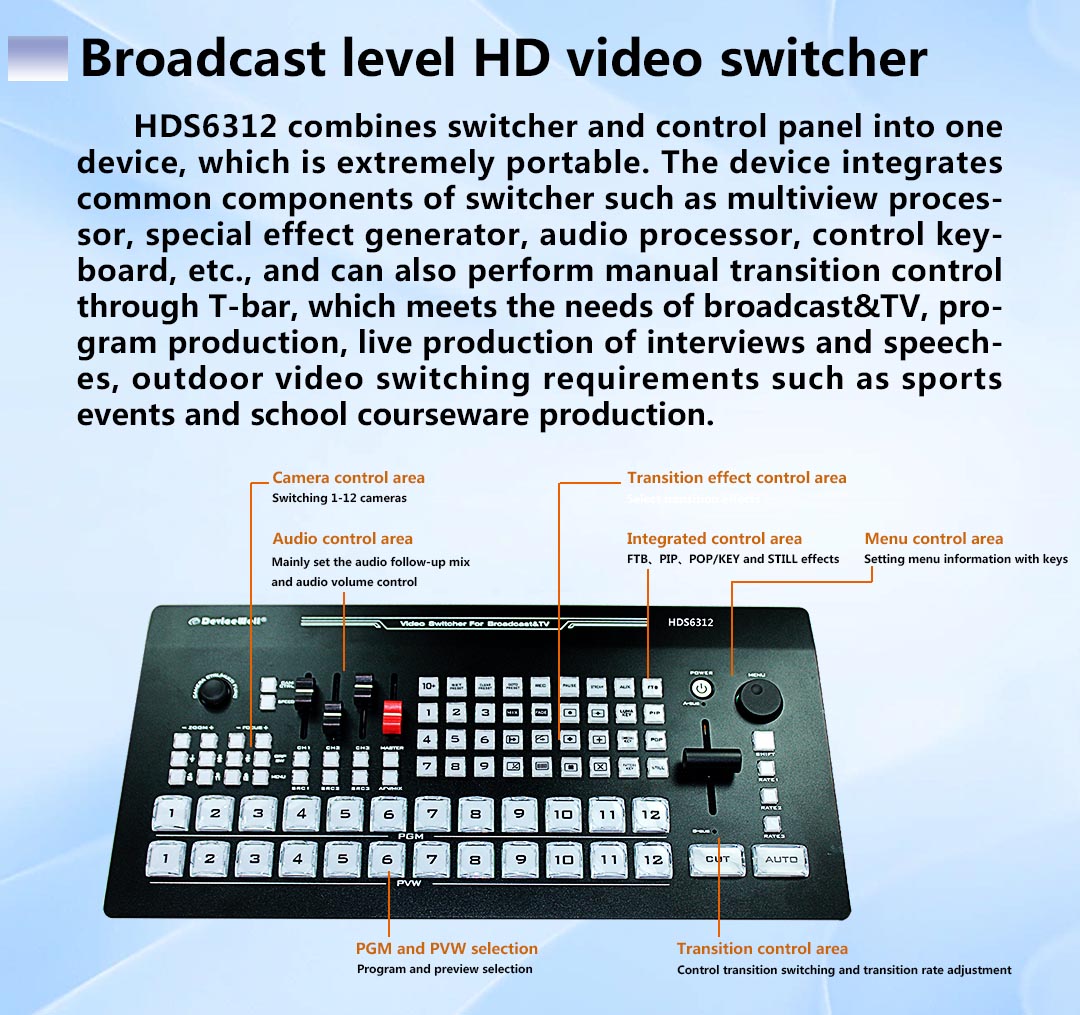

Broadcast level HD video switcher

 HDS6312 combines switcher and control panel into one device, which is extremely portable. The device integrates common components of switcher such as multiview processor, special effect generator, audio processor, control keyboard, etc., and can also perform manual transition control through T-bar, which meets the needs of broadcast&TV, program production, live production of interviews and speeches, outdoor video switching requirements such as sports events and school courseware production.

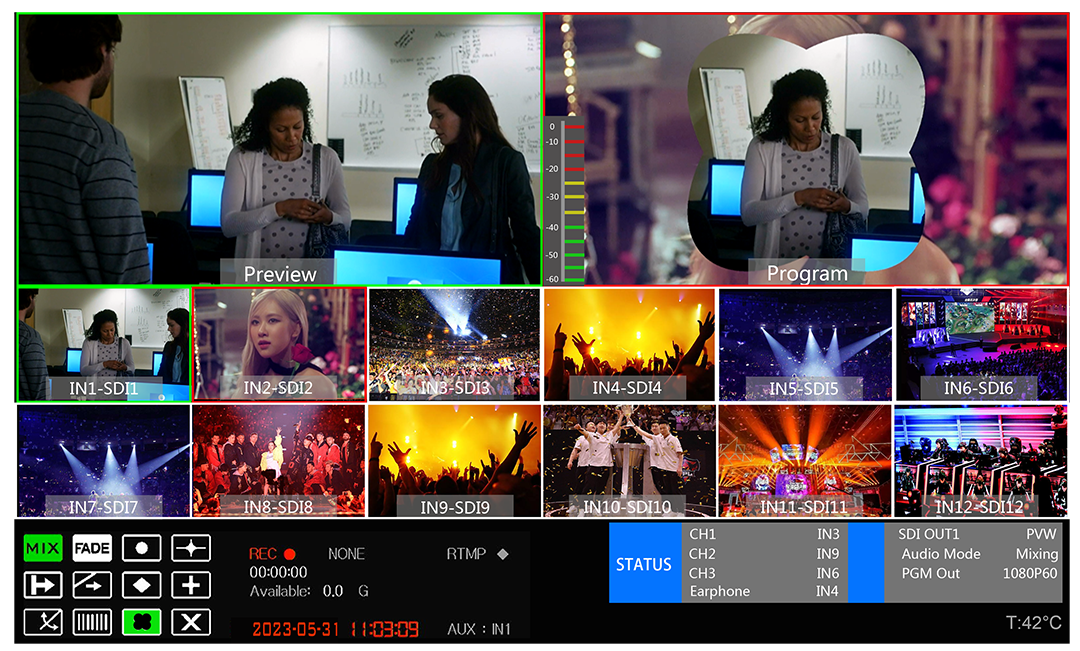

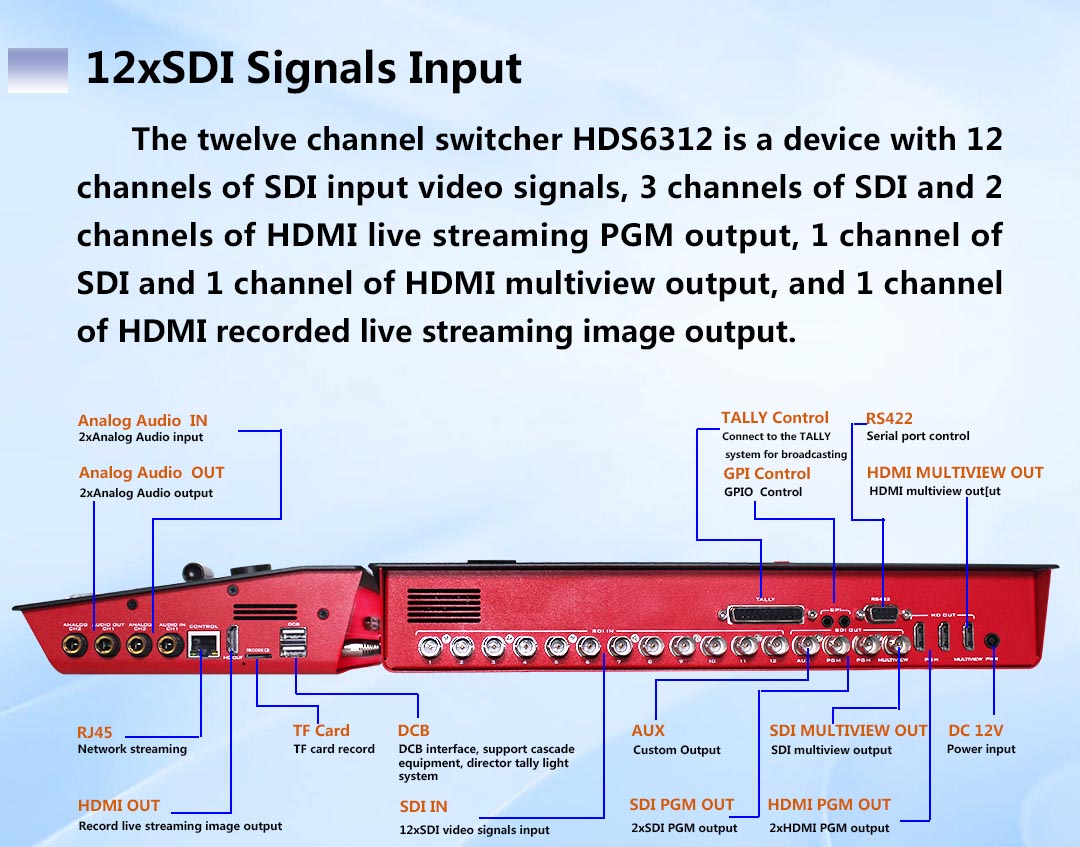

12xSDI Input

The twelve channel switcher HDS6312 is a device with 12 channels of SDI input video signals, 3 channels of SDI and 2 channels of HDMI live streaming PGM output, 1 channel of SDI and 1 channel of HDMI multiview output, and 1 channel of HDMI recorded live streaming image output.

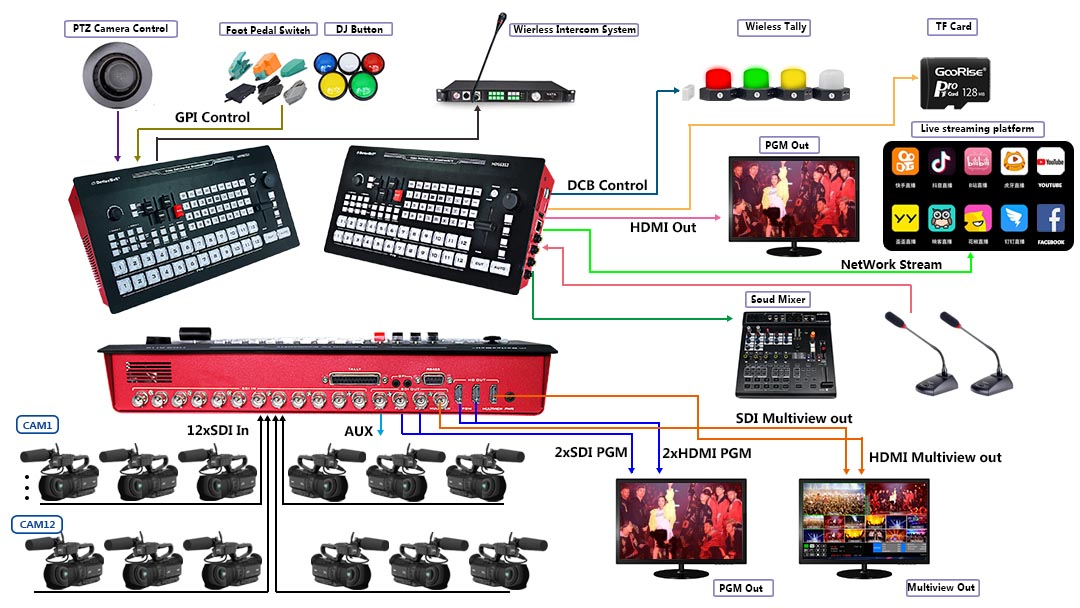

Application Diagram

The HDS6312 switcher supports 12-CH SDI signal input. The external preview signal can be output synchronously. The switcher supports HDMI embedded audio + external analog audio. After mixing, it can be embedded in the output HDMI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the resolution of output signals can be selected according to requirements, which is quite flexible. Widely used in broadcast&TV, HD digital medical industry, education and teaching, multimedia video conferencing, image transmission, large-scale multimedia high-definition display, outdoor large-screen display, large-scale stage display, sports events, military command and exercise, emergency command and control center, automation control Center and multimedia teaching and other fields.

Technical Parameter

Serial No.

Material name

Version

modification date

Description/Remarks

1

HDS6312 Specification Download

1.0

May 31, 2023

Initial Issue

2

HDS6312 Photos Download

1.0

May 31, 2023

3

Others
