PATTERN KEY-Special Effects

A separate PATTERN KEY can set various special-shaped patterns, the position, size and number of images can be adjusted.





Transition Pattern up to 100+

Hundreds of special effect wipes such as circle, rhombus, fan, plum blossom, shutter, etc.





Luma KEY/Chroma KEY

Support Chroma key and Luma key, Chroma Key supports dynamic video source image and static source keying, key out the blue or green part of the source, keep other colors, and then overlap with the background image to achieve the purpose of keying and overlaying the background. Luma KEY deducts the black part of the source, and then overlaps with the background image to achieve the purpose of keying and superimposing the background. It is mostly used in broadcast and TV programs, live speeches, superimposing subtitles in virtual studios and other scenarios.





USB3.0 STREAM

Realize live streaming through USB3.0 direct connection, allowing you to make live on YouTube, Facebook and Skype with higher picture quality, no frame loss, and easier setup. Just choose the live platform, and then enter the video source to start the live!

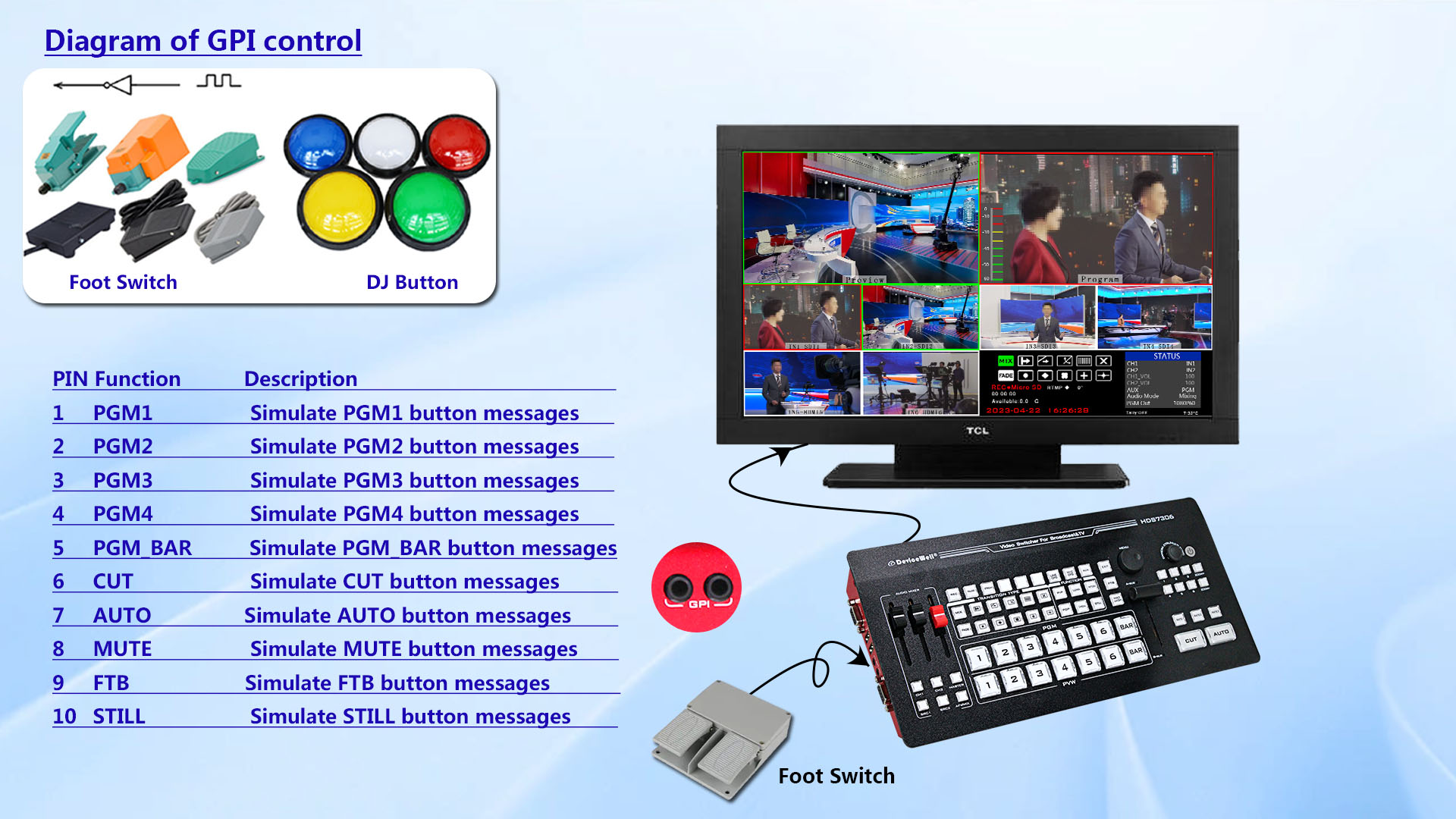

GPI control, foot pedal, control handle, etc.

GPI custom interface, convenient for users to remotely control and customize connected devices.

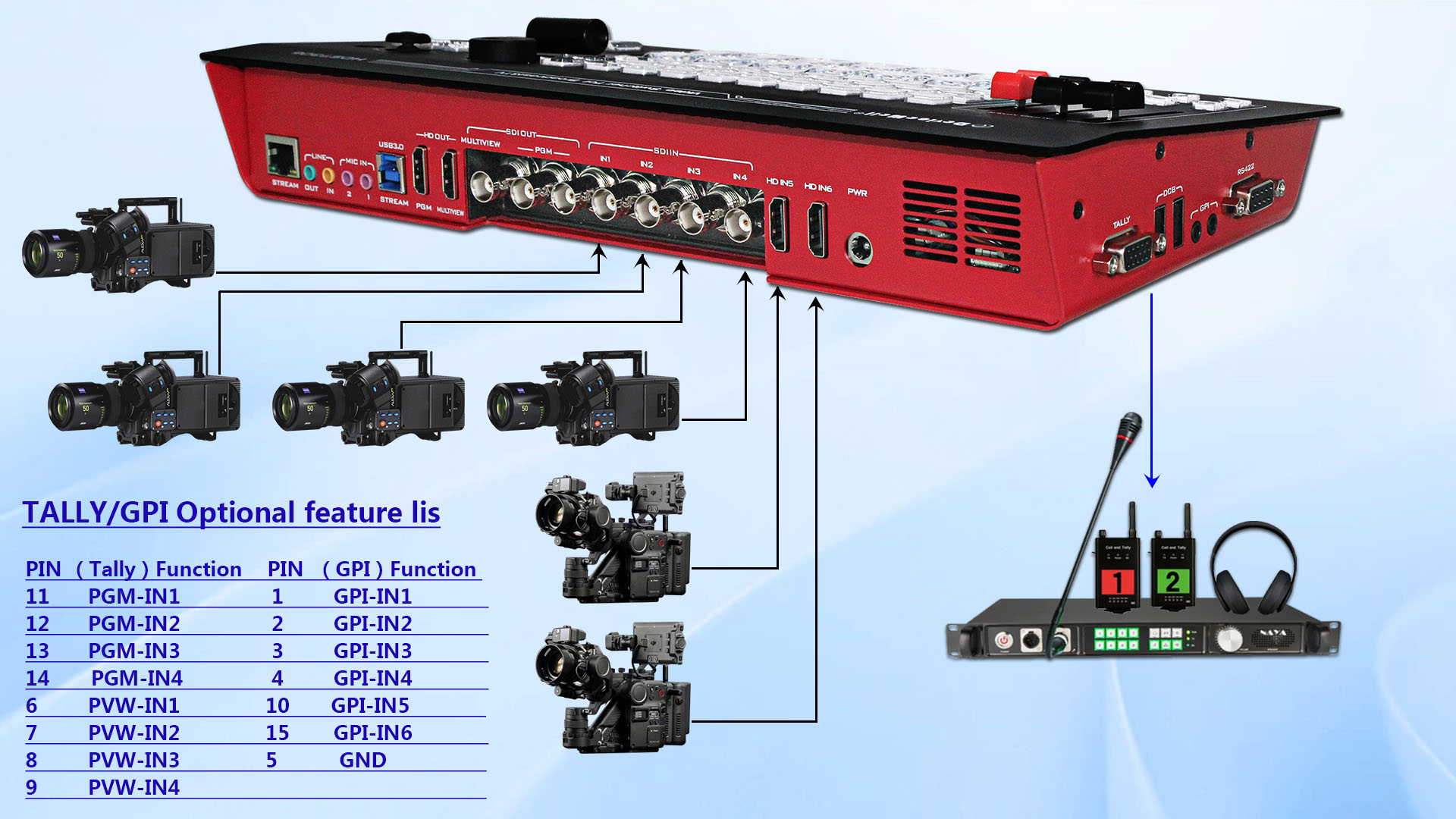

Docking Director Tally System

Broadcast & TV standard tally interface, HDS7306 Switcher is equipped with DB-15 tally interface, docking with the director tally system, so that the long-distance camera shooting can be controlled in real time to ensure that the output picture is accurate.





DCB  Flexible External Control Port

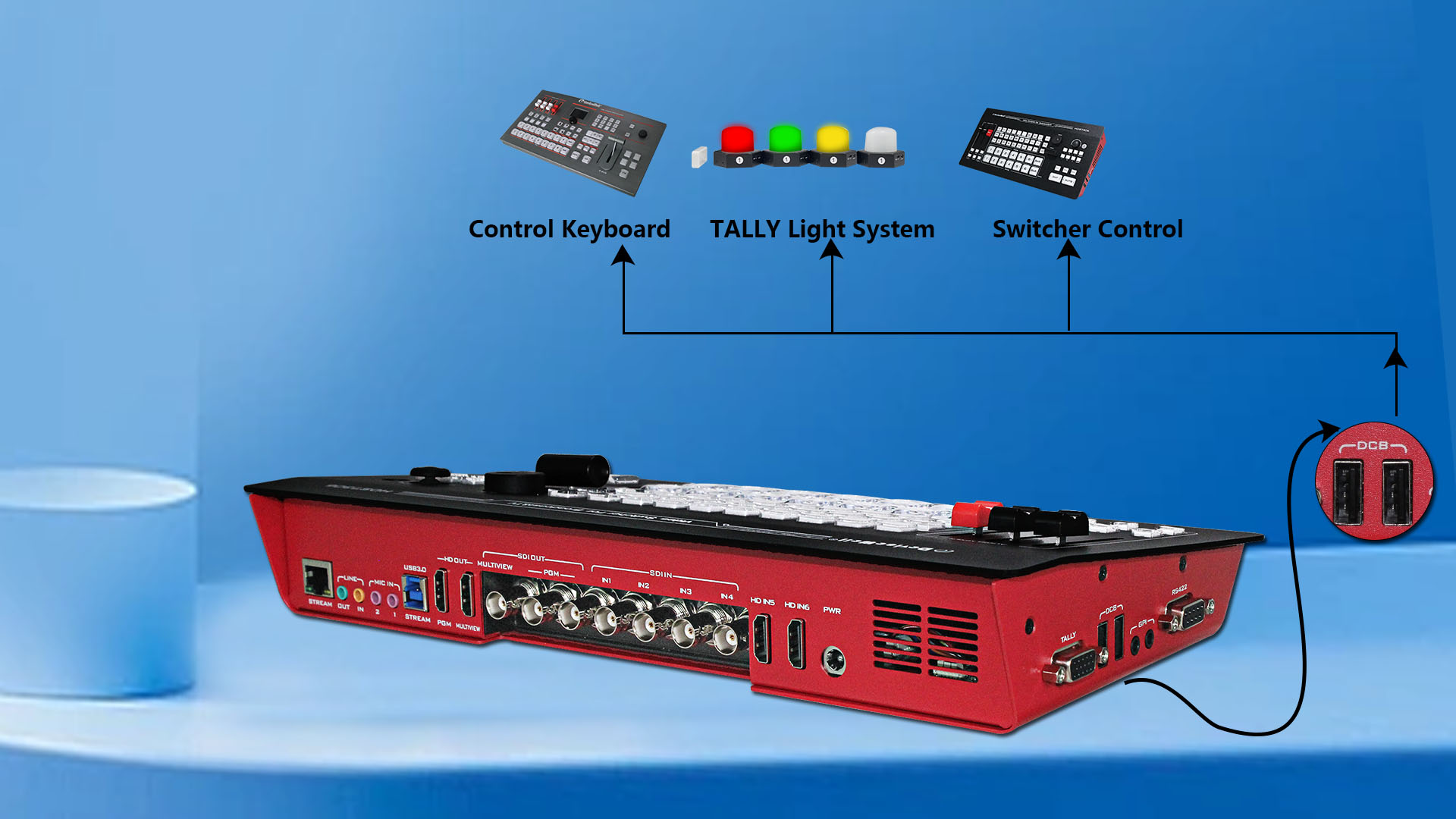

The  Switcher DCB function: wireless tally light control, cascade switcher control, external USB keyboard control.





PTZ Camera Control

DeviceWell switcher HDS7306 is a directing system with up to 6 cameras. It is suitable for many event projects. With the development of the times, especially in remote live broadcast of sports games, large-scale concerts or evening parties Especially in the event. If you want to use super multi-camera live directing operations in large-scale events, you must reach more than 6 sets of inputs on the directing system, so as to be able to present the wonderful program content to the audience from time to time, and there are so many live broadcast pictures and special effect transition. It can meet the needs of live production in various occasions and create exciting and wonderful pictures.



Support PIP Function

The size and position of the small window in PIP can be adjusted; the thickness and color of the border of the sub-window can be set.

Support POP Function

The size and position of the small window in POP can be adjusted; the thickness and color of the border of the sub-window can be set.

SWITCHER Software Control

SWITCHER Software Control can be updated through the network port to update new programs, and can also remotely control equipment on the computer side. This software control panel has an exquisitely designed software interface and parameter control panel, and supports remote control screen switching, transition effects, audio settings etc.



Audio Follow/MIX/Embed

 The audio mode includes follow (Follow) and mixing assignment (Mixing). In the control panel, CH1 and CH2 represent the source selection of the audio channel. Audio embedding can make the broadcast program achieve better effect.

 For example: when the host hosts a Chinese tea ceremony cultural program, he can mix the refreshing audio source into the live broadcast of the PGM program to achieve a better playback effect.



One-key Screen Freeze Function

Press STILL on the control panel (the green light will be displayed after pressing), the output PGM video animation will enter the freezing phenomenon, and press the button again to unfreeze the screen.

One-key Emergency Blackout

Press the FTB on the control panel (the red light will be displayed after pressing it), turn on the FTB emergency black screen output function, press the button and the FTB red light will go out, and the FTB emergency black screen function will be turned off.



Adjustable Transition Rate

RATE1, RATE2, RATE3 in the key panel control the transition rate meter.

           (RATE1: 640ms; RATE2: 1280ms; RATE3: 2560ms)

           Note: It only works when using AUTO transition

Application Diagram

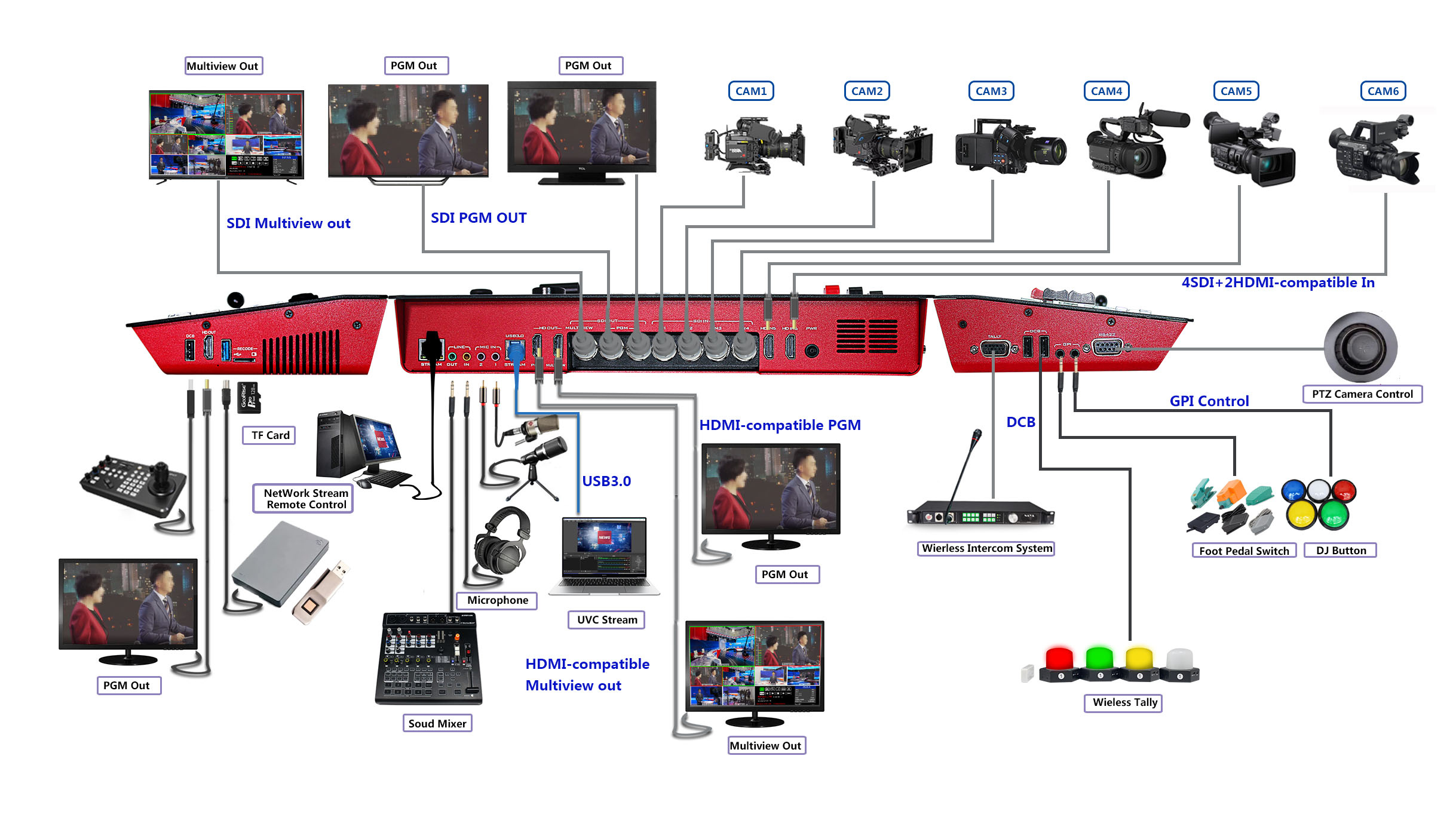

The five channel switcher HDS7306 is a device with 2 channels of XVI /HDMI+4 channels of SDI input video signals, 2 -CH SDI +1-CH HDMI live streaming PGM output,1 -CH HDMI+1-CH SDI multiview output, and 1 channel of XVI /HDMI recorded live streaming image output.The external preview signal can be output synchronously. The switcher supports XVI/HDMI embedded audio + external analog audio. After mixing, it can be embedded in the output XVI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the resolution of output signals can be selected according to requirements, which is quite flexible. Widely used in broadcast&TV, HD digital medical industry, education and teaching, multimedia video conferencing, image transmission, large-scale multimedia high-definition display, outdoor large-screen display, large-scale stage display, sports events, military command and exercise, emergency command and control center, automation control Center and multimedia teaching and other fields.
