Devicewell·12-channel mobile switcher HDS9112



Product Overview

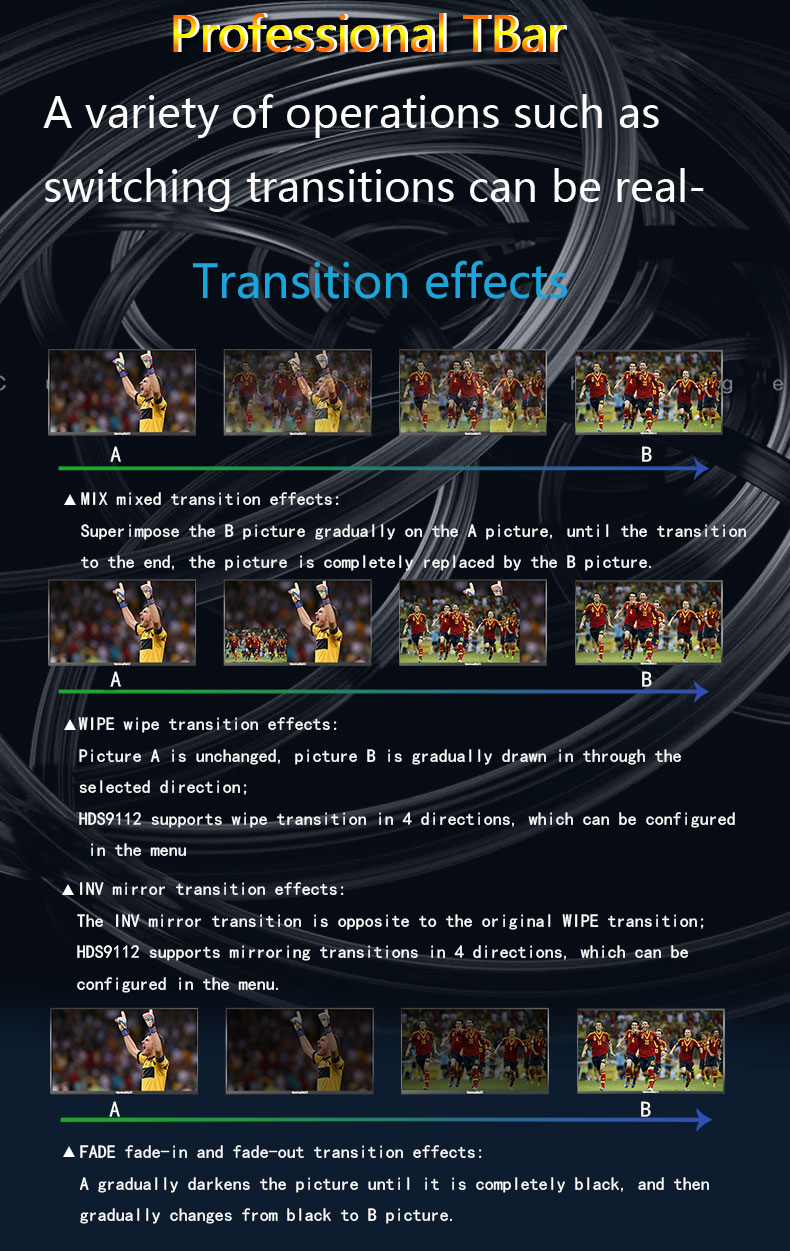

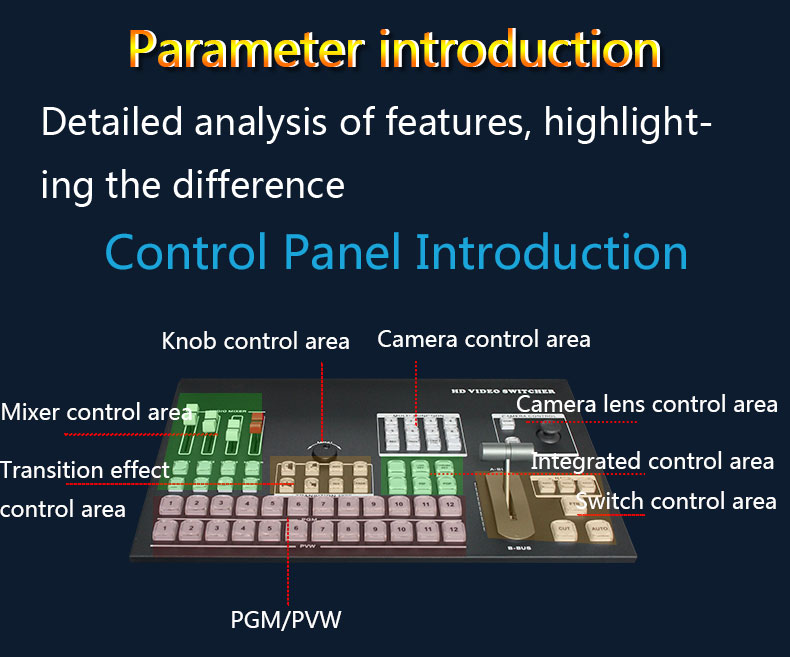

Devicewell 12-CH switcher HDS9112 integrates multiple control modes. Comes with 17-inch high-definition monitoring screen .The keyboard can be used to set special effects and transition modes. The knob can control the LCD display. The LCD will display various states of the current device in real time. The built-in menu display function allows the device to be set up more intuitively and efficiently, and the camera joystick can control the distance between the camera and the camera.

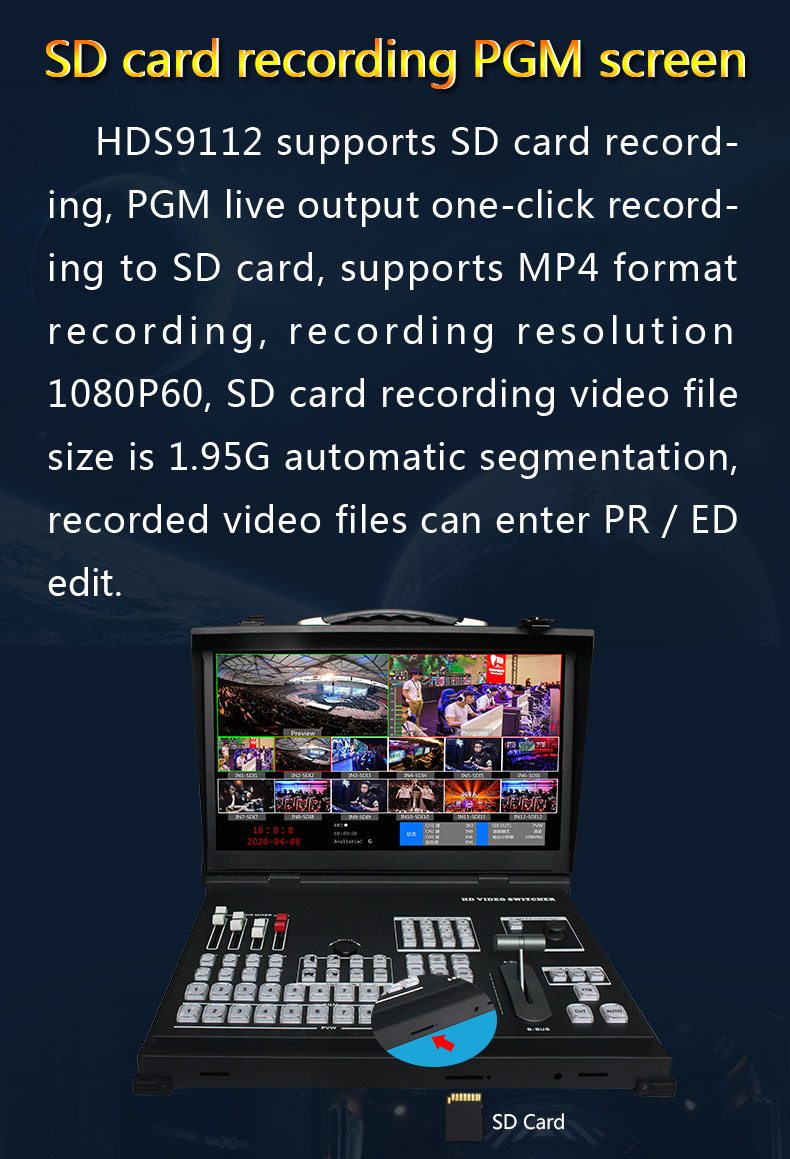

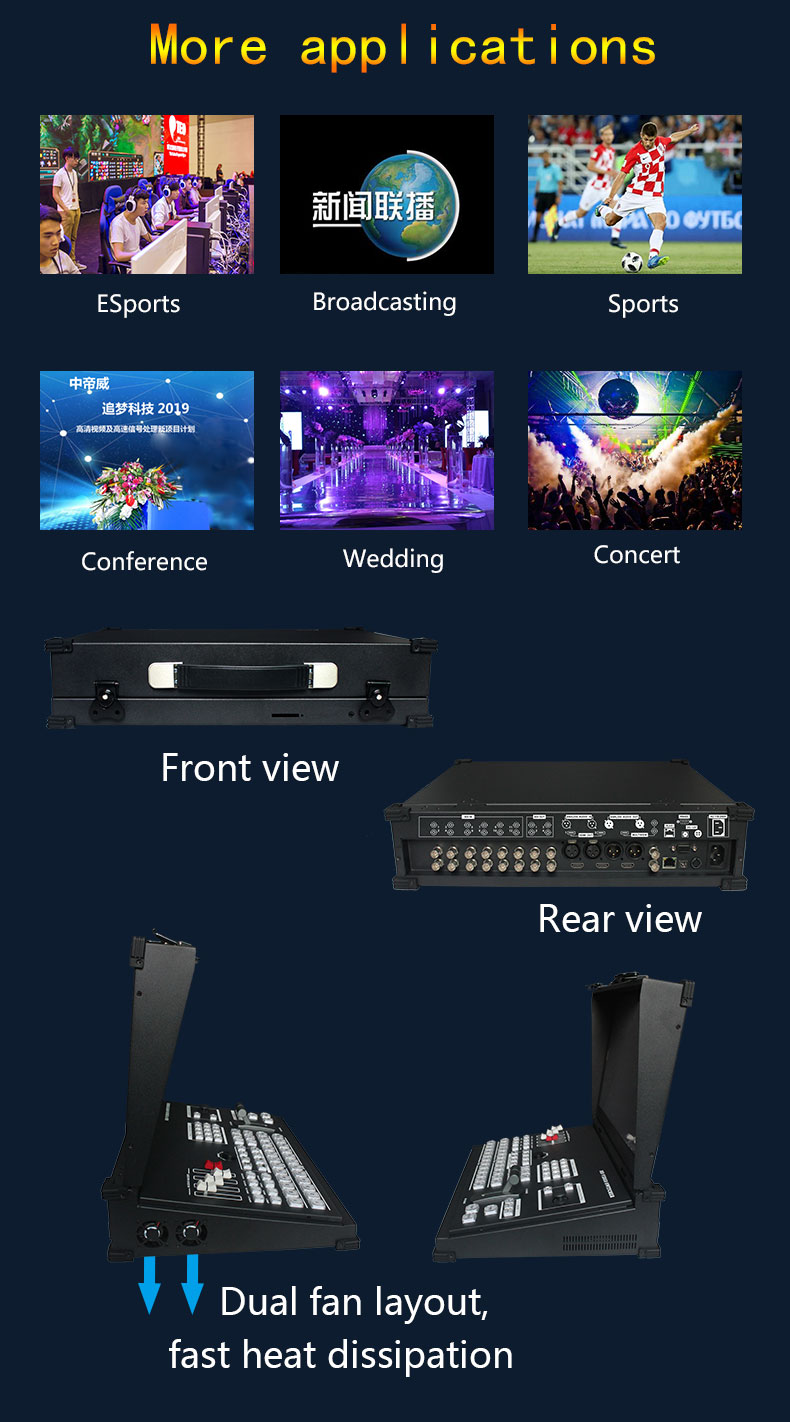

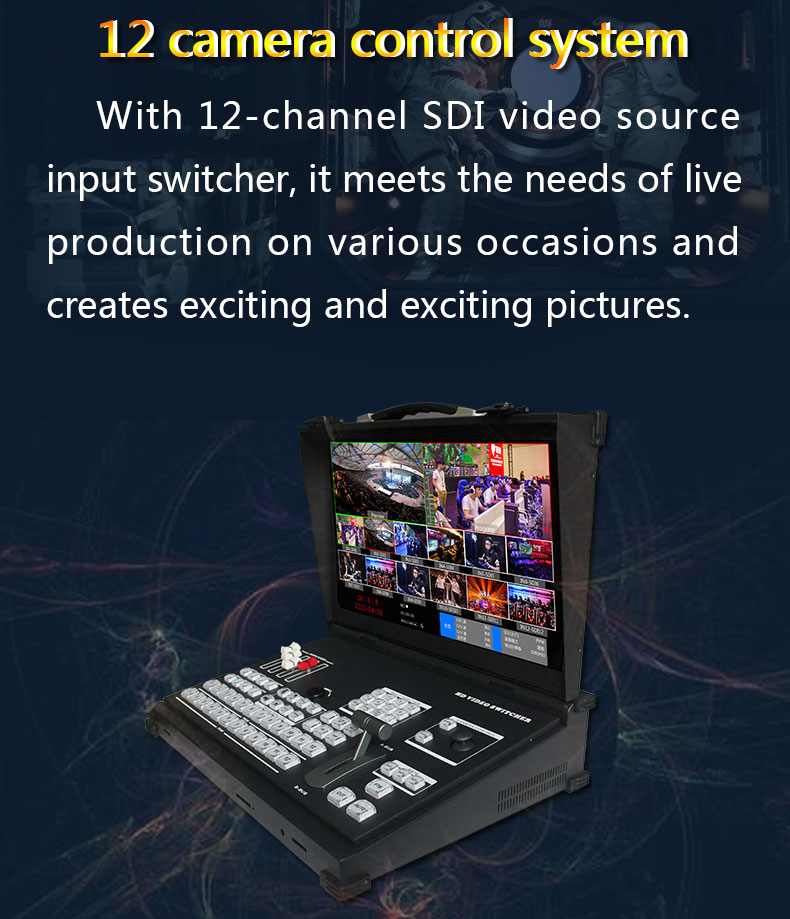

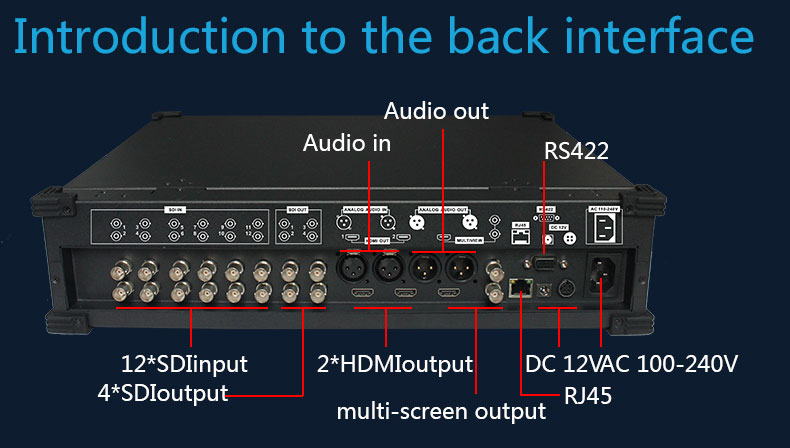

Devicewell 12-CH switcher HDS9112 is an 12-CH SDI input, 4-CH SDI output, 2-CH HDMI output and multiview output broadcast-level video signal. The 12-CH switcher HDS9112 is suitable for live performance, course recording and in-shed navigation. The switcher has multiple functions such as multiple format video input and input resolution adaptive, analog and balanced audio input and output, external video and picture import, audio embedding/de-embedding, mixing, SD card recording, RS422 and RJ45 control, etc., with remote upgrade capability. The user can perform video switching and audio mixing with additional effects through easy operation.

中帝威Devicewell·12-channel mobile switcher HDS9112 Manual Download

中帝威Devicewell·12-channel mobile switcher HDS9112HD Photos Download
