Features

◆ Support ST2110 IP stream processing

◆ IP stream bandwidth 2.5Gb

◆ Uncompressed video encoding, 100% color restoration

◆ Support multicast and broadcast physical layer settings

◆ SDI input supports up to 3Gb& is backward compatible with 1.5Gb

◆ SDI input rate adaptation

◆ DVP output supports up to 1080P 60Hz, and is backward compatible with 720P, etc.

◆ DVP output supports pass-through mode and frequency conversion mode (FRC)

◆ DVP output can select seamless output and still frame

◆ Support USB upgrade

◇ Special functions can be customized

◇ Point-to-point no delay

◇ POE power supply

◇ Based on IP architecture management, access to third-party management platform

Product Introduction

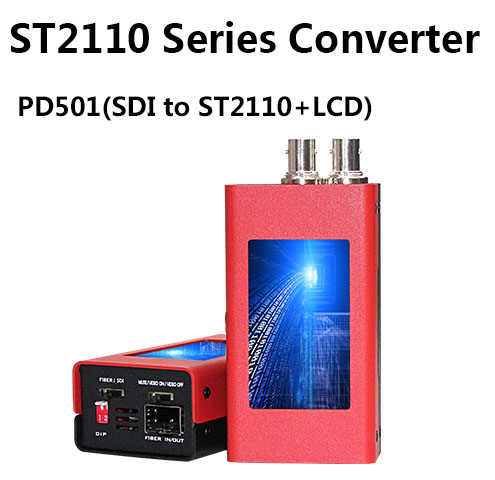

A dedicated SDI to ST2110 video converter. The device integrates ST2110 encoding module, which can convert 3G/HD SDI signals into uncompressed ST2110 IP streams. At the same time, it can also receive ST2110 IP streams, decode and output them to the DVP video port, and DVP supports frequency conversion. The device supports point-to-point IP stream transmission signals, and also supports "multicast" and "broadcast" streams for video distribution and scheduling through network switches. SDI input supports up to 3Gb and is backward compatible with 1.5Gb. DVP output supports up to 1080P 60HZ, and is backward compatible with 1080I and 720P signals. ST2110 has a maximum bit rate of 2.5Gb and is backward compatible with 1Gb. The ST2110 video converter can process ST 2110 video streams, and with network switches as relays, it can realize IP video exchange, distribution and forwarding of large-capacity uncompressed videos. Using network relays/wireless relays, long-distance uncompressed video transmission can be achieved. With its low latency, no compression and 100% color reproduction performance; ST2110 can be widely used in broadcasting, real-time conferencing, medical imaging and industrial machine vision.

Interface Description

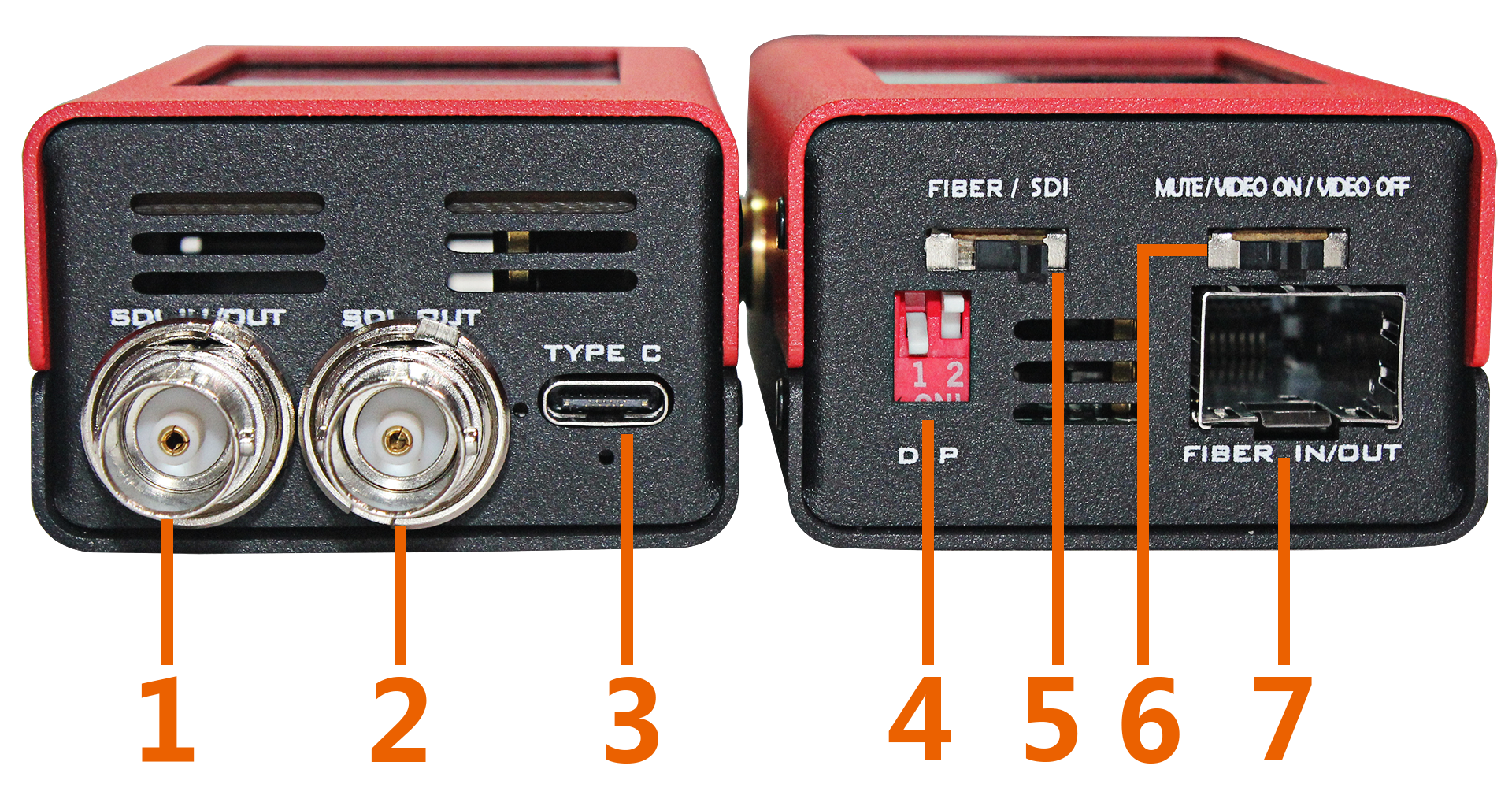

No.	Definition	Description
1	SDI out	SDI LOOP
2	SDI IN	SDI  INPUT
3	Type C port	DC 5V-12V
4	DIP	Function settings (see table below)
5	Screen switch	Switch screen image signal
6	Dial switch	Adjust the volume of the display screen
7	SFP port	2.5Gb/s



Application



Product Parameters

Product name	ST2110 Converter
Model	PD501
SDI Video Input	Input signal	SDI signal
	Bit rate	1.5Gbps~2.97Gbps
	Signal amplitude	800mV±10%
ST2110 Output	Output signal	2.5Gb
	Connector	SFP
	IP video specification	SMPTE-2110-20 Uncompressed video SMPTE-2110-21 Timing SMPTE-2110-30 Audio SMPTE-2110-40 Ancillary Data
SDI Video Output	Output signal	2-CH SDI signal
	Bit rate	1.5Gbps~2.97Gbps
	Signal amplitude	800mV±10%
	Connector	BNC complies with IEC169-8 standard
	Impedance	75Ω
Fiber Output	Output signal	Fiber signal
	Bit rate	1.5Gbps~2.97Gbps
	Connector	Standard LC
	Impedance	100Ω
General parameters	Power supply	DC 5-12V
	Power	<2W
	Size	110x46x27mm
	Control panel	Digital DIP switch
	Weight	0.16Kg
	Operating temperature	0℃~50℃ No condensation
	Storage temperature	-20℃~75℃
	Operating humidity	20%~70%RH
