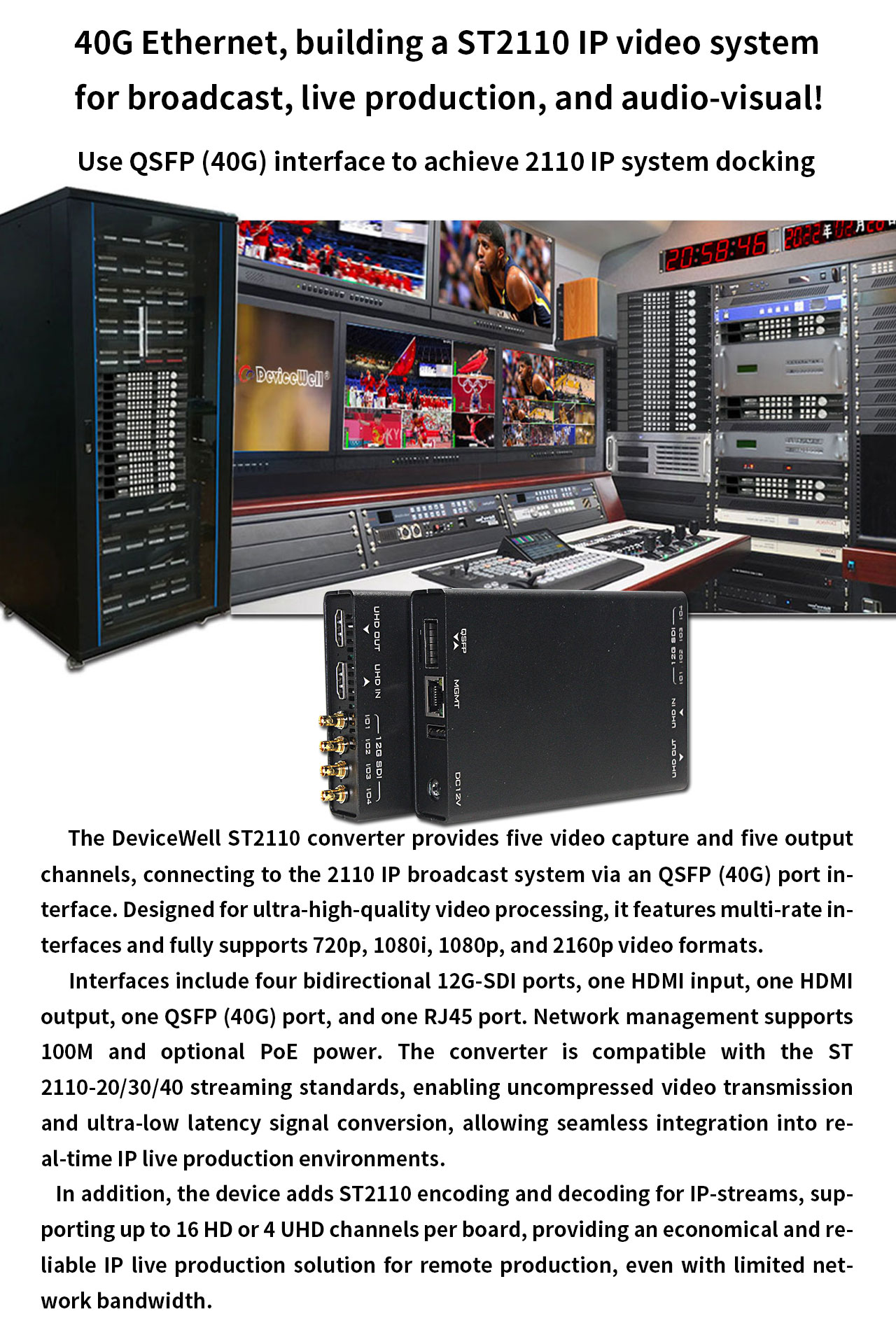

40G Ethernet, building a ST2110 IP video system for broadcast, live production, and audio-visual!

Use QSFP (40G) interface to achieve 2110 IP system docking



The DeviceWell ST2110 converter provides five video capture and five output channels, connecting to the 2110 IP broadcast system via an QSFP (40G) port interface. Designed for ultra-high-quality video processing, it features multi-rate interfaces and fully supports 720p, 1080i, 1080p, and 2160p video formats.      Interfaces include four bidirectional 12G-SDI ports, one HDMI input, one HDMI output, one QSFP (40G) port, and one RJ45 port. Network management supports 100M and optional PoE power. The converter is compatible with the ST 2110-20/30/40 streaming standards, enabling uncompressed video transmission and ultra-low latency signal conversion, allowing seamless integration into real-time IP live production environments.    In addition, the device adds ST2110 encoding and decoding for IP-streams, supporting up to 16 HD or 4 UHD channels per board, providing an economical and reliable IP live production solution for remote production, even with limited network bandwidth.

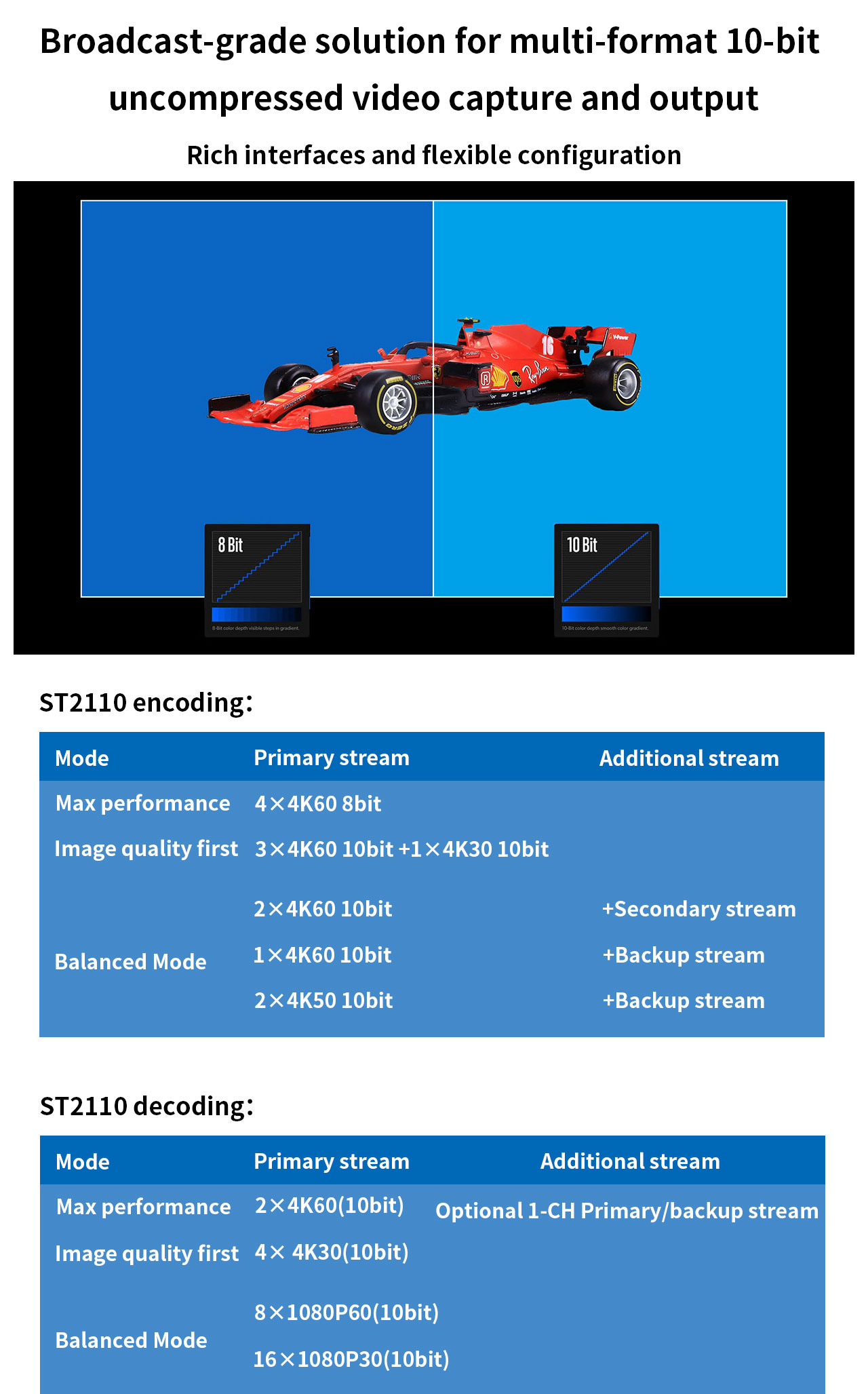

Broadcast-grade solution for multi-format 10-bit uncompressed video capture and output

Rich interfaces and flexible configuration

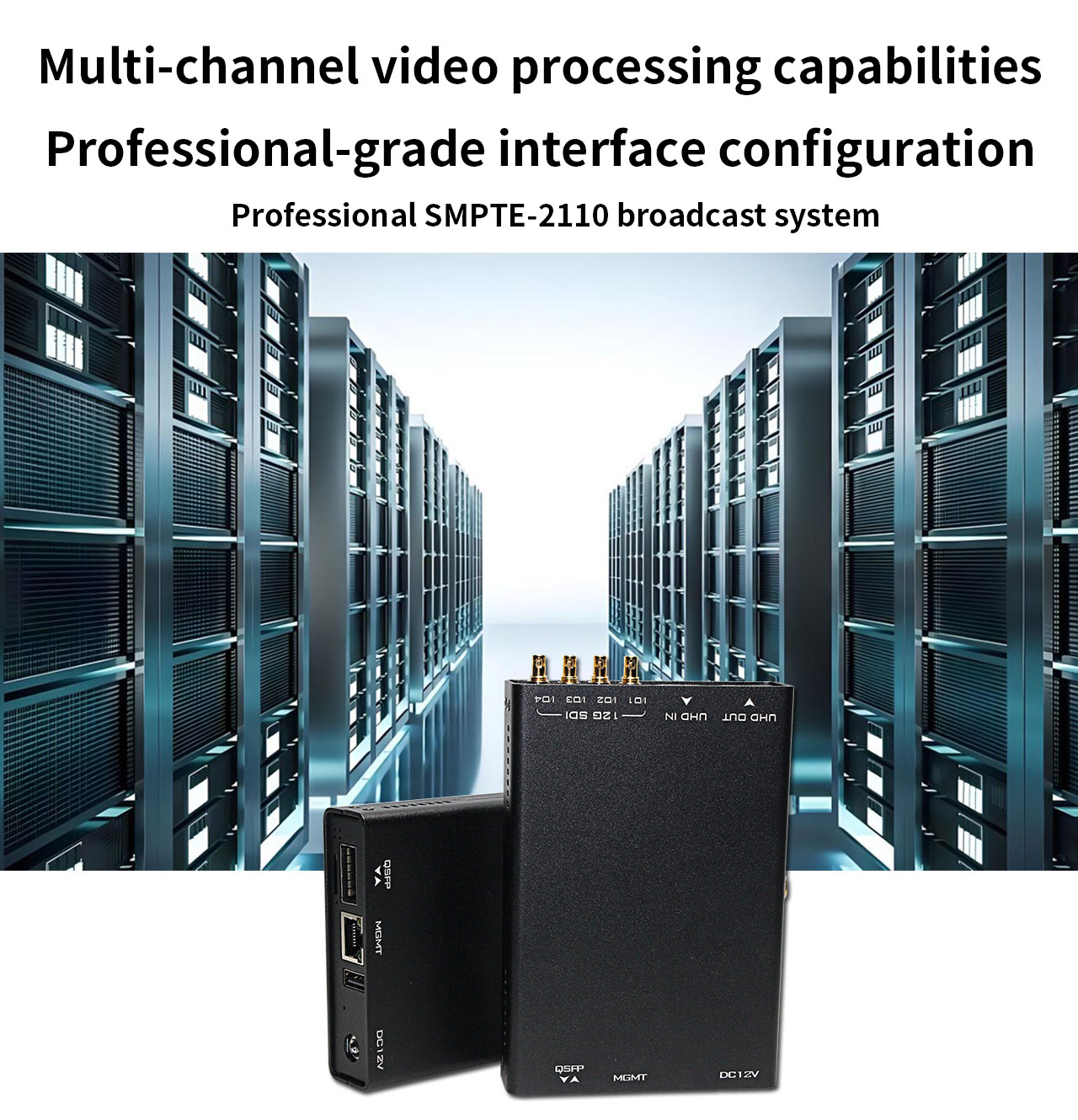

Multi-channel video processing capabilities Professional-grade interface configuration

Professional SMPTE‑2110 broadcast system

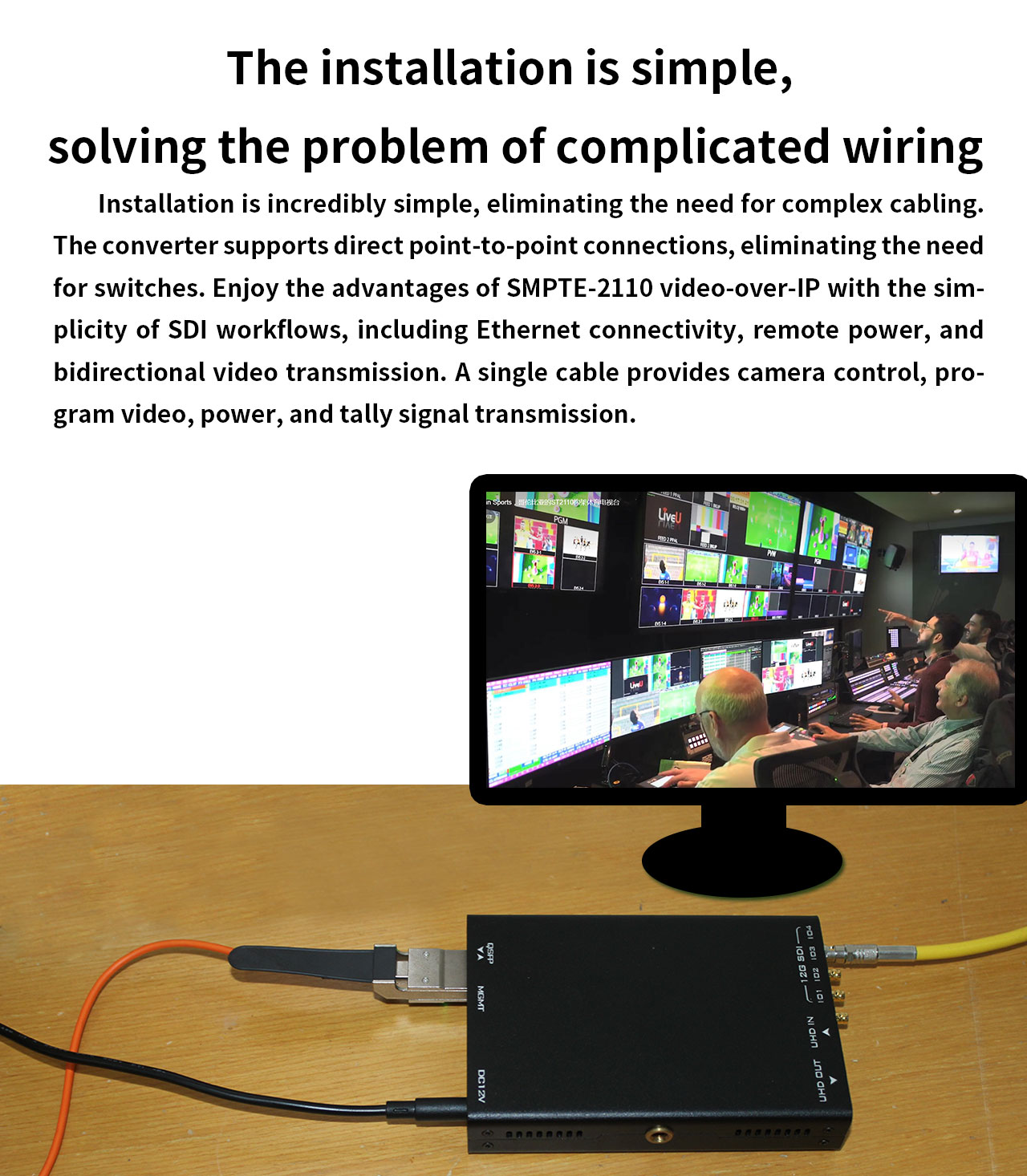

The installation is simple, solving the problem of complicated wiring

Installation is incredibly simple, eliminating the need for complex cabling. The converter supports direct point-to-point connections, eliminating the need for switches. Enjoy the advantages of SMPTE-2110 video-over-IP with the simplicity of SDI workflows, including Ethernet connectivity, remote power, and bidirectional video transmission. A single cable provides camera control, program video, power, and tally signal transmission.

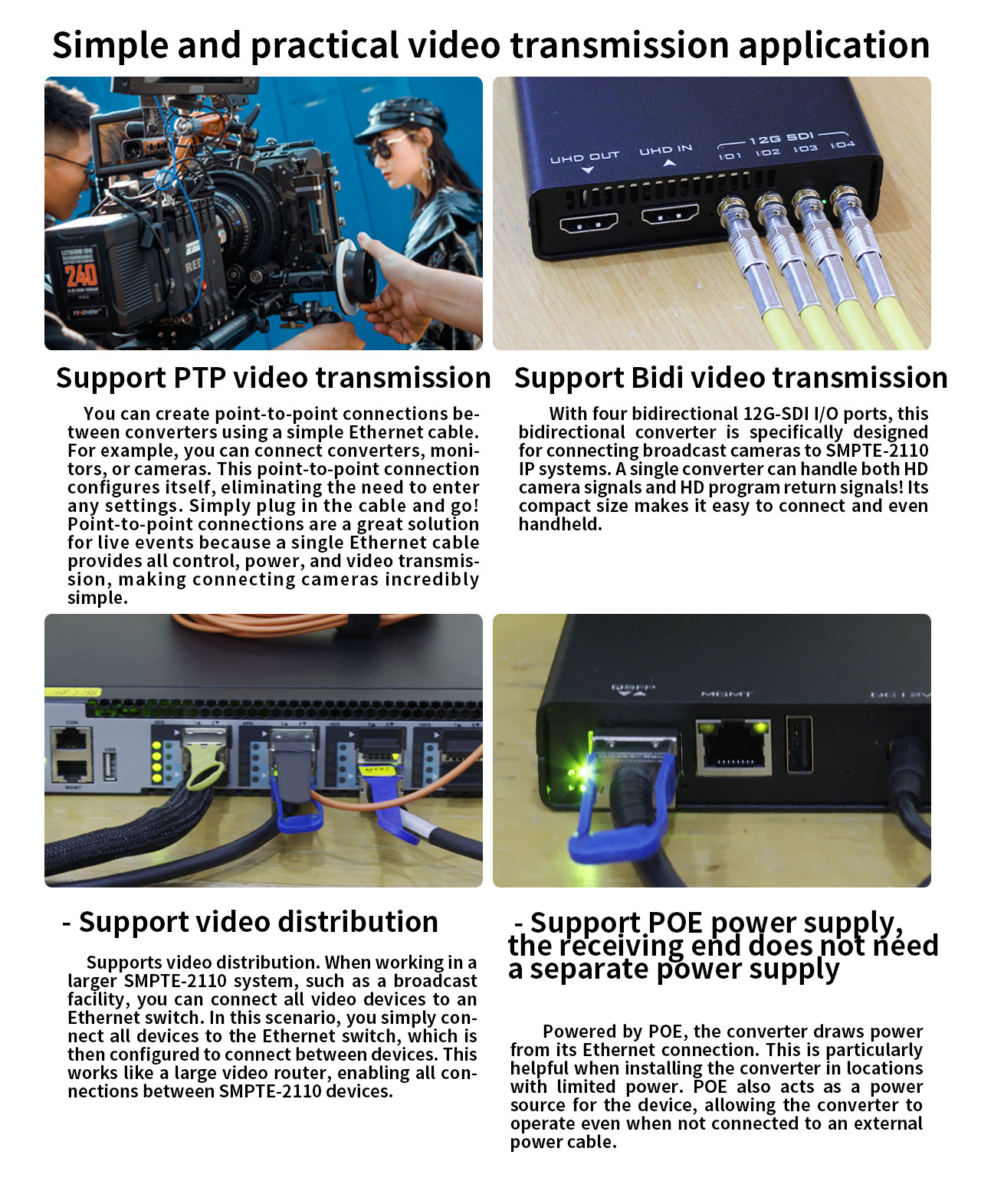

Simple and practical video transmission application

HDMI is ideal for TVs, monitors, and projectors

The DeviceWell ST2110 converter features a built-in HDMI interface for connecting to consumer cameras, monitors, TVs, video projectors, and even DeviceWell switchers. The HDMI interface automatically switches between HD and UltraHD video formats, allowing you to work with any common global television format. 720p HD formats include 720p50, 720p59.94, and 720p60. 1080i HD interlaced formats include 1080i50, 1080i59.94, and 1080i60. The DeviceWell ST2110 converter even handles 1080 PsF SDI formats, including 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, and 60p. For Ultra HD production, 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, and 60 are supported.

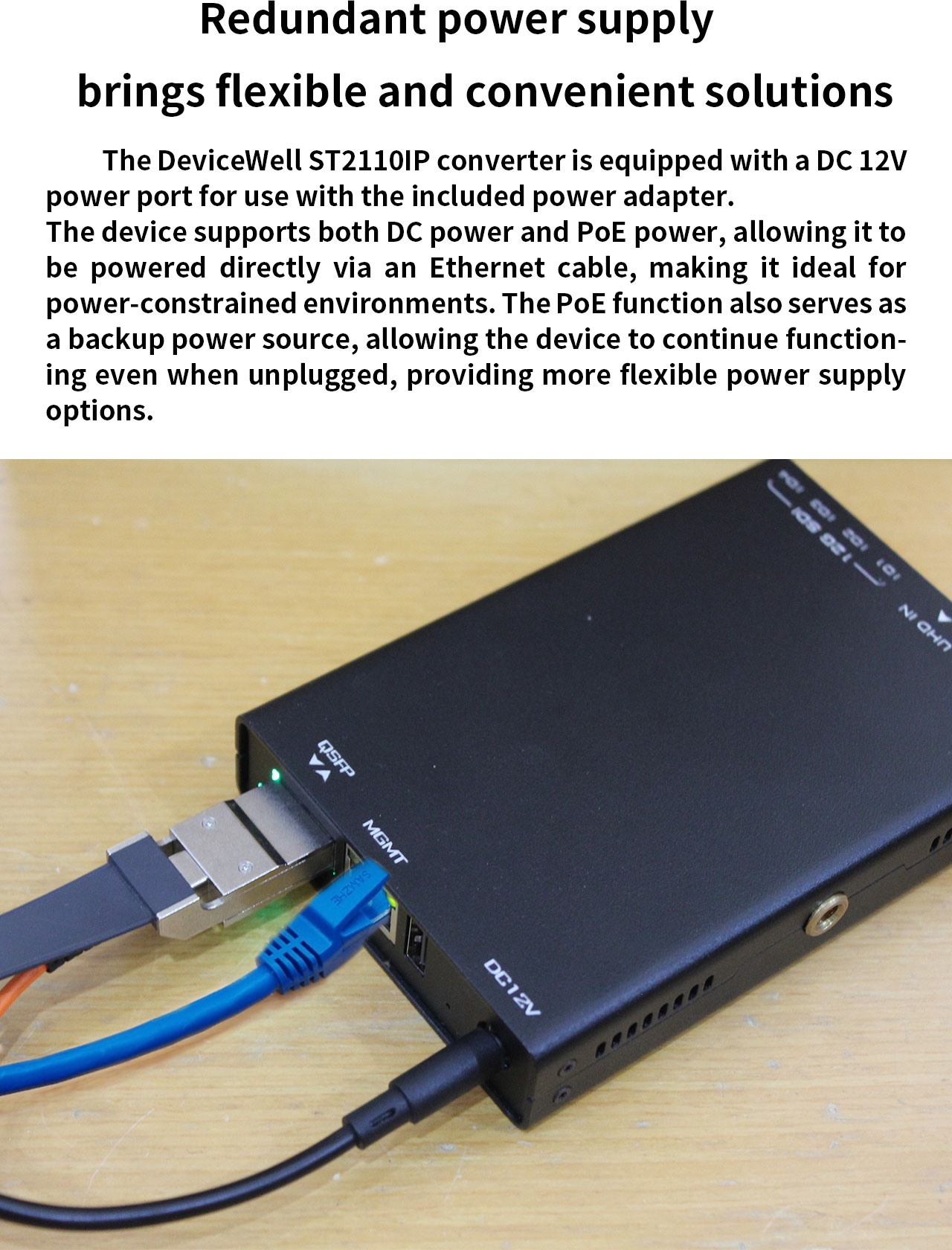

Redundant power supply brings flexible and convenient solutions

The DeviceWell ST2110IP converter is equipped with a DC 12V power port for use with the included power adapter. The device supports both DC power and PoE power, allowing it to be powered directly via an Ethernet cable, making it ideal for power-constrained environments. The PoE function also serves as a backup power source, allowing the device to continue functioning even when unplugged, providing more flexible power supply options.

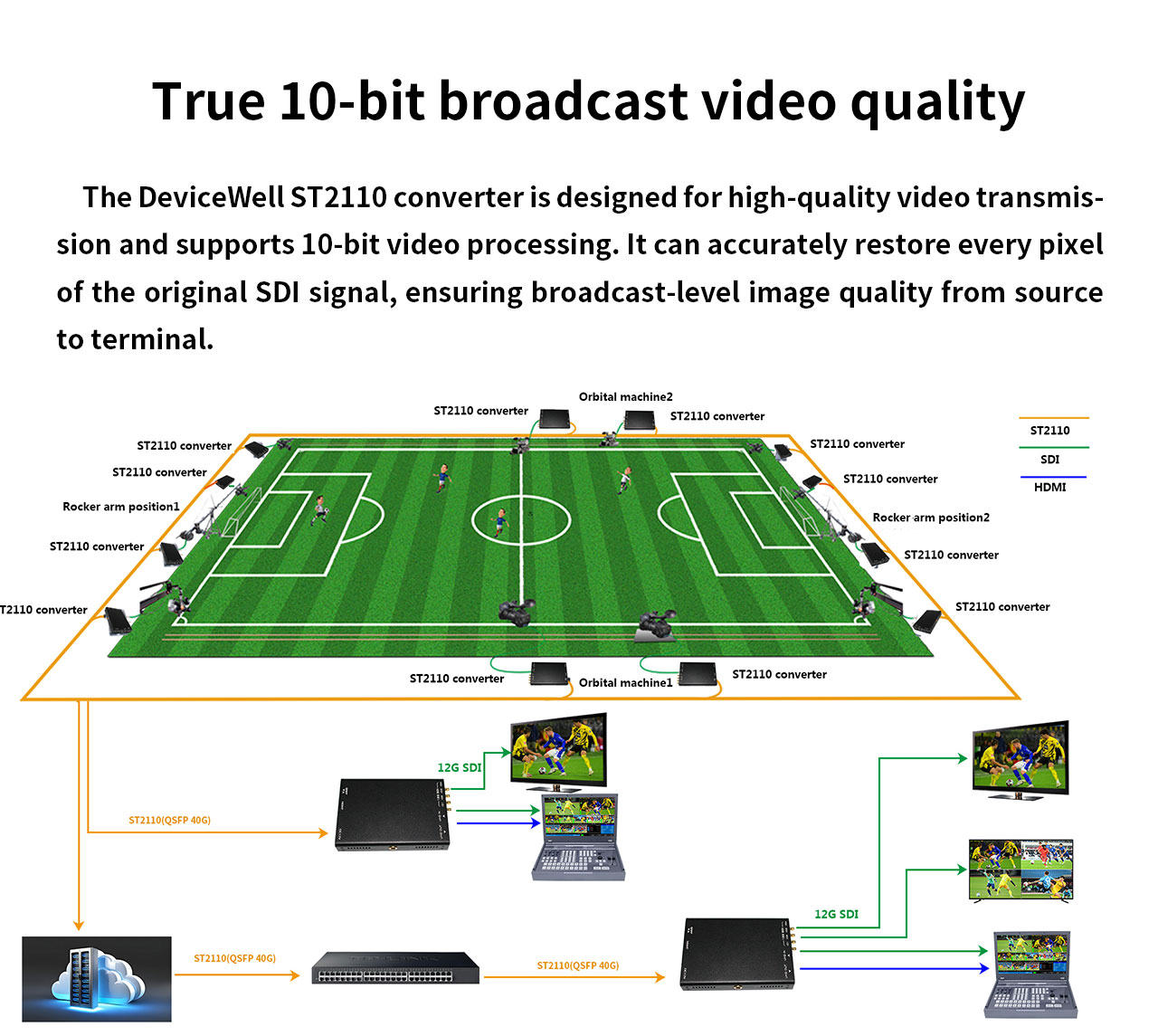

True 10-bit broadcast video quality

The DeviceWell ST2110 converter is designed for high-quality video transmission and supports 10-bit video processing. It can accurately restore every pixel of the original SDI signal, ensuring broadcast-level image quality from source to terminal.

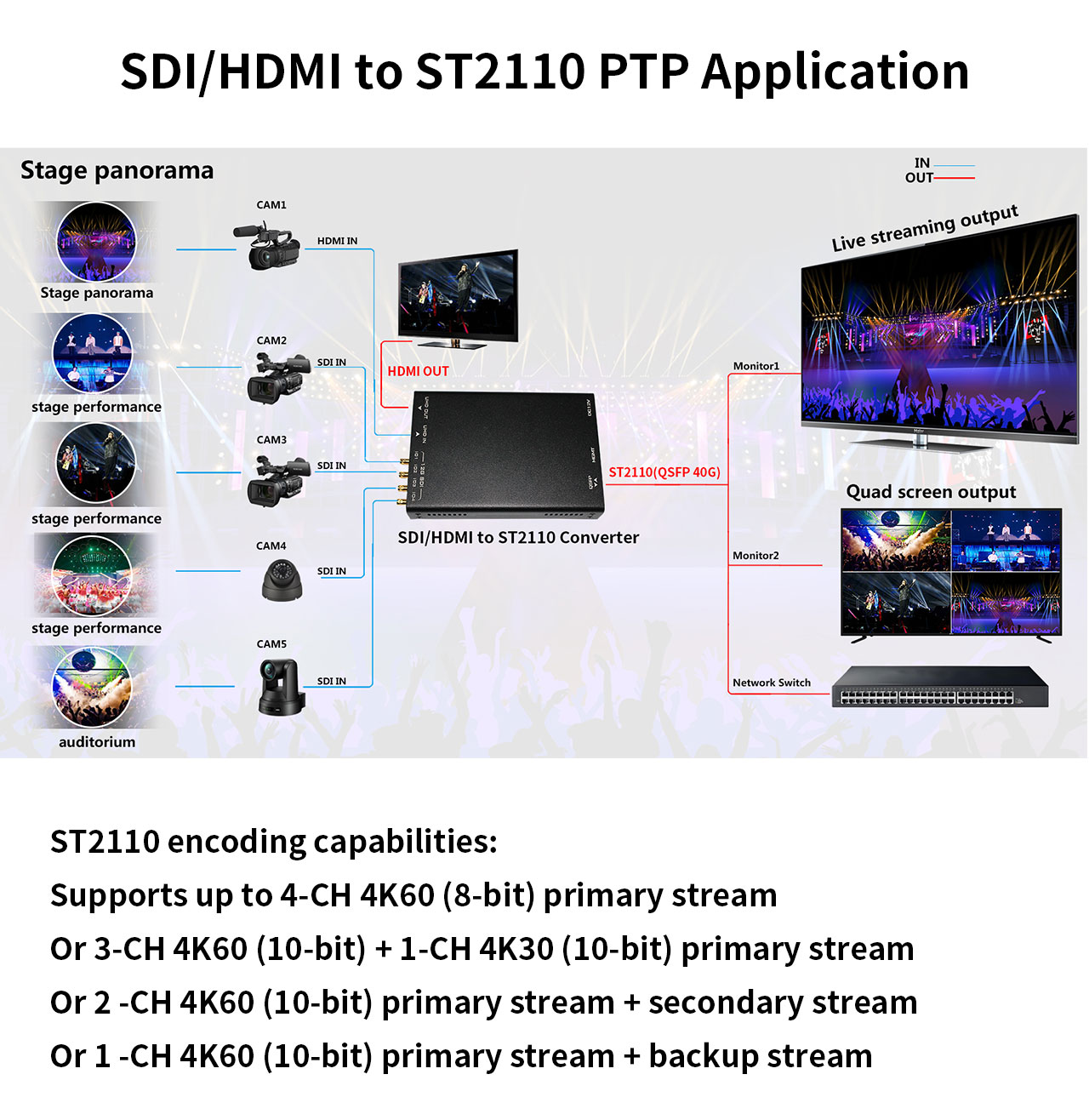

SDI/HDMI to ST2110 PTP Application

ST2110 encoding capabilities: Supports up to 4-CH 4K60 (8-bit) primary stream

Or 3-CH 4K60 (10-bit) + 1-CH 4K30 (10-bit) primary stream

Or 2 -CH 4K60 (10-bit) primary stream + secondary stream

Or 1 -CH 4K60 (10-bit) primary stream + backup stream

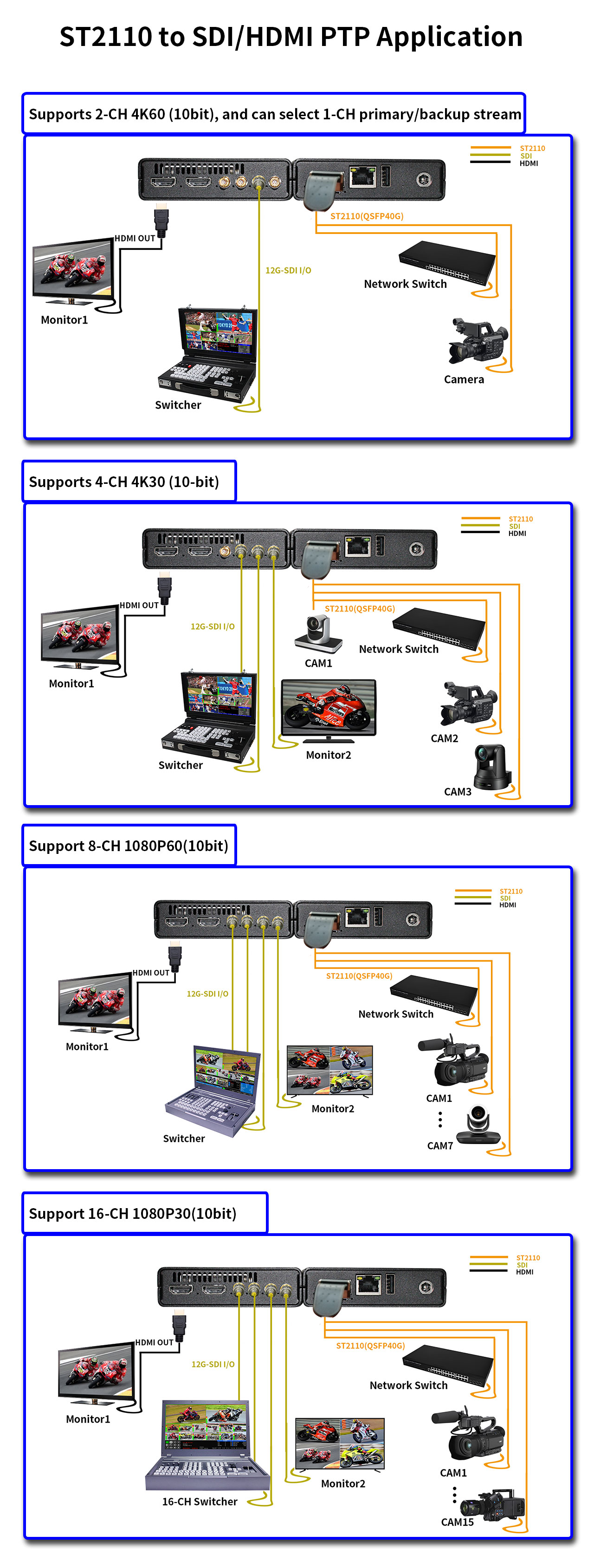

ST2110 to SDI/HDMI PTP Application

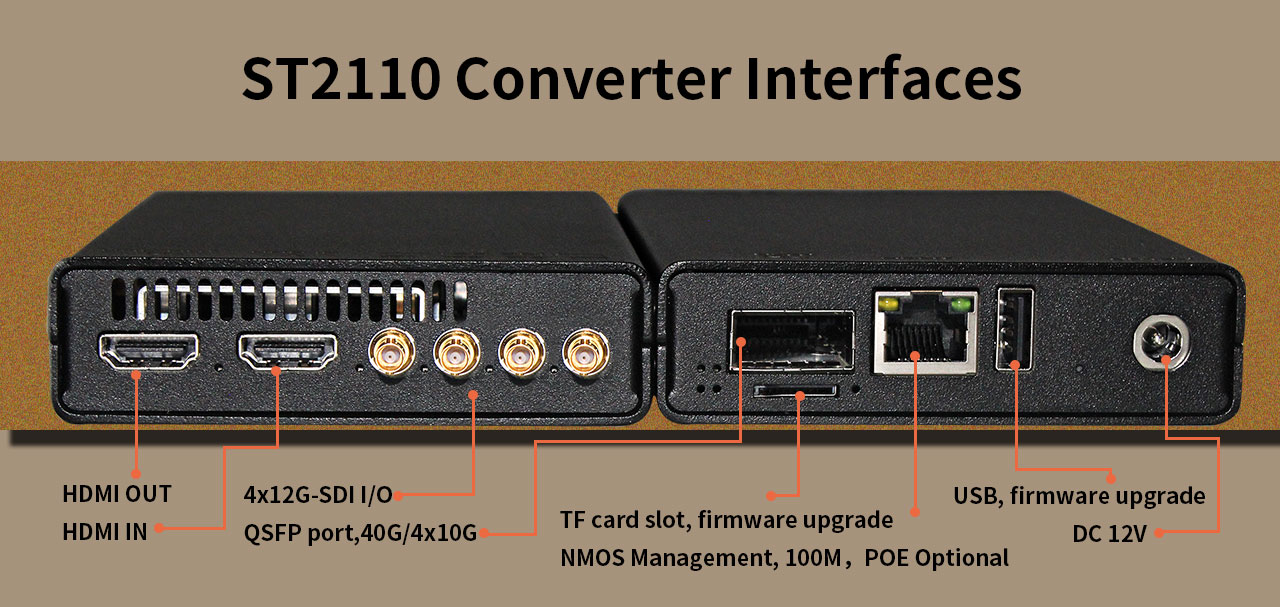

ST2110 Converter Interfaces





Downloading the instructions of the 40G ST2110/4x12G SDI BIDI uncompressed converterr of Devicewel
