HDS8325 Record+Stream+Touch Screen+2-CH HDMI Mini Switcher
Miniature full-featured switcher HDS8325 with 5-inch touch LCD screen. The device integrates an image scaling engine and adapts to the input signal. At the same time, it has built-in special effects generator, audio processor and video streaming media processing and other common switcher components. The interface supports 2 HDMI video signal input, 2 microphone and 1 line input, PGM output, analog audio output and tally output. PGM video stream can be output through UVC and RTMP network stream, and can also be recorded to TF card or external storage.
HDS8325 adopts high-strength metal shell, small size and easy to carry. It can be applied to the needs of small live broadcast and outdoor video special effects switching. For professional users, the keyboard can be extended through the DCB interface, which can be used in studios, outdoor sports events, program performances and other scenarios.
Features
Appearance
- 5-inch LCD screen.
All aluminum alloy body.
Hidden interface design. - Signal Input
- 2-CH HDMI signal input.
- 2-CH MIC signal input.
- 1-CH LINE input.
- 5" touch screen control.
- Signal Output
- 1-CH PGM output.
- 1-CH LINE output.
- 1-CH UVC output.
- Network push stream(RTMP).
- Signal Processing
- HDMI input resolution adaptive.
HDMI audio de-embedding.
audio follow, mix function.
Special effects transition such as MIX/FADE.
CUT hard cut and AUTO effect transition.
FTB output.
Color bar output.
Screen freeze function(STILL).
PIP function.
Key function (Luma key or Chroma key). - Control System
- Touch screen control.
DCB control.
Network remote control.
External expansion of tally system. - Others
- Others.

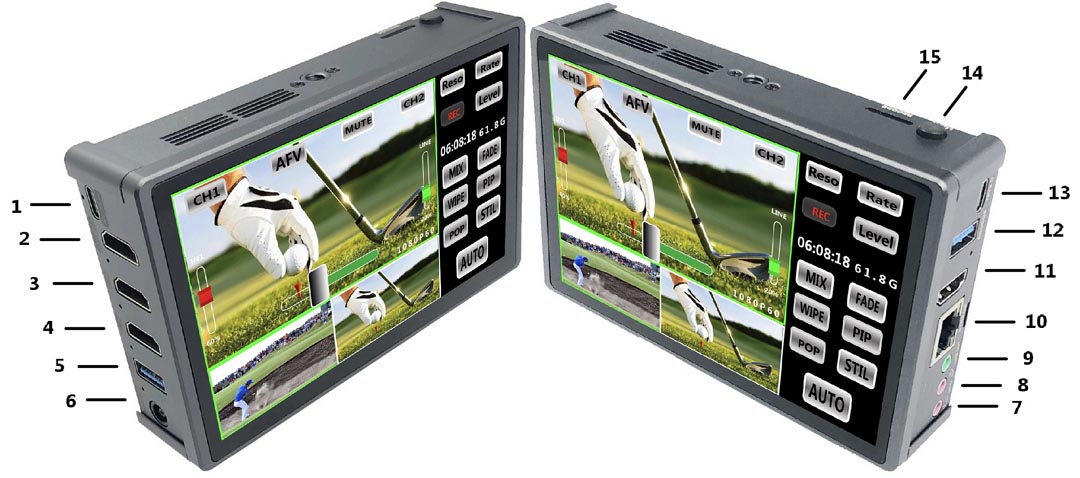

Interfaces
| No. | Definition | Description/Remark |
|---|---|---|
| 1 | STREAM OUT | Type_C interface、UVC output |
| 2 | PGM Out | PGM live output |
| 3-4 | HDMI In | 2-CH HDMI signal input |
| 6 | Power supply | DC 12V power supply |
| 7-8 | MIC IN | 2-CH MIC input |
| 9 | LINE OUT | Stereo audio output |
| 10 | RJ45 | Network push/network upgrade/remote control |
| 10 | EXT HDD | External hard drive |
| 11 | HDMI OUT | Alternate output |
| 12 | DCB/DCB2 | DCB control (device cascade/wireless tally/external keyboard) |
| 13 | 5V power supply | Type_C interface |
| 14 | Lock key | Switch and lock screen control |
| 15 | TF card | Storage card |

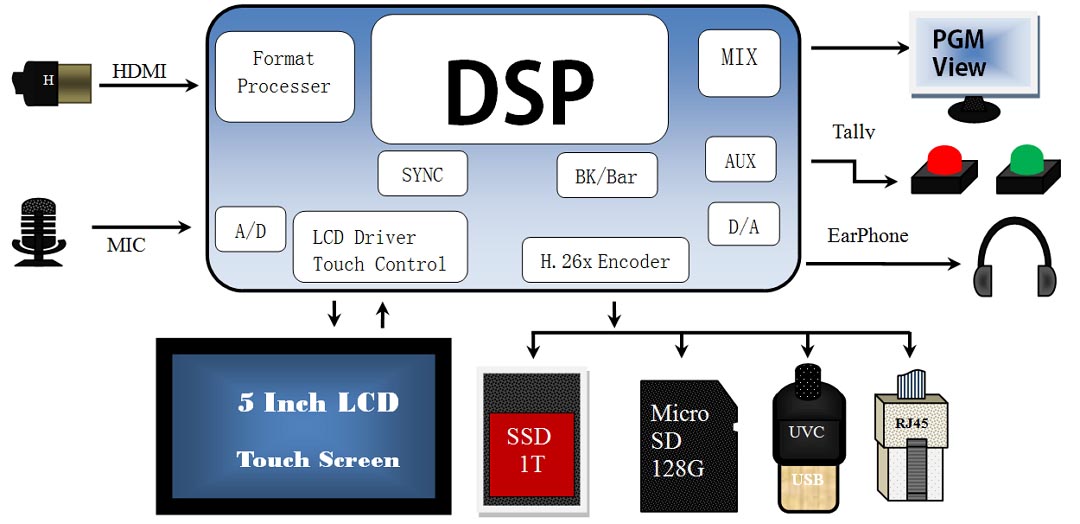

Function Diagram
Applications
| No. | Data Name | Version | Modified date | Description/Remarks |
|---|---|---|---|---|
| 1 |
HDS8325 Datasheet Download |
1.0 | March 25, 2022 | first release |
| 2 |
HDS8 series selection guide and function comparison table |
April 11, 2022 | ||
| 3 | Others |
