4Ksignal/100+Transition Switcher HDS8301 Record/Stream/Luma/Chroma



《Product Introduction》

The HDS8301, a dedicated switcher for Broadcast & TV / studio, adopts a portable integrated design, metal shell,small size and light weight, which can be applied to the video special effect switching requirements of small scenes. The device integrates multiview processor, special effect generator, audio processor, control keyboard and other common switcher components.



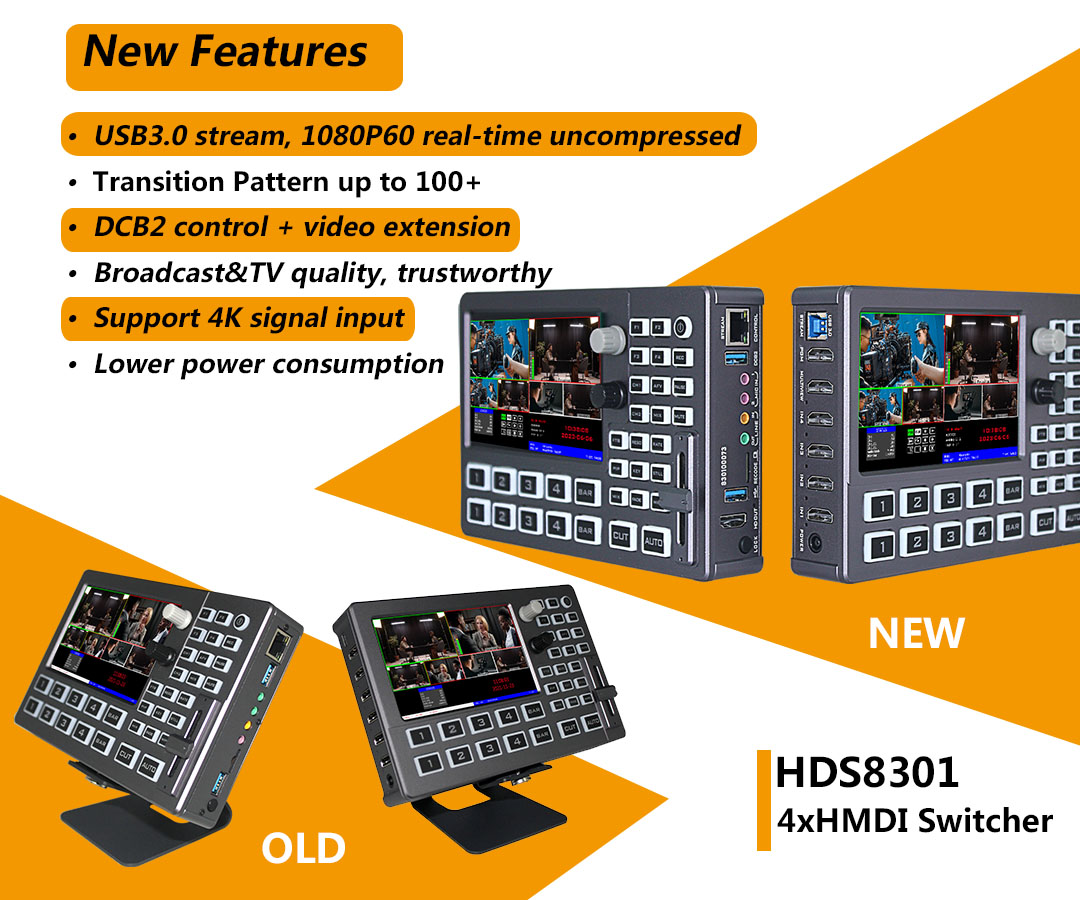

Product Feature

·Portable integrated design
·Metal body, high strength and light weight
·Support up to 4 HDMI inputs
·2 stereo MIC inputs
·1 LINE IN input
·1 LINE OUT output
·Support 1 USB3.0 output video stream, clear picture quality
·Hundreds of special effect wipes such as circle, rhombus,fan, plum blossom, shutter, etc.
·Support 4K signal input
·TF card to record PGM screen
·Chroma key and Luma key
·Support PC remote control
·The equipment comes with color baroutput screen
·Support audio follow, mix function
·Support HDMI audio de-embedding
·PGM output: 1 HDMI
·Multiview output: 1 HDMI
·Support special effects switching such as MIX / FADE
·Support CUT hard cut, support AUTO special effect switching
·Support Tally / Network control
·Support still function
·Support PIP/POP window function

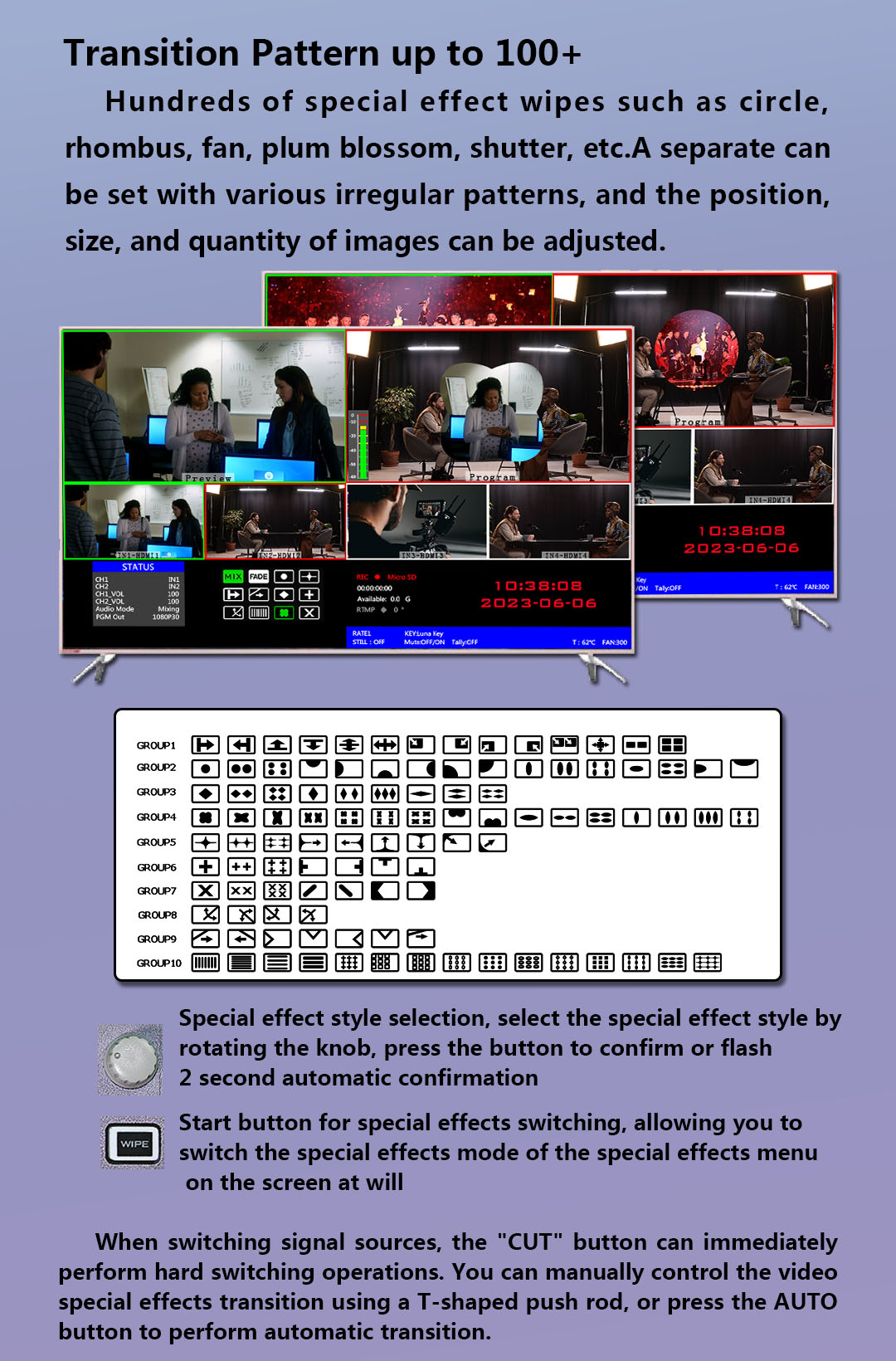

Transition Pattern up to 100+

Hundreds of special effect wipes such as circle, rhombus, fan, plum blossom, shutter, etc.

Please refer to this link for operation detail

Circle effect

Plum blossom effect

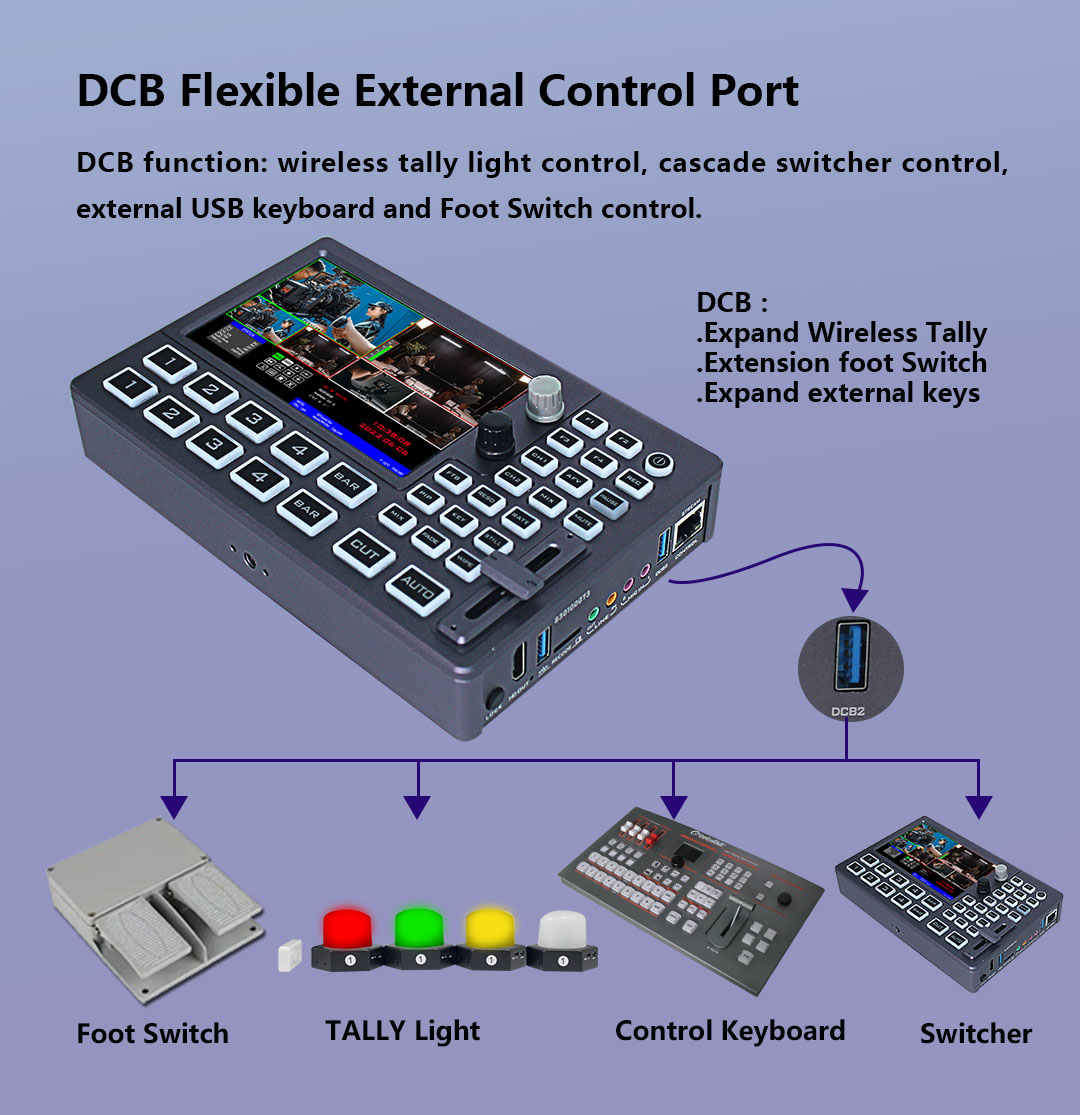

DCB Flexible External Control Port

Video switcher DCB function: wireless tally light control, cascade switcher control, external USB keyboardand Foot Switch control.

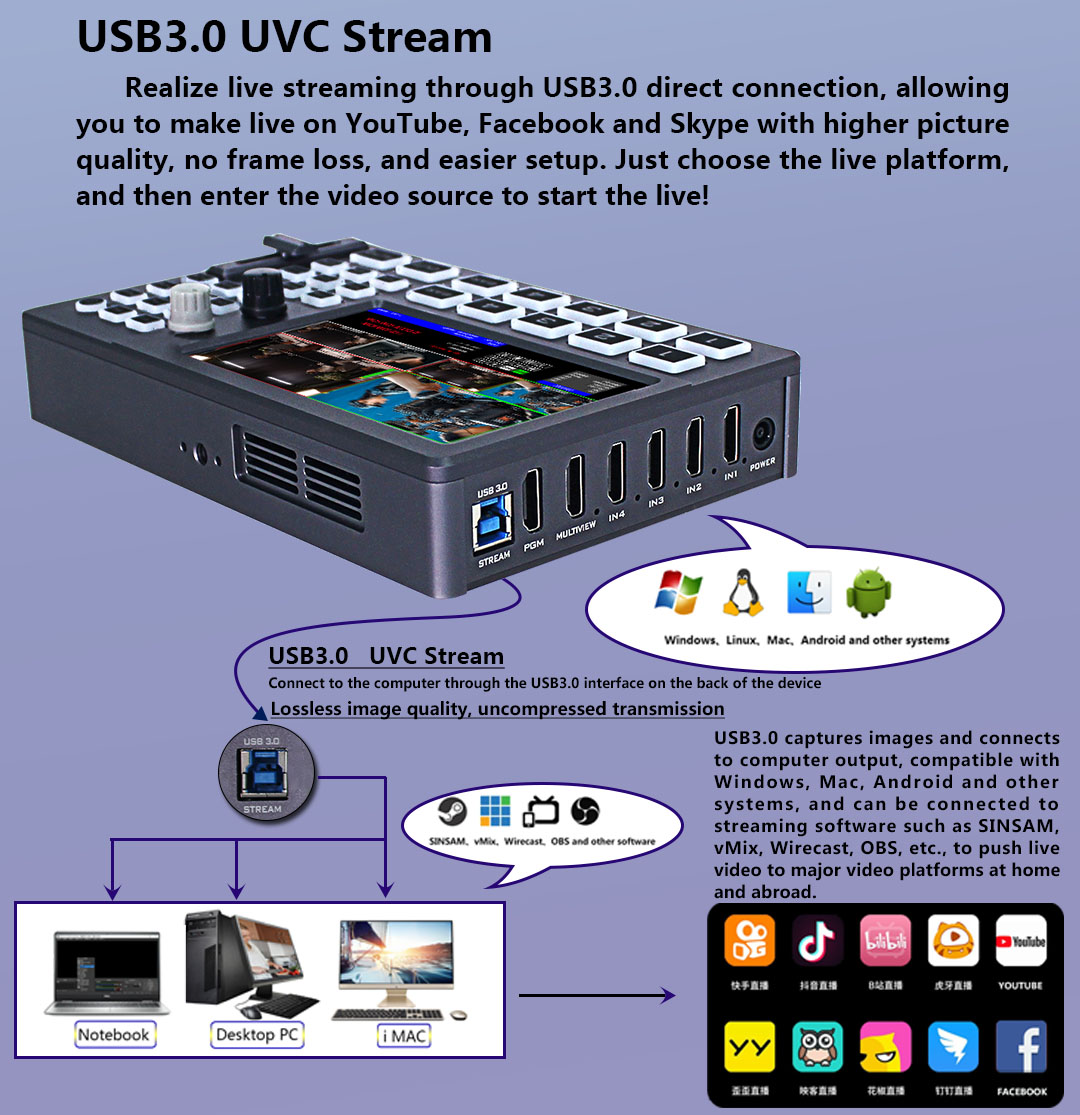

USB3.0 Stream

Realize live streaming through USB3.0 direct connection, allowing you to make live on YouTube, Facebook and Skype with higher picture quality, no frame loss, and easier setup. Just choose the live platform, and then enter the video source to start the live!

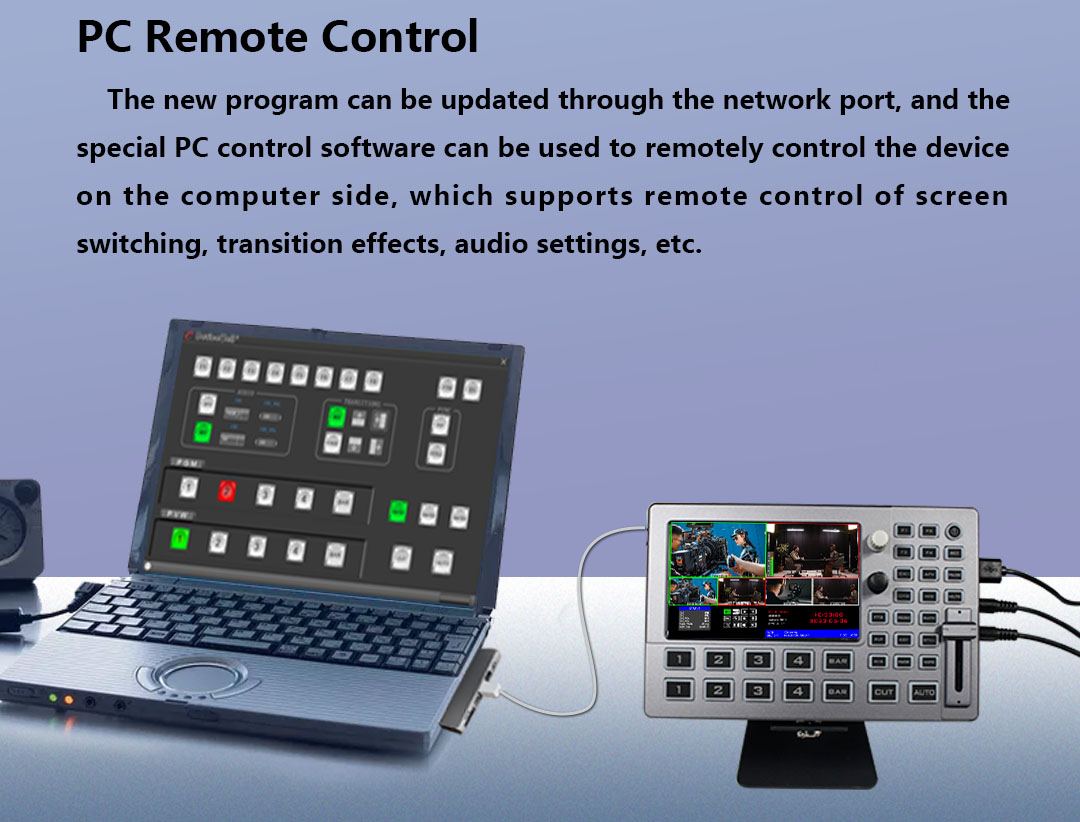

PC Remote Control

The new HDMI switcher can be updated through the network port, and the special PC control software can be used to remotely control the device on the computer side, which supports remote control of screen switching, transition effects, audio settings, etc.

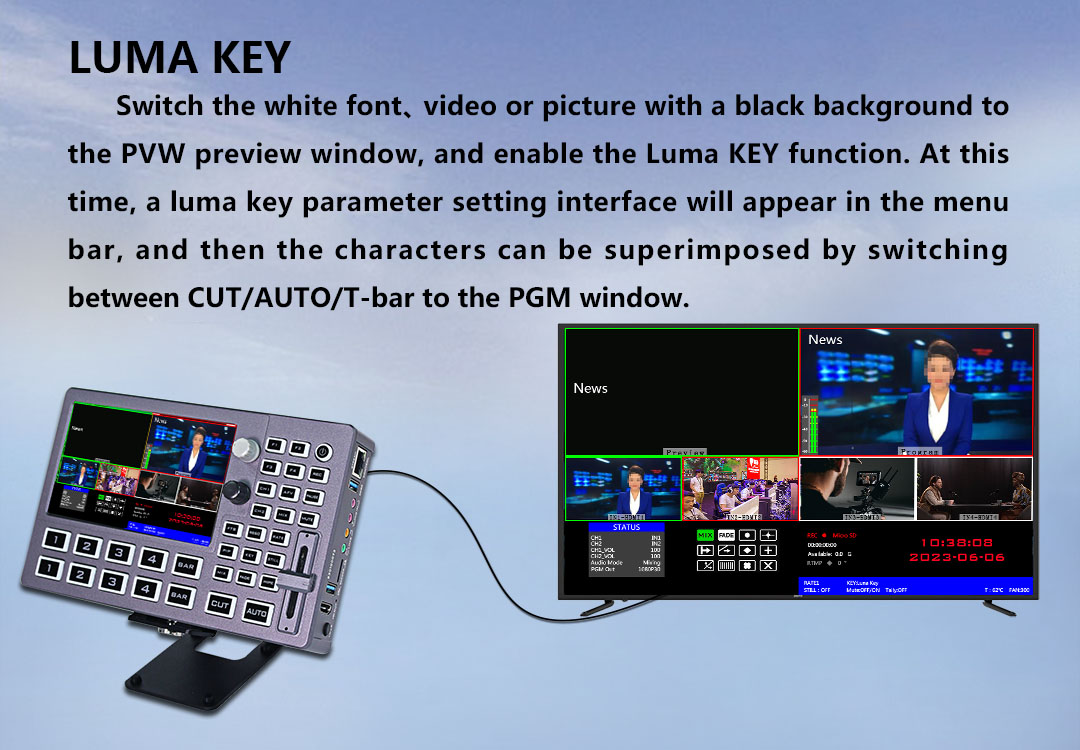

LUMA KEY

Luma KEY deducts the black part of the source, and then overlaps with the background image to achieve the purpose of keying and superimposingthe background. It is mostly used in broadcast and TV programs, live speeches, superimposing subtitles in virtual studios and other scenarios.





CHROMA KEY

Chroma Key supports dynamic video source image and static source keying, key out the blue or green part of the source, keep other colors, and then overlap with the background image to achieve the purpose of keying and overlaying the background. It is mostly used in broadcast and TV programs, live speeches, superimposing subtitles in virtual studios and other scenarios.

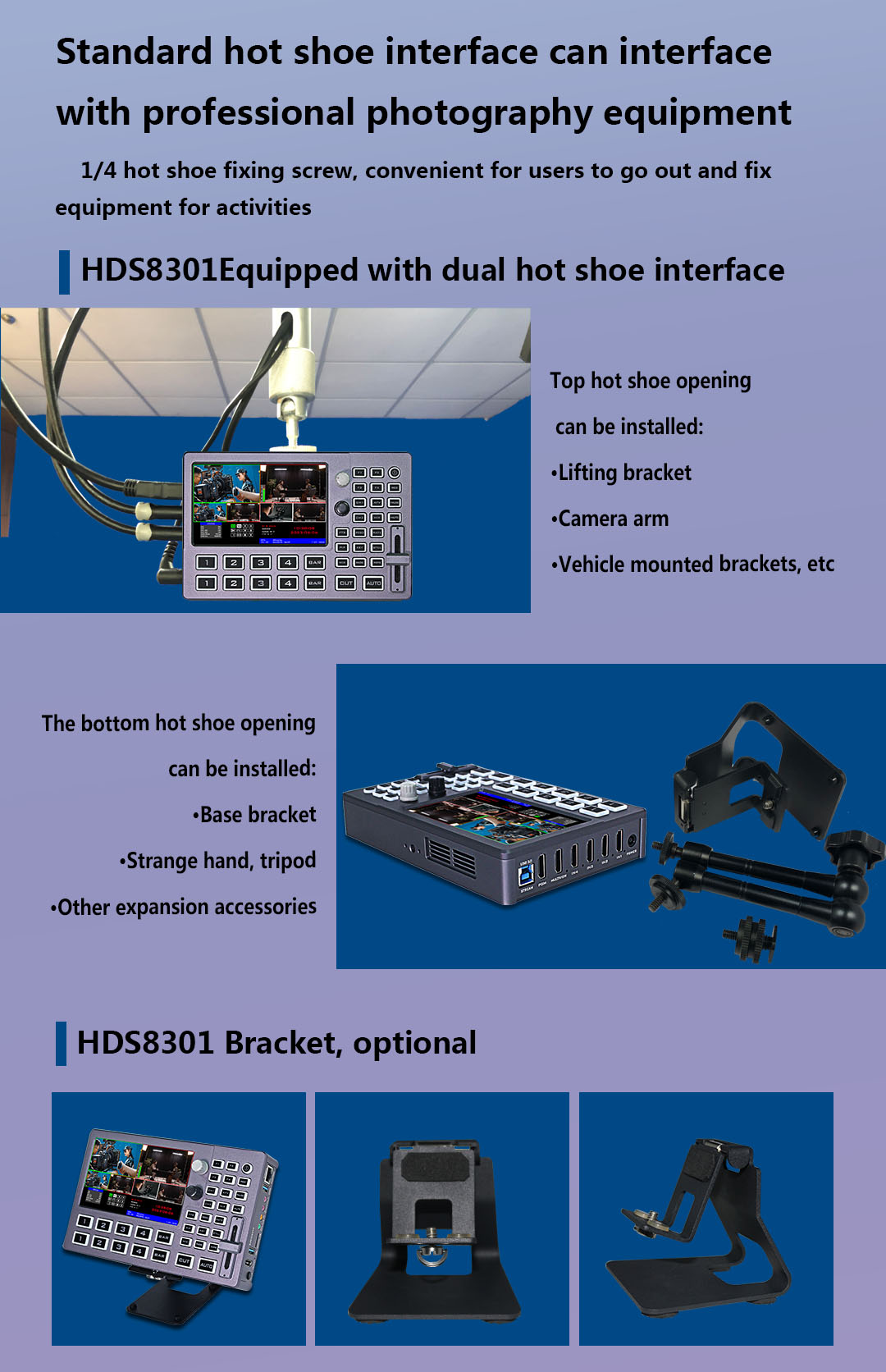

HDS8301 Equipped with dual hot shoe interface

Hot shoe interface facilitates device fixation
Standard hot shoe interface can interface with professional photography equipment
HDS8301Equipped with dual hot shoe interface


Top hot shoe opening  can be installed:

·Lifting bracket ·Camera arm ·Vehicle mounted brackets, etc


The bottom hot shoe opening  can be installed:

·Base bracket ·Strange hand, tripod ·Other expansion accessories

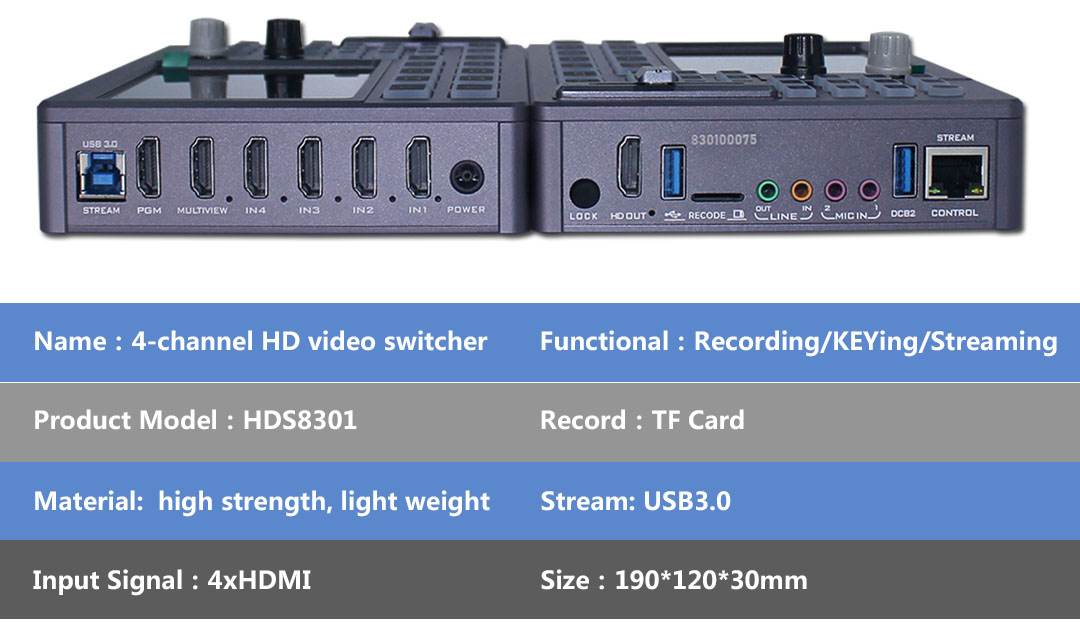

4-CH Video Switcher HDS8301

The four channel switcher HDS8301 is a device with 4channels of HDMI input video signals, 1 channel of HDMI live streaming PGM output, 1 channel of HDMI multiview output, and 1 channel of HDMI recorded live streaming image output.



Application Diagram

The four channels small switcher HDS8301 is a device with 4channels of HDMI input video signals, 1 channel of HDMI live streaming PGM output, 1 channel of HDMI multiview output, and 1 channel of HDMI recorded live streaming image output.The external preview signal can be output synchronously. The switcher supports HDMI embedded audio + external analog audio. After mixing, it can be embedded in the output HDMI signal or output from the analog port. The resolution of all input signals is automatically adapted,and the resolution of output signals can be selected according to requirements, which is quite flexible. Widely used in broadcast&TV, HD digital medical industry, education and teaching, multimedia video conferencing, image transmission, large-scale multimedia high-definition display, outdoor large-screen display, large-scale stage display, sports events, military command and exercise, emergency command and control center, automation control Center and multimedia teaching and other fields.

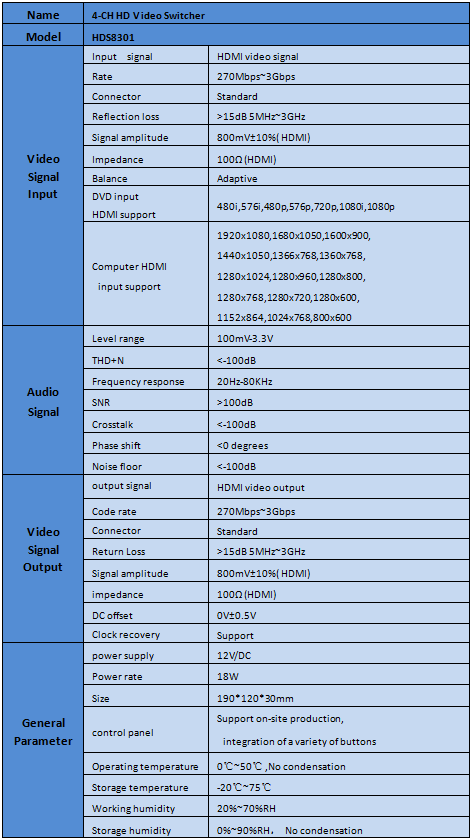

Technical Paramete



Downloading the instructions of the HDS8301 Switchers of Devicewel

Serial No.

Material name

Version

modification date

Description/Remarks

1

HDS8301 Specification Download

1.0

June 8, 2023

Initial Issue

2

HDS8301 Photos Download

1.0

June 8, 2023



3

Others









DeviceWell Switcher Document Download



Switcher Video switcher HDMI Switcher Small Switcher DeviceWell
