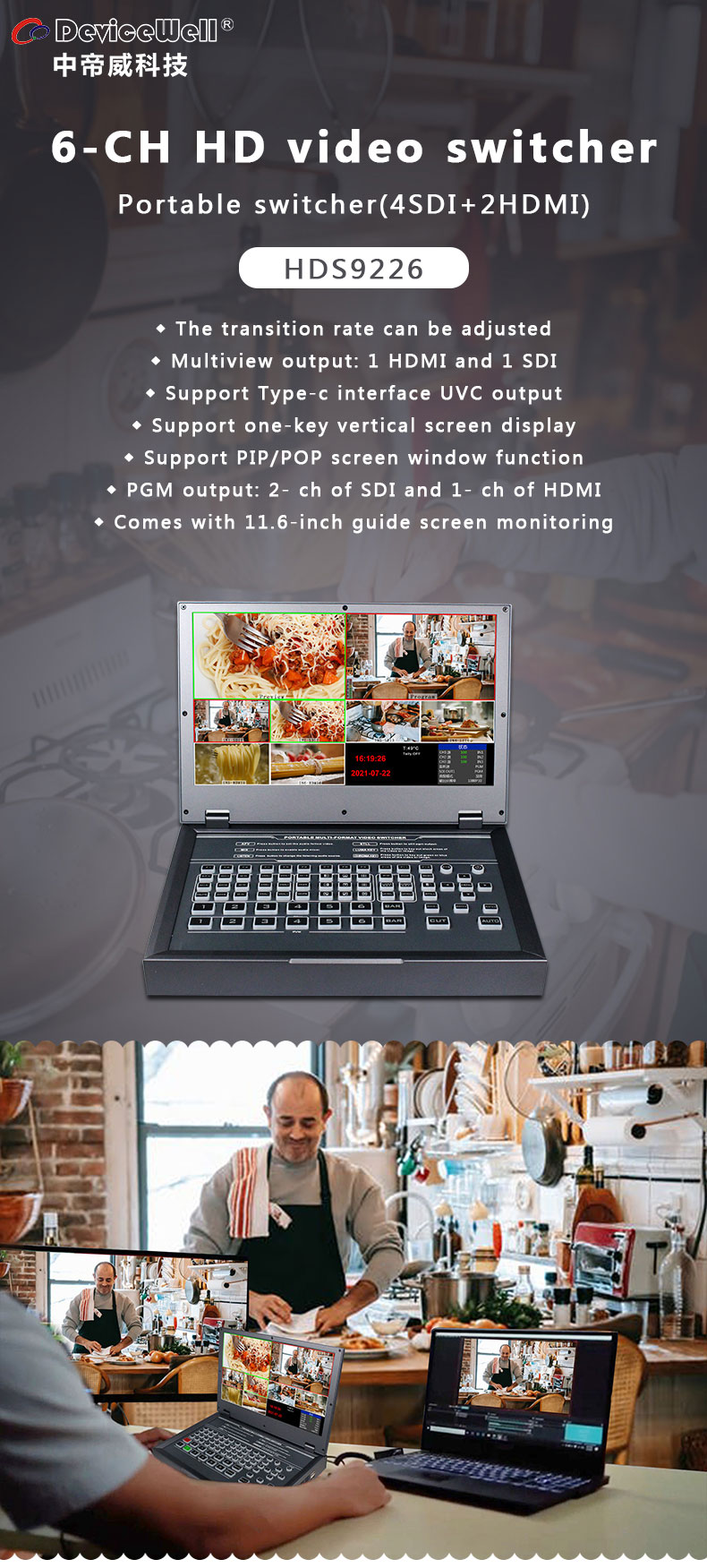

6-CH HD video switcher HDS9226



Product Overview

    DeviceWell HD Video Switcher HDS9226, adopts a portable integrated design, a clamshell metal shell, and an 11.6-inch LCD display. Standard size: 285*190*43mm, suitable for video effects switching requirements in small outdoor scenes . The equipment integrates common components of switcher such as multiview processor, special effect generator, audio processor, control keyboard and so on.

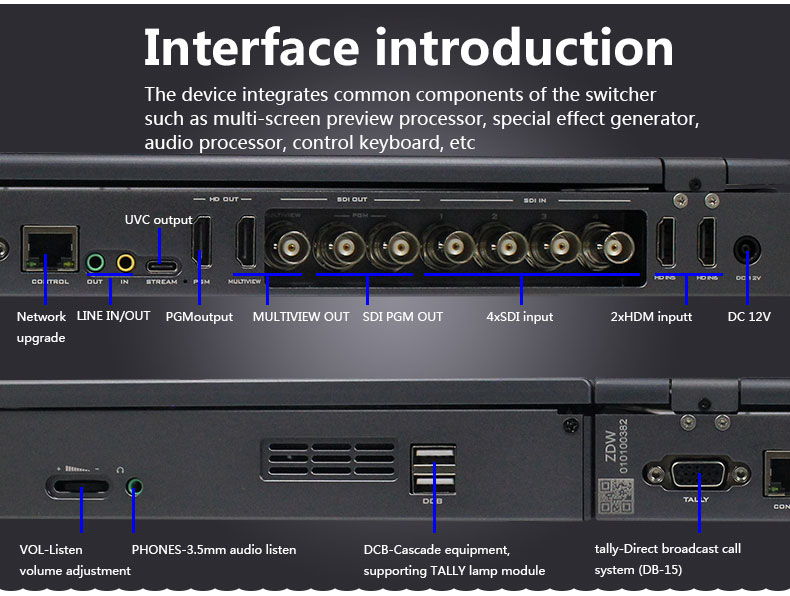

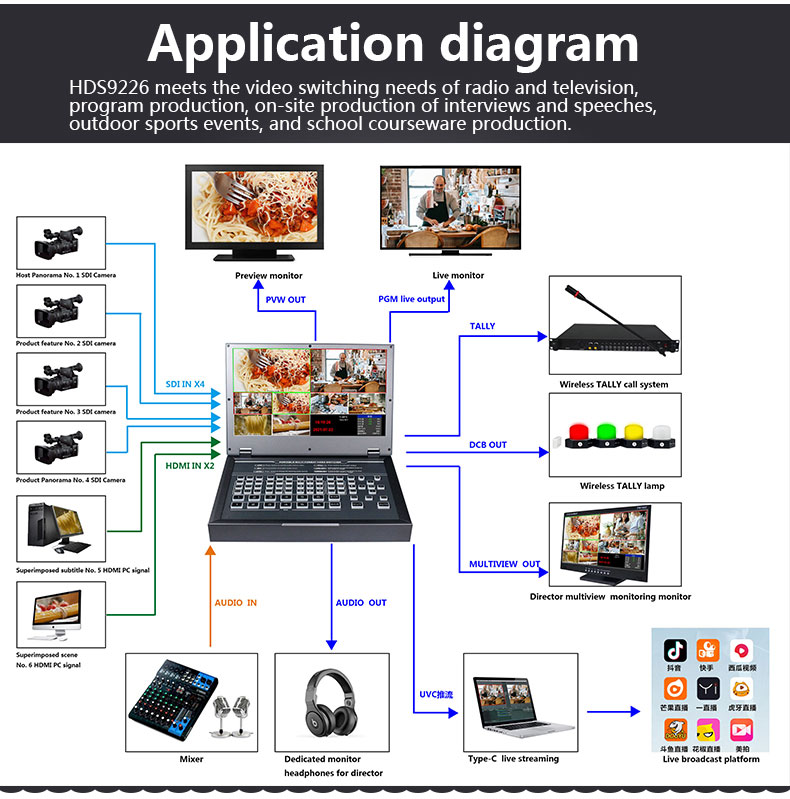

HDS9226 supports 4 channels of broadcast-grade SDI and 2 channels of HDMI, totaling 6 channels of video signals. The external preview signal can be output synchronously. HDS9226 supports SDI embedded audio + external analog audio. After mixing, it can be embedded in the output SDI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the output signal resolution can be selected as required, which is quite flexible. For video switching needs such as broadcast and television, outdoor sports events, school courseware production, etc., the functions of HDS9226 can fully meet.
