Comes with 17 inch full HD screen

Support Tally

Support video recording

Professional Hall TBar

Support network video streaming

2 built-in USB players

Supports 3-channel audio mixing

Support network interface remote control

SDI x 8 + HDMI x 2 for 10 channels

Support luma key, chroma key

HDS9110 Portable 10-Channel Switcher Comes with a 17.3-inch

LCD display; supports SD card recording; supports 2 USB inputs;

supports TALLY call system; supports multiple functions such as

brightness and chroma keying.

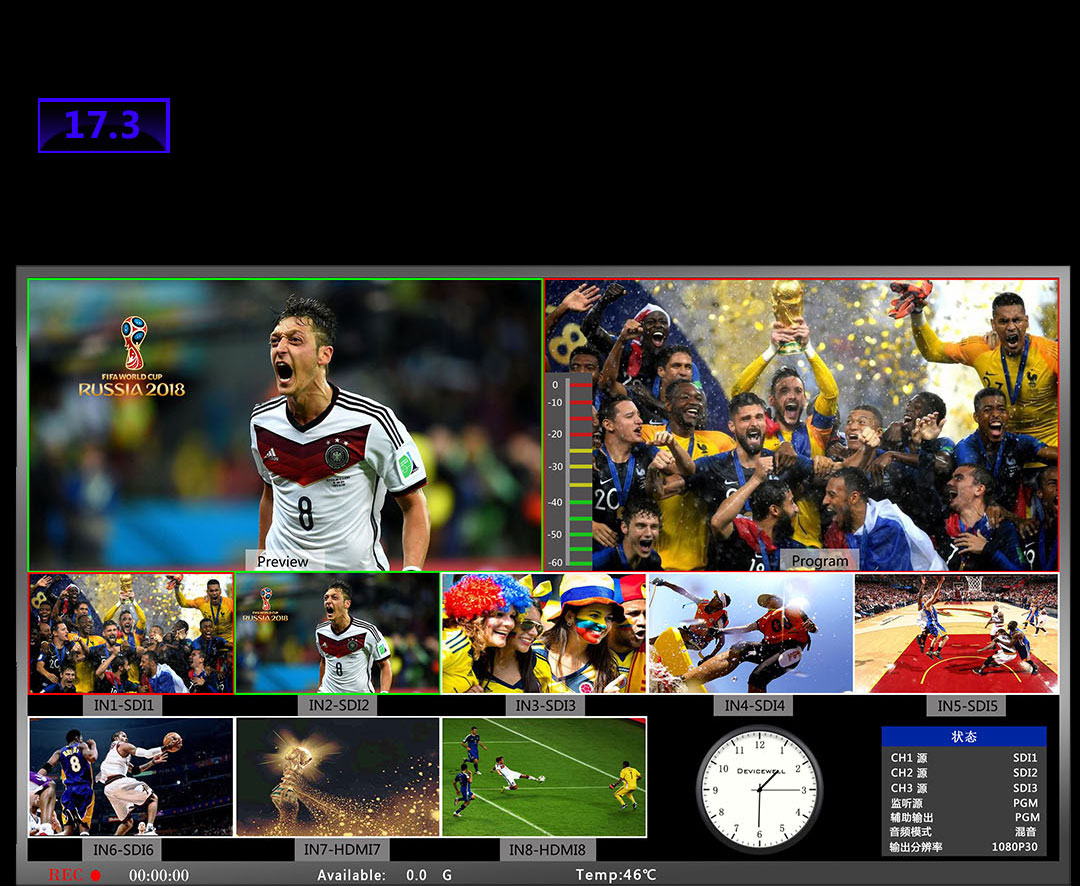

HDS9110 comes with a 17.3-inch LCD screen, which can

directly display the multi-screen mode. Up to 8 video

signals can be displayed on the LCD screen at the same time.

The status of each video signal is also displayed in this screen

at the same time. The panel switches directly.

HDS9110 supports YUV422, 10-bit video output, and has 8

groups of 1080P signal inputs. It is specially designed for

live events and TV programs that need to process multiple

video and sound sources. The HDMI input supports 4K60

and is backward compatible.

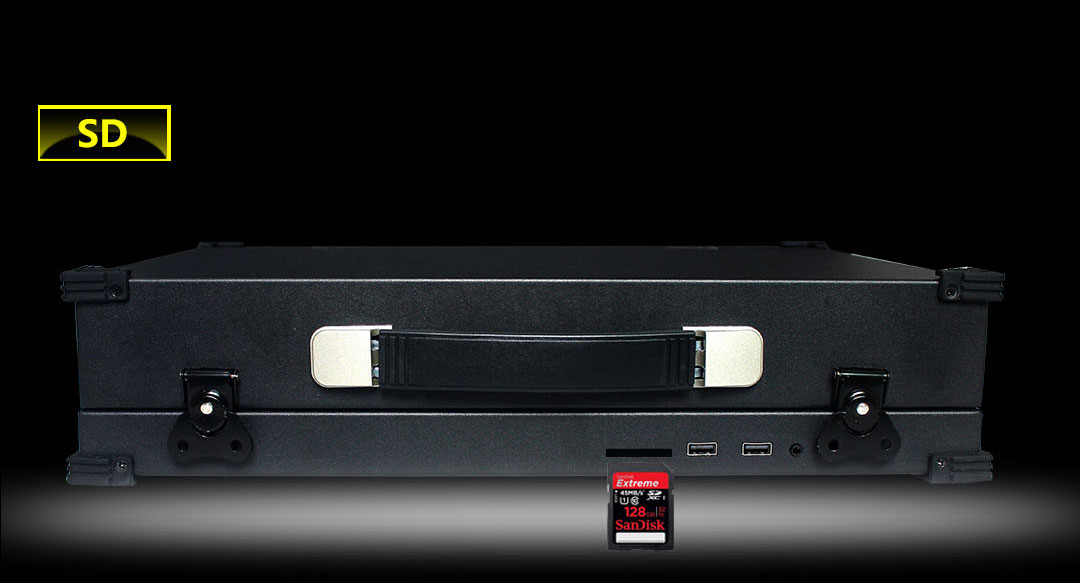

HDS9110 supports one-click recording function of SD card

The recorded bit rate is divided into 4 levels: low 6M,

medium 12M, high 18M, super high 24M. The size of

the video file recorded by the SD card is 1.95G,

and the recorded video file can be edited by PR / ED.

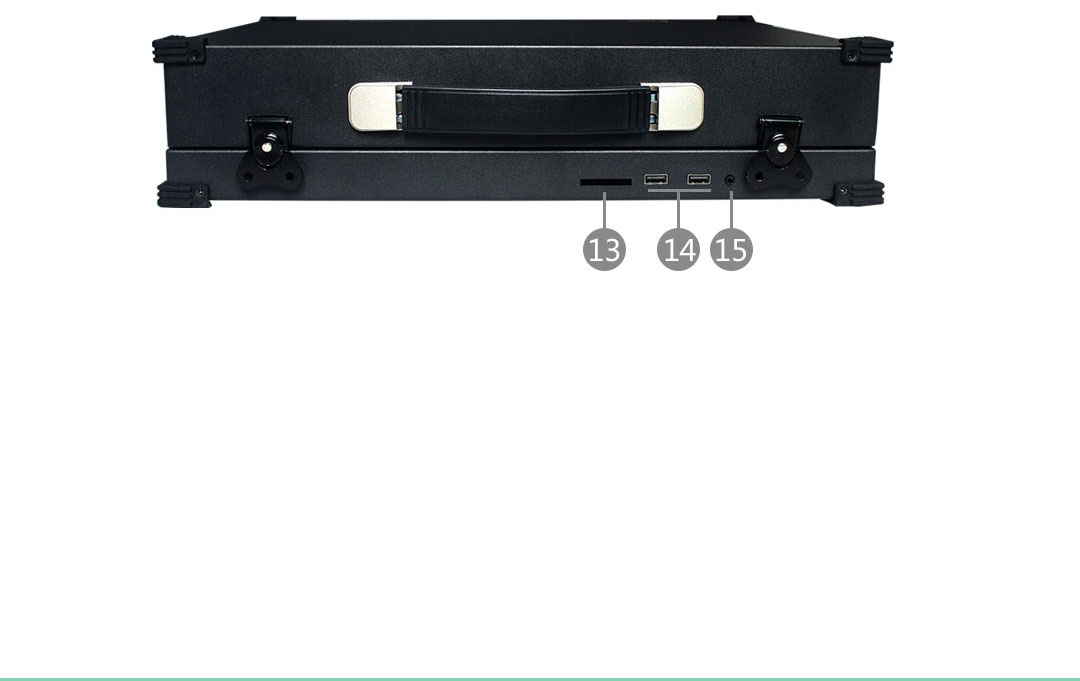

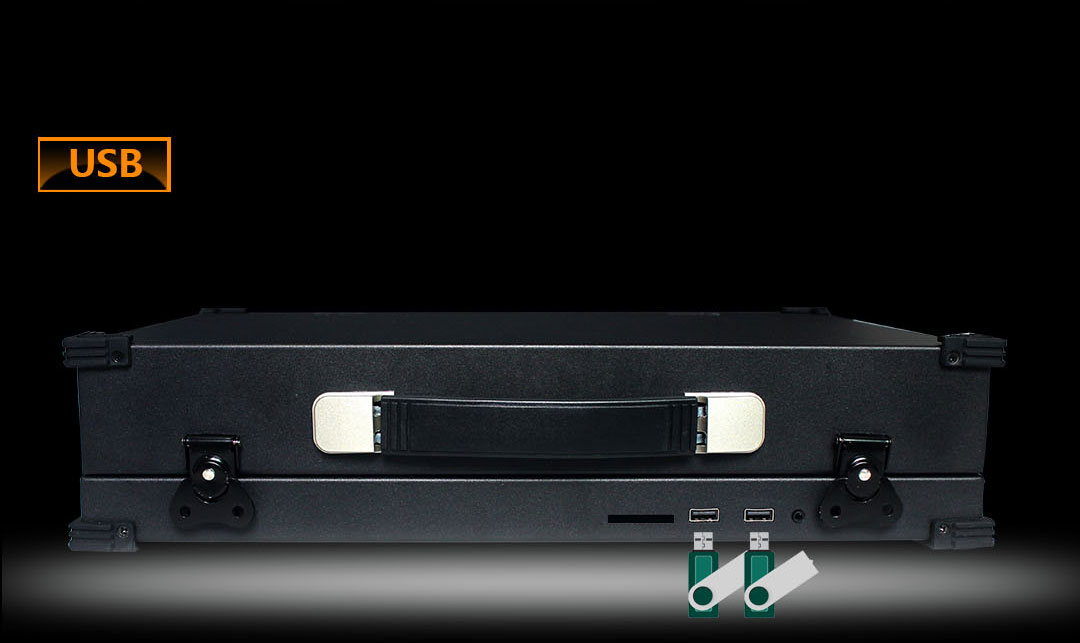

HDS9110 supports two USB signal inputs (picture / video)

The media player supports picture formats: .jpeg, .png, .bmp.

The media player supports video formats: HEVC, MPEG2_HD,

GAAC, MPEG2, Miracast, MPEG4_HD, MPEG4, MVC, VP9,

MPEG4_SD, H.264, VC1, VP8, FLV. (Note: The encoding

compression method must be H.264)

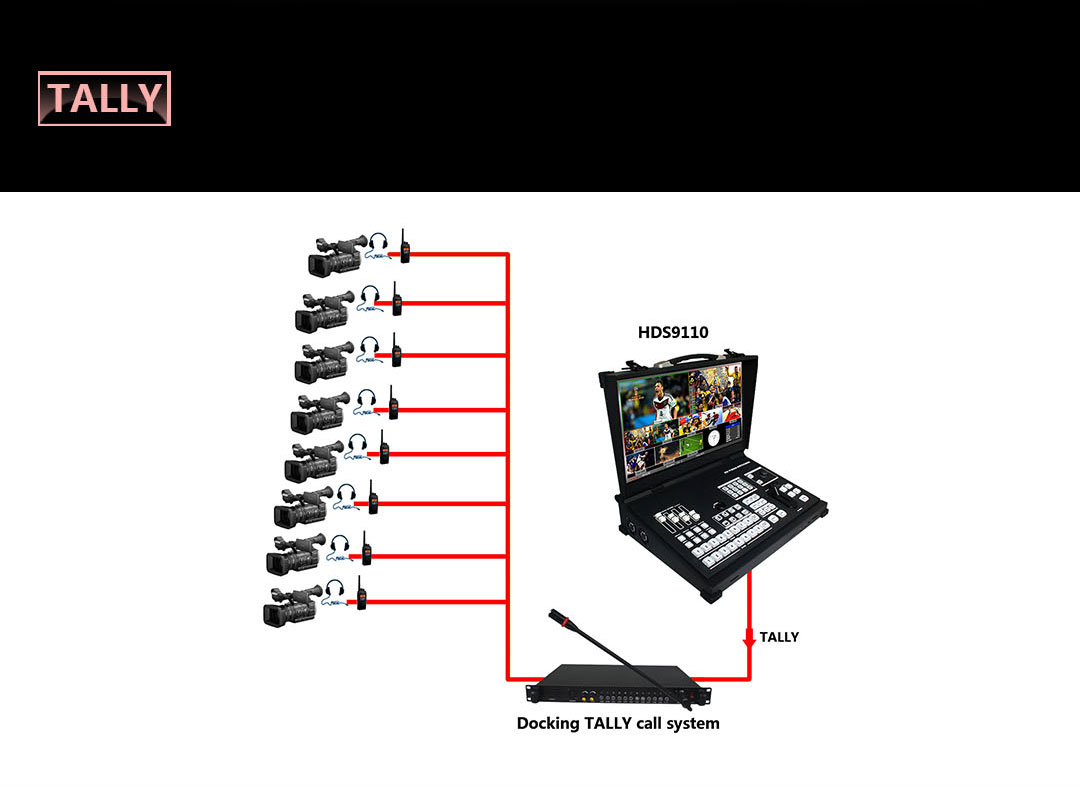

HDS9110 is equipped with DB-25's TALLY interface, which

can be connected to the TALLY communication system, so

that remote cameras can be controlled in real time to ensure

the output picture is more perfect.

HDS9110 supports up to ten special effect

switching modes Support MIX / FADE / WIPE /

INV and other switching effects Among them,

WIPE includes four directions switching After

pressing INV, the screen of WIPE shows the

movement in the opposite direction.

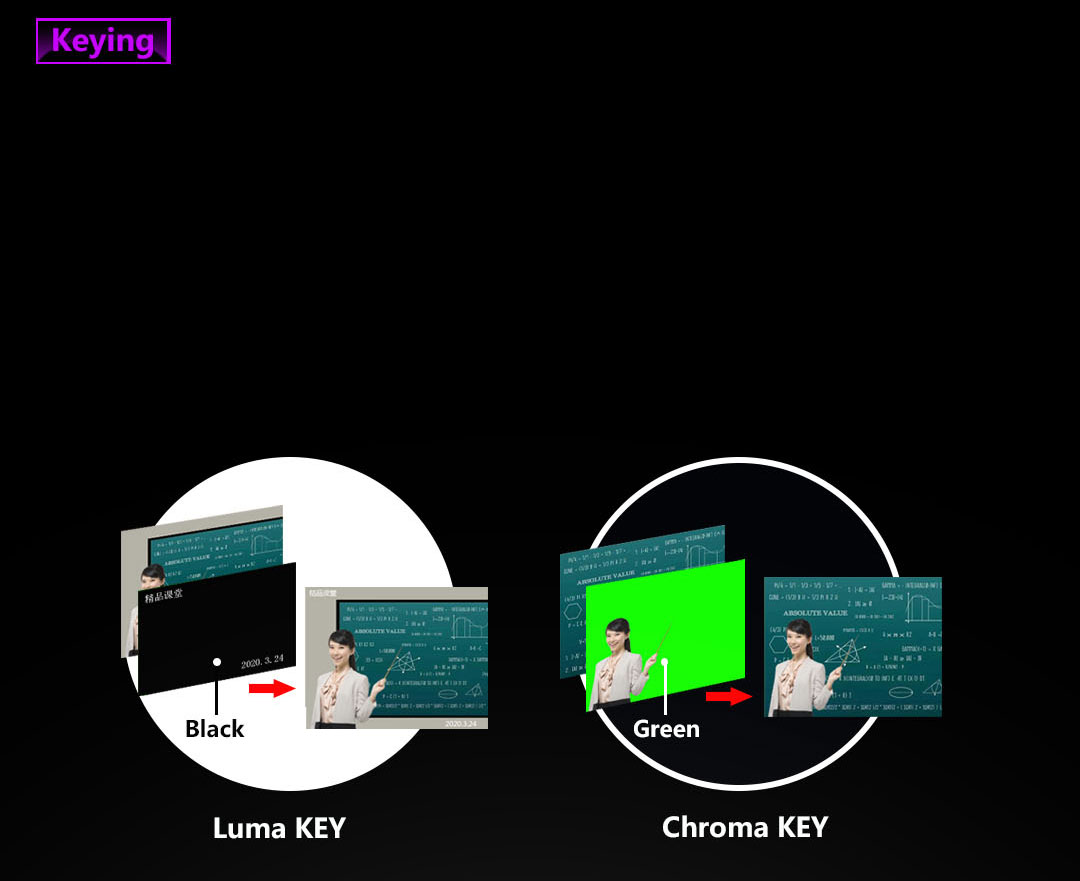

HDS9110 supports Luma KEY and Chroma KEY processing.Brightness keying supports\

dynamic video source and static source keying. The switcher will key out the black

part of the key source and then overlap the background image to achieve the purpose

of keying and superimposing the background. Chroma keying supports dynamic video

source and static source keying. The switcher will key out the blue or green part of

the key source, retain other colors, and then overlap the background image to

achieve the purpose of keying and overlaying the background. Such luma and chroma

key processing enables users to perform creative live broadcasts.

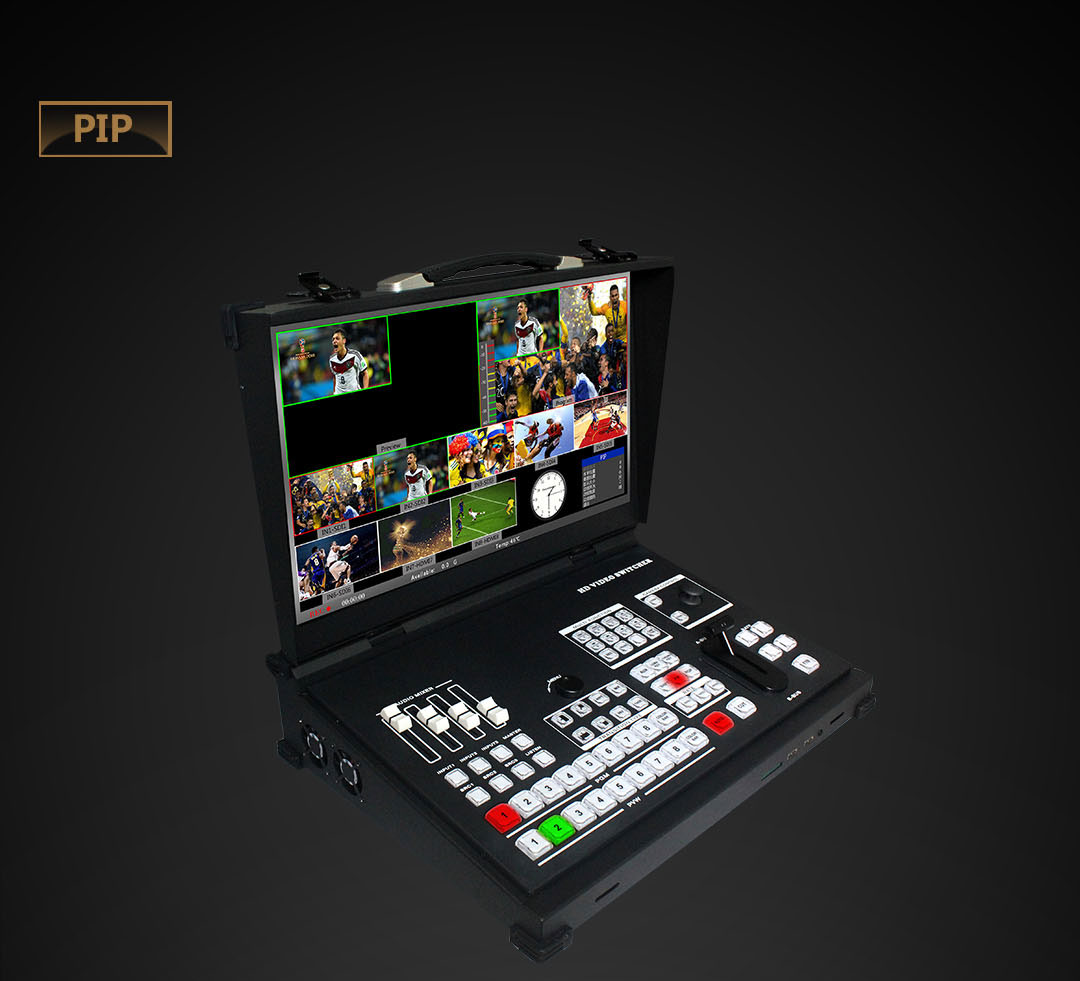

HDS9110 supports PIP (picture in picture) mode display.

After switching to PIP, you can set the horizontal position,

vertical position, display size, border switch / width / color,

etc. of the screen.

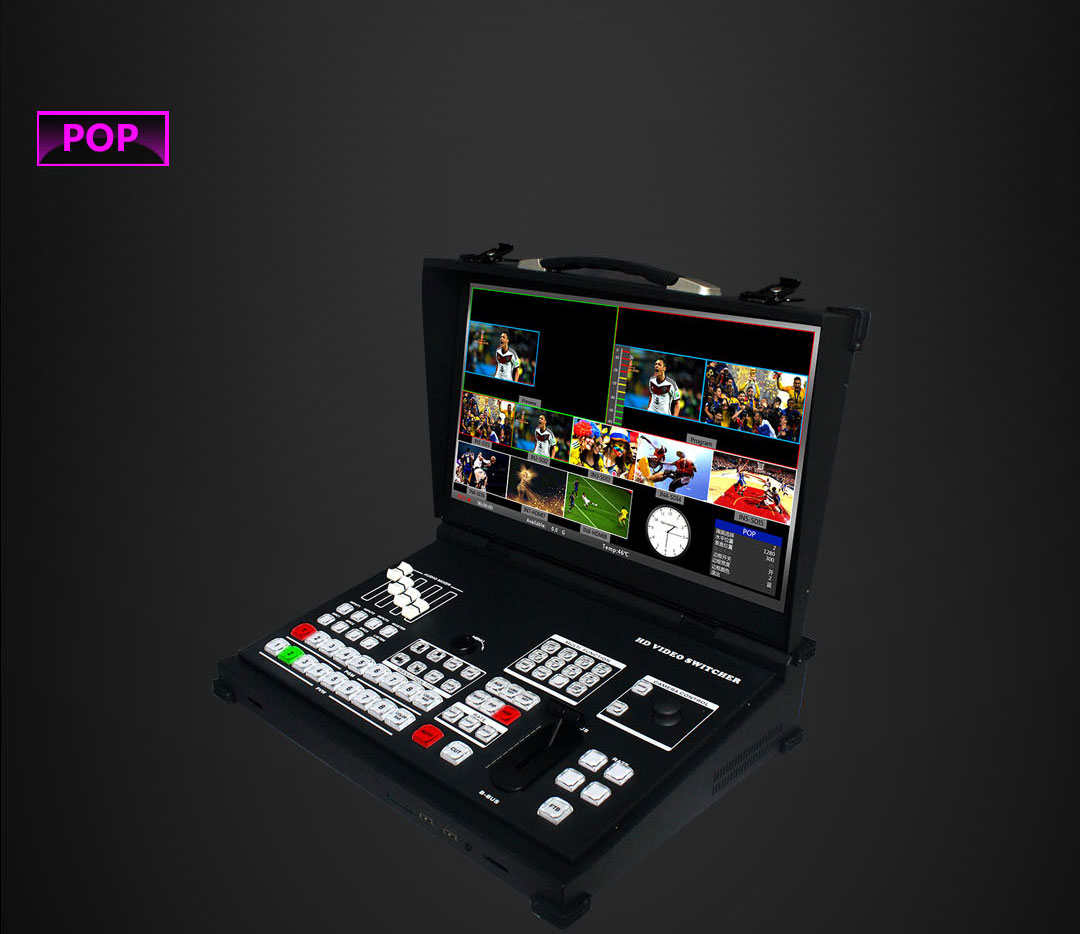

HDS9110 supports POP (outside picture) mode display.

After switching to POP, you can set the screen selection,

horizontal position, vertical position, border switch / width /

color, etc. of the screen.

HDS9110 supports audio follow, embed and mix modes In

the control panel, INPUT stands for the audio channel key;

SRC stands for the source selection of the audio channel.

Audio embedding can make the program played better.

For example: when hosting a Chinese tea ceremony cultural program,

the host can mix the refreshing audio source into the PGM program

live broadcast to achieve better playback effects.

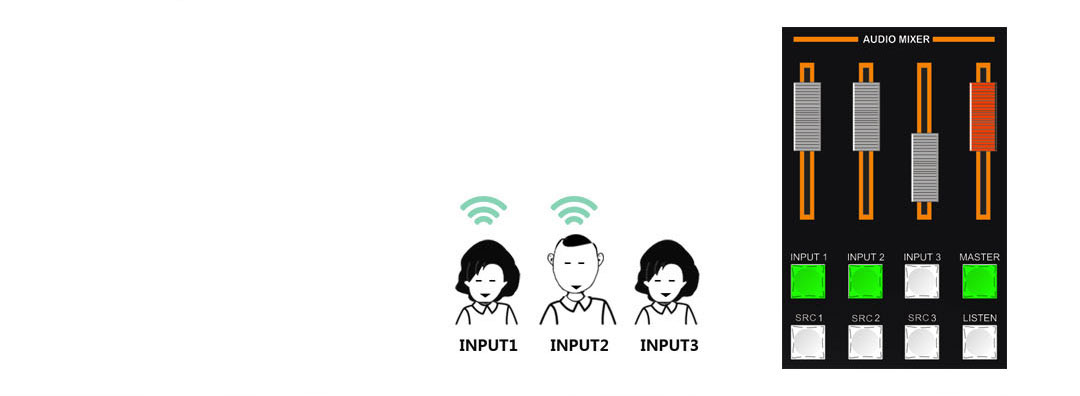

HDS9110 up to 3 channels of audio mixing This picture shows

that the first and second audio channels are enabled for the

mixing mode, and the third audio channel is not enabled.

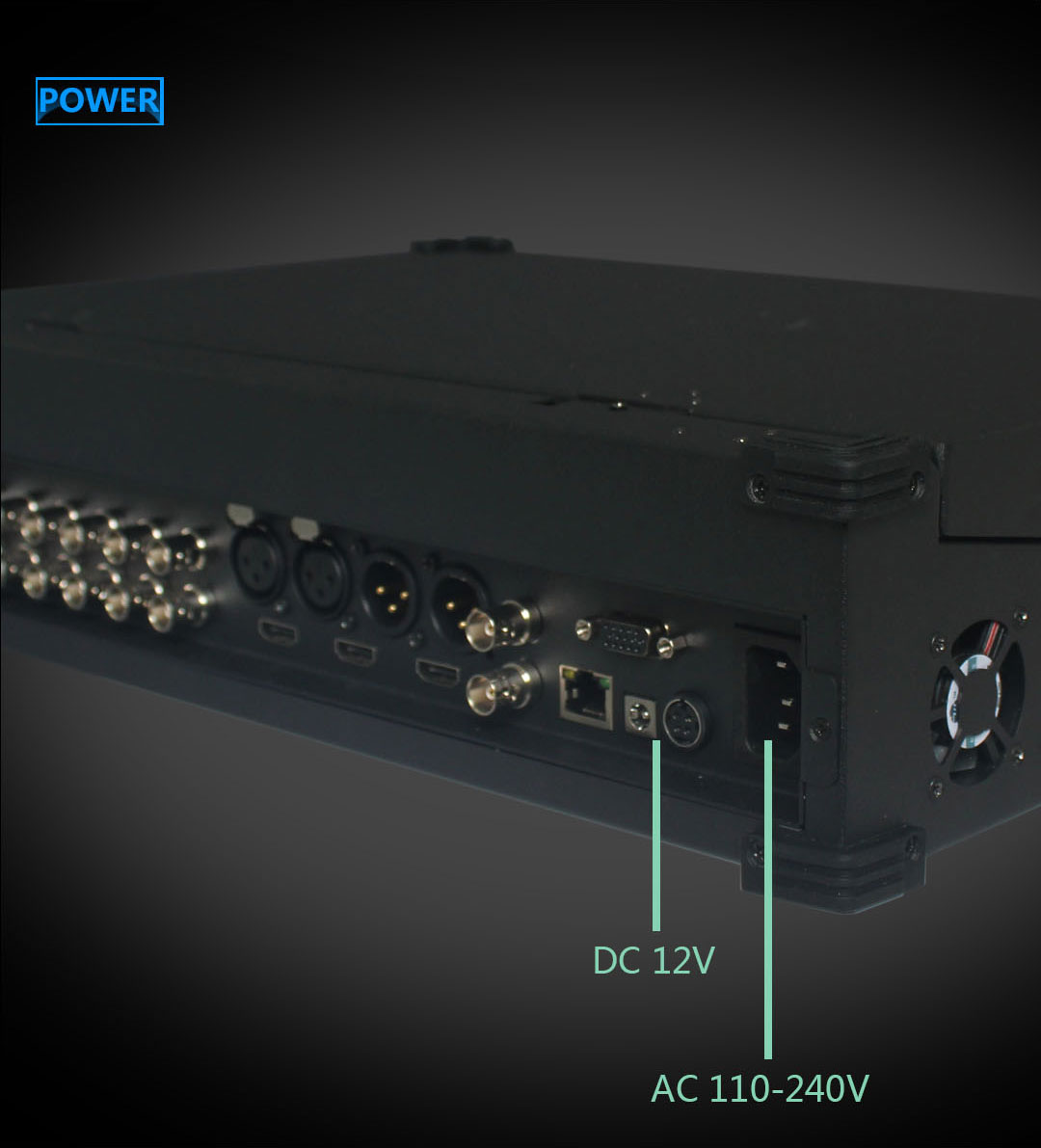

HDS9110 supports DC12V and AC110-240V dual power

supply system. This ensures that the device can still be

used normally in the event of a single power failure.

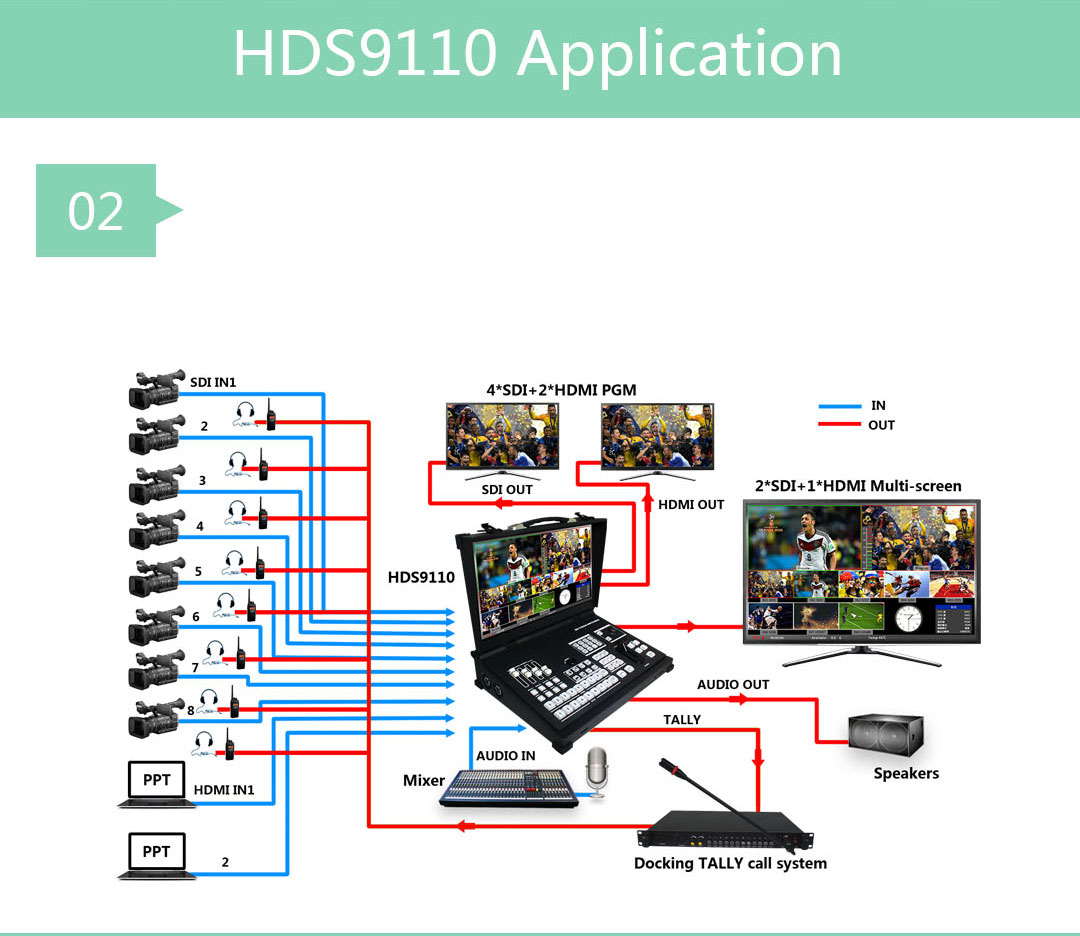

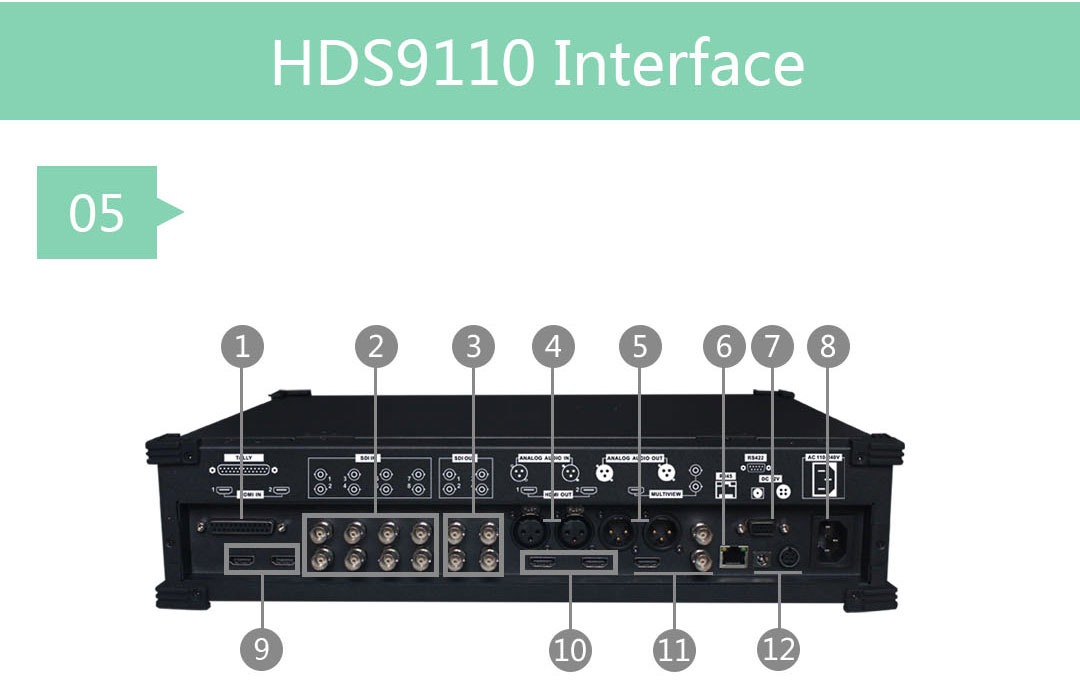

HDS9110 Portable 10-Channel Switcher Support

8 * SDI + 2 * HDMI + 2 * USB total 12 signal input;

4 * SDI + 2 * HDMI total 6 signal live output;

2 * SDI + 1 * HDMI total 3 signal output multi-picture mode,

comes with The 17.3-inch LCD screen can also display multi-screen mode.

HDS9110 Portable 10-Channel Switcher Widely used in

large-scale live events such as sports events, concerts,

e-sports, real-time recording, wedding ceremonies,

column productions, etc.

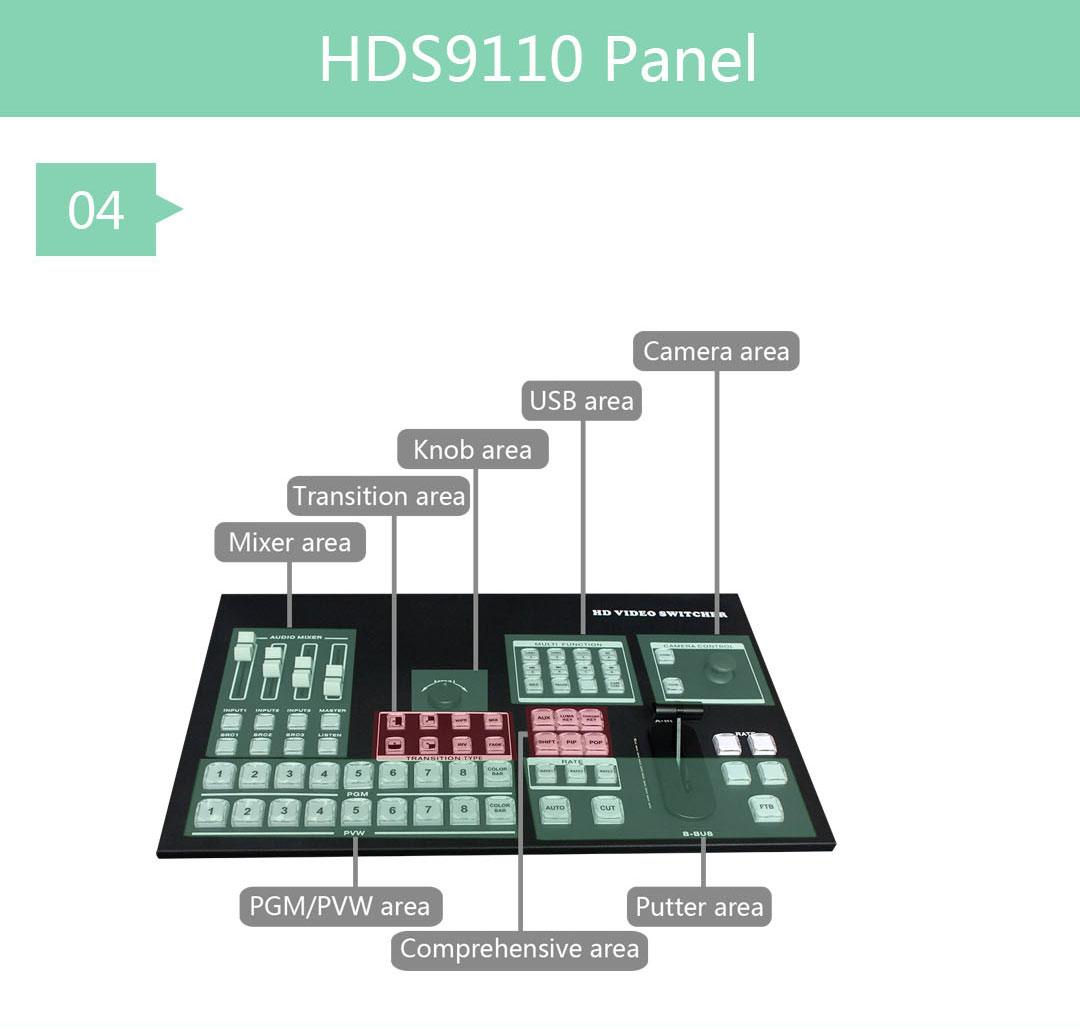

HDS9110 Portable 10-Channel Switcher The control panel

integrates control areas such as mixer, transition effects,

knob control, USB media playback, camera control, PGM / PVW

control, comprehensive control and fader control.

HDS9110 Portable 10-Channel Switcher Up to

8 * SDI + 2 * HDMI + 2 * USB, a total of 12 signal inputs;

6 * SDI + 3 * HDMI, a total of 9 signal outputs.

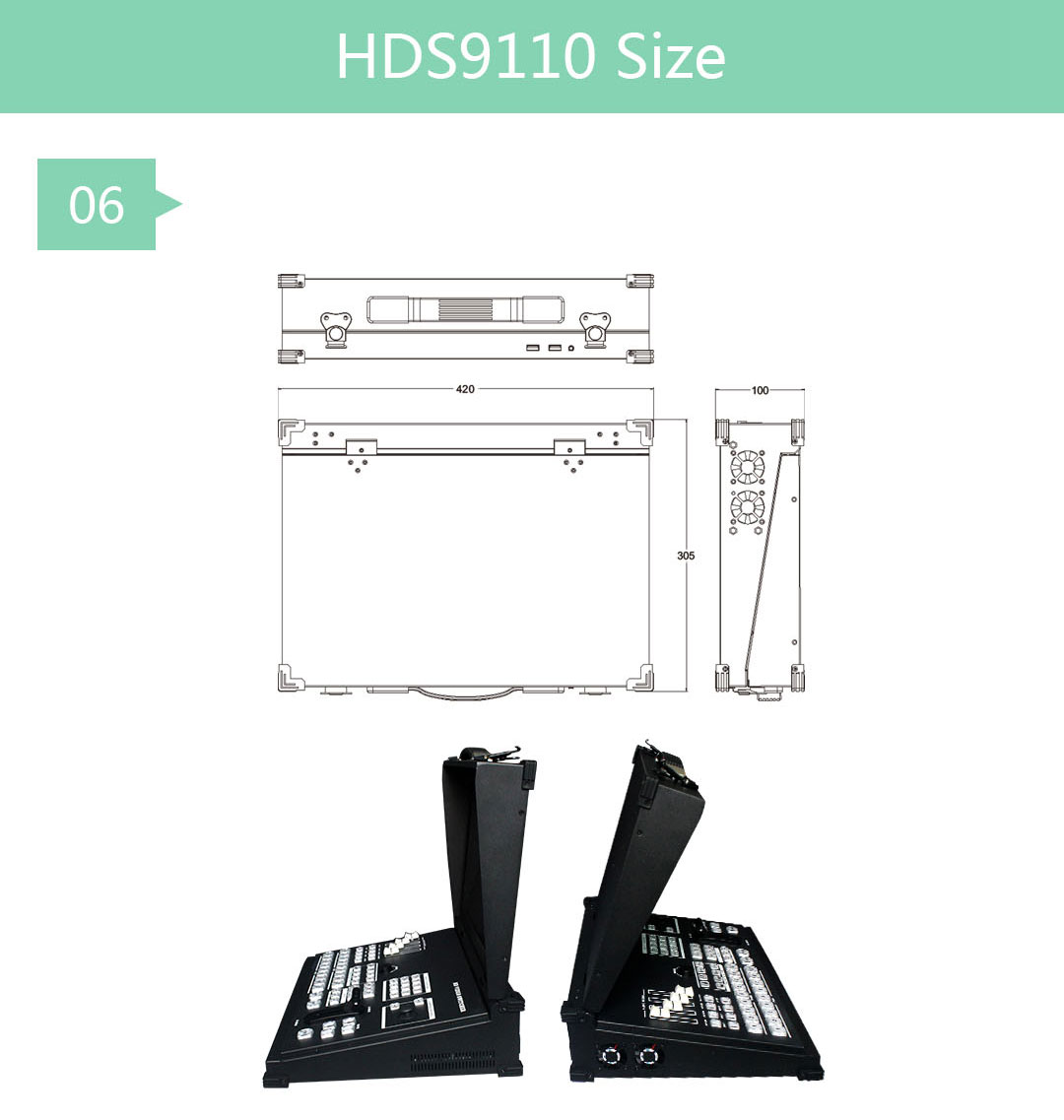

HDS9110 Portable 10-Channel Switcher

Size: 420 * 305 * 100mm
