Control panel for DeviceWell switcher
|
|
DeviceWell's new UHS7812 adopts a portable integrated design with an all-aluminum alloy casing. It is small in size and light in weight, and can be used to control channel changes when going out. It is a professional-grade hardware control panel specially designed for all DeviceWell switchers. It combines a modern appearance with the latest broadcast and television technology, which can greatly speed up the workflow. Equipped with built-in LED LCD and high-quality curved buttons, which can reduce the chance of misoperation. The buttons are backlit to help you quickly identify important key controls. The UHS7812 has a compact and sturdy design that can fit into a standard equipment rack, making it ideal for OB truck racks, mobile racks and flight cases.
◆Portable integrated design ◆Support LCD menu setting ◆ Integrated control keyboard, T-bar, audio fader ◆ All-aluminum alloy body, streamlined design, high strength. light weight ◆ Special functions can be customized ◆ 1-CH RS232 serial port control ◆ 2-CH RS485 remote control ◆ 1 RJ45 network port control (UDP communication protocol) |
Professional grade hardware
The structure is streamlined and integrates video switcher, audio mixer and transitions.

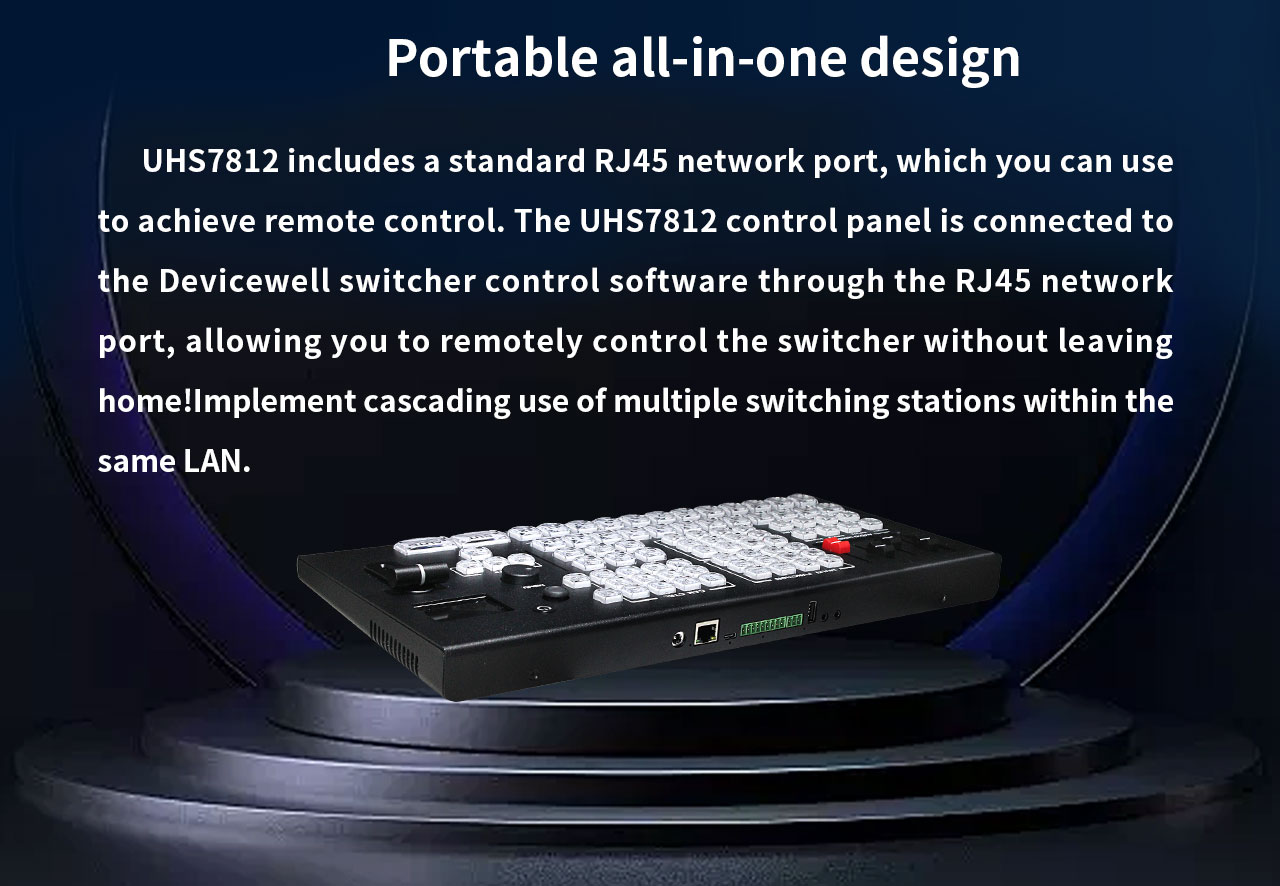

Portable all-in-one design
UHS7812 includes a standard RJ45 network port, which you can use to achieve remote control. The UHS7812 control panel is connected to the Devicewell switcher control software through the RJ45 network port, allowing you to remotely control the switcher without leaving home!Implement cascading use of multiple switching stations within the same LAN.

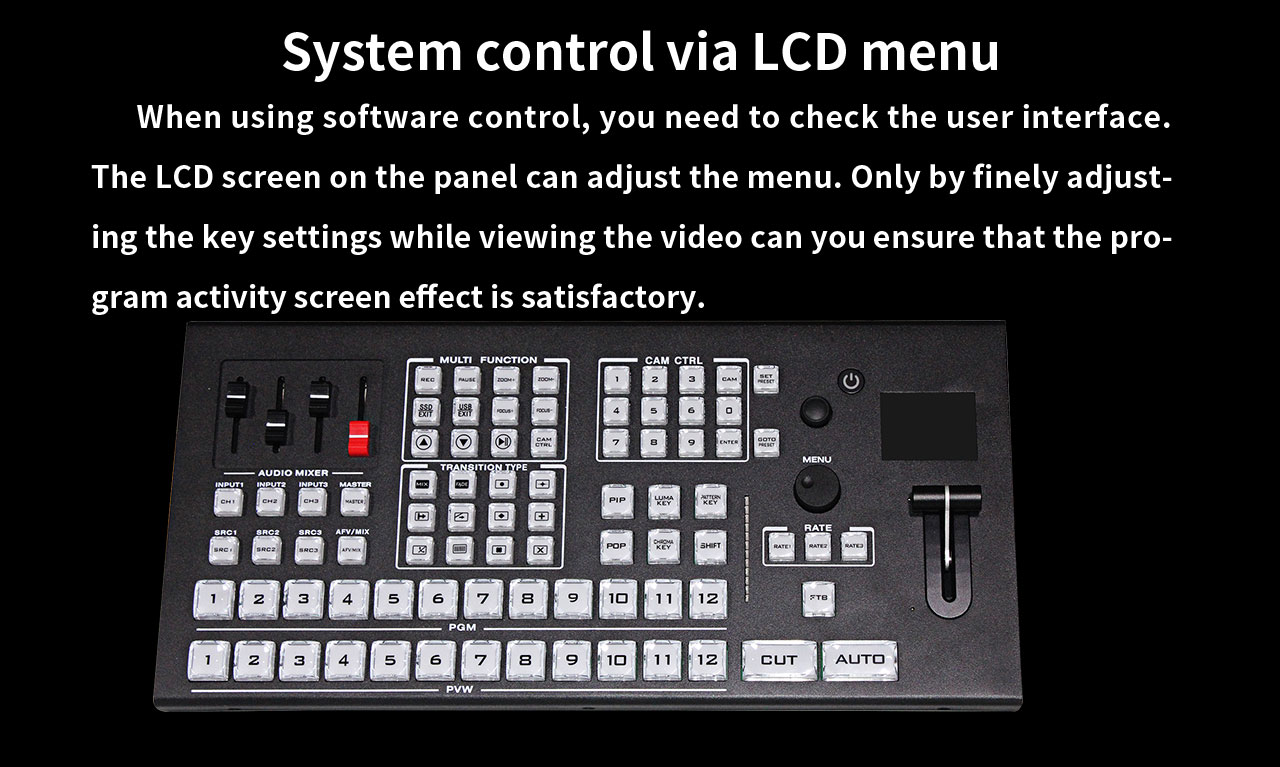

System control via LCD menu
When using software control, you need to check the user interface. The LCD screen on the panel can adjust the menu. Only by finely adjusting the key settings while viewing the video can you ensure that the program activity screen effect is satisfactory.

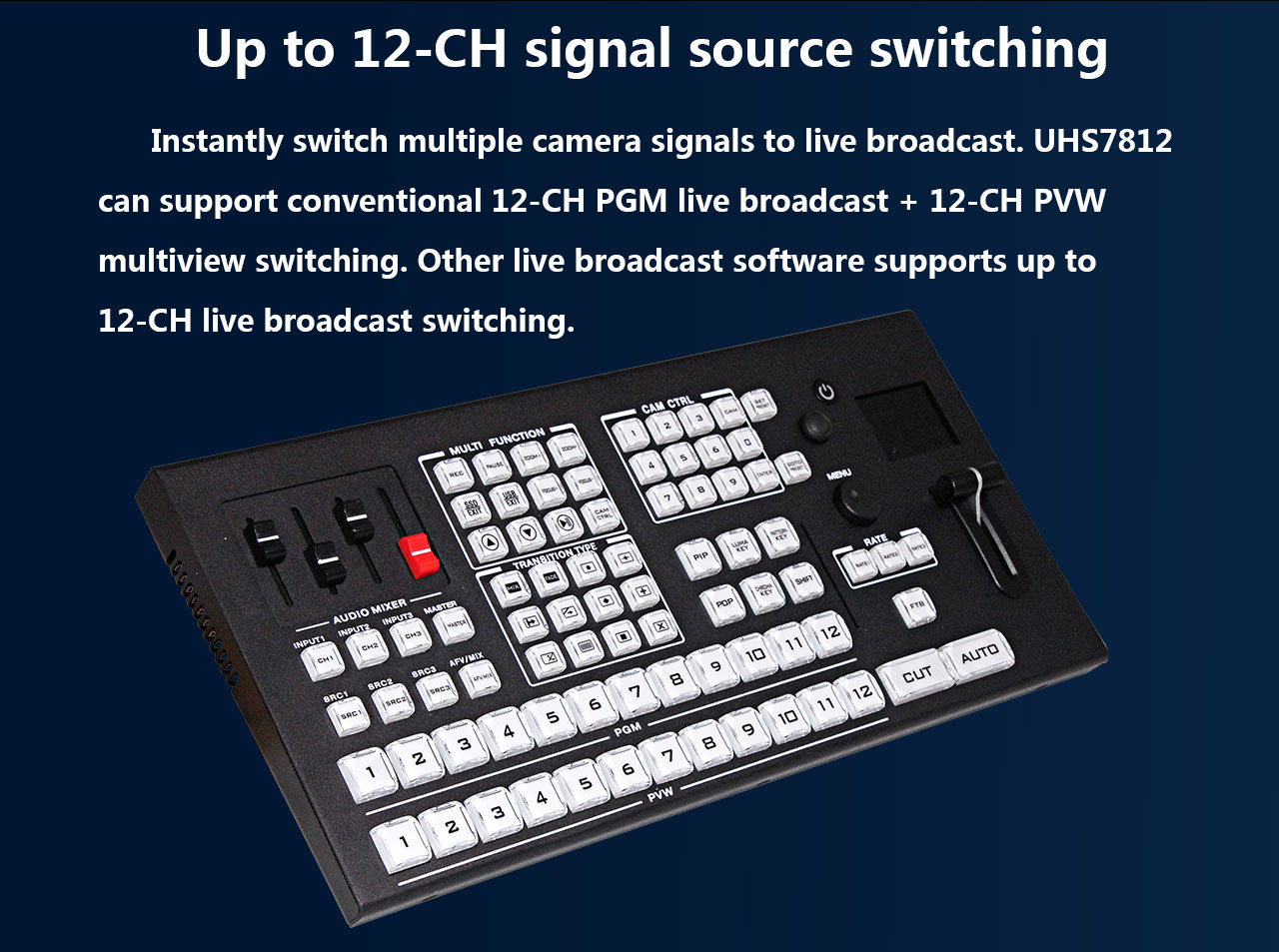

Up to 12-CH signal source switching
Instantly switch multiple camera signals to live broadcast. UHS7812 can support conventional 12-CH PGM live broadcast + 12-CH PVW multiview switching. Other live broadcast software supports up to 12-CH live broadcast switching.

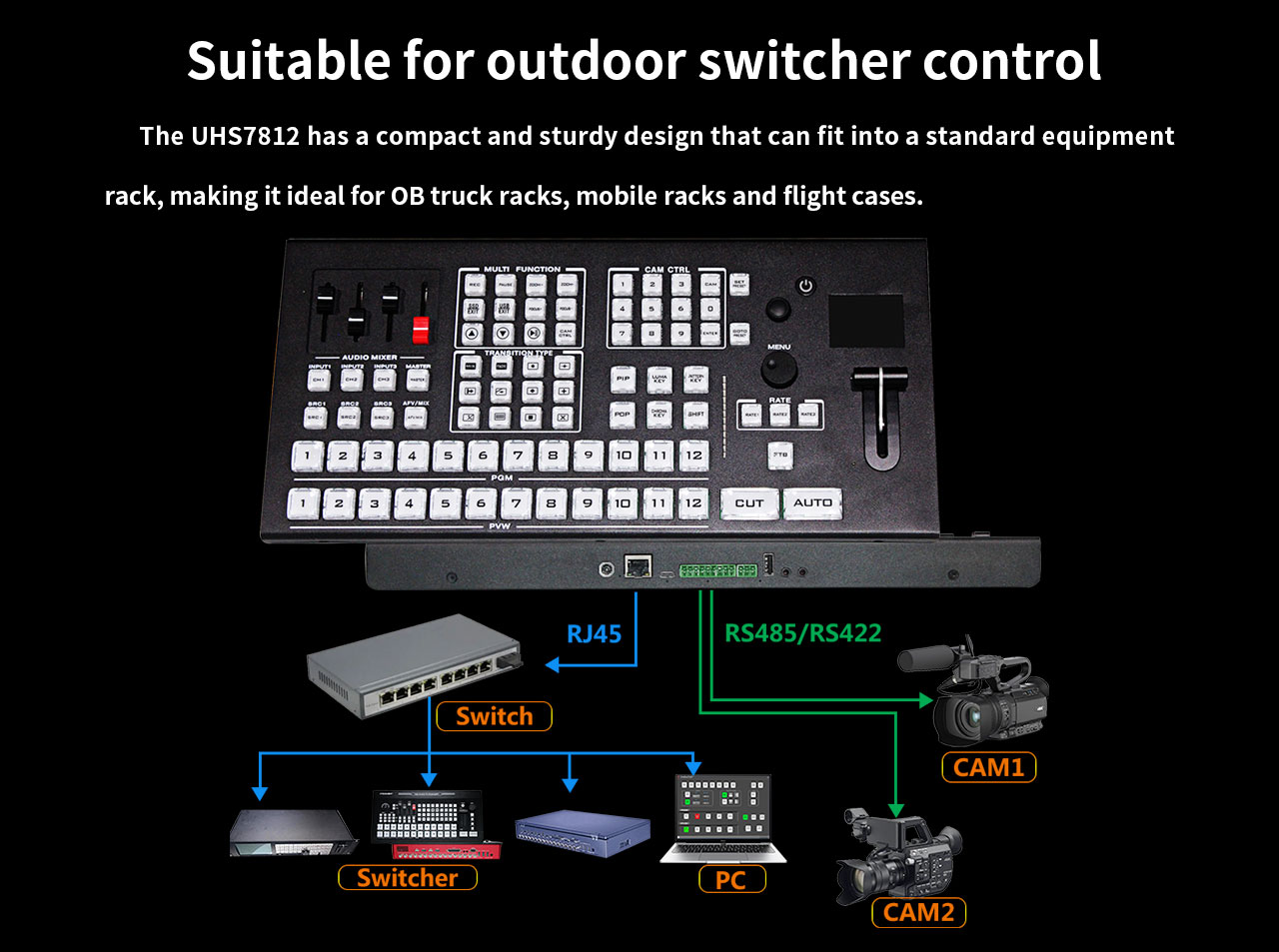

Suitable for outdoor switcher control
The UHS7812 has a compact and sturdy design that can fit into a standard equipment rack, making it ideal for OB truck racks, mobile racks and flight cases.
Parameters
|
Product Name |
Control Panel for Switcher |
|
|
Model |
UHS7812 |
|
|
Control parameter |
Serial control |
RS232 (reserved), RS485 (reserved) |
|
Control protocol |
9600 baud, 8 bits, 1 stop bit, no parity |
|
|
Remote port |
RJ45（UDP） |
|
|
Common Parameters |
Power Supply |
12V/DC |
|
Power |
Less than 8W |
|
|
Size |
400mm*190mm*30mm |
|
|
Operating Temperature |
0℃~50℃ no condensation |
|
|
Storage Temperature |
-20℃~75℃ |
|
|
Working Humidity |
20%~70%RH |
|
|
Storage Humidity |
0%~90%RH， no condensation |
|
