DeviceWell 4K Ultra HD 14-CH Video Switcher
|
DeviceWell 4K HD switcher integrates multiple control methods. The keyboard can be used to set special effects and transition modes. The knob can control the LCD display screen. The LCD will display the various status of the current device in real time. The built-in menu display function can set the device more intuitively and efficiently. The camera joystick can control the camera at a distance. The video signal interface supports 10 SDI+2 HDMI+2 DP, a total of 14 video inputs, 3 SDI outputs+5 HDMI outputs+1 USB3.0 UVC output, a total of 9 video signal outputs. The audio signal interface supports 2 XLR audio inputs and 2 XLR audio outputs. Supports DCB control system and Tally output. Optional H.26x encoding module, It can also be recorded to an internal SSD solid-state drive or an external solid-state USB drive. It adopts high-strength aluminum alloy shell and comes with a 17-inch display screen, which is easy to carry. It can be applied to the needs of radio and television studios and outdoor video special effects switching. For professional users, the control keyboard can be expanded through the DCB interface. Suitable for live performances, course recording and studio directing, the switcher has multiple functions, such as multi-format video input and adaptive input resolution, analog and balanced audio input and output, audio embedding and de-embedding, mixing, SSD hard disk recording, RS422 control, etc., and has remote upgrade capabilities. Users can perform video switching and audio mixing with additional effects through simple operations.
◆2HDMI+2DP+10SDI input ◆MULTIVIEW output: 1 -CH HDMI ◆PGM output: 2-CH4K60 HDMI+2-CH12G SDI ◆1-CH 1080P HDMI OUT ◆1-CH12G SDI AUX custom PGM/PVW output ◆2-CH XLR IN ,2-CH XLR OUT ◆The storage device interface supports USB3.0 and SATA hard disk recording ◆The USB interface can be connected to the mouse and keyboard for operating the internal recording system |

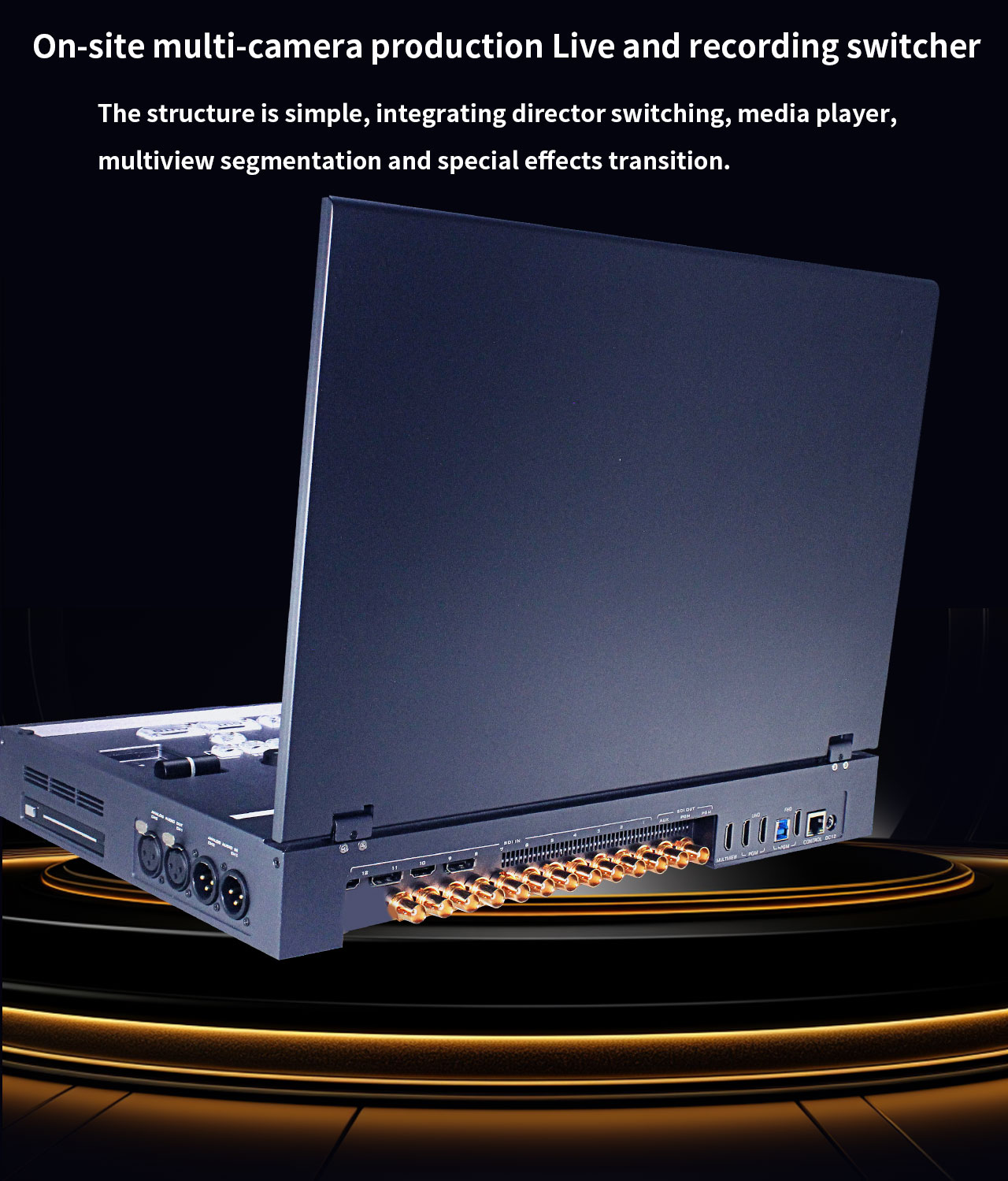

On-site multi-camera production Live and recording switcher
The structure is simple, integrating director switching, media player, multiview segmentation and special effects transition.
Make your live events more professional
DeviceWell 4K switcher is a director system that controls up to 12 cameras. It is suitable for many activities. With the development trend of the times, it is particularly prominent in the remote live broadcast of sports games, large-scale concerts or evening parties. In large-scale events, if you want to use multiple cameras for live directing, you must have more than 12 inputs on the director system to be able to present the wonderful program content to the audience from time to time, and the live broadcast screen will have a variety of changing effects. It can meet the needs of on-site production in various occasions and create exciting and wonderful pictures.
Fully control through the built-in 17” LCD screen

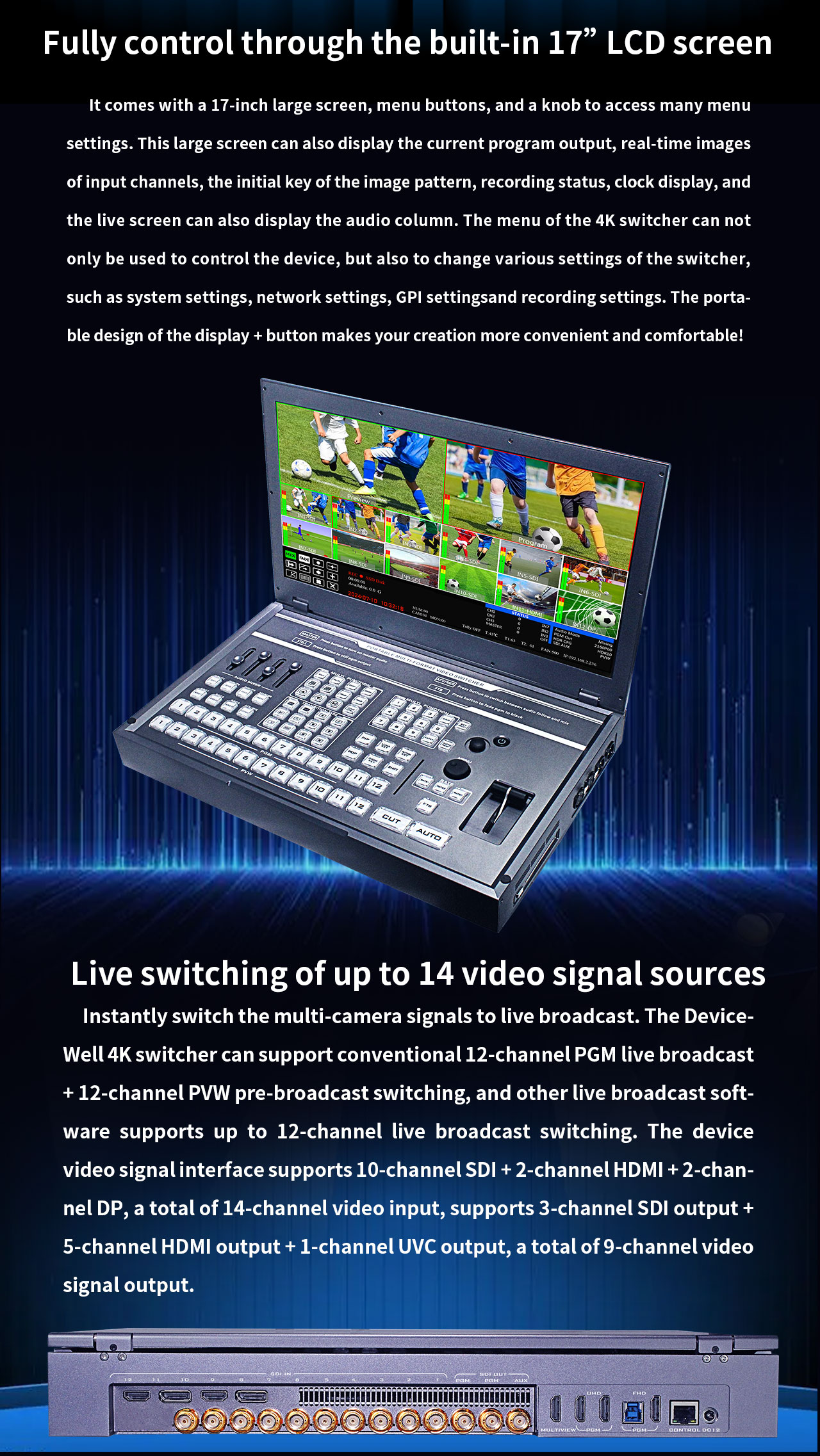

It comes with a 17-inch large screen, menu buttons, and a knob to access many menu settings. This large screen can also display the current program output, real-time images of input channels, the initial key of the image pattern, recording status, clock display, and the live screen can also display the audio column. The menu of the 4K switcher can not only be used to control the device, but also to change various settings of the switcher, such as system settings, network settings, GPI settingsand recording settings. The portable design of the display + button makes your creation more convenient and comfortable!
Over 100 creative transitions

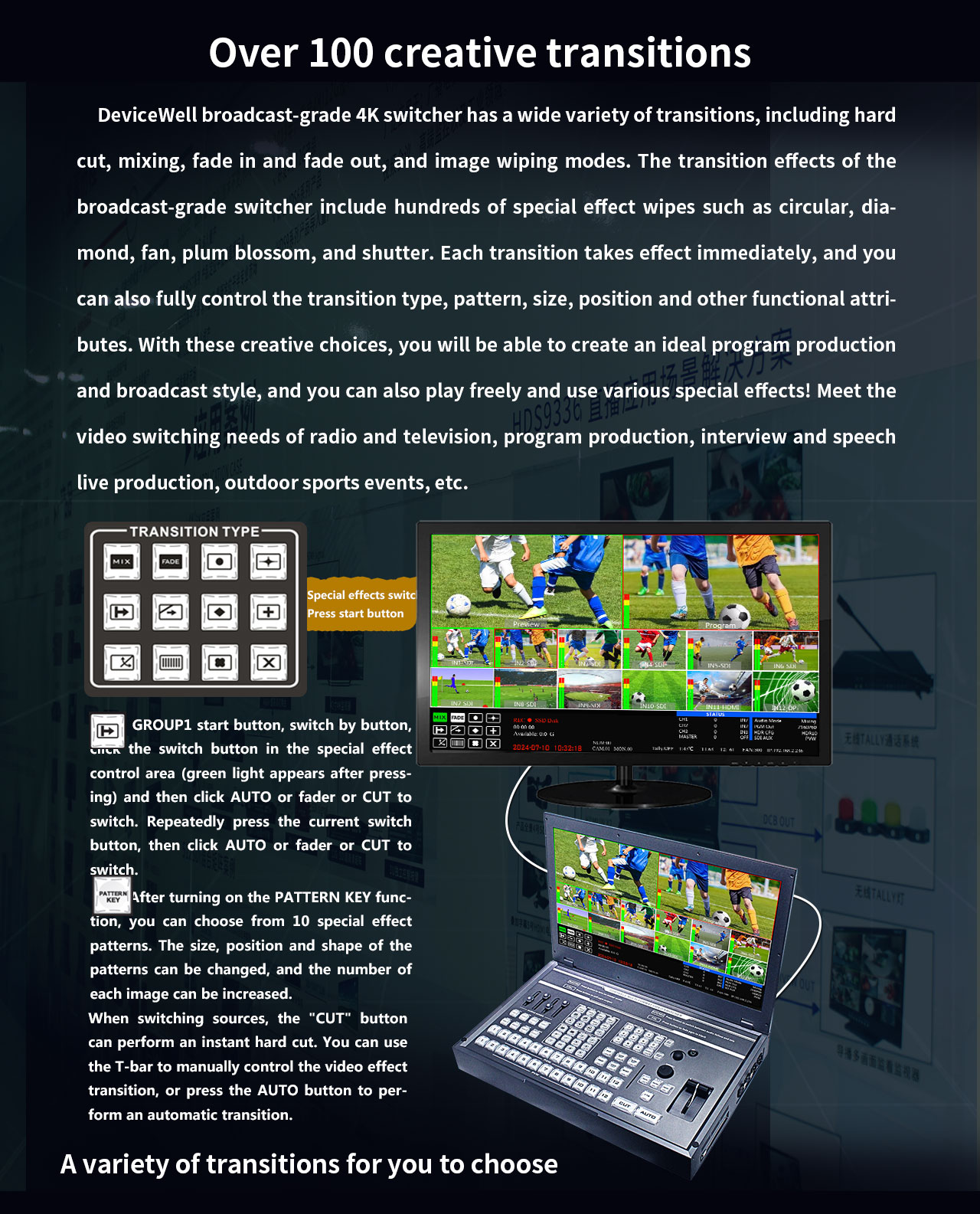

DeviceWell broadcast-grade 4K switcher has a wide variety of transitions, including hard cut, mixing, fade in and fade out, and image wiping modes. The transition effects of the broadcast-grade switcher include hundreds of special effect wipes such as circular, diamond, fan, plum blossom, and shutter. Each transition takes effect immediately, and you can also fully control the transition type, pattern, size, position and other functional attributes. With these creative choices, you will be able to create an ideal program production and broadcast style, and you can also play freely and use various special effects! Meet the video switching needs of radio and television, program production, interview and speech live production, outdoor sports events, etc.
Create impressive video effects and your professional video production

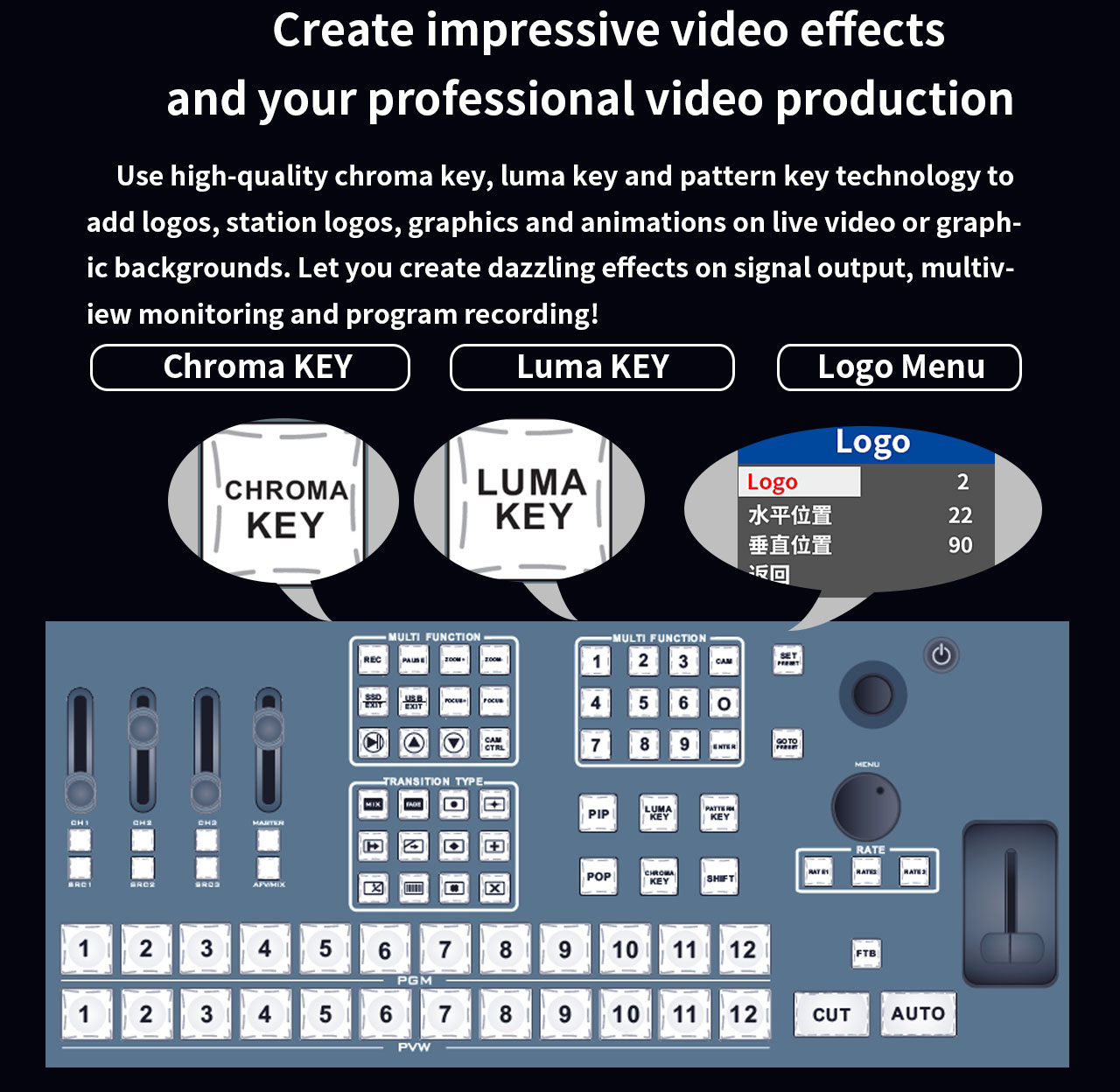

Use high-quality chroma key, luma key and pattern key technology to add logos, station logos, graphics and animations on live video or graphic backgrounds. Let you create dazzling effects on signal output, multiview monitoring and program recording!
Rich interfaces to meet your needs

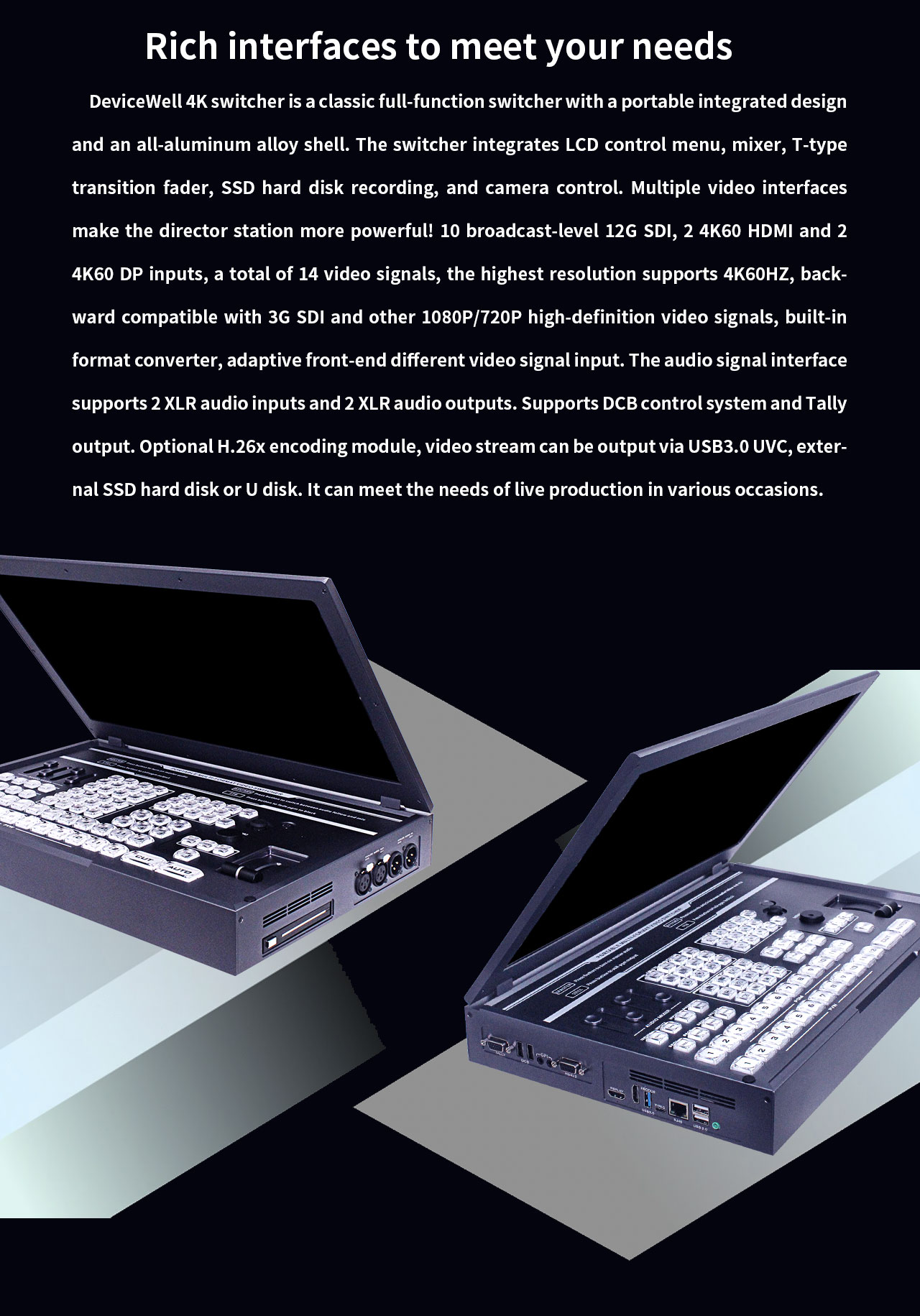

DeviceWell 4K switcher is a classic full-function switcher with a portable integrated design and an all-aluminum alloy shell. The switcher integrates LCD control menu, mixer, T-type transition fader, SSD hard disk recording, and camera control. Multiple video interfaces make the director station more powerful! 10 broadcast-level 12G SDI, 2 4K60 HDMI and 2 4K60 DP inputs, a total of 14 video signals, the highest resolution supports 4K60HZ, backward compatible with 3G SDI and other 1080P/720P high-definition video signals, built-in format converter, adaptive front-end different video signal input. The audio signal interface supports 2 XLR audio inputs and 2 XLR audio outputs. Supports DCB control system and Tally output. Optional H.26x encoding module, video stream can be output via USB3.0 UVC, external SSD hard disk or U disk. It can meet the needs of live production in various occasions.
Application

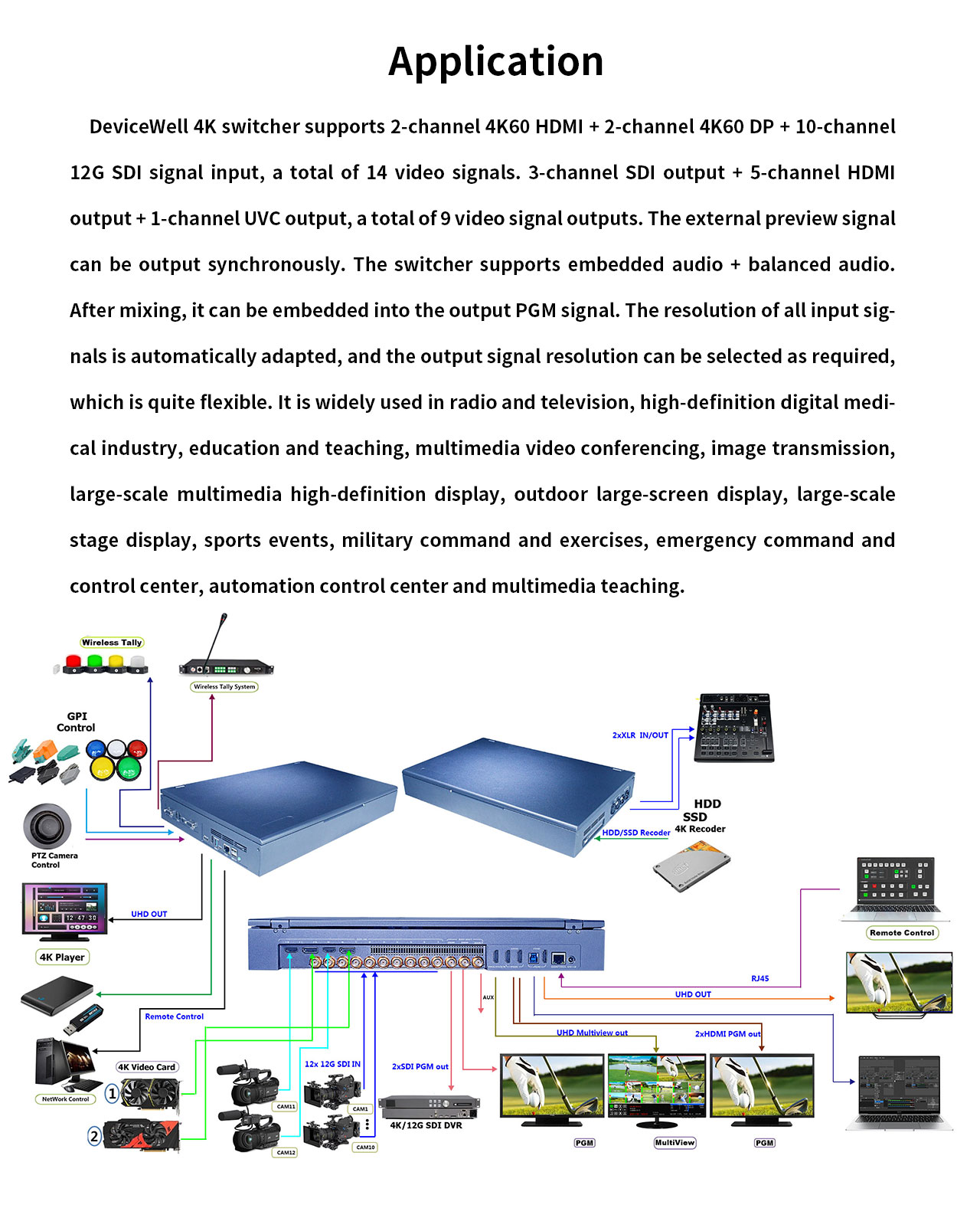

DeviceWell 4K switcher supports 2-channel 4K60 HDMI + 2-channel 4K60 DP + 10-channel 12G SDI signal input, a total of 14 video signals. 3-channel SDI output + 5-channel HDMI output + 1-channel UVC output, a total of 9 video signal outputs. The external preview signal can be output synchronously. The switcher supports embedded audio + balanced audio. After mixing, it can be embedded into the output PGM signal. The resolution of all input signals is automatically adapted, and the output signal resolution can be selected as required, which is quite flexible. It is widely used in radio and television, high-definition digital medical industry, education and teaching, multimedia video conferencing, image transmission, large-scale multimedia high-definition display, outdoor large-screen display, large-scale stage display, sports events, military command and exercises, emergency command and control center, automation control center and multimedia teaching.
Parameters
Product Name |
4K UHD Switcher |
|
Video Signal Input
|
Input signal |
10-CH 12G SDI+2-CH 4K60 HDMI+2-CH 4K60DP input |
SDI rate |
1.5G、3G、6G、12G |
|
Connector |
Standard |
|
Signal amplitude |
800mV±10%(SDI/HDMI/DP) |
|
Impedance |
75 Ω(SDI) 100 Ω(HDMI) 100 Ω(DP) |
|
Balanced |
Adaptive |
|
SDI input |
10x 10bit 720p、1080i、1080p、2160p |
|
SDI specification |
SMPTE 292M、SMPTE 296M、SMPTE 424M、SMPTE 425M A-level、SMPTE 2081‑1、SMPTE 2081‑10、SMPTE 2082‑1 and SMPTE 2082‑10、SMPTE 2082‑12 |
|
HD video format |
720p50、720p59.94、720p60 1080i50、1080i59.94、1080i60 1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p50、1080p59.94、1080p60 |
|
Ultra HD video format |
2160p23.98、2160p24、2160p25、2160p29.97、2160p30、2160p50、2160p59.94、2160p60 |
|
Video Signal Output |
Video output |
PGM output:2x12G-SDI+3x4K60-HDMI + 1x1080P HDMI Multi-screen output: 1xHDMI |
Multiview output |
1x HDMI |
|
Screen display |
12x UHD DISPLAY |
|
SDI video output |
3 x 10bit 1080p、2160p |
|
UHD video output |
3840x2160、1920x1080 |
|
Clock recovery |
Support |
|
Control Parameter |
Remote control |
GPI |
Connection port |
3.5mm port |
|
Network control |
UDP |
|
Connection port |
RJ45,100M |
|
Common Parameters |
Power supply |
12V/DC |
Power |
<80W |
|
Size |
416*270*59mm |
|
Weight |
3.5Kg |
|
Audio input |
2-CH XLR audio in |
|
Audio output |
2-CH XLR audio out |
|
Keying/streaming |
YES |
|
SSD hard drive recording |
YES |
|
PIP/POP |
YES |
|
Special effects |
T-BAR/AUTO /CUT/ FTB/STILL |
|
Transitions |
MIX /FADE |
|
Camera control |
MIX:12-WAY CAMERA CONTROL |
|
Screen display |
12x UHD DISPLAY |
|
Control Panel |
Supports on-site production and integrates multiple buttons |
|
Operating temperature |
0℃~50℃ No condensation |
|
Storage temperature |
-20℃~75℃ |
|
Working humidity |
20%~70%RH |
|
Storage humidity |
0%~90%RH,No condensation |
