Introduction

    DeviceWell 8K SDI signal splitter, based on 8K broadcast grade 8K SDI signal design. The device supports up to four-link 8K SDI signal and is downward compatible with 12G SDI, 6G SDI, 3G SDI, HD SDI and SD SDI. The equipment has built-in SDI signal equalization, decoder, serial clock recovery and line driver, which can realize 1 4-link 12G-SDI signal input, which can be distributed to 3 4-link 12G-SDI signal output. At the same time, it also supports 4 groups of 1 single-link 12G-SDI signal input, which can be allocated to 4 groups of 3 single-link 12G-SDI signal outputs, and the resolution is downward compatible. The transmission distance of 8K SDI exceeds 30M, the transmission distance of 12G SDI exceeds 75M, the transmission distance of 6G SDI exceeds 100M, and the transmission distance of 3G SDI exceeds 120M. The device adapts to 12G, 6G, 3G, 1.5G and 270M bit rates without additional settings. It can be applied to professional SDI video signals such as UHDTV/FHDTV/HDTV/SDTV, and is especially suitable for broadcast-grade ultra-high-definition digital signals. The equipment is a rack-type structure, which is convenient for users to put into the cabinet for fixed management.

Feature

◆ 1 8K/12G/6G/3G/1.5G SDI signal input

◆ 3 8K/12G/6G/3G/1.5G SDI signal output

◆ Built-in professional equalizer

◆ Built-in clock restorer

◆ Built-in line driver

◆ Adaptive input and output resolution

◆ Dual power supply system

◆ Rack-type structure

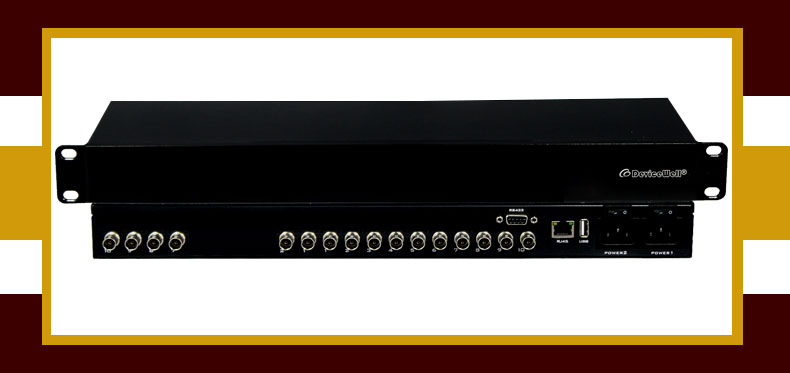

Interface

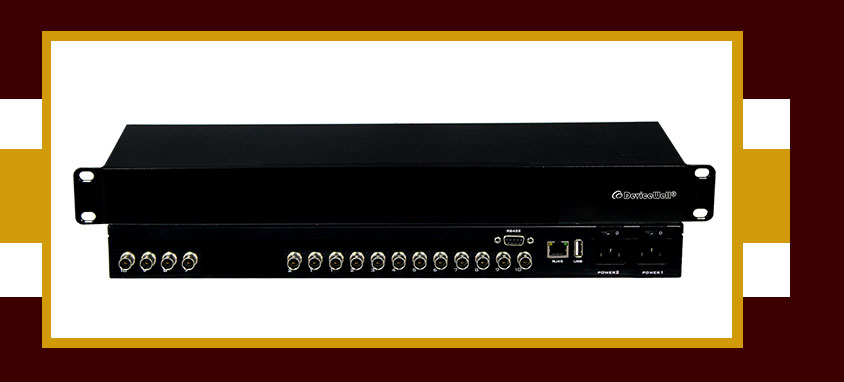

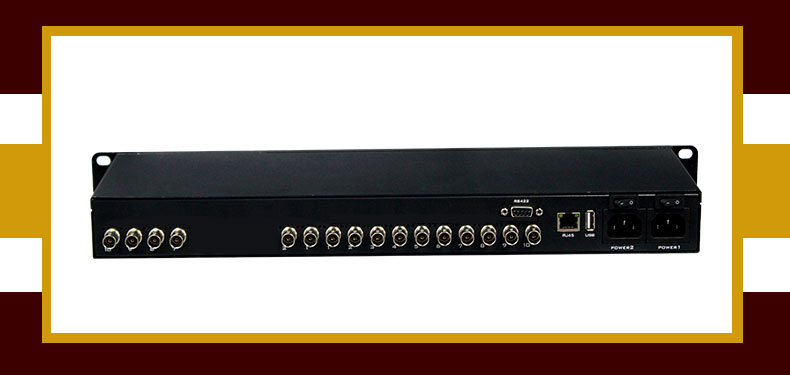

1. 4x12G SDI signal input

2. 4x12G SDI signal output

3. 4x12G SDI signal output

4. 4x12G SDI signal output

5.DP-9(reserved)

6. Network upgrade

7. USB(reserved )

8. Dual power supply

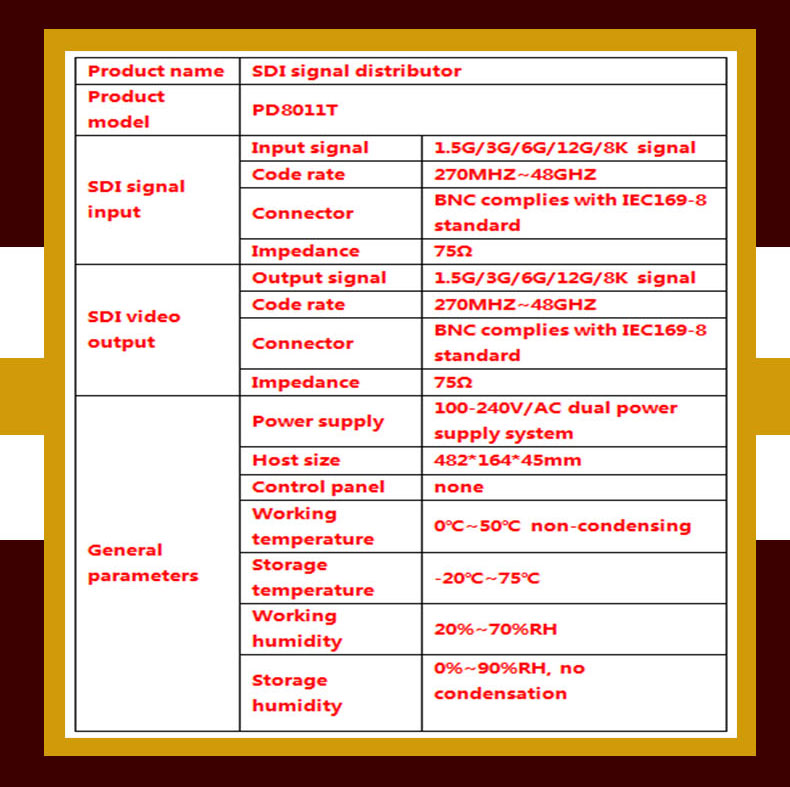

Parameters

Order type

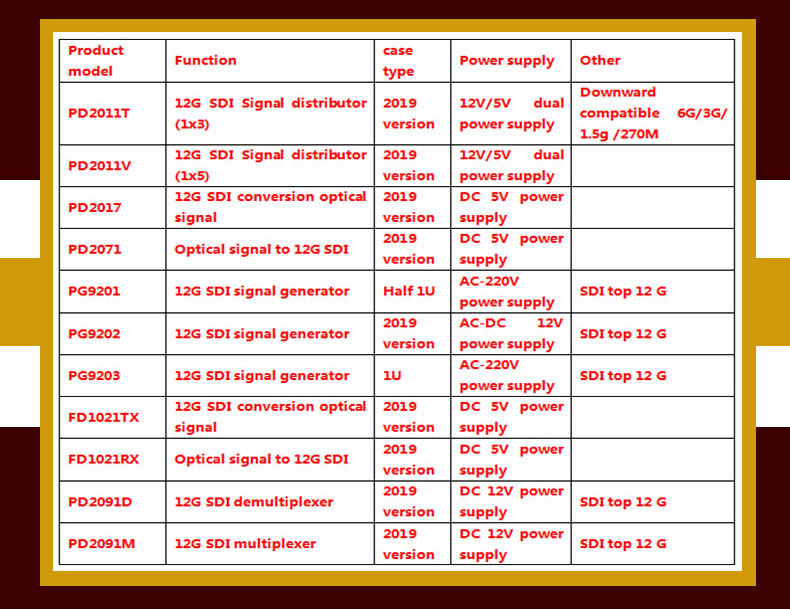

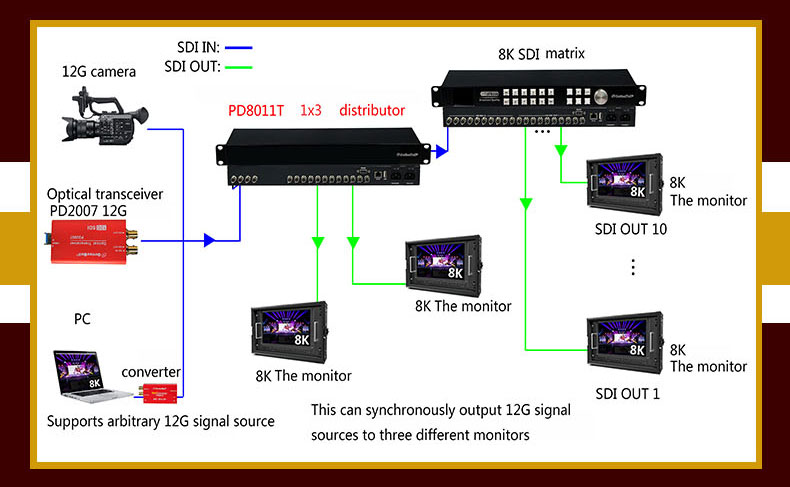

Application Diagram

Product Size



DEVICEWELL 1x3 distributor PD8011T manual data download
