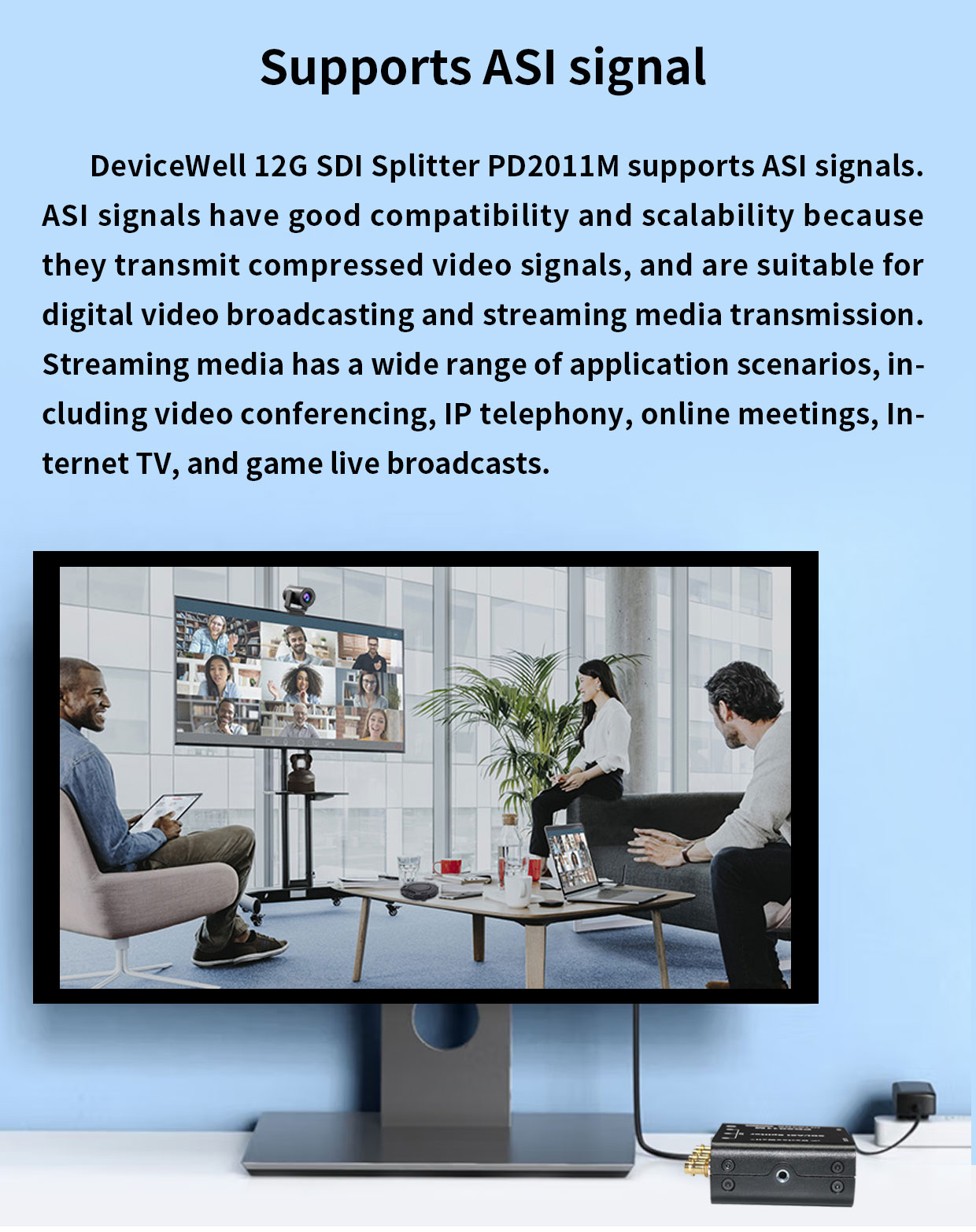

Supports ASI signal

DeviceWell 12G SDI Splitter PD2011M supports ASI signals. ASI signals have good compatibility and scalability because they transmit compressed video signals, and are suitable for digital video broadcasting and streaming media transmission. Streaming media has a wide range of application scenarios, including video conferencing, IP telephony, online meetings, Internet TV, and game live broadcasts.

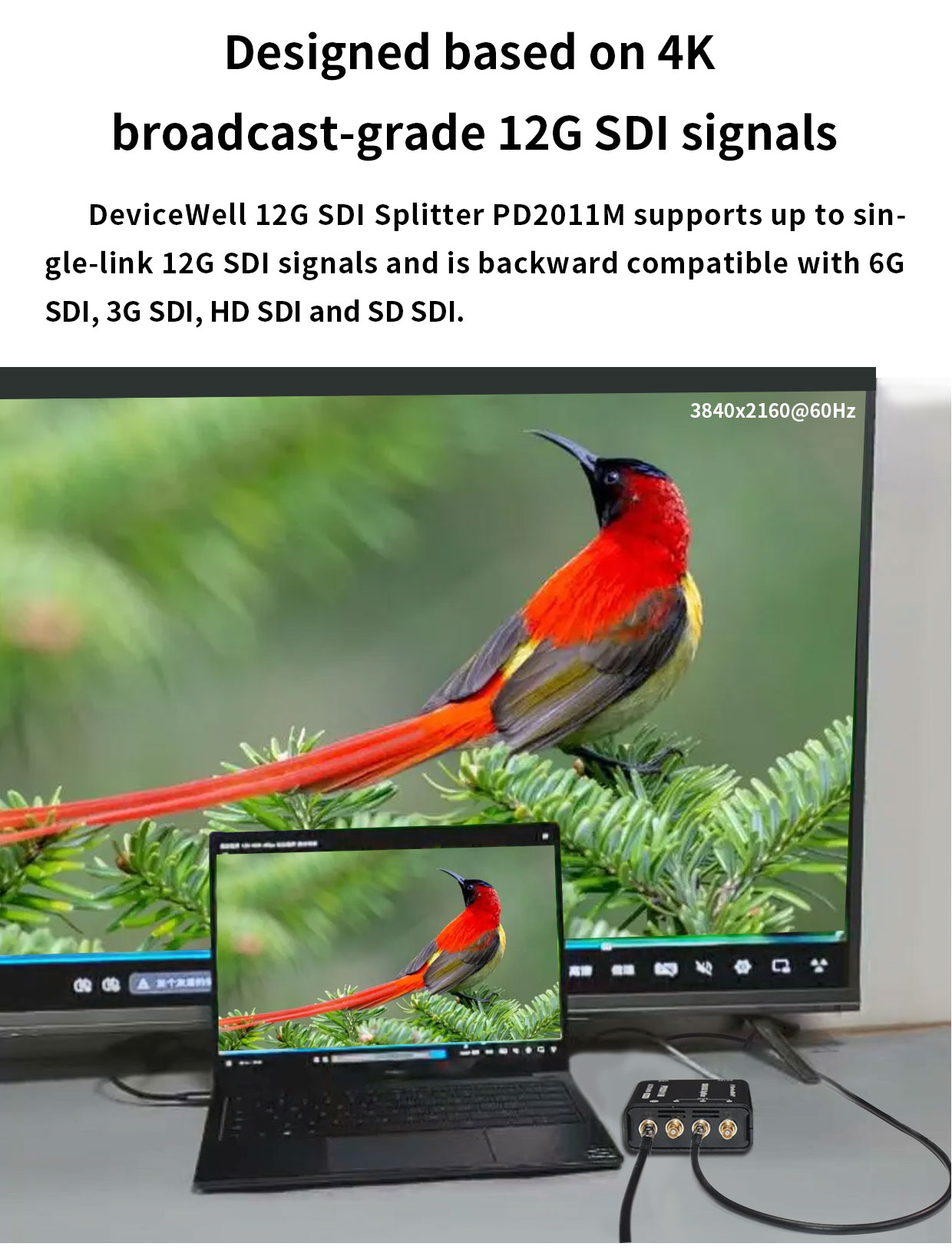

Designed based on 4K broadcast-grade 12G SDI signals

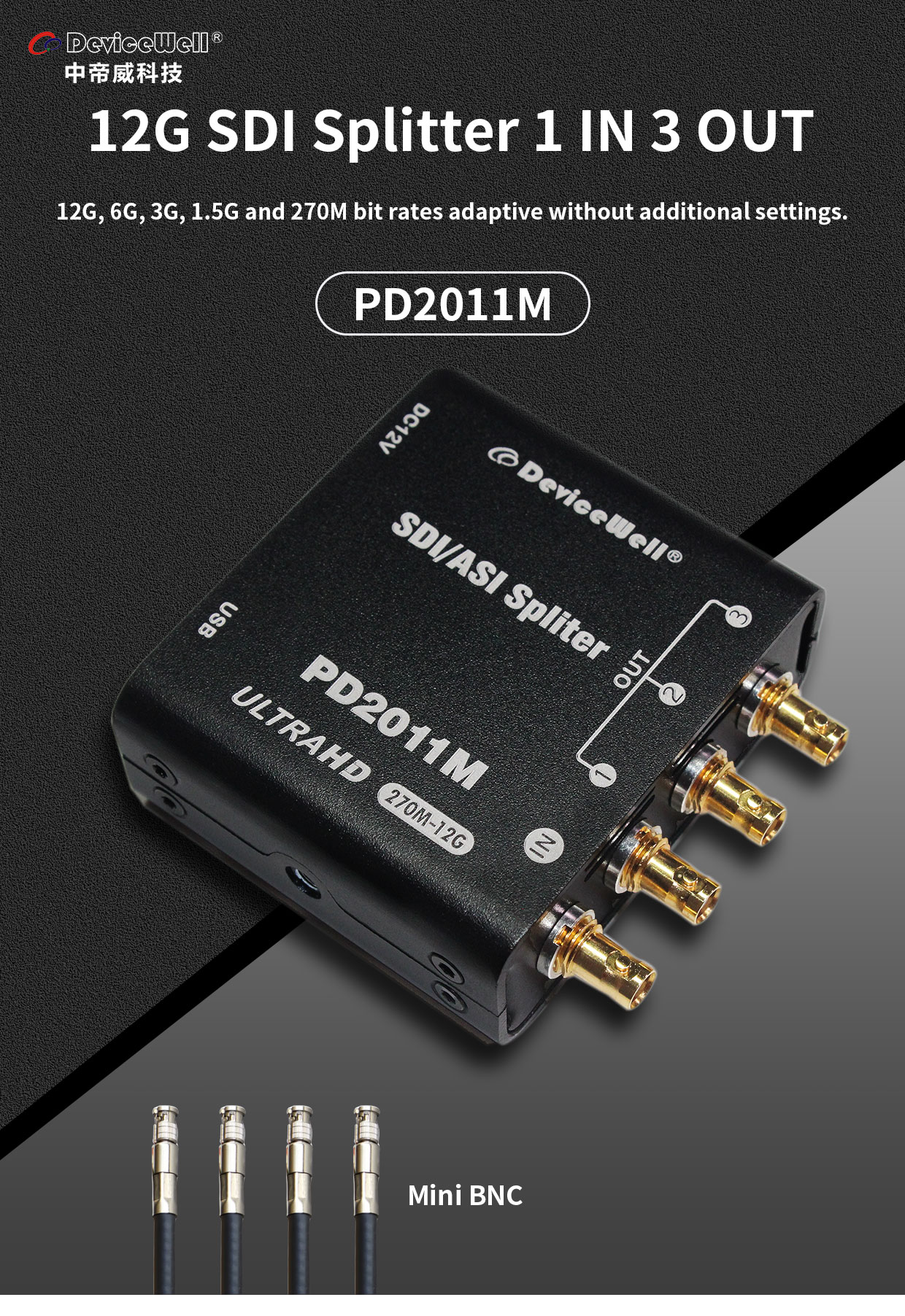

DeviceWell 12G SDI Splitter PD2011M supports up to single-link 12G SDI signals and is backward compatible with 6G SDI, 3G SDI, HD SDI and SD SDI.

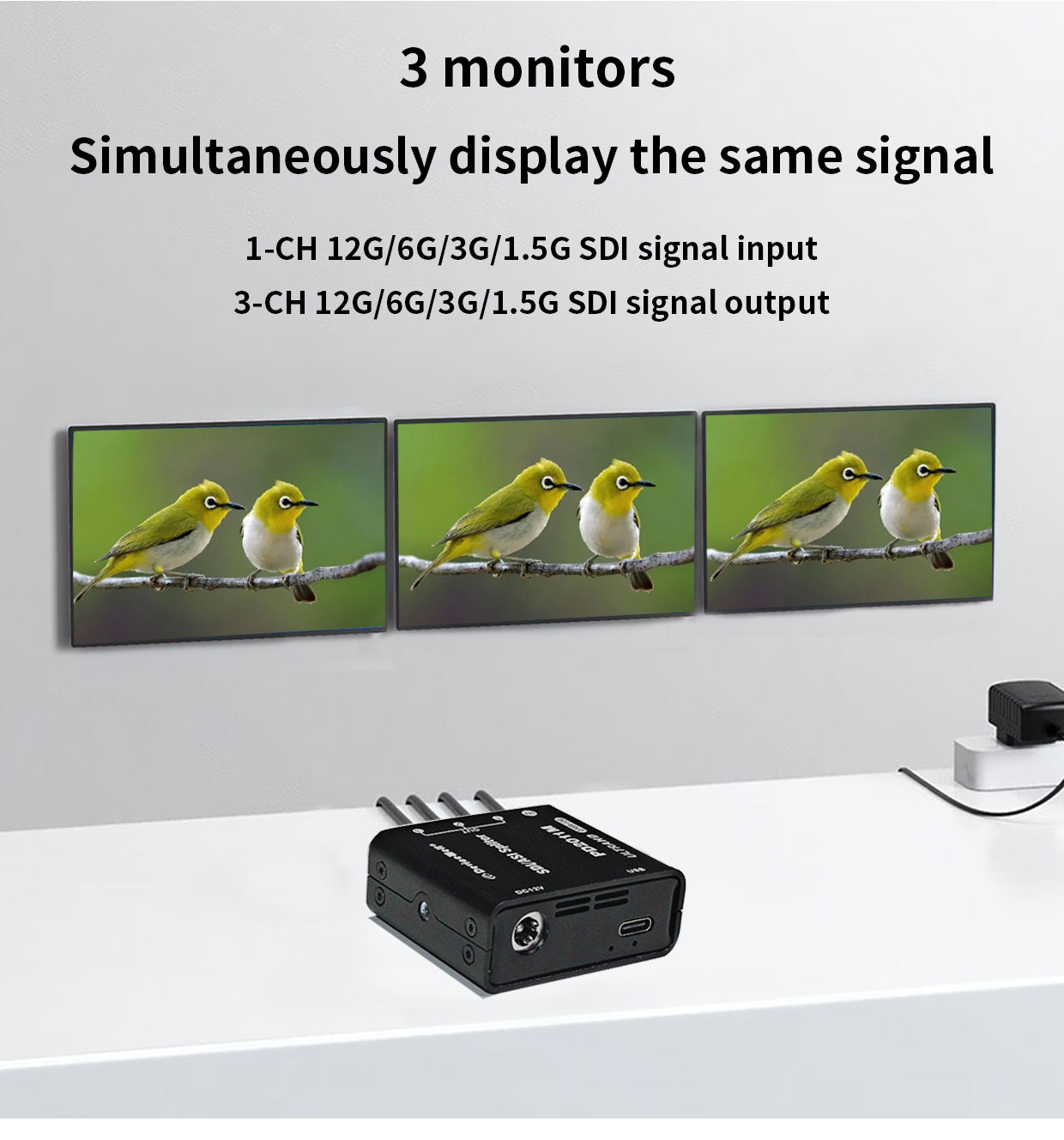

3 monitors Simultaneously display the same signal

    1-CH 12G/6G/3G/1.5G SDI signal input

3-CH 12G/6G/3G/1.5G SDI signal output

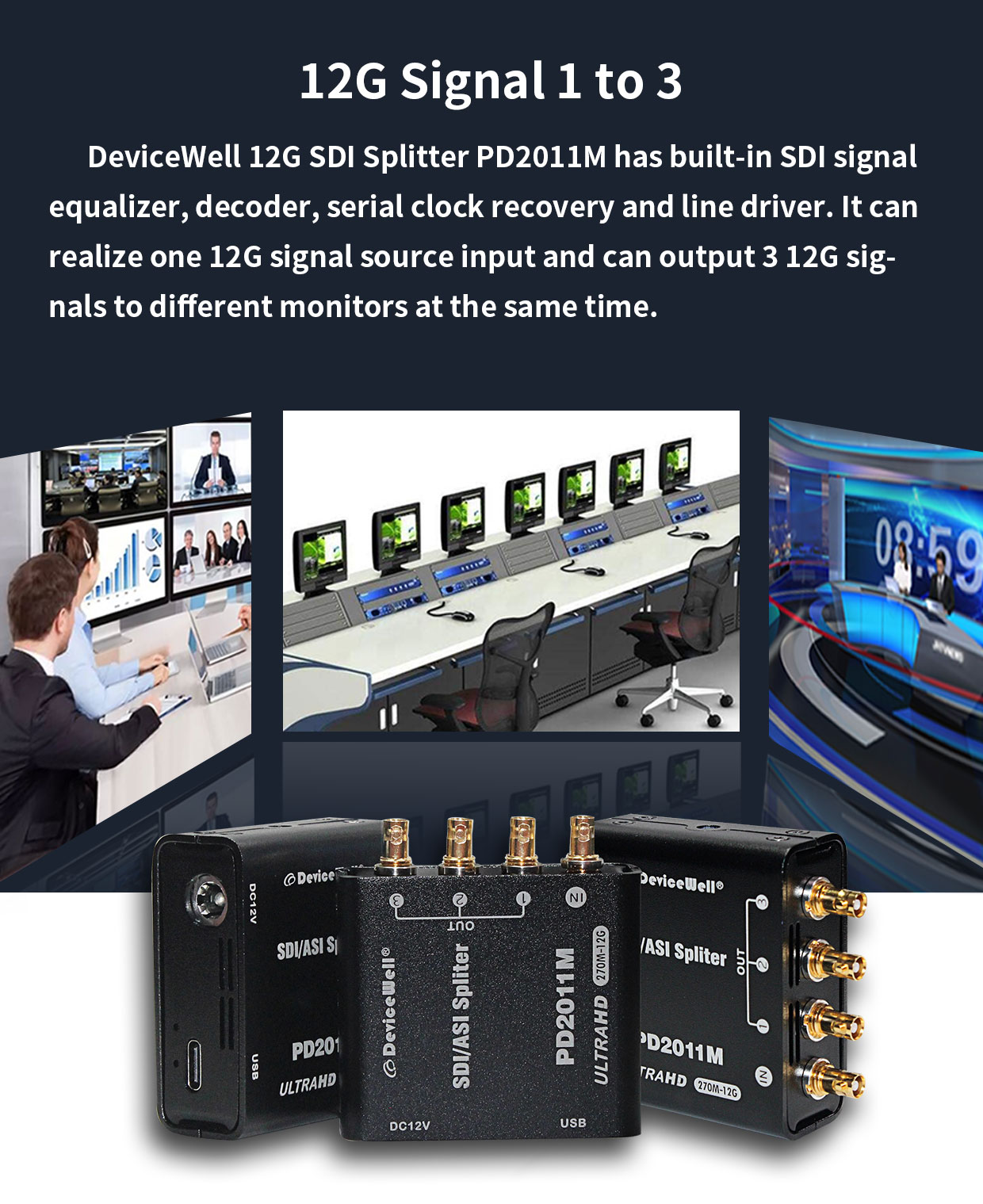

12G Signal 1 to 3

    DeviceWell 12G SDI Splitter PD2011M has built-in SDI signal equalizer, decoder, serial clock recovery and line driver. It can realize one 12G signal source input and can output 3 12G signals to different monitors at the same time.

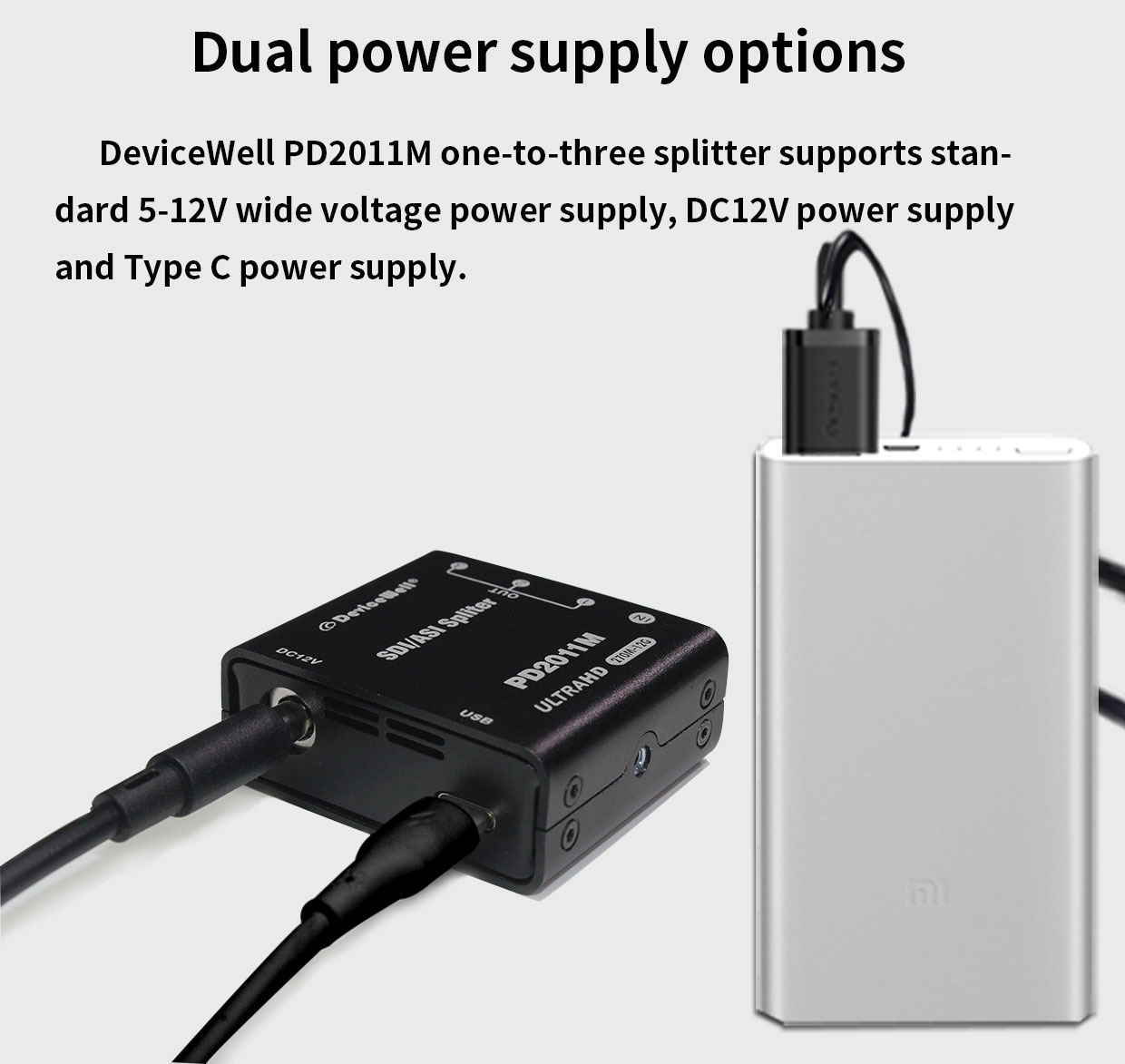

Dual power supply options

 DeviceWell PD2011M one-to-three splitter supports standard 5-12V wide voltage power supply, DC12V power supply and Type C power supply.

Application

Wide range of applications

DeviceWell PD2011M 1 to 3 Splitter is widely used in broadcasting rooms of various radio stations using SDI signals, as well as high-definition security monitoring training and exhibition venues, multimedia conference systems, command and monitoring centers, traffic intelligence, customs, airports, museums and exhibition halls, etc. It can be applied to professional SDI video signals such as UHDTV/FHDTV/HDTV/SDTV, especially in the field of broadcast-level ultra-high-definition digital signals.



Downloading the instructions of the  12G SDI Splitter of Devicewell



Serial No.	Material name	Version	modification date	Description/Remarks
1	Specification download	1.0	Sep. 30, 2024
2	Photos download	1.0	Sep. 30, 2024
3	Others
