HDS7105 Connecting to Apple system

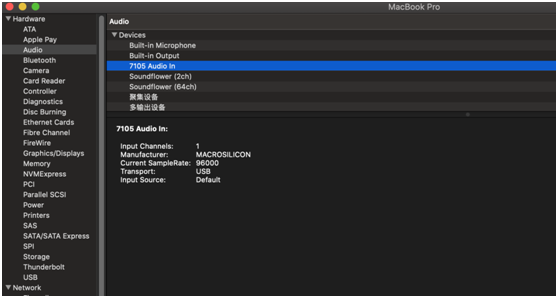

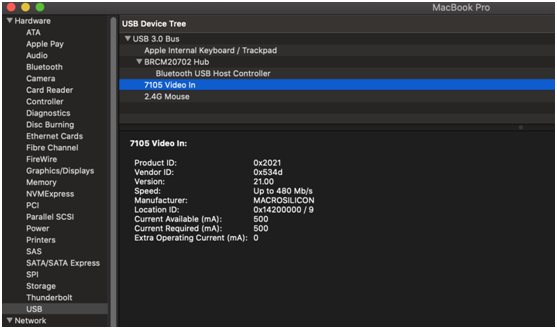

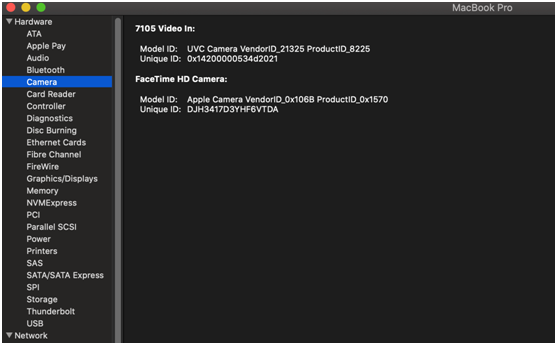

Step 1:Connect the device to the computer via the type-C cable,Check whether Apple

computer can recognize the device normally,Apple icon in the upper left corner of

stand-alone desktop--About This Mac--System Information--USB--Camera--Audio.

As shown in the figure below:

Step 2:Add video capture device

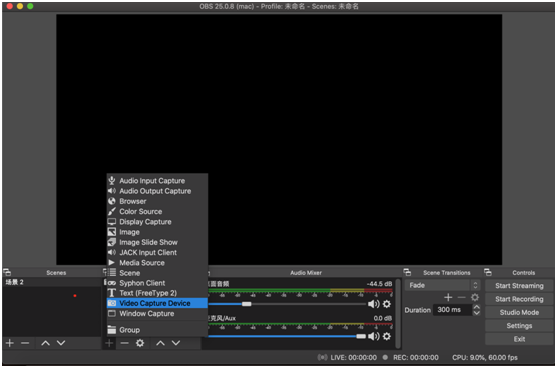

Open OBS software,Click the source box in the lower left corner of the interface“+”Then click"Video capture device",

As shown in the figure below:

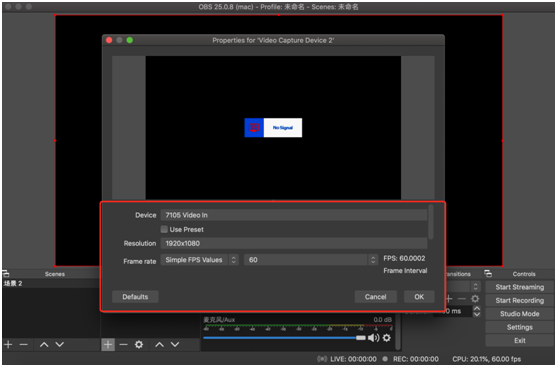

After clicking "video capture device", a property setting window will appear.

Equipment selection:7105 Video IN

Using the preset function, you can check or not check it according to your own situation,

The resolution and frame rate cannot be set after checking;So we generally choose not to

check it,You can set the resolution and frame rate at the back;

The resolution can be selected as 1920 * 1080, 1280 * 720, 640 * 360, the frame rate can be

selected as simple FPS value, and the later frame rate can be selected as 60 frames;

After selection, a normal screen will appear in the window. Click the confirmation key in the

lower right corner of the window.

 as shown in the figure below:

Step 3：Add audio capture device

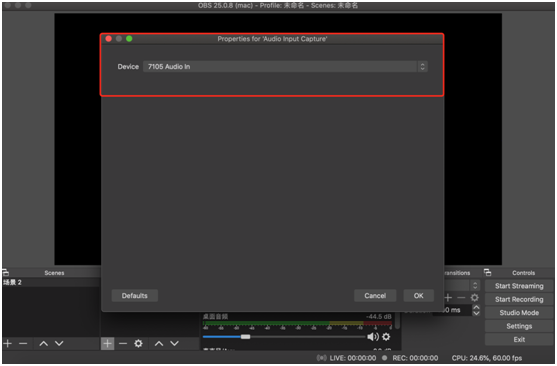

Click the source box in the lower left corner of the interface“+”Then click“audio capture device”

Audio device selection: (7105 Audio In),Click the lower right corner to confirm;

As shown in the figure below:

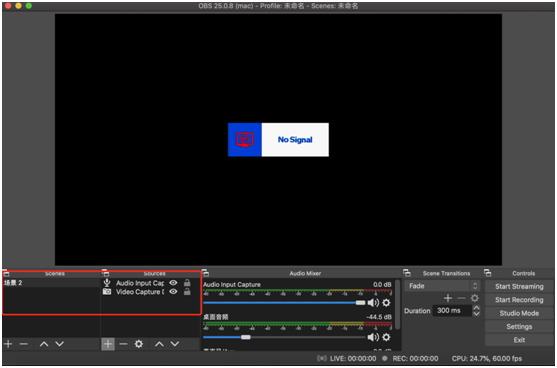

The connection result is shown in the figure below:
