SDI 16-Screen Multiview



MVP9116



This is a professional-grade SDI multiview that supports 16-channel SDI signal input and 16-channel SDI



output and 1-channel HDMI output.



Support screen switching



Audio column display



Support single screen enlargement, 4 screens, 6 screens, 9 screens, 10 screens, 16



screen modes



Art design style



SDI HD/SD Adaptive



           The device can connect 16 SDI signals and has 16 loop-out functions.











Support REF expansion



Character overlay enabled or disabled



Flexible configuration using PC-side software allows configuration options for 1 to



16 screens.













Support Tally extension



Character overlay enabled or disabled



This device has a matching RS232 to Tally board and supports tally expansion.



SDI HD serial digital video signal



Product Features



The device supports network, RS422 and button control, and supports network



interface to update internal software, which can realize more functions



and simple operation.

   Keypad Operation Instructions     Rear panel interface description





     The software function



Software description



     16-Screen character setting control software description







SDI HD 16-Screen Multiview



Product Parameters

Special features customized

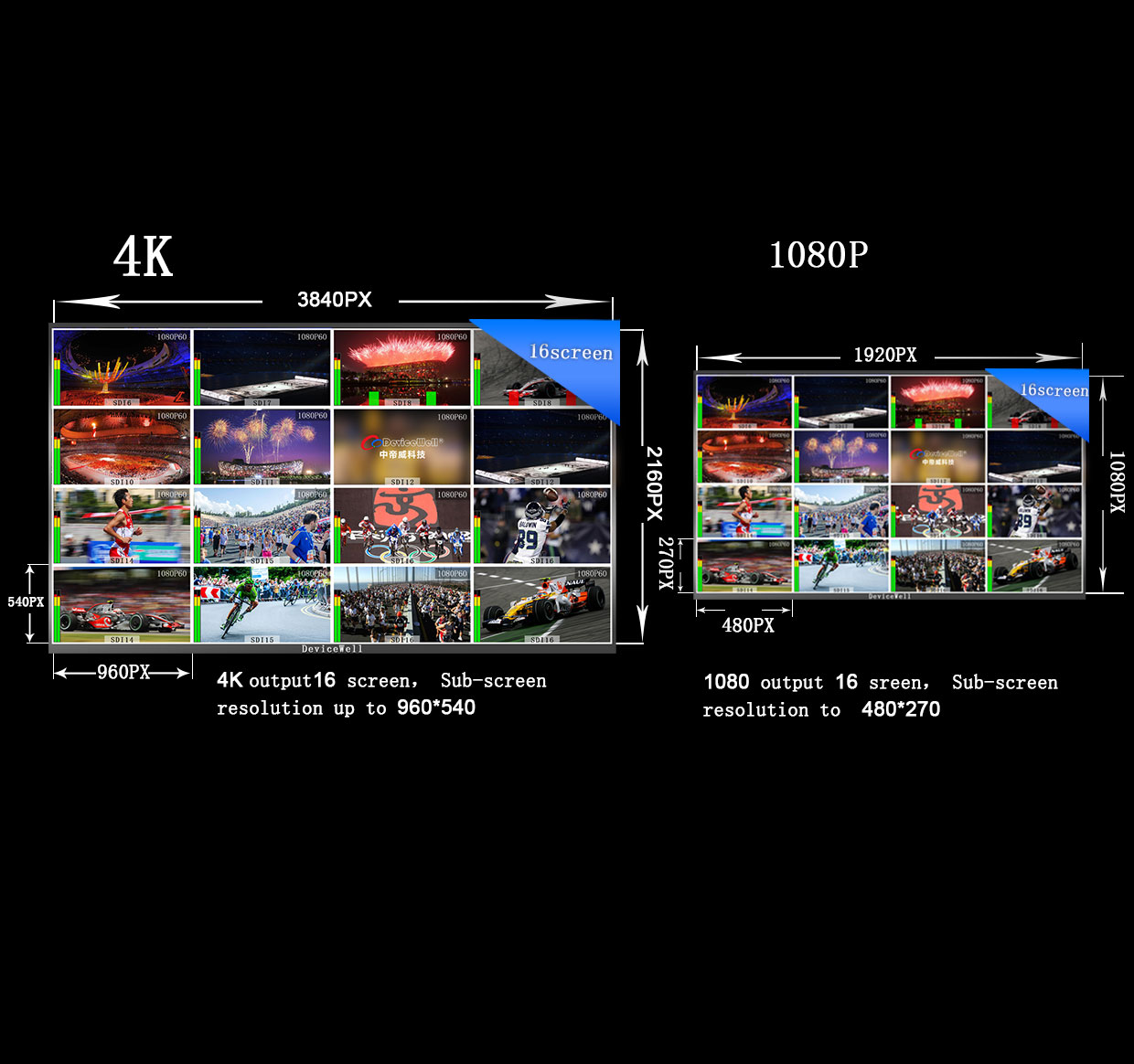

Multi-screen split 4K output





































Multi-screen split output can be upgraded to 4K output. If



converted to 4k multi-screen split mode, there are only 16



screens, 10 sreens, 4 screens. Compared to 1080P, the



biggest advantage of 4K is more clear image and suitable for



occasions where the monitoring screen is required to be high.
