DeviceWell 4K class signal converter, based on broadcast-level single-link 12G SDI

signal design 4K-level signal conversion equipment. The device input supports up to

single-link 12G SDI signals, and is compatible with single-link 6G SDI signals and

single-link signals below 3G. The device has built-in SDI signal equalization, serial

clock recovery and line driver, and supports 12G SDI down conversion to 3G SDI signal

output. At the same time, the device has built-in HDMI encoder, liquid crystal display

driver and audio power amplifier, which can simultaneously realize functions such as

SDI to HDMI and SDI video display on LCD, SDI audio de-embedding and audio power

amplifier. Support 4K signal down conversion to full HD HDMI signal output. The

device's SDI input signal frequency is automatically adapted and no additional settings

are required. It can be applied to professional SDI video signals such as

UHDTV/FHDTV/HDTV/SDTV, and is especially suitable for down conversion applications

of broadcast-grade ultra-high definition digital signals.

MD2192

Make the control pixel picture more delicate

MD2192 is a 4K-class signal conversion device based on broadcast-grade single-link

12G SDI signal. The highest resolution supports 3840*2160/60Hz.The picture is more

delicate and the texture is stronger

MD2192

USB power supply design, stable and not black

screen

The device is powered by MicroUSB, which can be applied to the USB device power

supply system and supports mobile power supply such as charging treasure.

MD2192

Unique design, built anywhere

MD2192

Application diversification

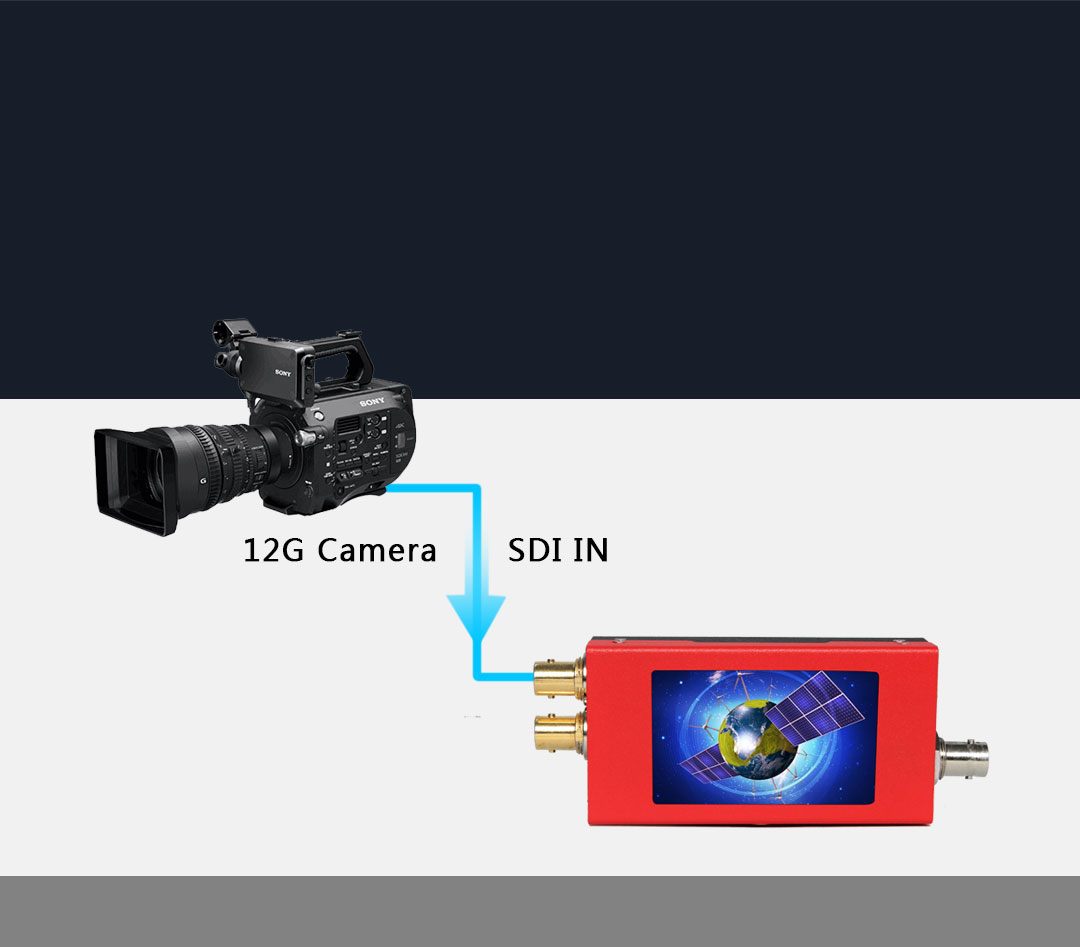

Application scenario 1: One way 12G SDI signal input

                                    One way LCD output

MD2192

Application scenario 2: One way 12G SDI signal input

                                    One way 12G SDI signal output

                                                           One way LCD output

Application scenario 3: One way 12G SDI signal input

                                    One way 3G SDI signal output

                                    One way LCD output

Application scenario 4: One way 12G SDI signal input

                                    One way FHD HDMI signal output

                                    One way LCD output

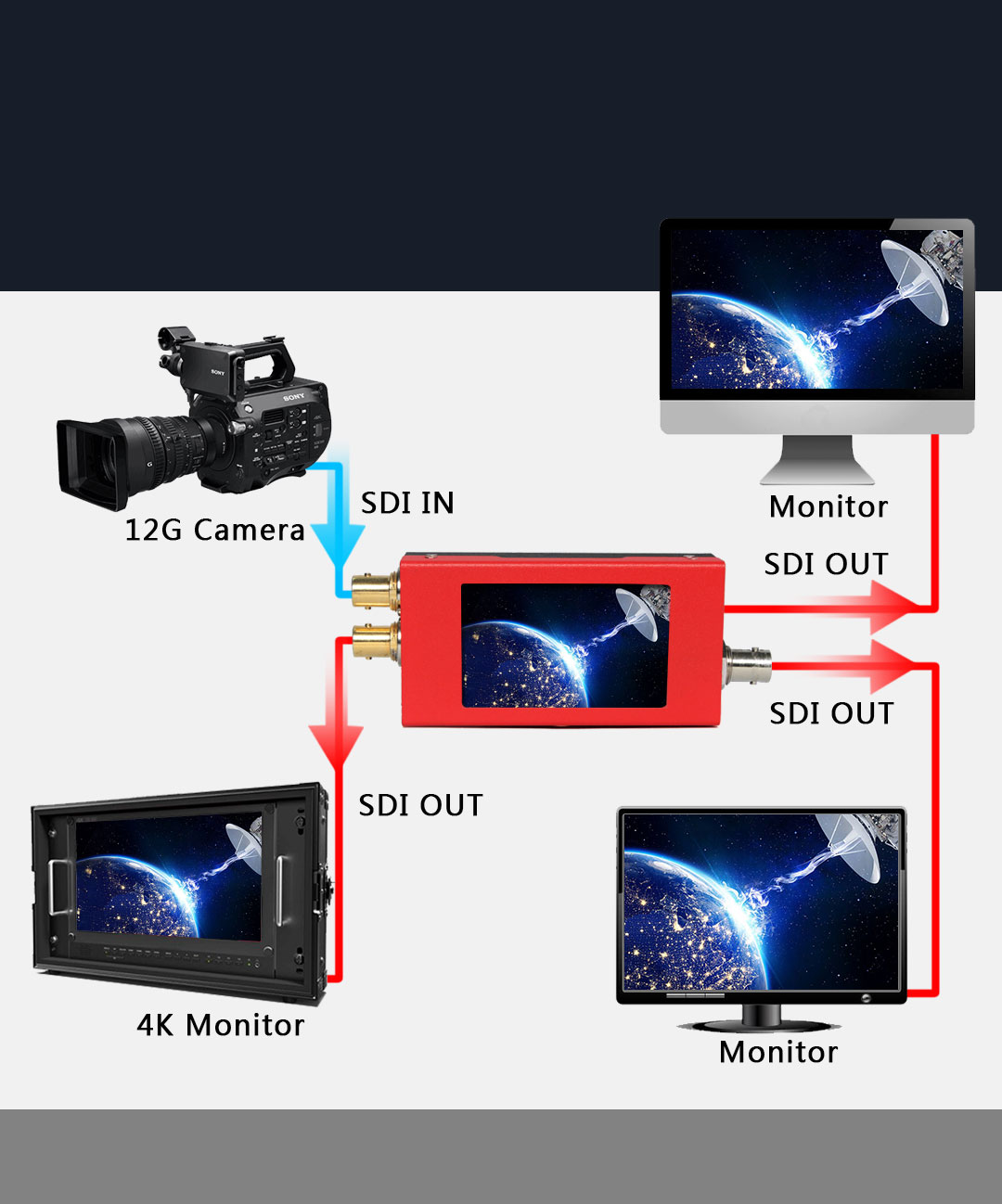

Application scenario 5: Input: one way 12G SDI signal input

                                              Output: All the way 12G SDI OUT

                                              All the way 3G SDI OUT

                                              All the way to FHD HDMI OUT

                                             One way LCD output

MD2192

size：92*48*30mm

MD2192

Interface introduction

MD2192

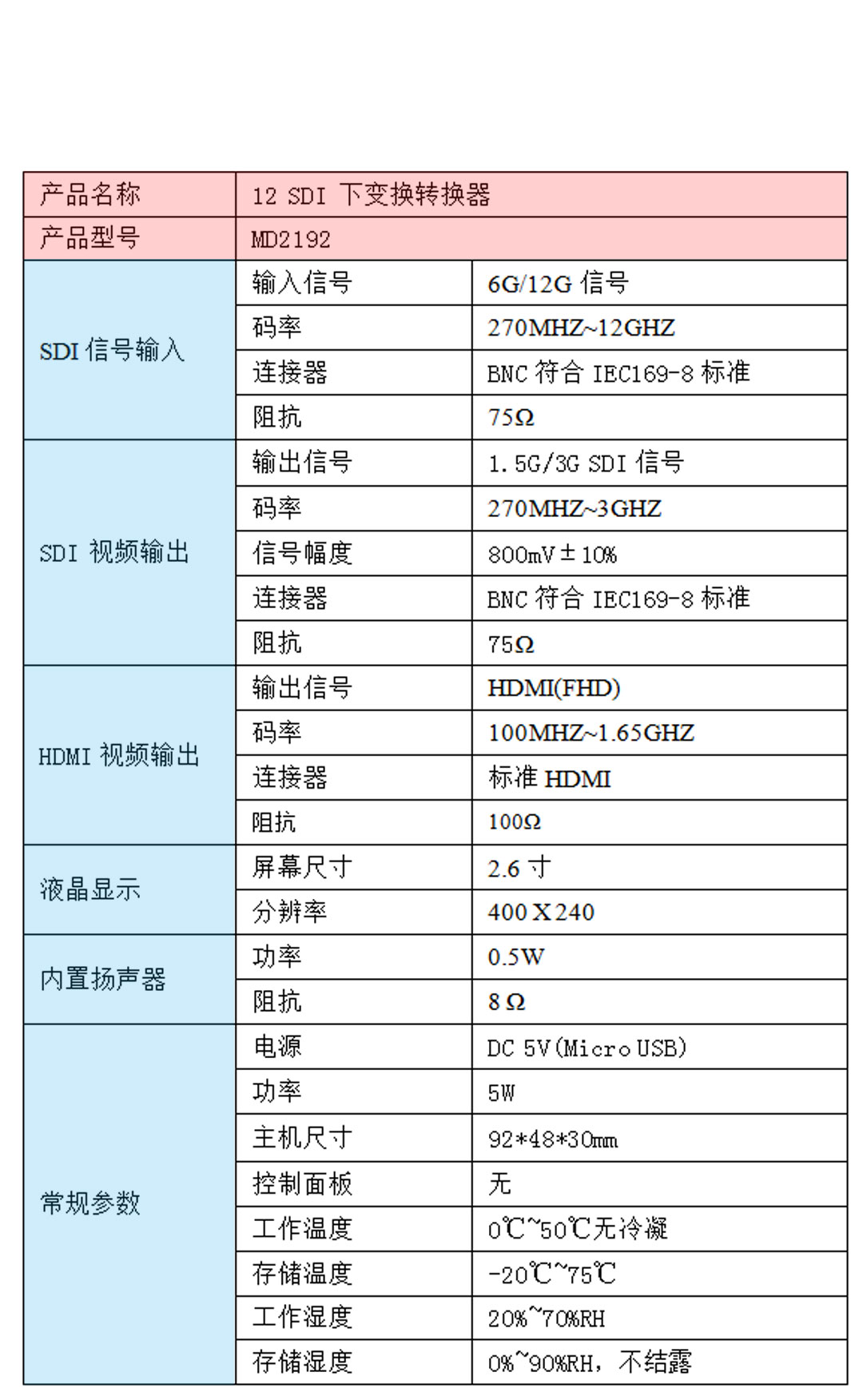

Parameter introduction
