PD6512 (Seamless SDI to HDMI)





Product Features

• Based on the third generation technology design of Zhongdiwei

• Support 3G/HD/SD SDI signal input/loop output

• Support common formats 1080P/1080I/720P/480I/576I

• Supports special formats such as 1080PSF/720P 30/25/24HZ

• 1080P/1080I, 720P inverter output

• Up conversion function PAL/NTSC/720P to 1080I/1080P

• Downconvert 1080I/1080 to PAL/NTSC/720P

• Support input signal adaptation

• SDI embedded audio de-embedding

• Support for SDI audio de-embedding into analog stereo audio output

• Support for external analog audio embedding to HDMI

• Special features can be customized

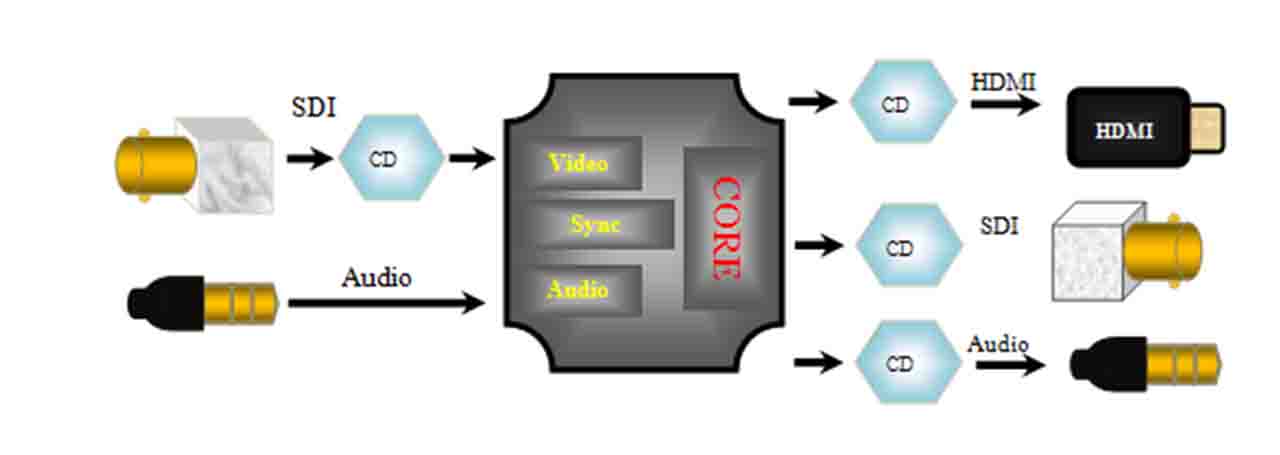

Product Function Chart

PD6512_APP

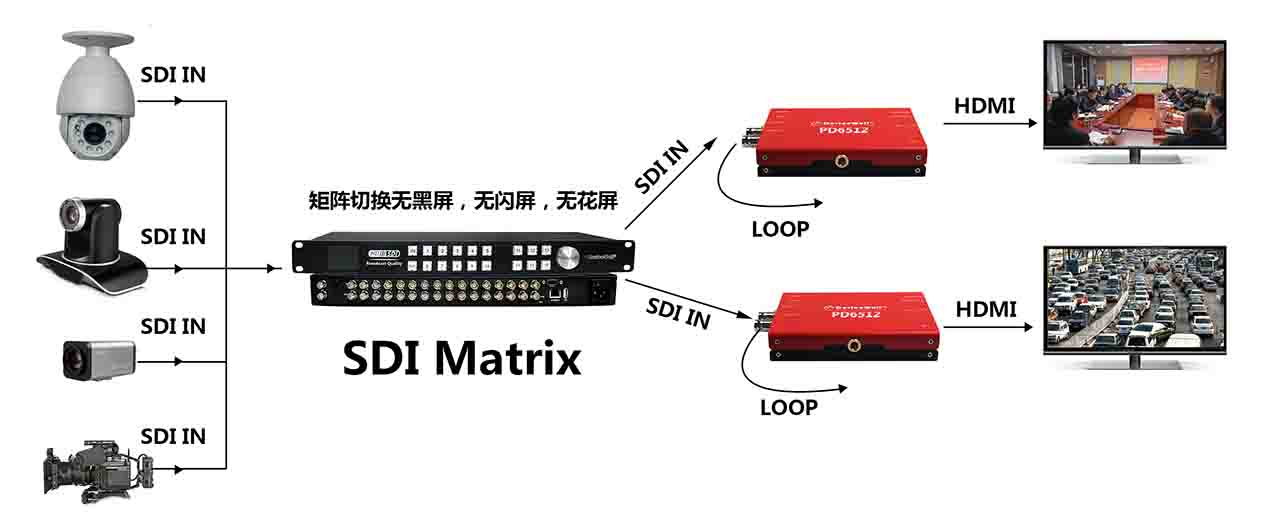

Applications

PD6512_APP

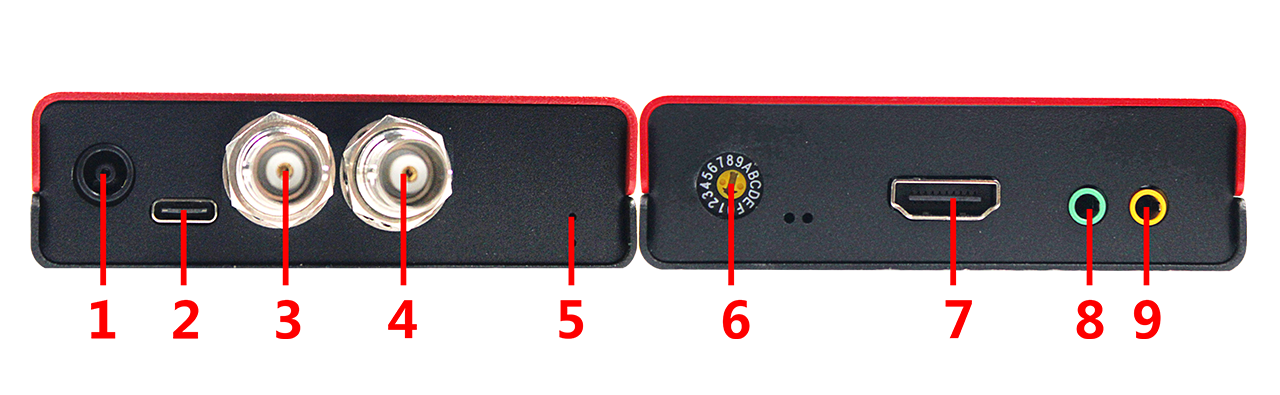

※Interfaces

1.DC 5V-12V

2. USB

3. SDI input

4. SDI Loop out

5. LED indication (flashing: no signal input Red: SD Green: HD Blue: 3G)

6. Function settings (see table below)

7. HDMI video out

8. Stereo audio output

9. Stereo audio input



Downloading the instructions of the PD6512 Seamless Output SDI Converter of Devicewel

Serial No. Material name Version modification date Description/Remarks
1

PD6512 Specification Download

1.0 Aug.26,2024
2

Others

1.0

Aug.26,2024
