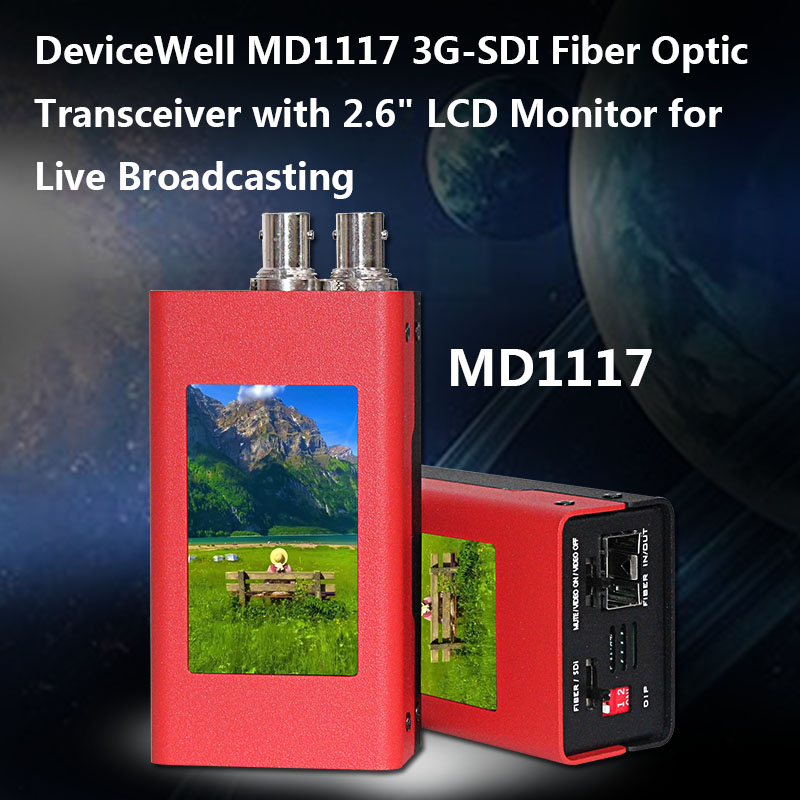

Say goodbye to distance limitations and achieve HD video transmission

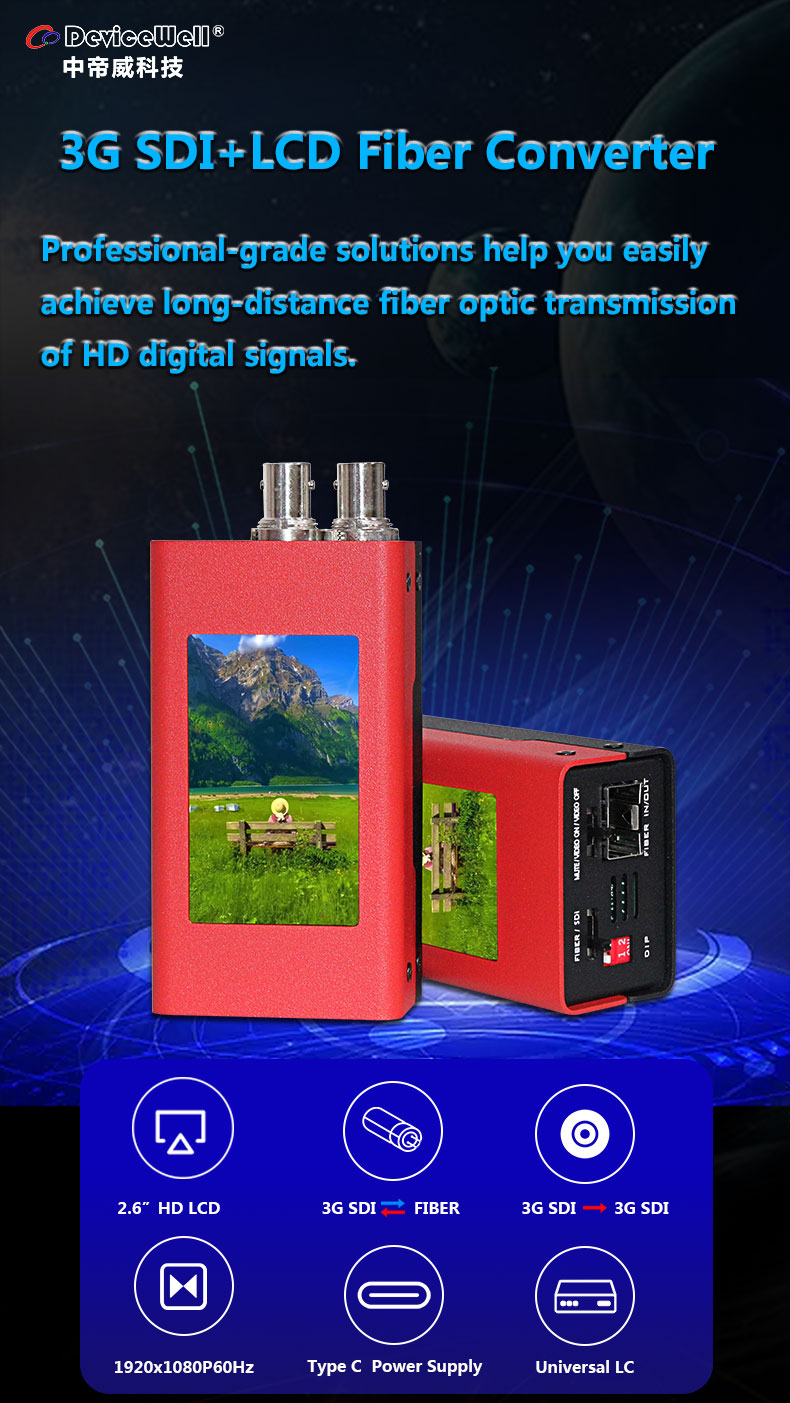

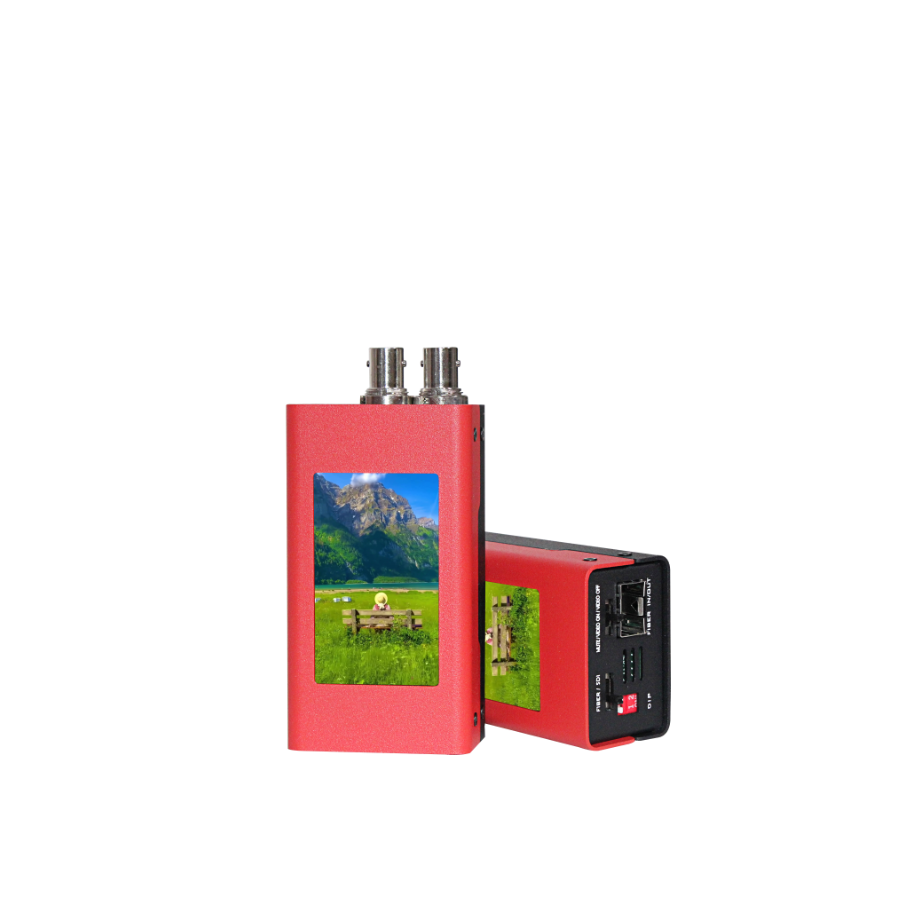

The DeviceWell MD1117 high-definition video optical transceiver, featuring a built-in 2.6-inch high-definition monitor, is a dedicated SDI video fiber optic transmission device. This device integrates an SDI receiver and optical signal encoder, converting SDI signals into optical signals. It utilizes detachable SFP optical modules, allowing for easy replacement with modules suitable for different distances and speeds. The MD1117 incorporates signal equalization, serial clock recovery, and line drive. The devices are used in pairs; by controlling DIP switches, the input and output of fiber optic and SDI signals can be customized. The receiver supports one optical signal input, converting it into two independent SDI signal outputs. The transmitter supports one SDI signal input, converting it into one fiber optic output and one loop-out output. The device automatically adapts to the input signal and is easy to operate. It can be widely used for long-distance fiber optic transmission and applications of broadcast-grade signals, such as sports events, dance performances, weddings, and multimedia teaching.    The device uses a Type-C 5V power supply system, compatible with USB device power supply systems.

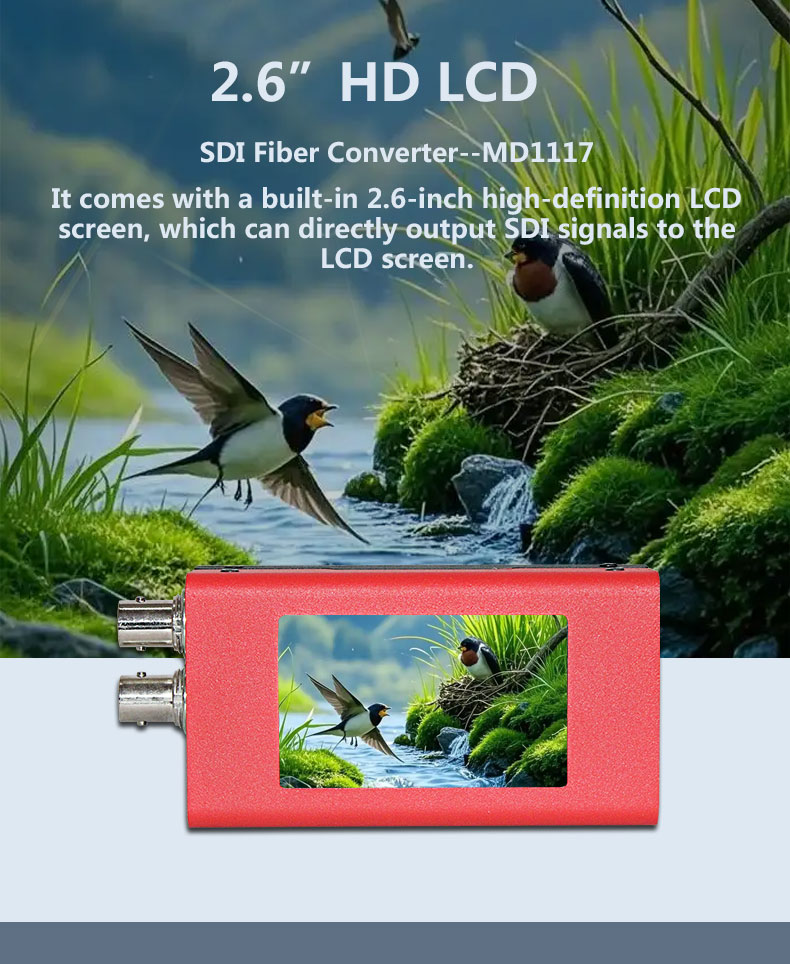

2.6”HD LCD

SDI Fiber Converter--MD1117 It comes with a built-in 2.6-inch high-definition LCD screen, which can directly output SDI signals to the LCD screen.

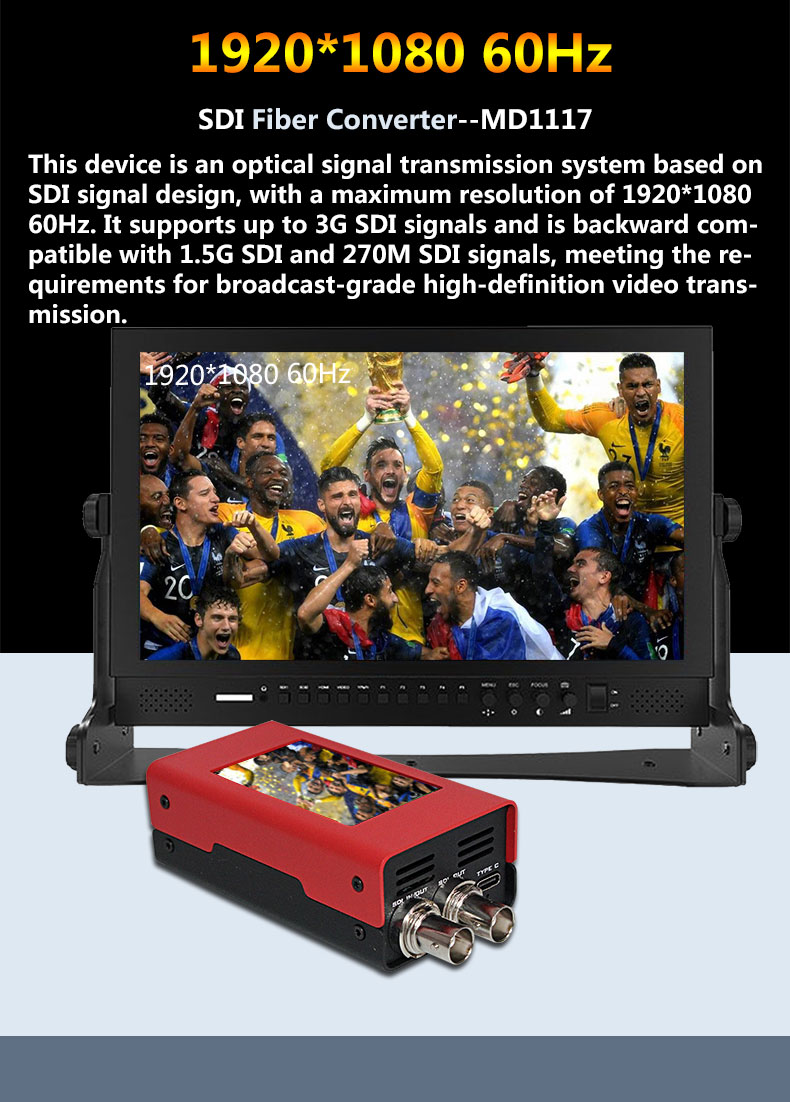

1920*1080 60Hz

SDI Fiber Converter--MD1117 This device is an optical signal transmission system based on SDI signal design, with a maximum resolution of 1920*1080 60Hz. It supports up to 3G SDI signals and is backward compatible with 1.5G SDI and 270M SDI signals, meeting the requirements for broadcast-grade high-definition video transmission.

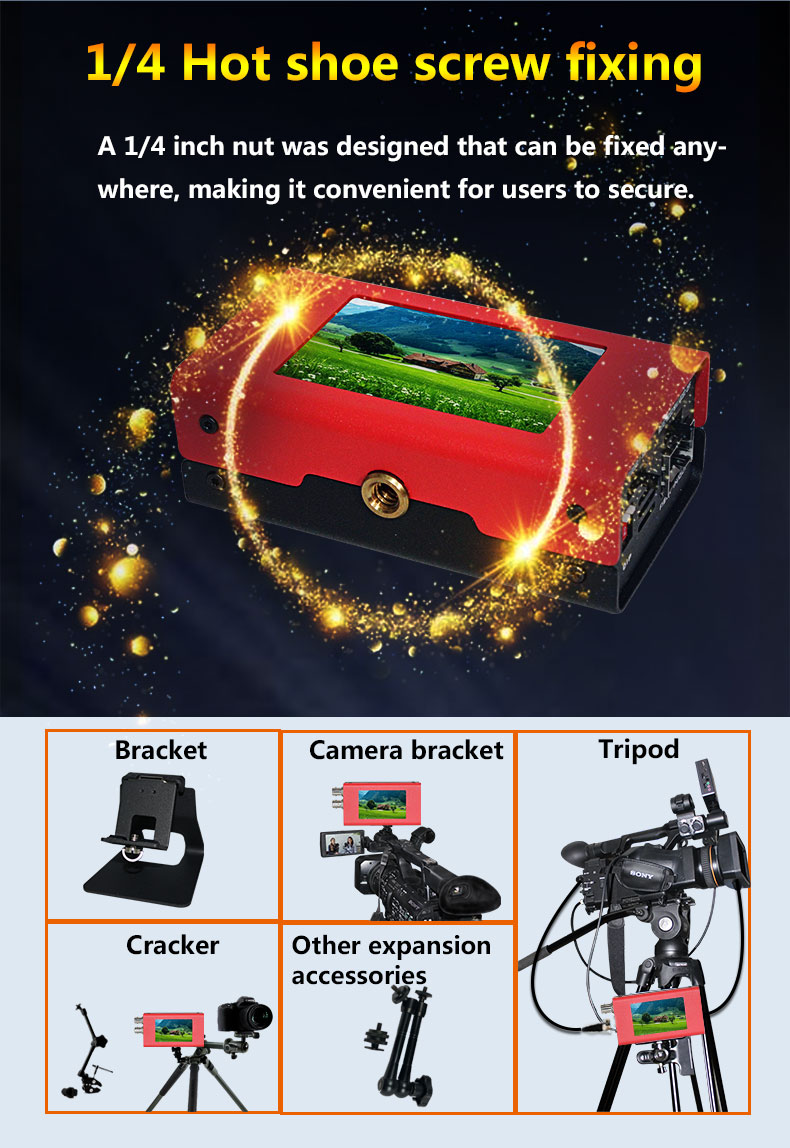

1/4 Hot shoe screw fixing

A 1/4 inch nut was designed that can be fixed anywhere, making it convenient for users to secure.

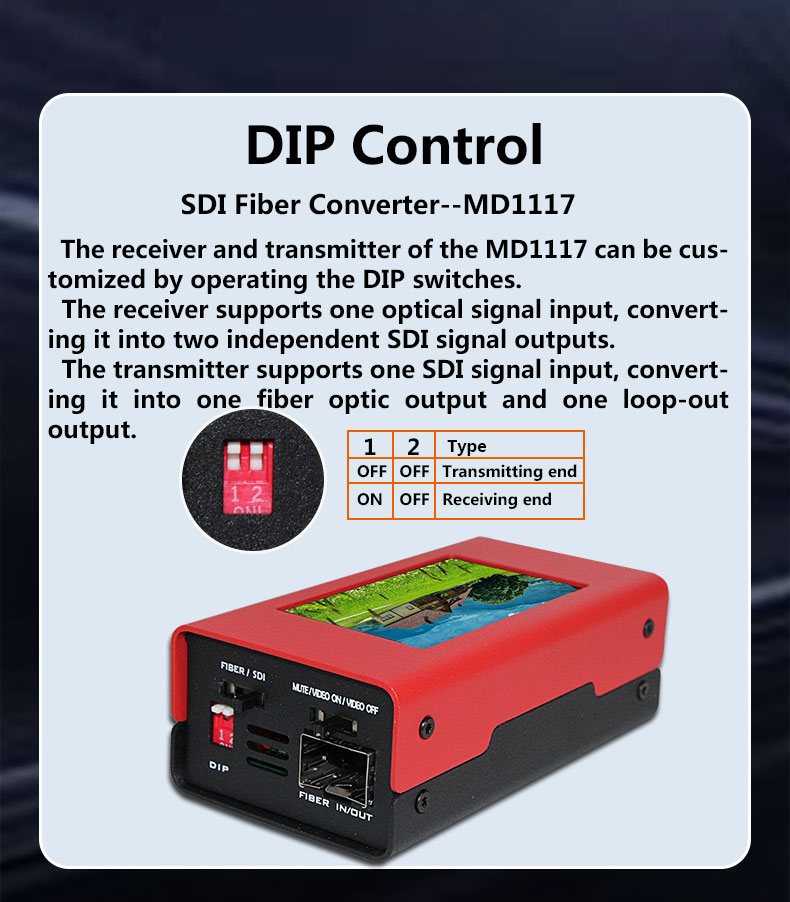

DIP Control

SDI Fiber Converter--MD1117   The receiver and transmitter of the MD1117 can be customized by operating the DIP switches.   The receiver supports one optical signal input, converting it into two independent SDI signal outputs.   The transmitter supports one SDI signal input, converting it into one fiber optic output and one loop-out output.

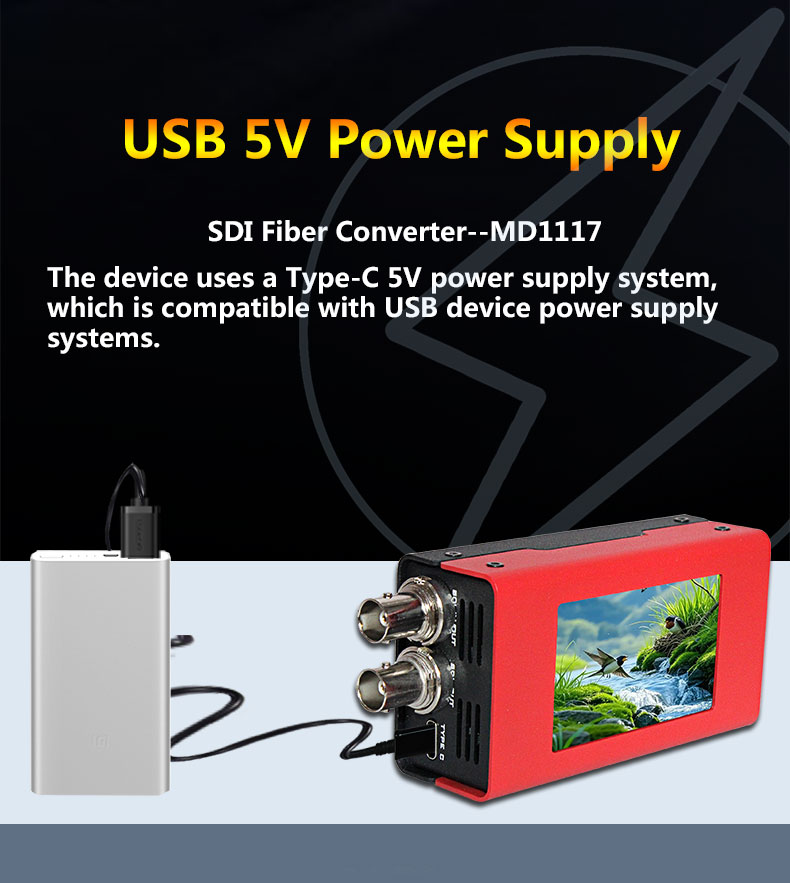

USB 5V Power Supply

SDI Fiber Converter--MD1117 The device uses a Type-C 5V power supply system, which is compatible with USB device power supply systems.

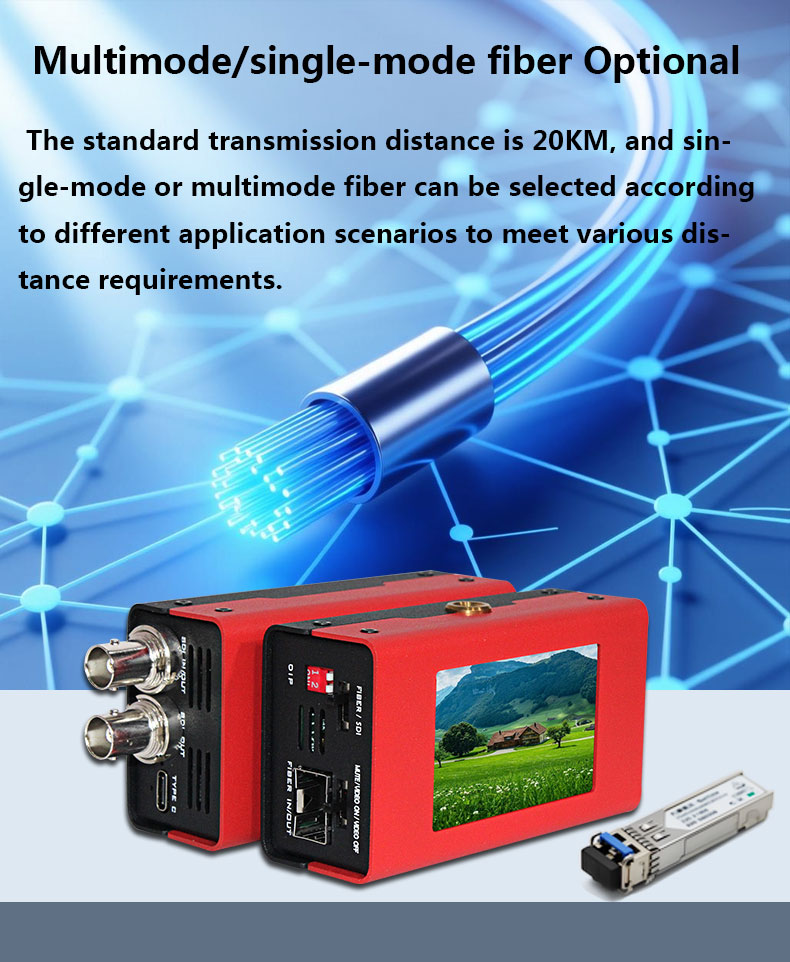

Multimode/single-mode fiber Optional

The standard transmission distance is 20KM, and single-mode or multimode fiber can be selected according to different application scenarios to meet various distance requirements.

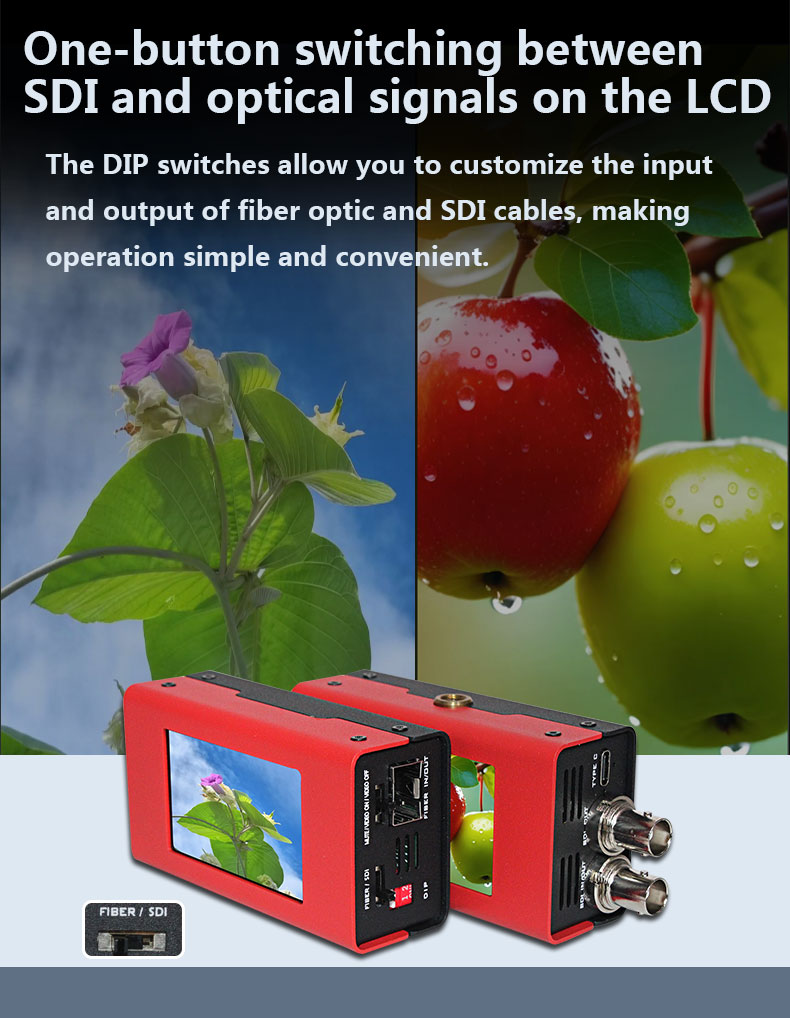

One-button switching between SDI and optical signals on the LCD

The DIP switches allow you to customize the input and output of fiber optic and SDI cables, making operation simple and convenient.

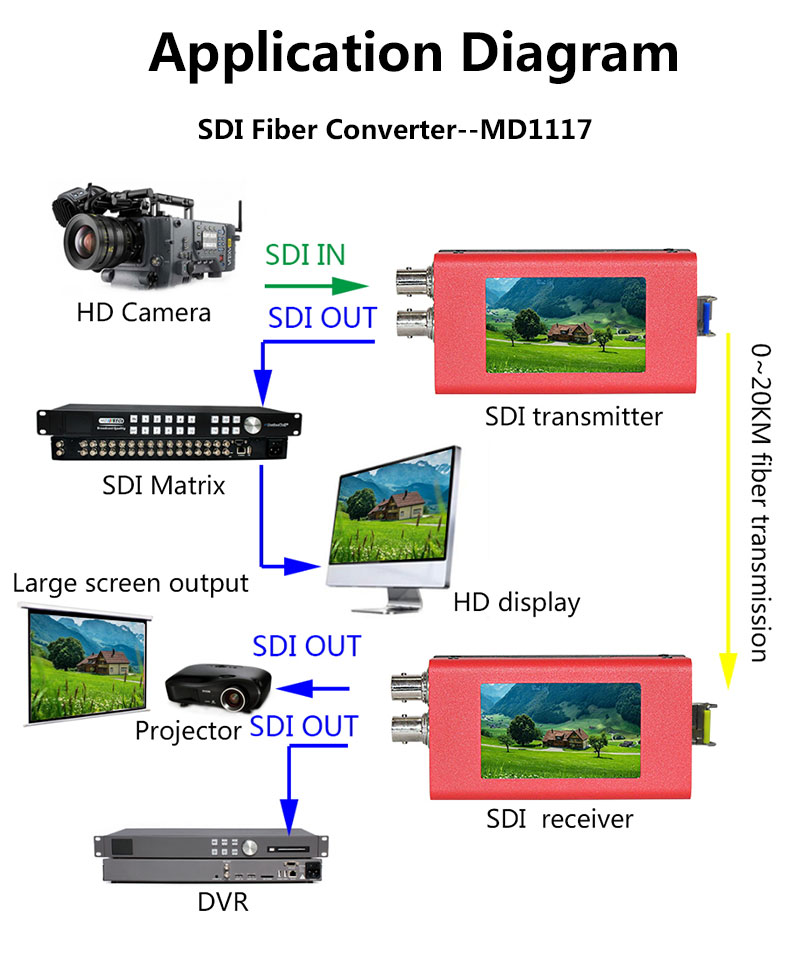

Application Diagram

SDI Fiber Converter--MD1117

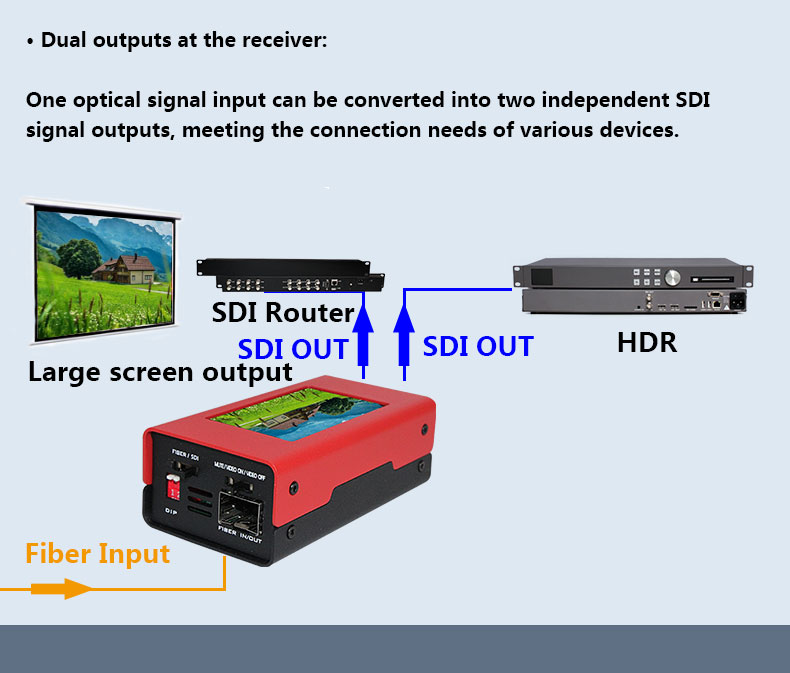

Dual outputs at the receiver:

 One optical signal input can be converted into two independent SDI signal outputs, meeting the connection needs of various devices.

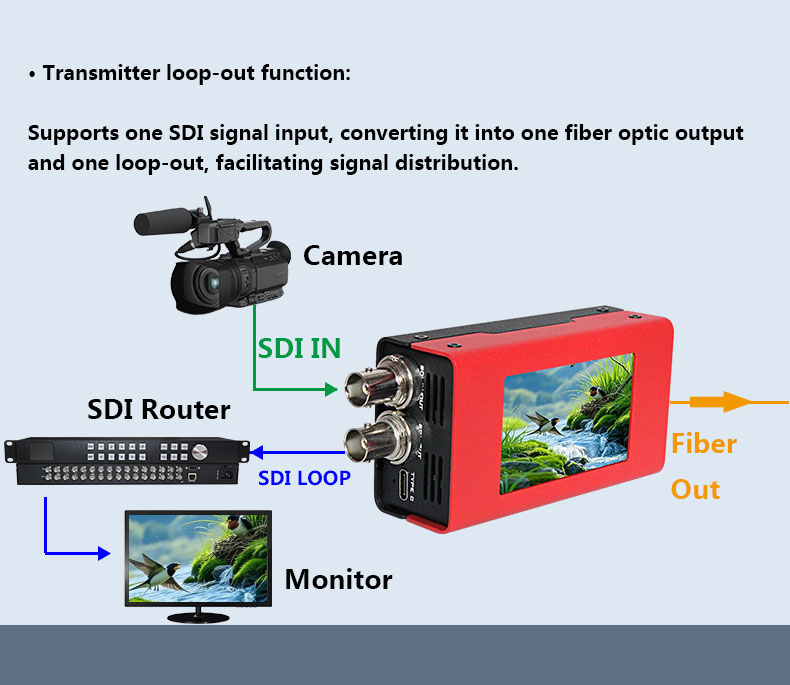

Transmitter loop-out function:

 Supports one SDI signal input, converting it into one fiber optic output and one loop-out, facilitating signal distribution.

Application

SDI Fiber Converter--MD1117 It can be widely used in broadcasting and television stations, film and television production, video conferencing, security monitoring, medical imaging, education and training, sports events, song and dance performances, weddings and multimedia teaching.

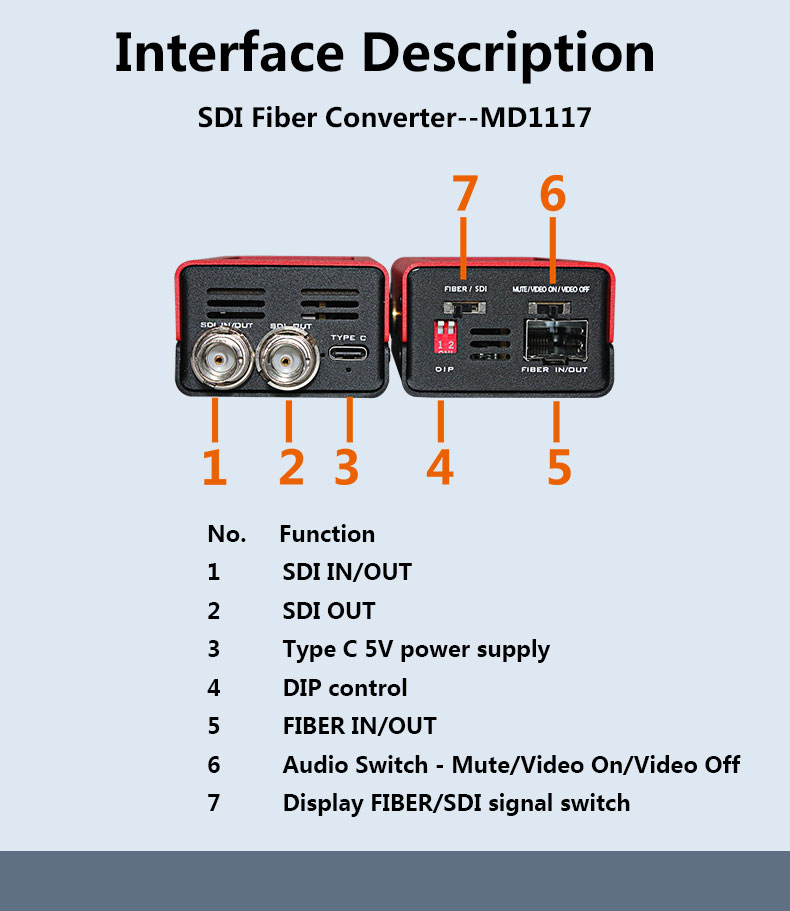

Interface Description

SDI Fiber Converter--MD1117

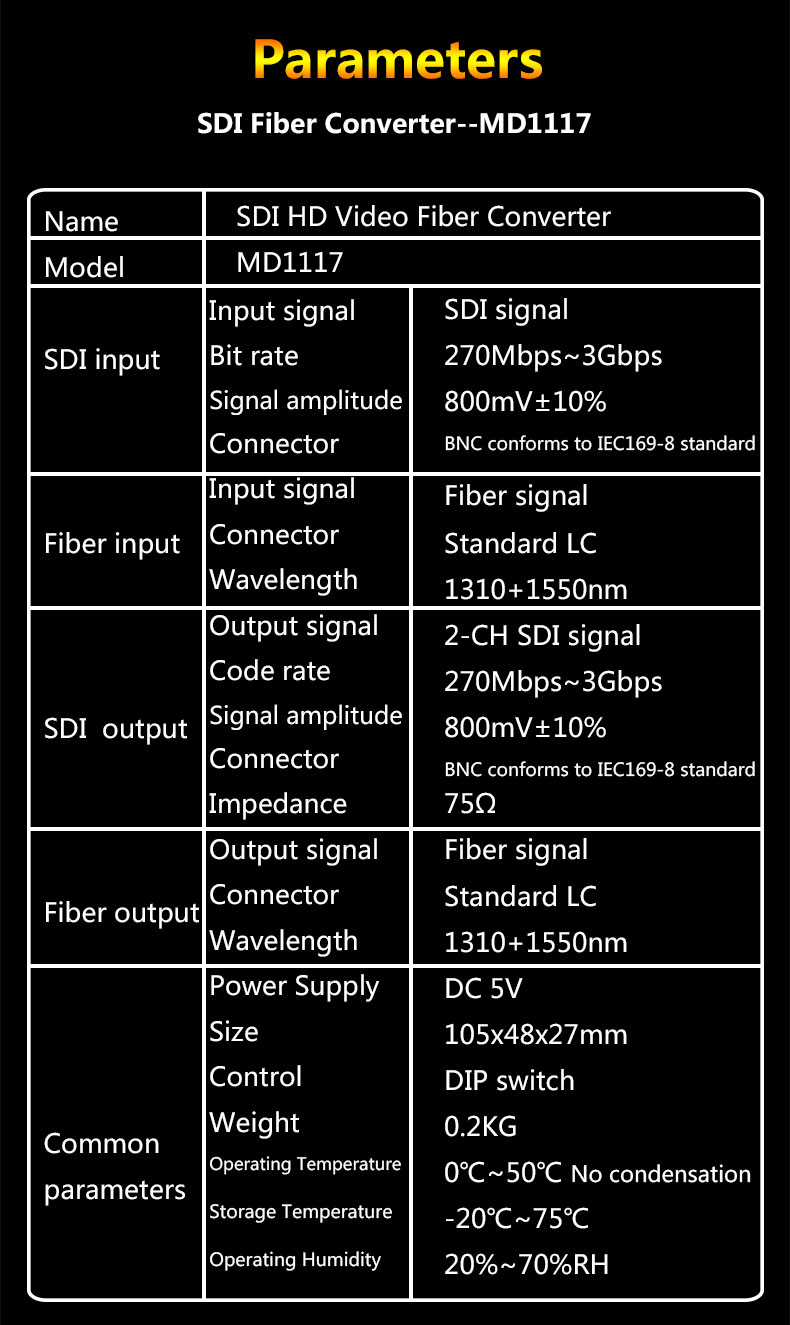

Parameters

SDI Fiber Converter--MD1117

Downloading the instructions of DeviceWell MD1117 3G-SDI Fiber Optic Transceiver
