Professional HD Video YPbPr TO SDI ConverterPD6331

Posted in Video Converter

Professional HD Video YPbPr TO SDI  ConverterPD6331



Product Overview

       DeviceWell HD Video Converter, It support YPbPr signal convert to 3G/HD/SD SDI signal. The device Integrated YPbPr receiver and 3G/HD/SD-SDI encoder, easily converted YPbPr signal to 3G/HD/SD-SDI signal. Meanwhile, YPbPr support external input analog audio signal  embedded in the SDI signal. Additionally, PD6331 also supports "Frame Rate Convert" function, it can convert  different resolution YPbPr signal to a fixed resolution SDI signal output. The output resolution setting use digital coding switch, easy to operate.

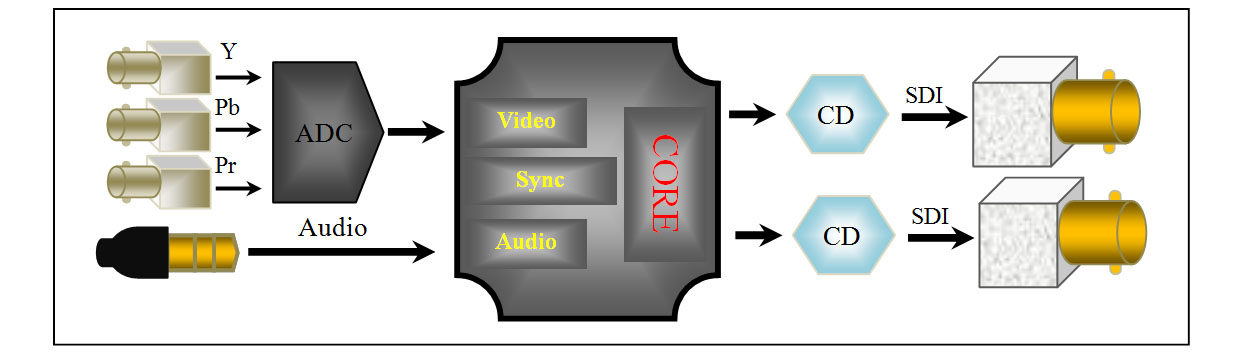

Functional Diagram

Product features

.Standard YPbPr signal input

.Optional 3G/HD/SD SDI output signal

.Optional 1080P/1080I/720P/480I/576I/1080PSF output

. YPbPr input signal auto detected

.External analog  audio signal  embedded in the SDI signal

.The SDI can be set to "any frequency" output

.Down Scale support  Left /Right Cut

.Down Scale support  Top /Bottom Black

. Special function can be customized



Interface specification

1 . Setup (see table below)     2. YPbPr  input            3. Audio input              4. DC 5V-12V

5.USB power supply         6. SDI output (see table below)                 7.LED Indicator(P: power L: SD M: HD H:3G)



Product parameters

Product name

HD Video Converter

Product model

PD6331

YPbPr Input

Input signal

Standard  YPbPr signal

Connector

BNC

Amplitude of the signal

800mV±10%(75Ω)

Impedance

75Ω

Analog audio input

Input signal

Analog stereo audio

Digital sampling

48K

Impedance

600Ω

Connector

Earphone

SDI Output

output signal

SDI (serial digital video signal)

bit rate

270Mbps~2.97Gbps

Impedance

75Ω

Amplitude of the signal

800mV±10%

Connector

BNC comply IEC169-8 standards

Common parameters

Operating voltage

DC 5-12V

Power

<2W

Host size

141 X 102 X 30  mm

Control panel

Digital code switch

Weight

0.3KG

Working temperature

0℃~50℃ ,no condensation

Storage temperature

-20℃~75℃

Work humidity

20%~70%RH

Storage humidity

0%~90%RH,no condensation

































































Parameter setting

Code Set

Output Resolution

0

1080I @50HZ

1

1080P @60HZ

2

1080P @50HZ

3

1080I @60HZ

4

1080P @30HZ

5

1080P @25HZ

6

1080P @24HZ

7

720P @60HZ

8

720P @50HZ

9

720P @30HZ

A

720P @25HZ

B

576I @50HZ

C

480I @60HZ

D

576I @50HZ切边

E

576I @50HZ加黑边

F

Reserve

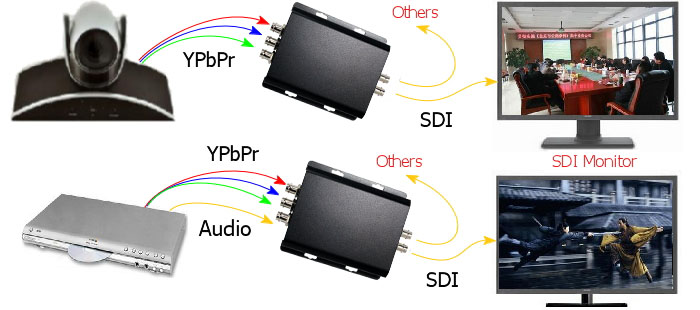

PD6331 Application schematic diagram



Model order



Product model

Function

Chassis Type

Type of Power

Others

PD6331

YPbPr To SDI

Mini

Standard AC-DC 12V power supply

Support Frame Rate Conversion

PD6321

HDMI To SDI

Mini

Standard AC-DC 12V power supply

Support Frame Rate Conversion

PD6341

CVBS To SDI

Mini

Standard AC-DC 12V power supply

Support Frame Rate Conversion

PD6351

DVI To SDI

Mini

Standard AC-DC 12V power supply

Support Frame Rate Conversion

PD6361

VGA To SDI

Mini

Standard AC-DC 12V power supply

Support Frame Rate Conversion

PD6311

SDI To SDI

Mini

Standard AC-DC 12V power supply

Support Frame Rate Conversion























中帝威(Devicewell)YPbPr  TO SDI  Converter Manual Download
