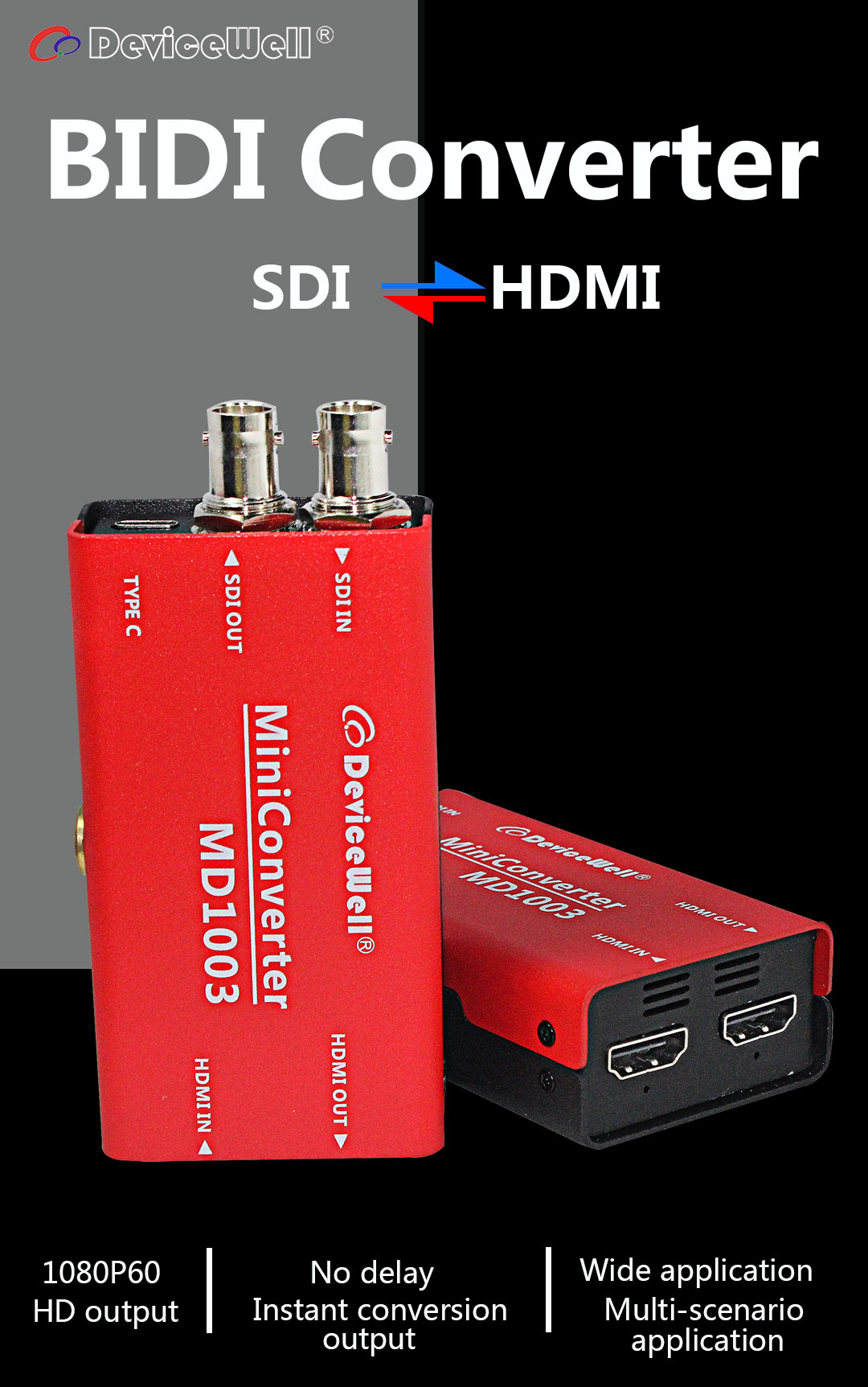

MD1003 SDI/HDMI BIDI Converter

便携式切换台







便携式切换台

MD1003

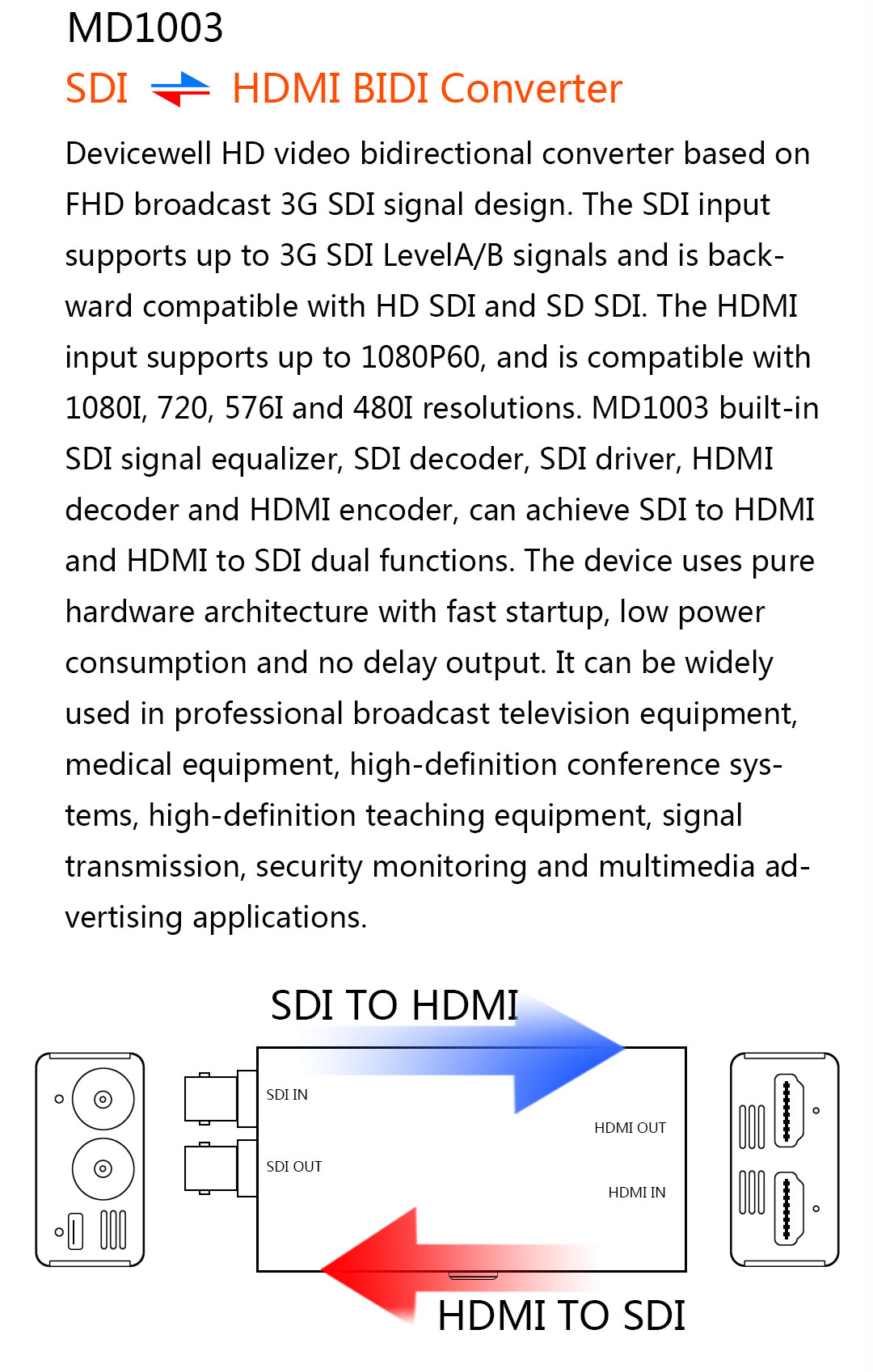

SDI                 HDMI BIDI Converter



Devicewell HD video bidirectional converter based on FHD broadcast 3G SDI signal

design. The SDI input supports up to 3G SDI LevelA/B signals and is backward

compatible with HD SDI and SD SDI. The HDMI input supports up to 1080P60, and is

compatible with 1080I, 720, 576I and 480I resolutions. MD1003 built-in SDI signal

equalizer, SDI decoder, SDI driver, HDMI decoder and HDMI encoder, can achieve SDI to

HDMI and HDMI to SDI dual functions. The device uses pure hardware architecture

with fast startup, low power consumption and no delay output. It can be widely used

in professional broadcast television equipment, medical equipment, high-definition

conference systems, high-definition teaching equipment, signal transmission, security

monitoring and multimedia advertising applications.I

便携式切换台

MD1003

1080P60 HD output

The SDI input supports up to 3G SDI LevelA/B signals and is backward compatible with

HD SDI and SD SDI. The HDMI input supports up to 1080P60, and is compatible with

1080I,720, 576I and 480I resolutions.

便携式切换台

MD1003

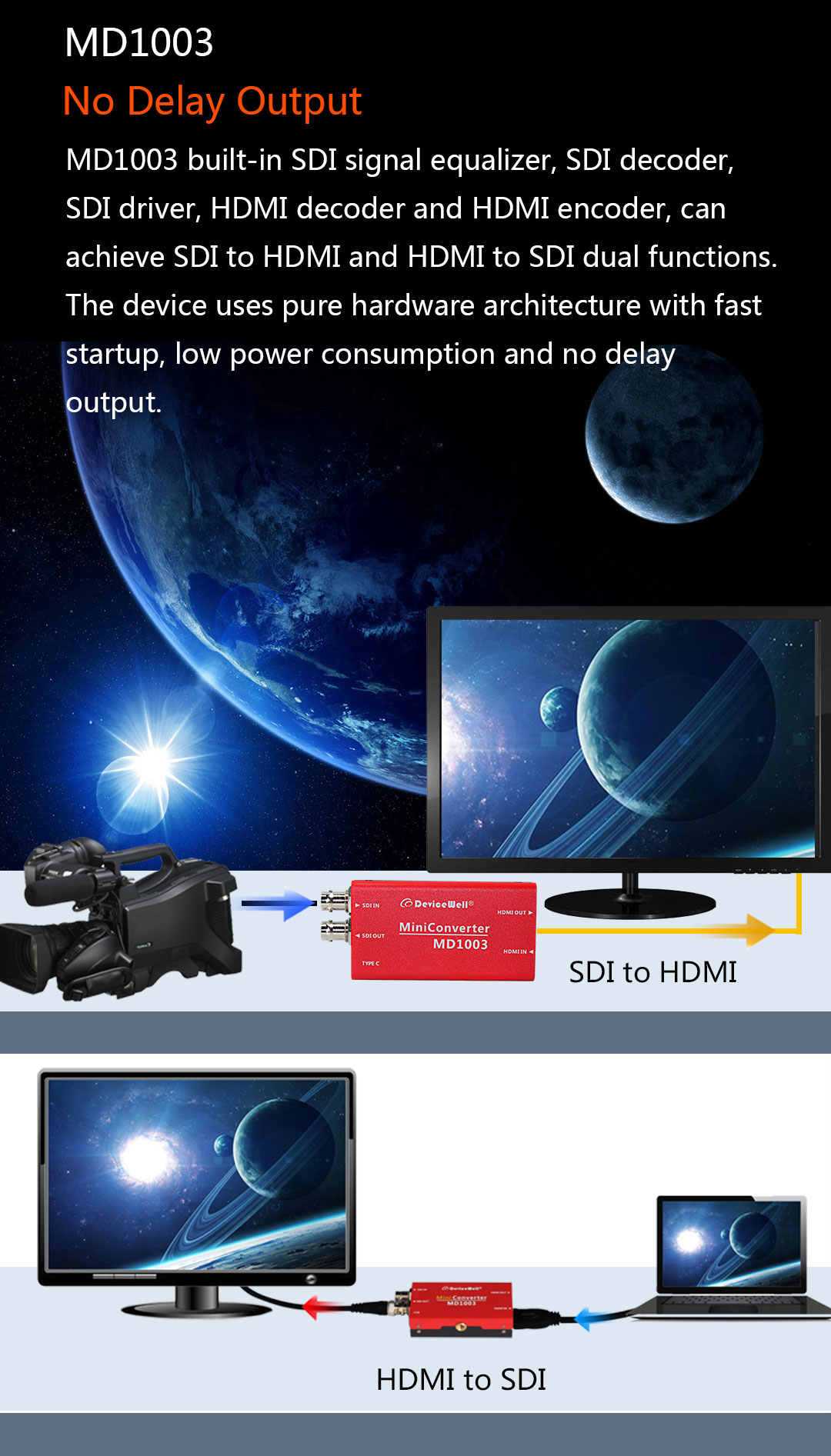

No Delay Output

MD1003 built-in SDI signal equalizer, SDI decoder, SDI driver, HDMI decoder and HDMI

encoder, can achieve SDI to HDMI and HDMI to SDI dual functions. The device uses

pure hardware architecture with fast startup, low power consumption and no delay

output.

便携式切换台

MD1003

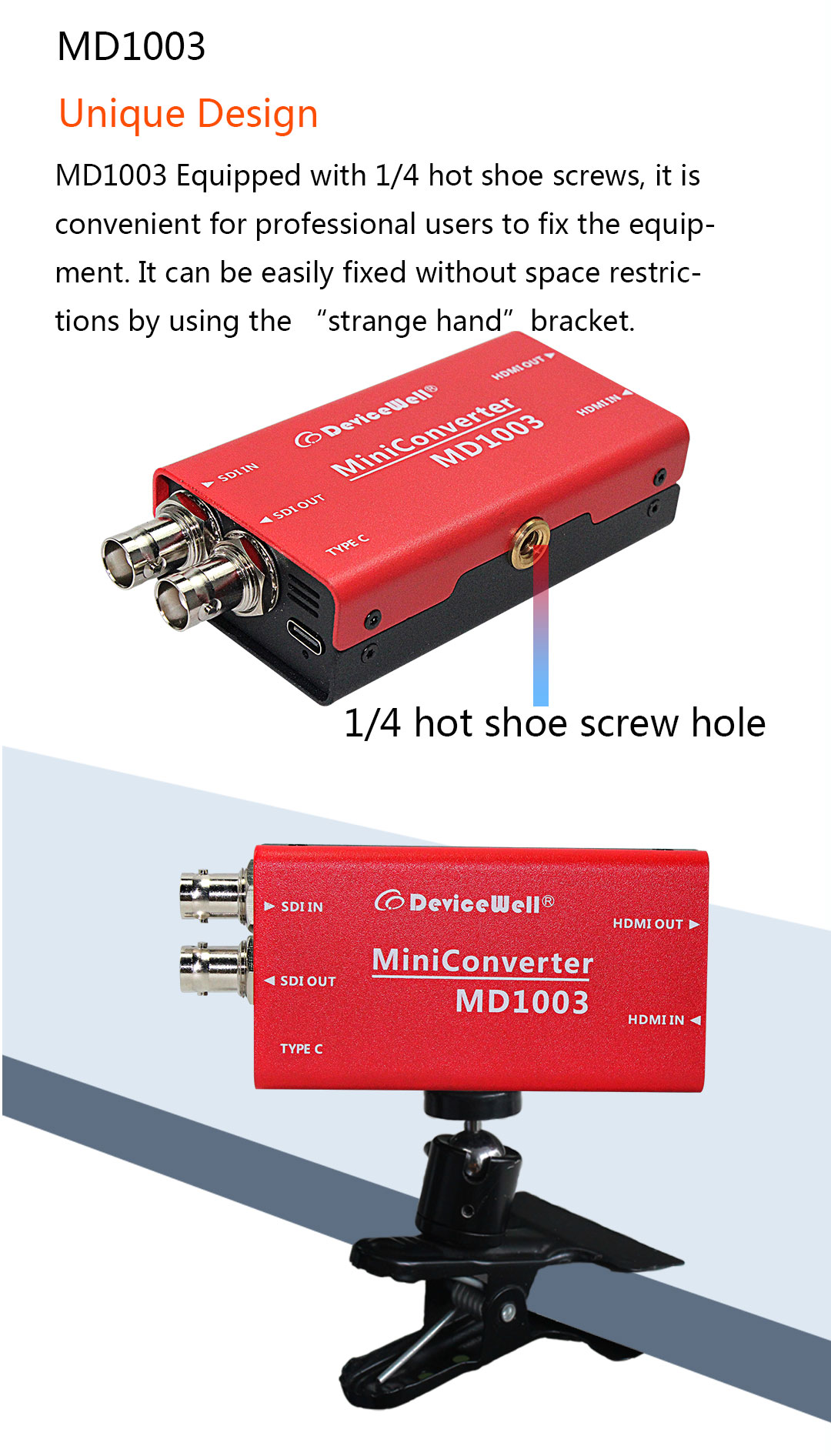

Unique Design

MD1003 Equipped with 1/4 hot shoe screws, it is convenient for professional users to

fix the equipment. It can be easily fixed without space restrictions by using the

“strange hand”bracket.

便携式切换台

MD1003

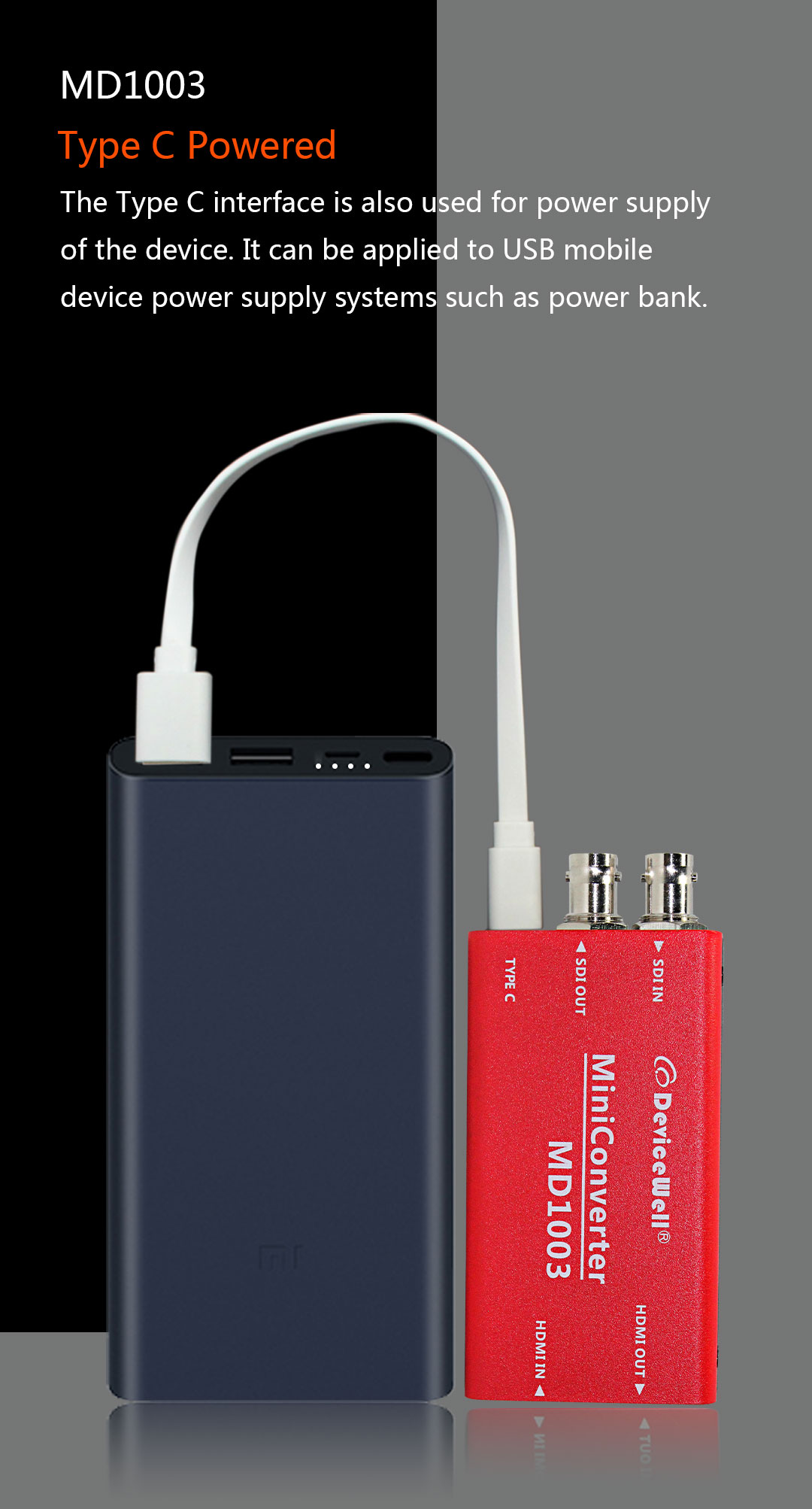

USB Powered

便携式切换台

MD1003

Wide applications

MD1003 can be widely used in professional broadcast television equipment, medical

equipment, high-definition conference systems, high-definition teaching equipment,

signal transmission, security monitoring and multimedia advertising applications.

便携式切换台

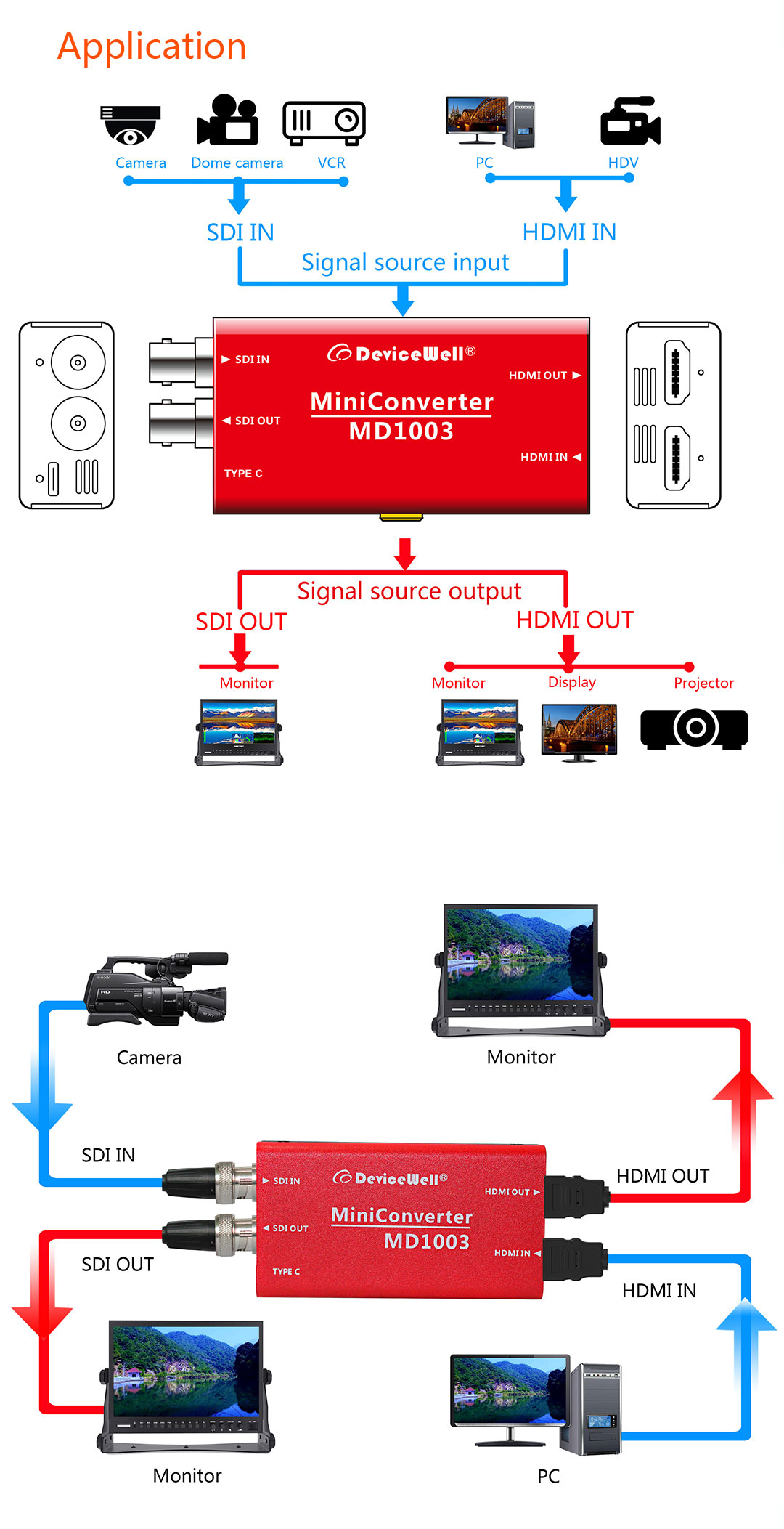

Application

便携式切换台

MD1003

Size:92*48*25.5MM

便携式切换台

MD1003

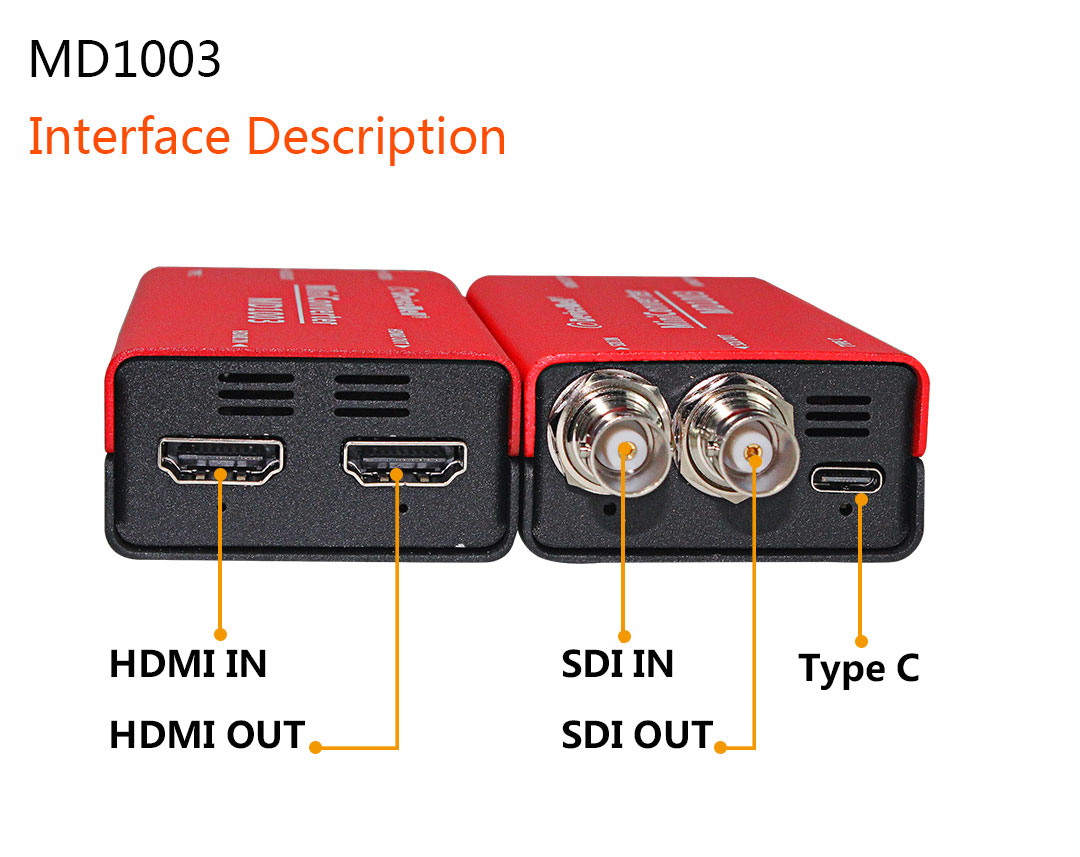

Interface Description

便携式切换台

MD1003

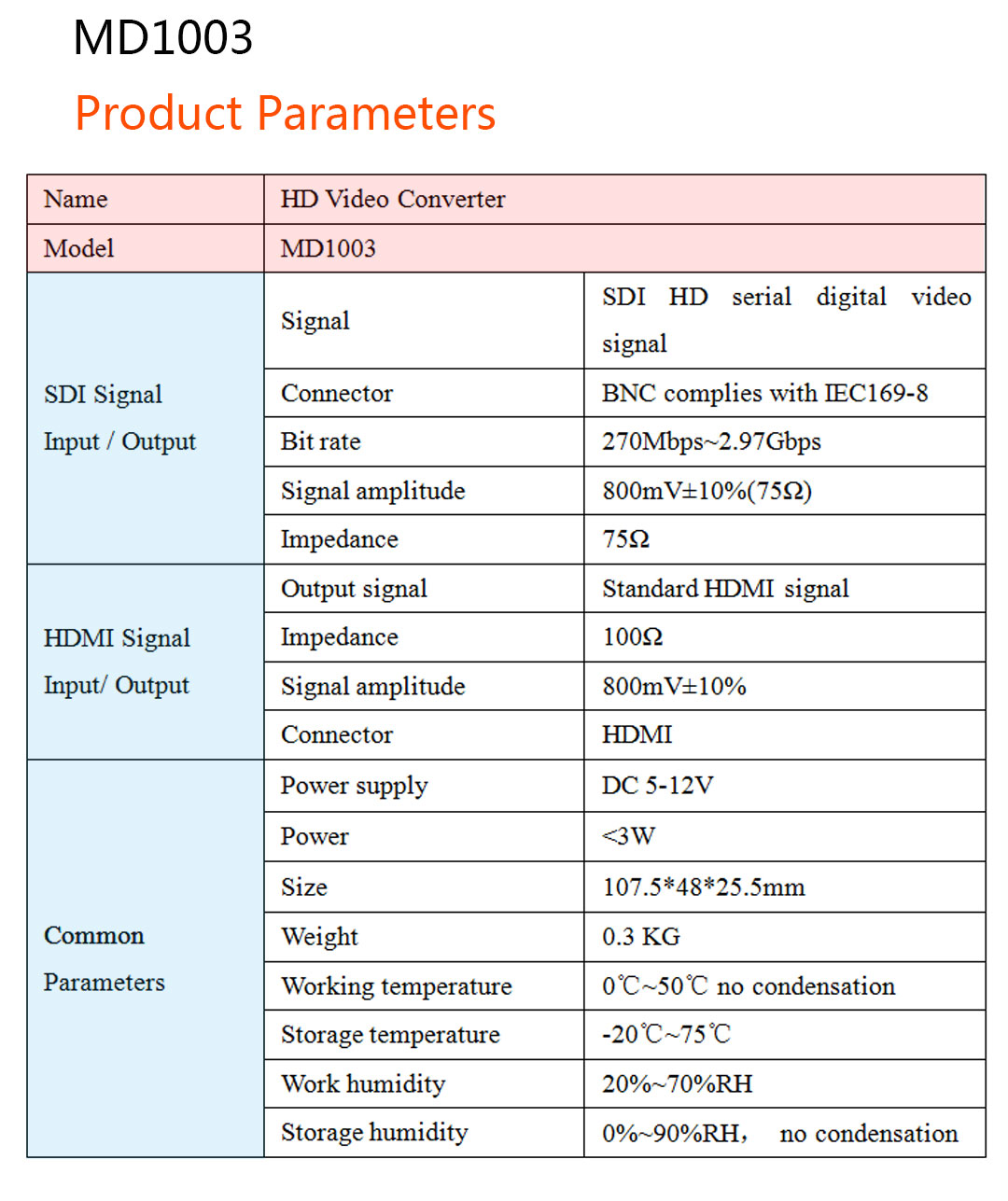

Product Parameters

Download
