Product Overview
DeviceWell HD Video Converter, a dedicated DVI signal into a 3G/HD/SD SDI signal devices. The device Integrated DVI receiver and 3G / HD / SD-SDI encoder, easily converted DVI signal transfer to 3G / HD / SD-SDI signal. At the same time PD6351 can also embed external analog stereo audio signal input to the 3G / HD / SD-SDI signal. Additionally, PD6351 also supports "any frequency" function, VESA standard DVI input signals can be "converted" to standard SDI signal output. The output resolution rate by choosing a digital code switch, simple and easy to use.

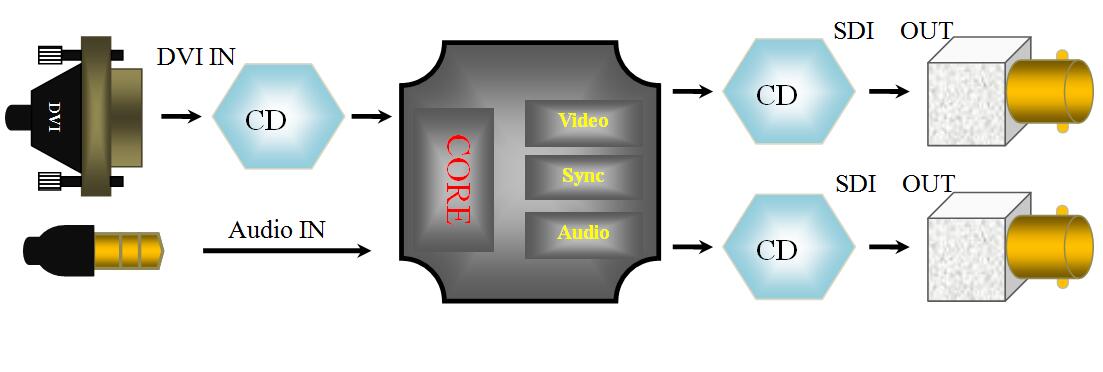

Functional Diagram
Product features
◆ The VESA standard DVI signal input
◆ Optional 3G/HD/SD SDI output signal
◆Optional1080P/1080I/720P/480I/576I/1080PSF output
◆ DVI input signal auto detected
◆ External analog stereo audio signal embedded in the SDI signal
◆The SDI can be set to "any frequency" output
◆special function can be customized
Interface specification

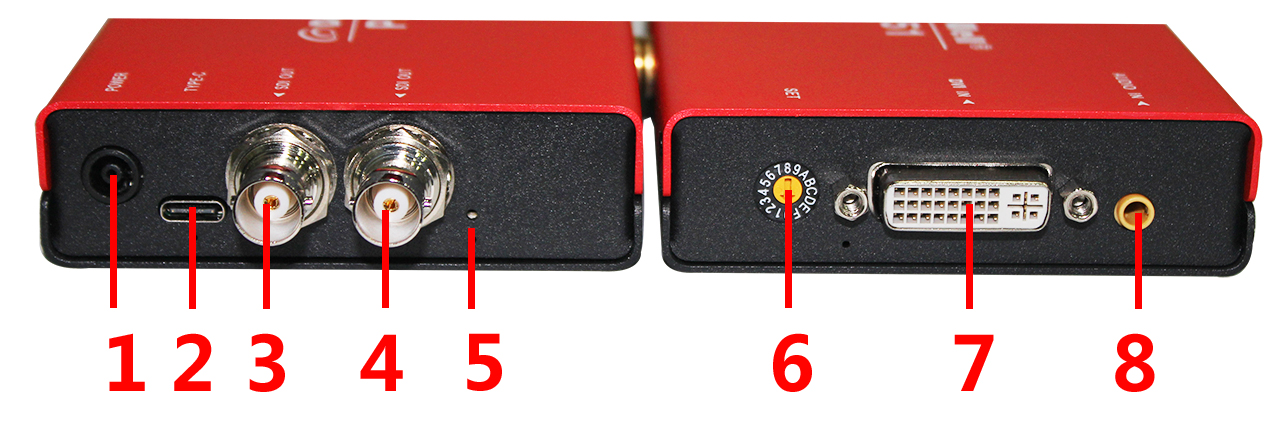

1.DC 5V-12 2.TypeC Upgrade 3. SDI Out 4.SDI Out
5. LED indicator (P: power L: SD M: HD H:3G) 6. SET (see table below) 7.DVI In 8. audio input
Product parameters
|
Product name |
HD Video Converter |
|
|
Product model |
PD6351 |
|
|
HDMI Input |
Input signal |
Standard DVI signal |
|
Connector |
HDMI |
|
|
Amplitude of the signal |
800mV±10%(75R) |
|
|
Impedance |
100Ω |
|
|
Analog audio Input |
Input signal |
Analog stereo audio |
|
Digital sampling |
48K |
|
|
Impedance |
16Ω |
|
|
Connector |
Earphone |
|
|
SDI Output |
output signal |
SDI (serial digital video signal) |
|
bit rate |
270Mbps~2.97Gbps |
|
|
mpedance |
75Ω |
|
|
Amplitude of the signal |
800mV±10% |
|
|
Connector |
BNC comply IEC169-8 standards |
|
|
Common parameters
|
Operating voltage |
DC 5-12V |
|
Power |
<2W |
|
|
Host size |
136X 80X 25 mm |
|
|
Control panel |
Digital code switch |
|
|
Weight |
0.3 KG |
|
|
Working temperature |
0℃~50℃,no condensation |
|
|
Storage temperature |
-20℃~75℃ |
|
|
Work humidity |
20%~70%RH |
|
|
Storage humidity |
0%~90%RH，no condensation |
|
Parameter setting
 |
|||
Code |
Output Resolution Set |
Code |
Output Resolution Set |
|
0 |
1080I @50HZ |
8 |
720P @50HZ |
|
1 |
1080P @60HZ |
9 |
720P @30HZ |
|
2 |
1080P @50HZ |
A |
720P @25HZ |
|
3 |
1080I @60HZ |
B |
576I @50HZ |
|
4 |
1080P @30HZ |
C |
480I @60HZ |
|
5 |
1080P @25HZ |
D |
Reserve |
|
6 |
1080P @24HZ |
E |
Reserve |
|
7 |
720P @60HZ |
F |
Reserve |

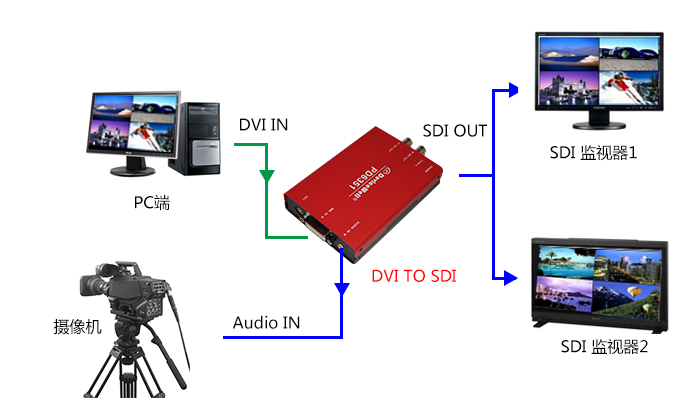

PD6351 Application schematic diagram
Model order
|
Product model |
Function |
Chassis Type |
Type of Power |
Others |
|
PD6361 |
VGA to SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6351 |
DVI to SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6341 |
CVBS to SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6331 |
YPbPr to SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6321 |
HDMI to SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6095 |
USB play SDI output |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6391 |
All the above functions |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6312 |
SDI to HDMI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6313 |
SDI to YPbPr |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6314 |
SDI to CVBS |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6315 |
SDI to DVI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6316 |
SDI to VGA |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
Downloading the instructions of the DVI to SDI converter of Devicewell
| Serial No. | Material name | Version | modification date | Description/Remarks |
| 1 | PD6351 Specification download | 2.0 | November 7, 2022 | PD6351_SC_V02 |
