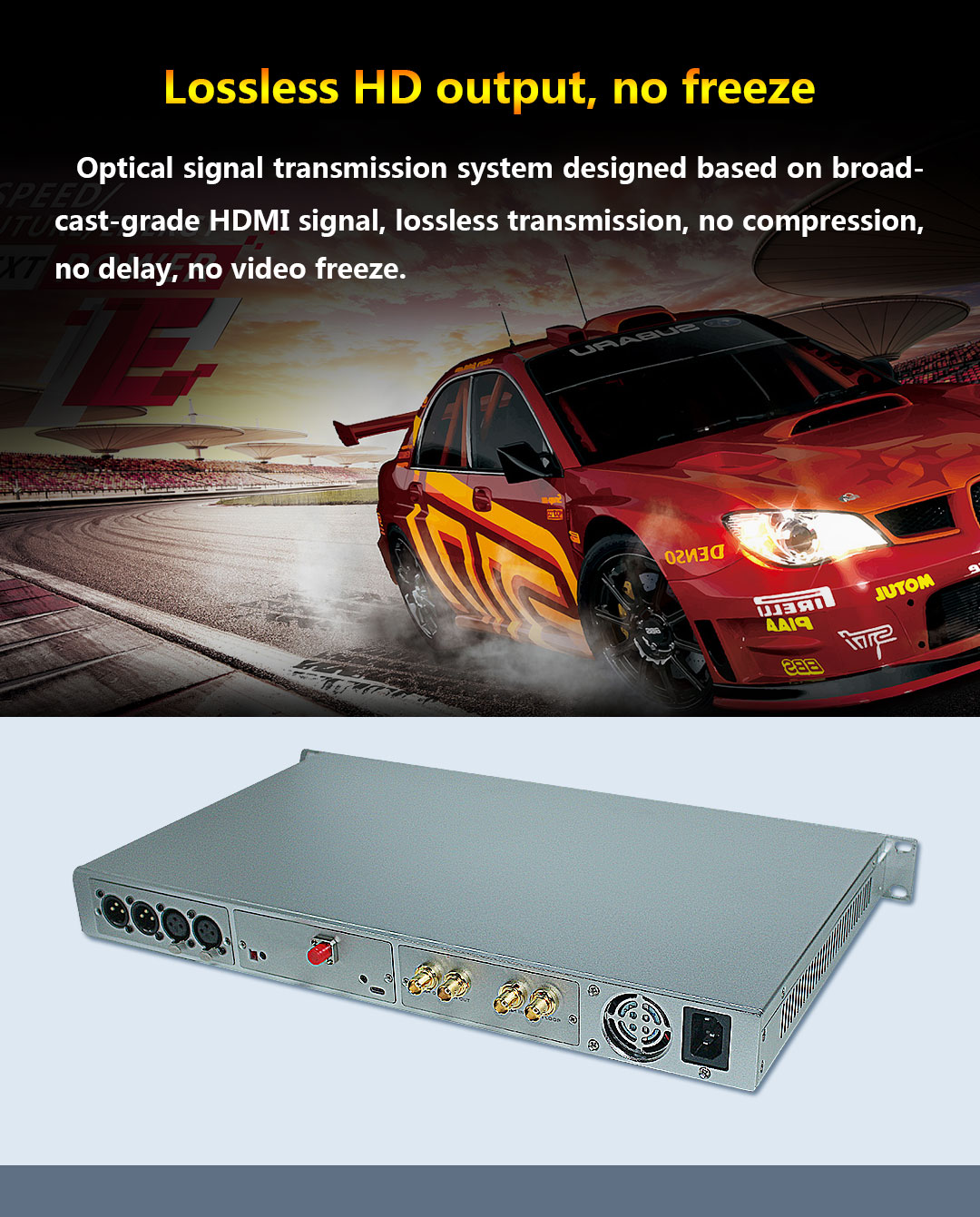

Lossless HD output, no freeze

Optical signal transmission system designed based on broadcast-grade HDMI signal, lossless transmission, no compression, no delay, no video freeze.

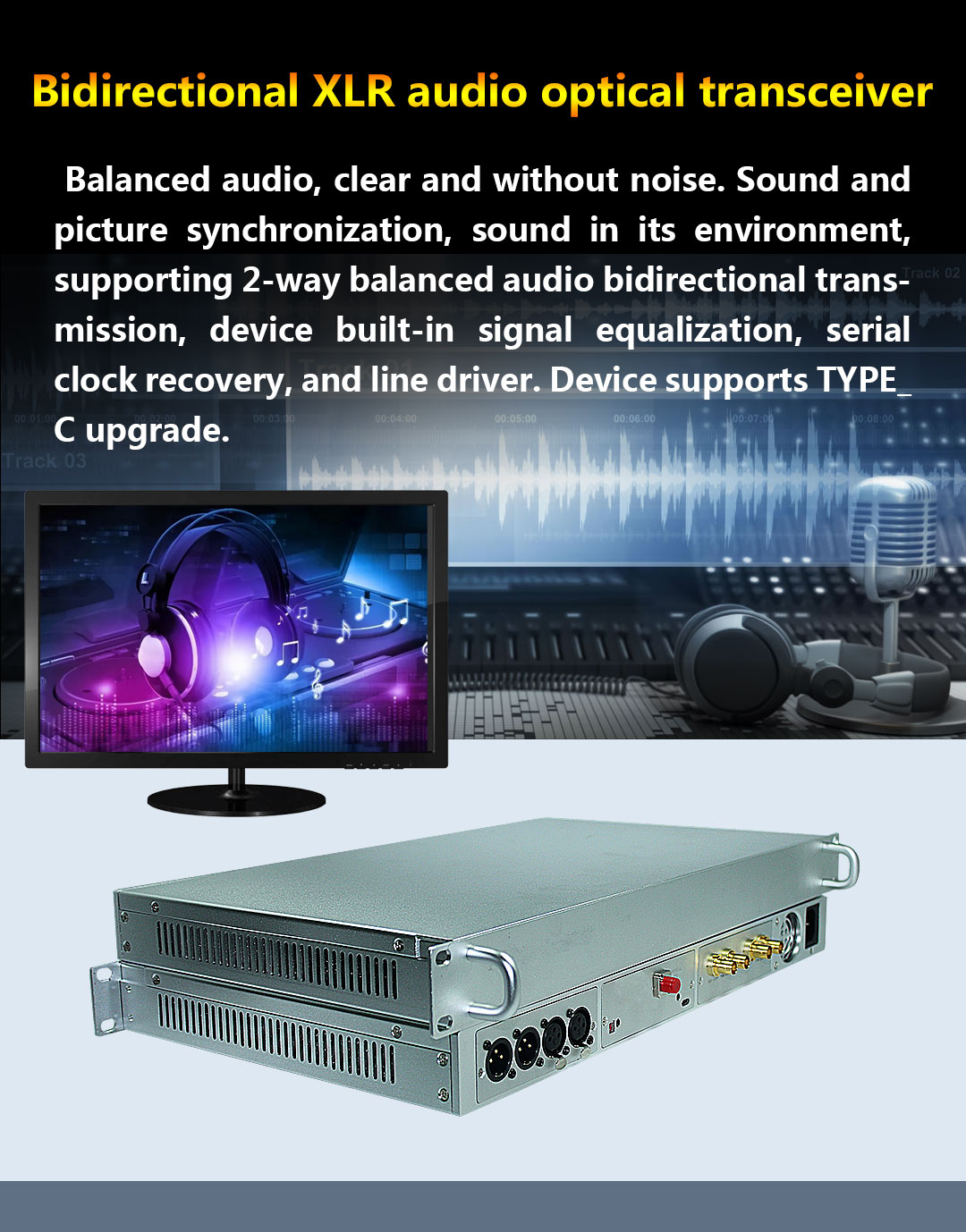

Bidirectional XLR audio optical transceiver

Balanced audio, clear and without noise. Sound and picture synchronization, sound in its environment, supporting 2-way balanced audio bidirectional transmission, device built-in signal equalization, serial clock recovery, and line driver. Device supports TYPE_ C upgrade.

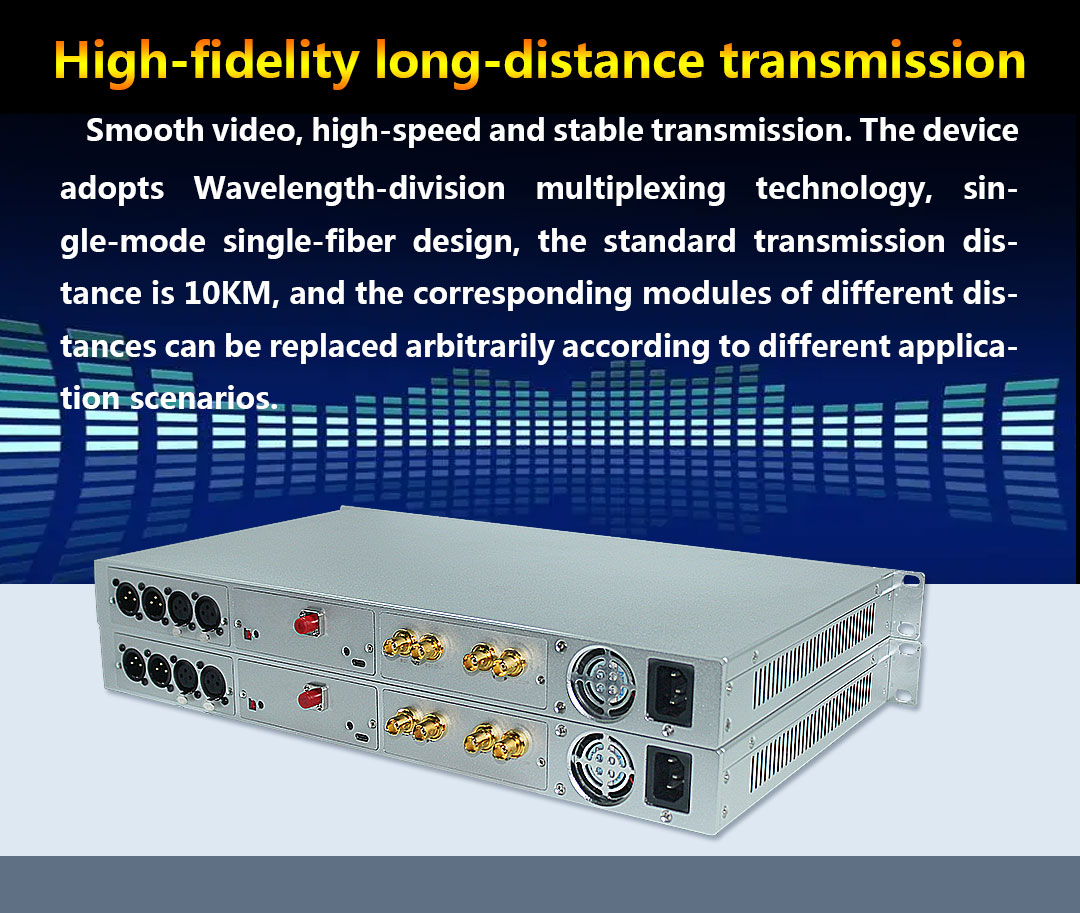

High-fidelity long-distance transmission

Smooth video, high-speed and stable transmission. The device adopts Wavelength-division multiplexing technology, single-mode single-fiber design, the standard transmission distance is 10KM, and the corresponding modules of different distances can be replaced arbitrarily according to different application scenarios.

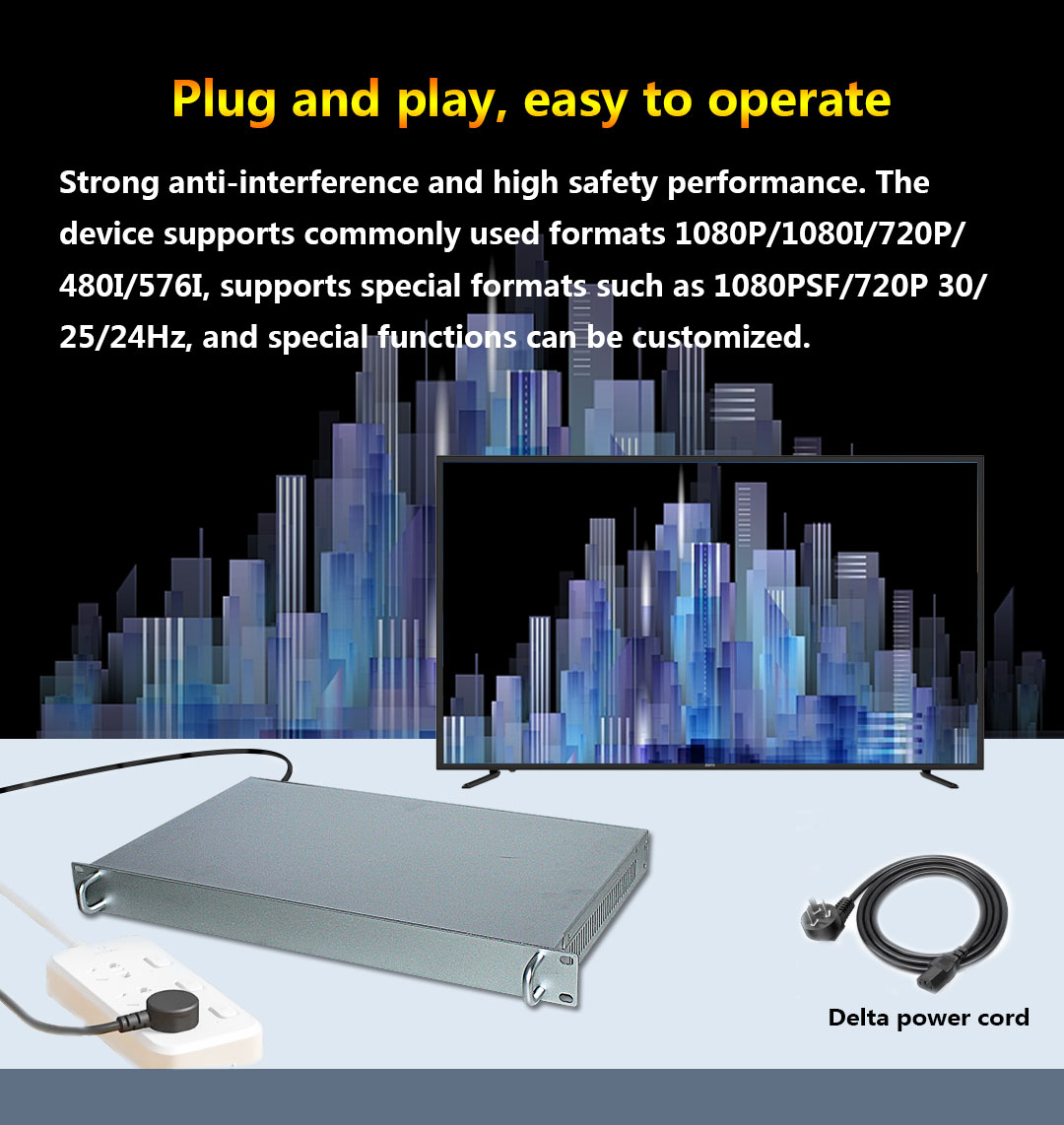

Plug and play, easy to operate

Strong anti-interference and high safety performance. Bidirectional 12G SDI Optical transceivers supports commonly used formats 1080P/1080I/720P/ 480I/576I, supports special formats such as 1080PSF/720P 30/ 25/24Hz, and special functions can be customized.

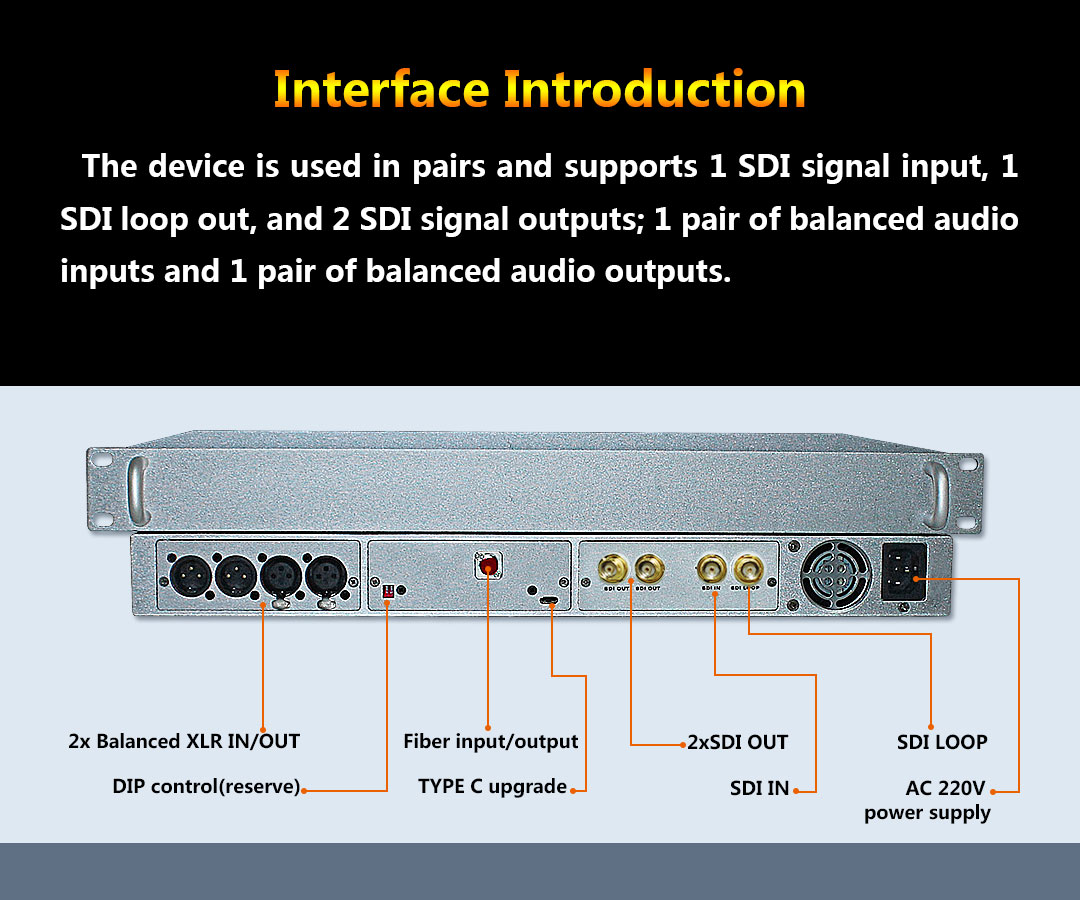

Interface Introduction

Bidirectional 12G SDI Optical transceivers is used in pairs and supports 1 SDI signal input, 1 SDI loop out, and 2 SDI signal outputs; 1 pair of balanced audio inputs and 1 pair of balanced audio outputs.

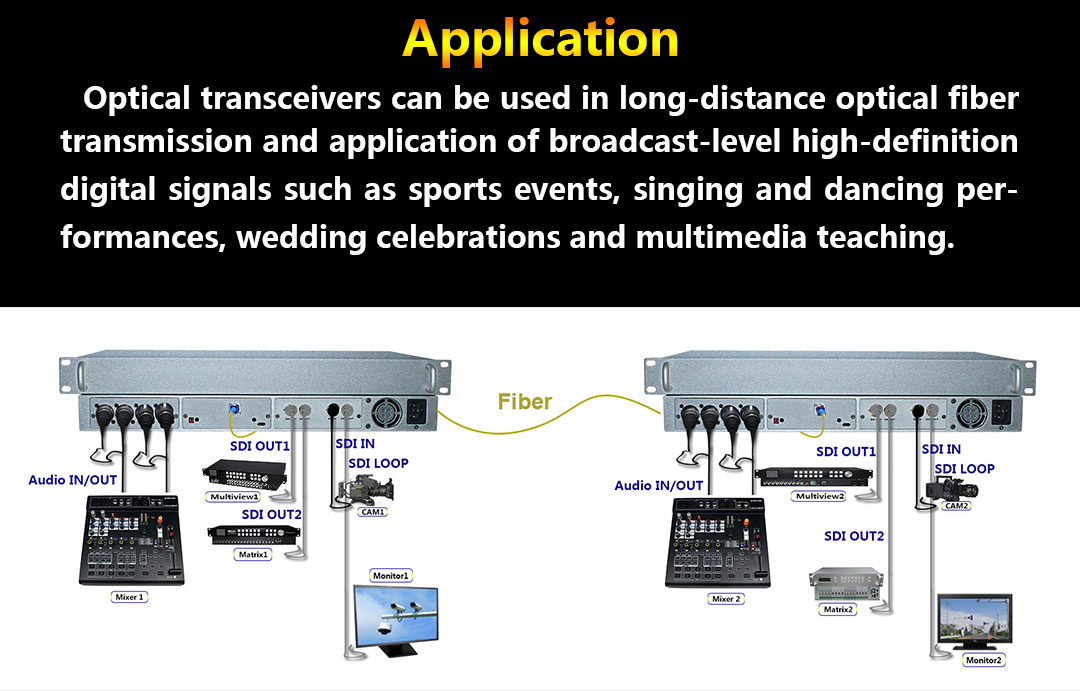

Application

Bidirectional 12G SDI Optical transceivers can be used in long-distance optical fiber transmission and application of broadcast-level high-definition digital signals such as sports events, singing and dancing performances, wedding celebrations and multimedia teaching.













Downloading the instructions of the BIDI 12G SDI Fiber Optic SIP2917 of Devicewel

Serial No.	Material name	Version	modification date	Description/Remarks
1	BIDI 12G SDI Fiber OpticSIP2917 Specification Download	1.0	Aug. 3, 2023	Initial Issue
2	BIDI 12G SDI Fiber Optic SIP2917 Photos Download	1.0	Aug.  3, 2023
3	Others
