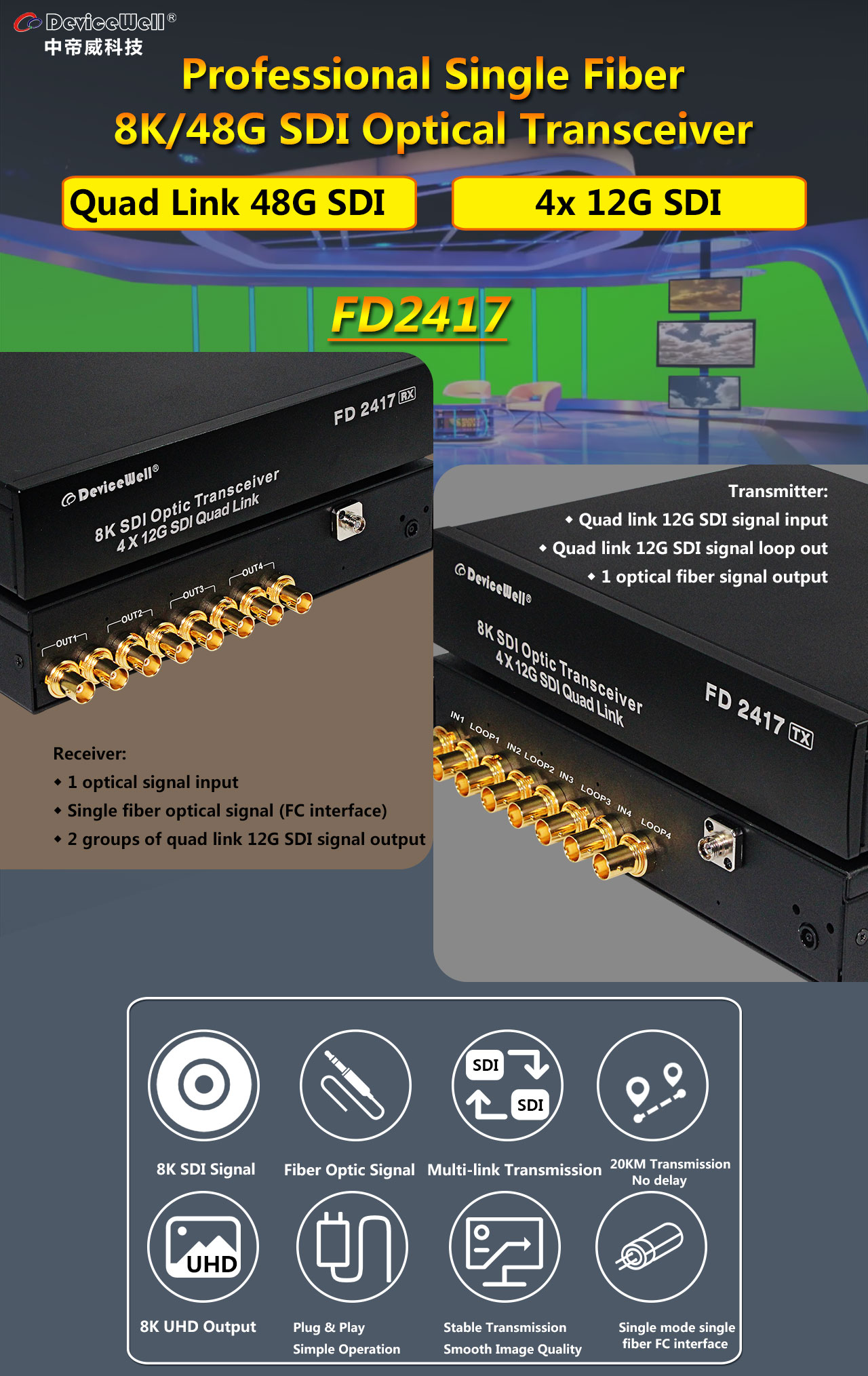

Professional Single Fiber 8K/48G SDI Optical Transceiver--FD2417

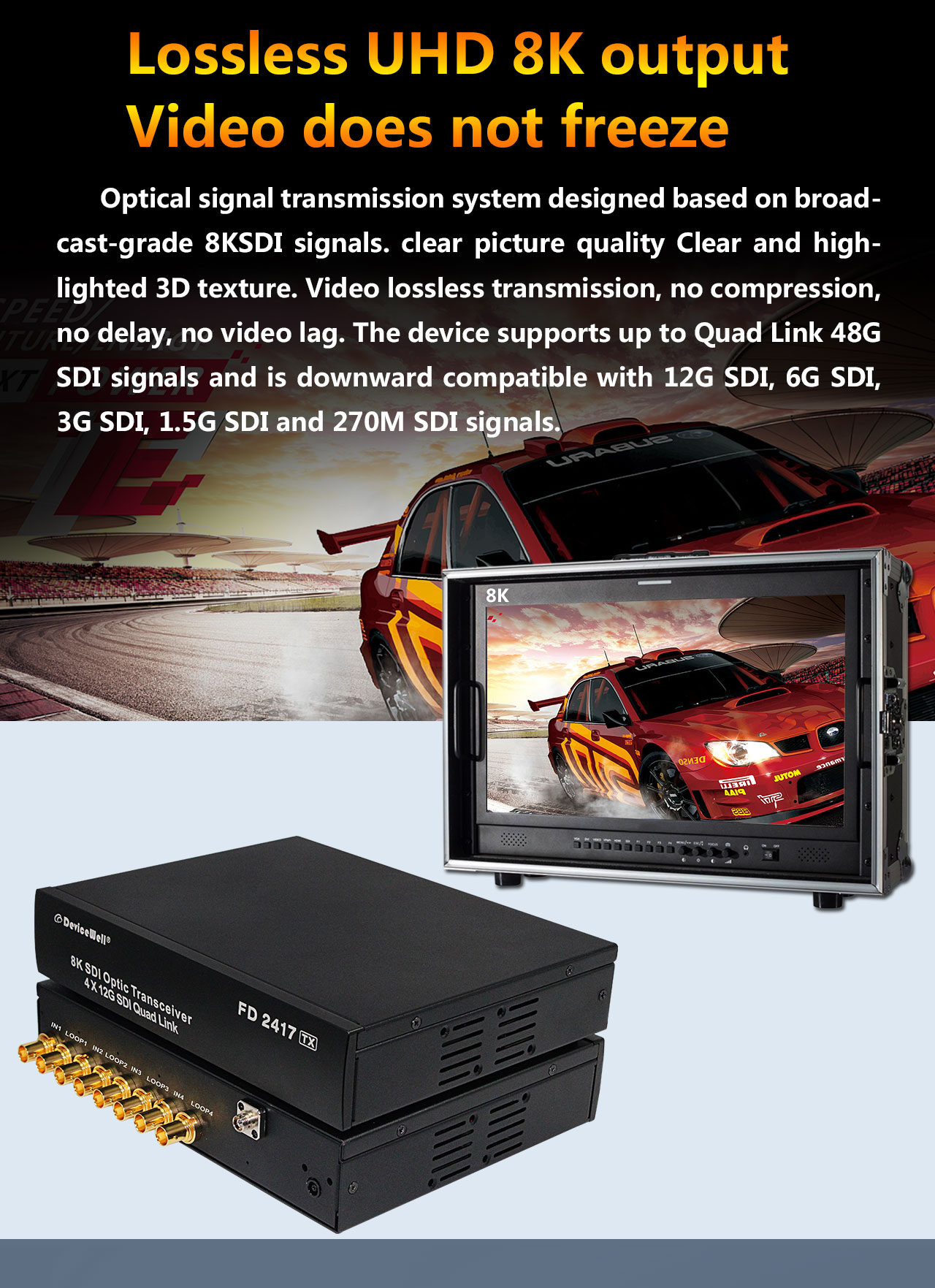

Lossless UHD 8K output Video does not freeze
Optical signal transmission system designed based on broadcast-grade 8KSDI signals. clear picture quality Clear and highlighted 3D texture. Video lossless transmission, no compression, no delay, no video lag. The device supports up to Quad Link 48G SDI signals and is downward compatible with 12G SDI, 6G SDI, 3G SDI, 1.5G SDI and 270M SDI signals.
Professional grade SDI transmission Use in pairs
The signal is stable and synchronously transmitted, the sound quality is clear, and it is used in pairs. The transmitter supports 4x12G SDI signal input, and 4x12G SDI loop out, which is converted into one optical fiber output after passing through the multiplexer. The receiving end supports 1 optical signal input, and outputs 2 groups of QuadLink 12G SDI outputs after demultiplexing.

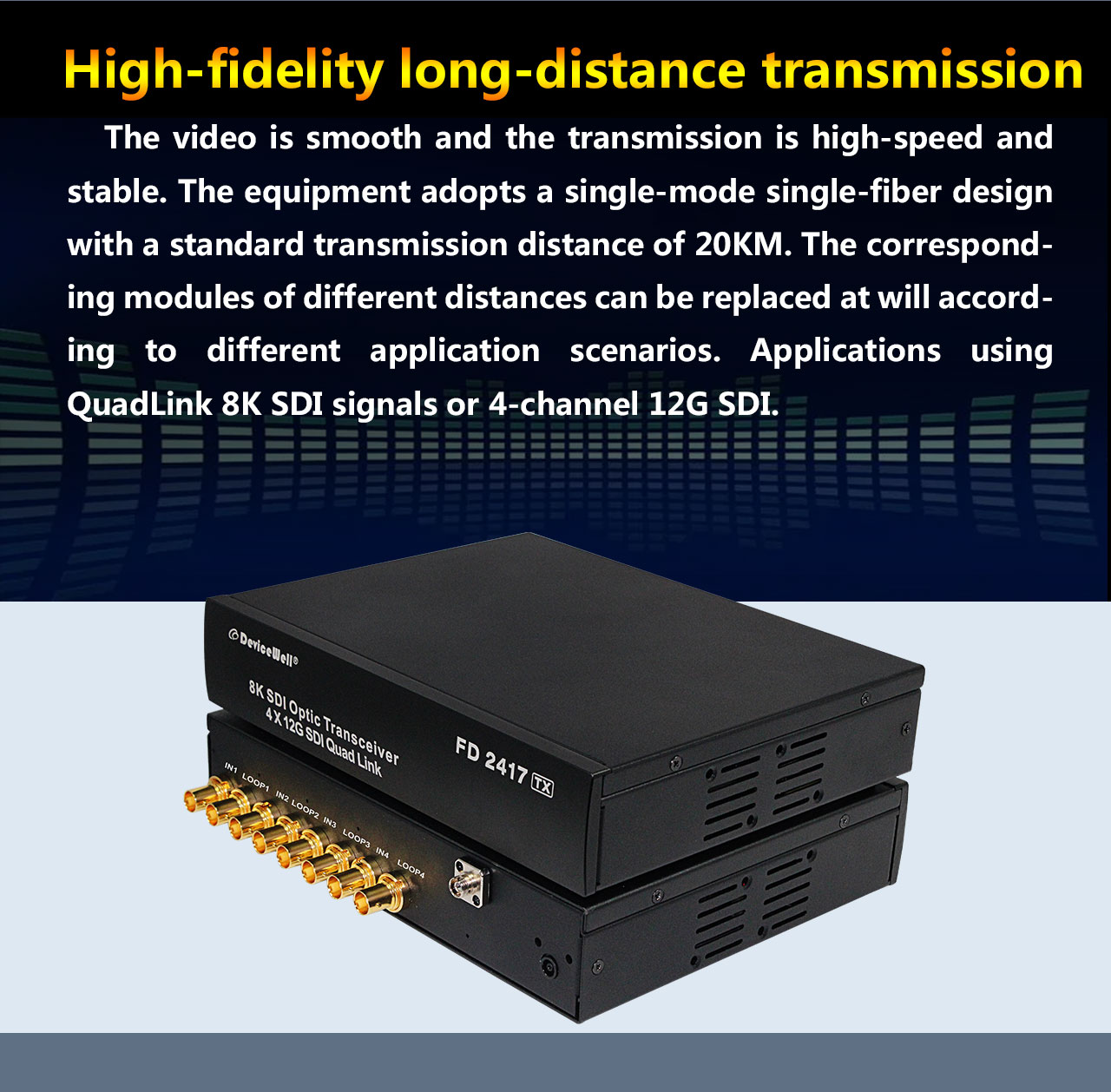

High-fidelity long-distance transmission
The video is smooth and the transmission is high-speed and stable. The equipment adopts a single-mode single-fiber design with a standard transmission distance of 20KM. The corresponding modules of different distances can be replaced at will according to different application scenarios. Applications using QuadLink 8K SDI signals or 4-channel 12G SDI.

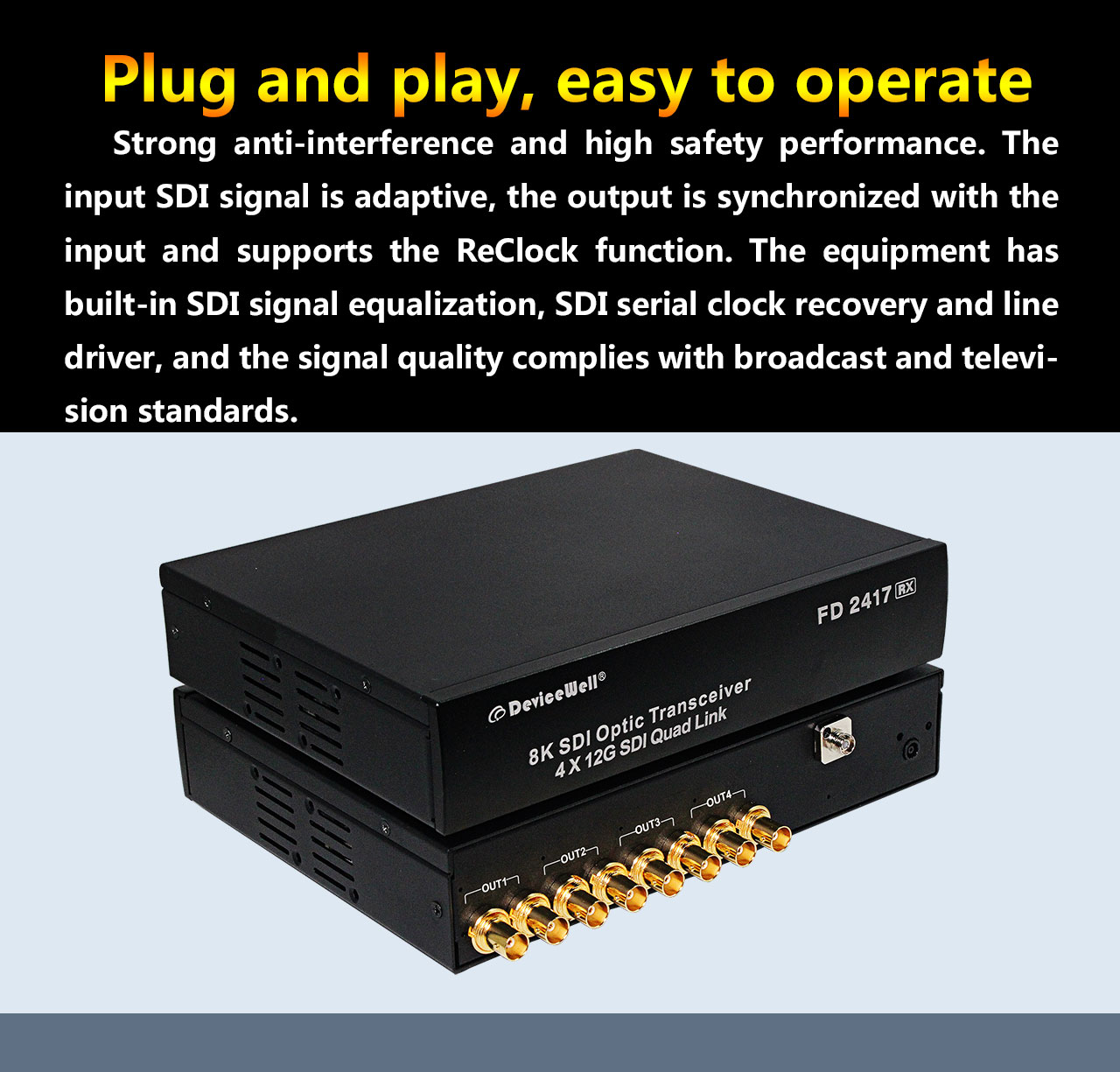

Plug and play, easy to operate
Strong anti-interference and high safety performance. The input SDI signal is adaptive, the output is synchronized with the input and supports the ReClock function. The equipment has built-in SDI signal equalization, SDI serial clock recovery and line driver, and the signal quality complies with broadcast and television standards.

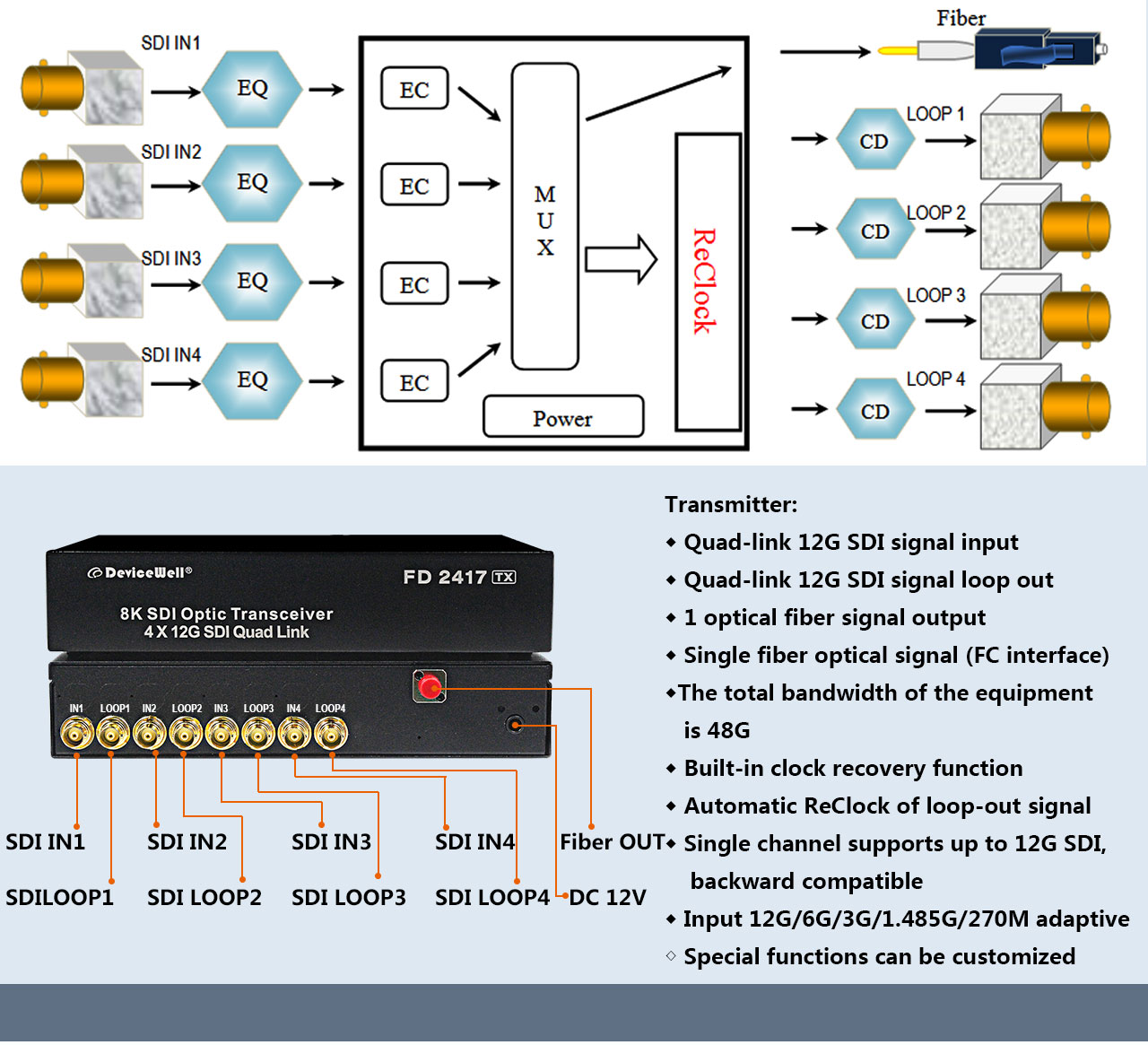

Interface Introduction
Equipment is used in pairs. The transmitter supports 4x12G SDI signal input, and 4x12G SDI loop out, which is converted into one optical fiber output after passing through the multiplexer. The receiving end supports 1 optical signal input, and outputs 2 groups of QuadLink 12G SDI outputs after demultiplexing.

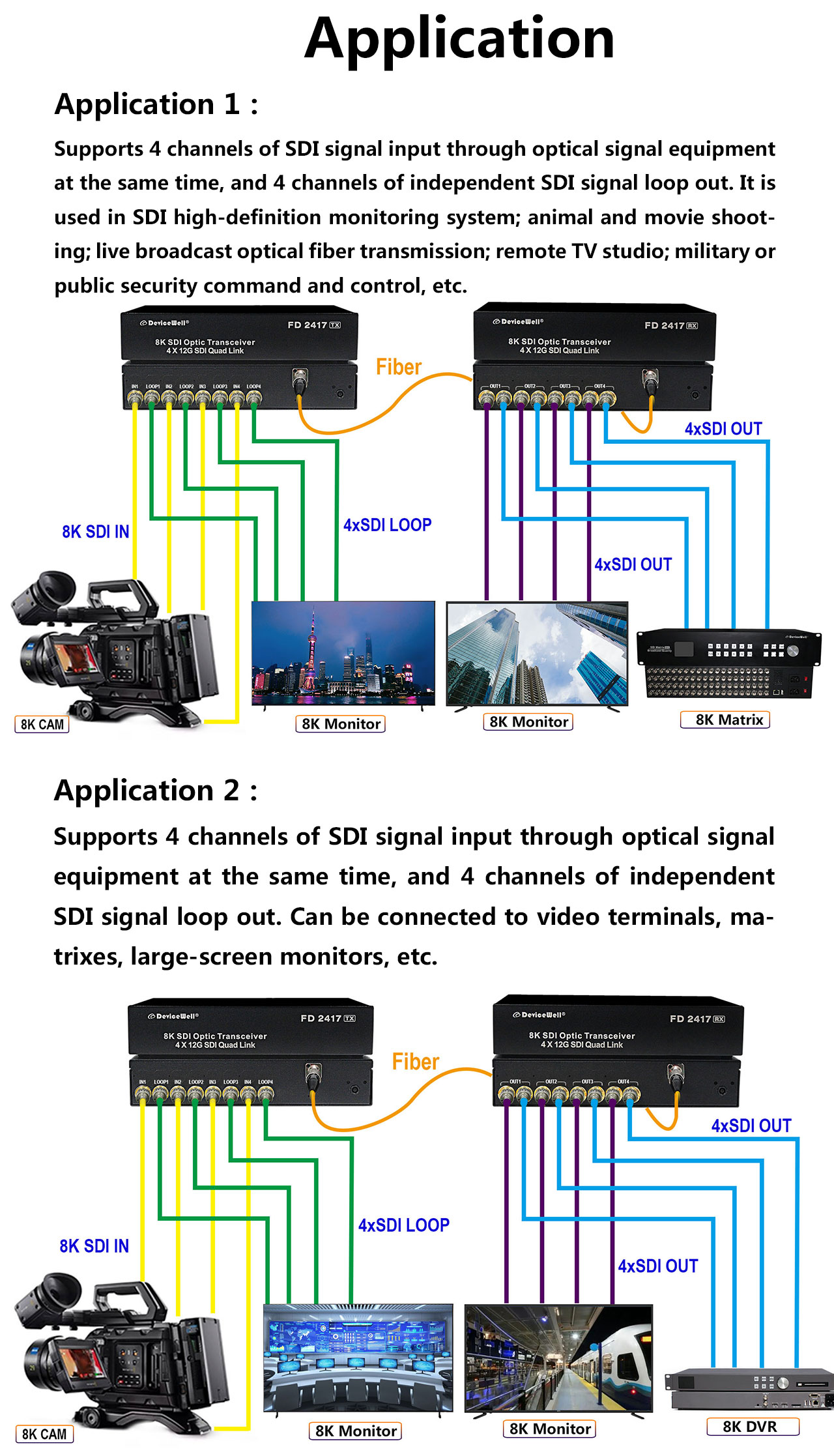

Application Supports 4 channels of SDI signal input through optical signal equipment at the same time, and 4 channels of independent SDI signal loop out. It is used in SDI high-definition monitoring system; animal and movie shooting; live broadcast optical fiber transmission; remote TV studio; military or public security command and control, etc.
