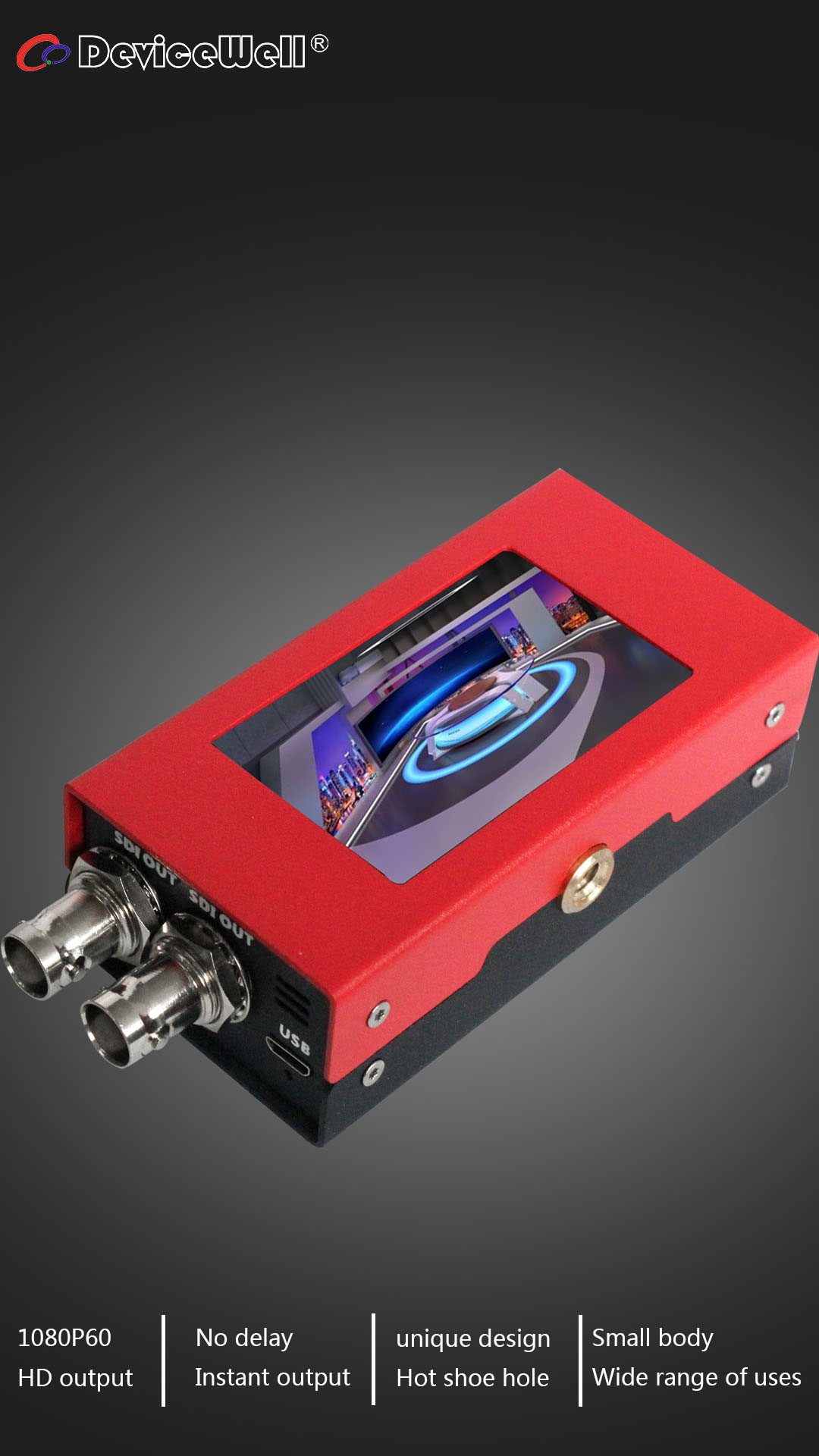

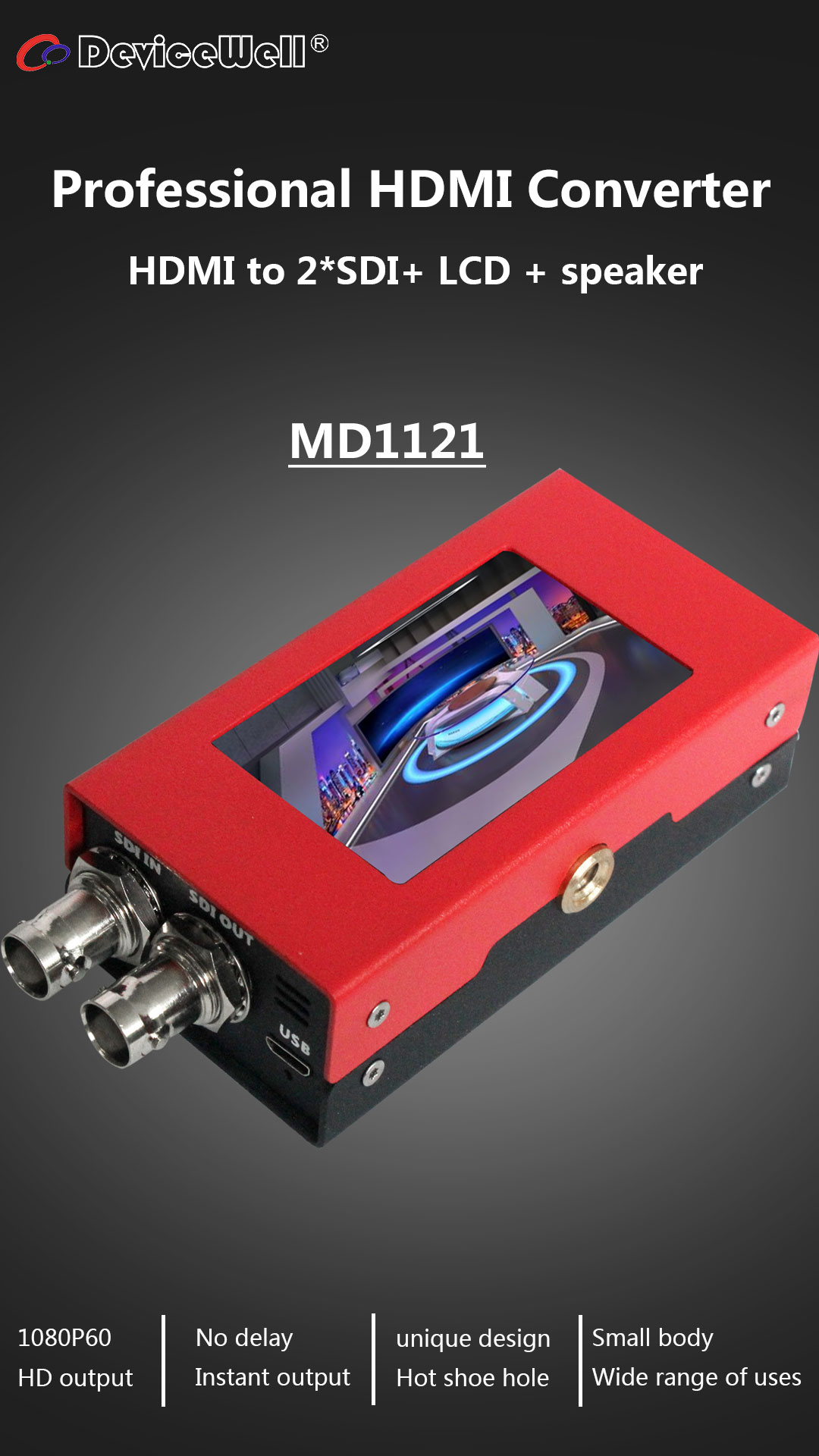

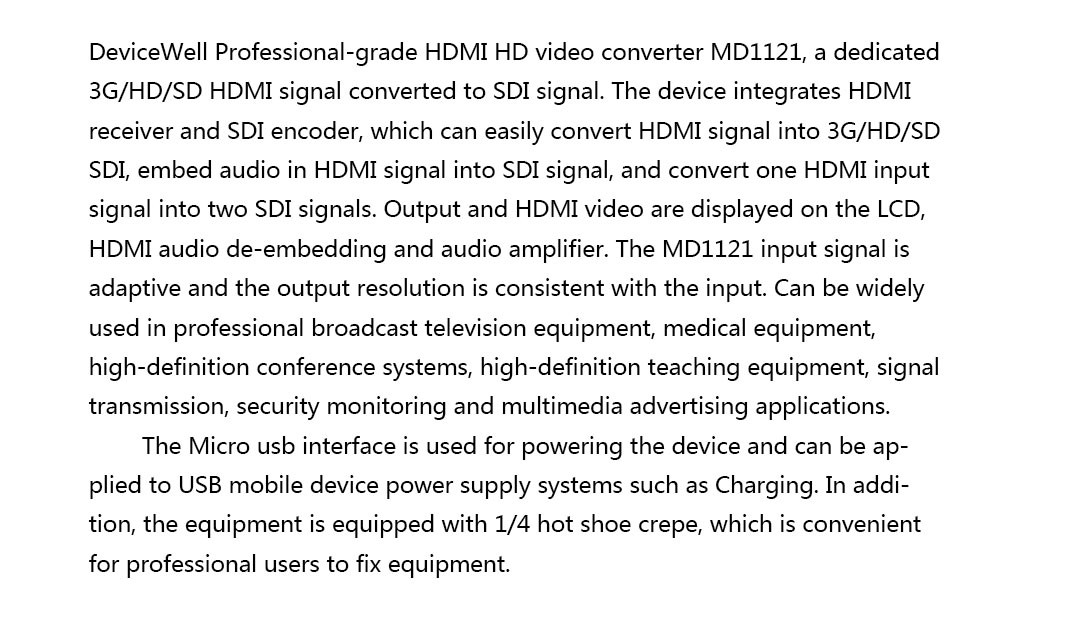

DeviceWell Professional-grade HDMI HD video converter MD1121, a dedicated 3G/HD/SD HDMI signal converted to SDI signal. The device integrates HDMI receiver and SDI encoder, which can easily convert HDMI signal into 3G/HD/SD SDI, embed audio in HDMI signal into SDI signal, and convert one HDMI input signal into two SDI signals. Output and HDMI video are displayed on the LCD, HDMI audio de-embedding and audio amplifier. The MD1121 input signal is adaptive and the output resolution is consistent with the input. Can be widely used in professional broadcast television equipment, medical equipment, high-definition conference systems, high-definition teaching equipment, signal transmission, security monitoring and multimedia advertising applications.  The Micro usb interface is used for powering the device and can be applied to USB mobile device power supply systems such as Charging. In addition, the equipment is equipped with 1/4 hot shoe crepe, which is convenient for professional users to fix equipment.

MD1121   1080P60Hz

Professional-grade HDMI HD video converter MD1121, a dedicated 3G/HD/SD HDMI signal converted to SDI signal device. Input Output resolution adaptive, straight-through output, up to 1920*1080P60Hz HD resolution display.

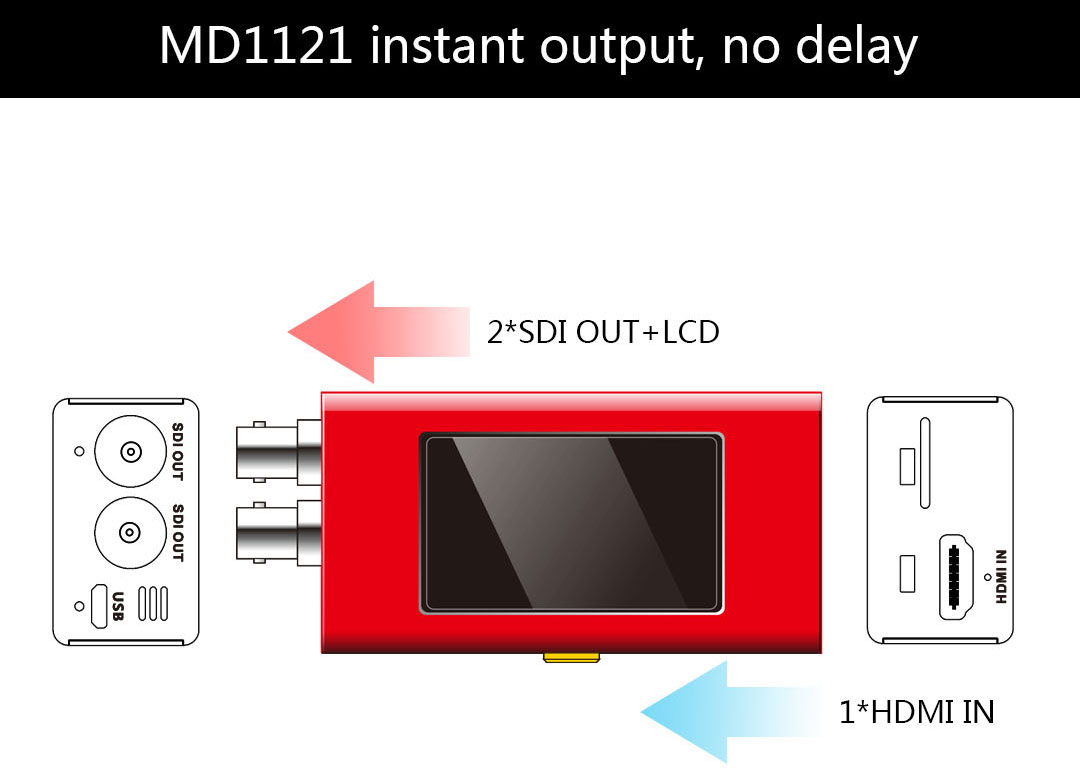

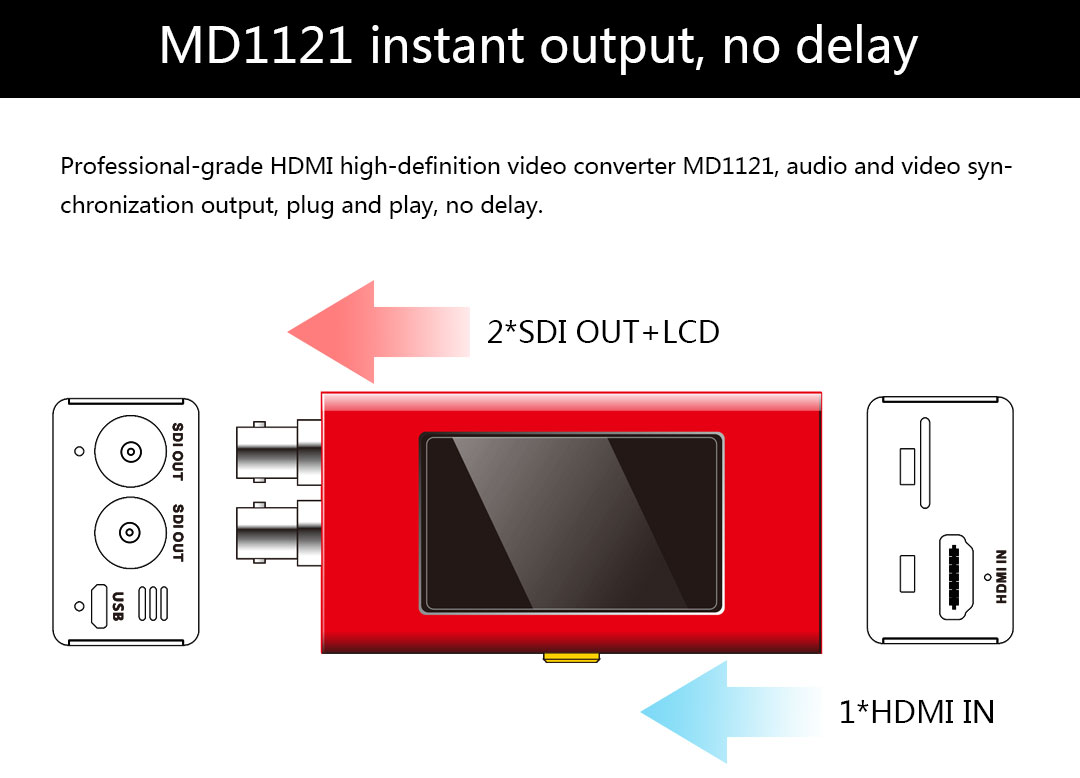

MD1121 instant output, no delay

Professional-grade HDMI high-definition video converter MD1121, audio and video synchronization output, plug and play, no delay.

MD1121 one in three out

Professional-grade HDMI HD video converter MD1121, integrated with HDMI receiver and SDI encoder, can easily convert HDMI signal to 3G/HD/SD SDI, and embed audio in HDMI signal into SDI signal, support all the way The HDMI input signal is converted into two SDI signal outputs and HDMI video display on the LCD, HDMI audio de-embedding and audio amplifier.

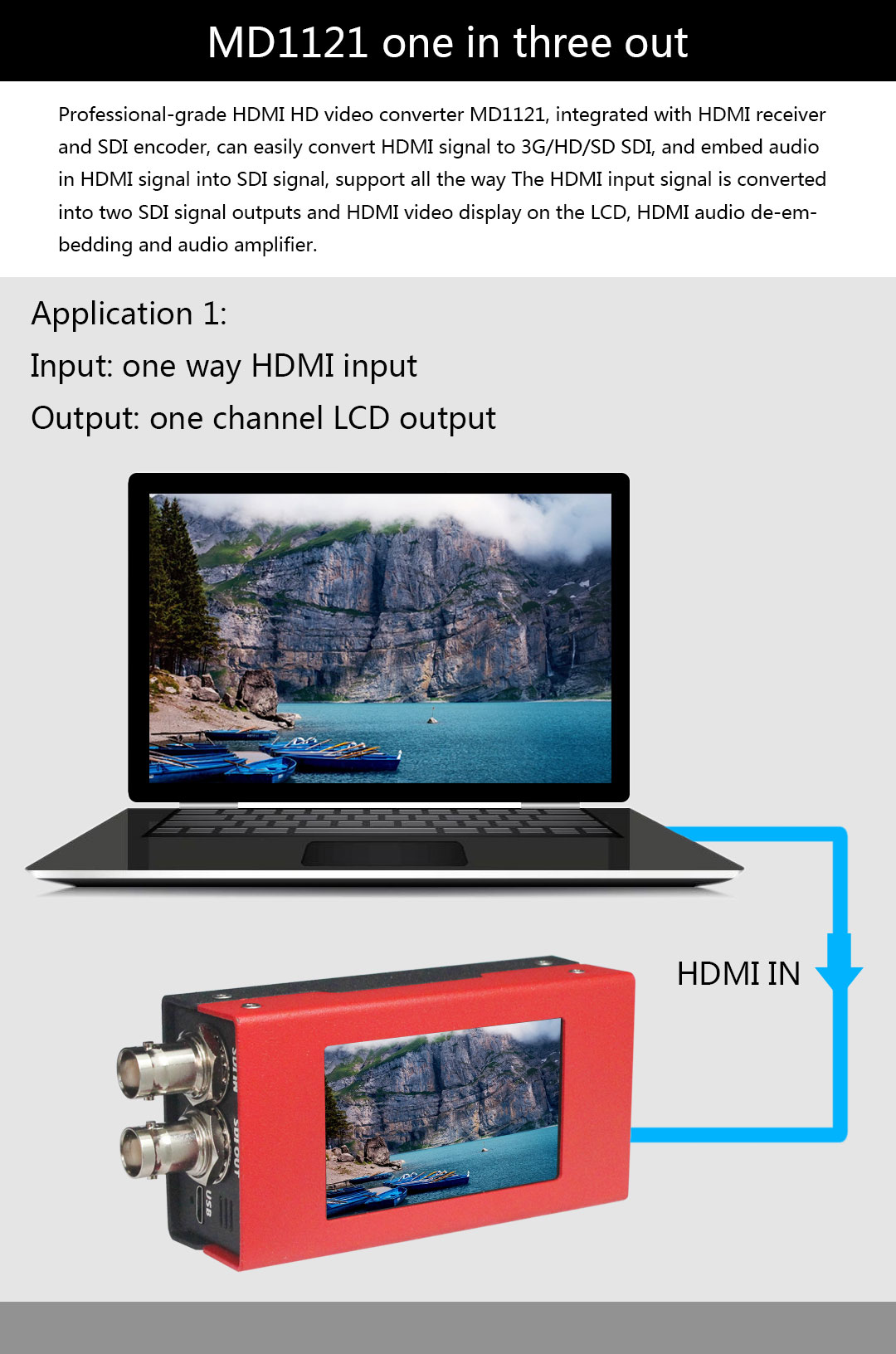

Application 1: Input: one way HDMI input Output: one channel LCD output

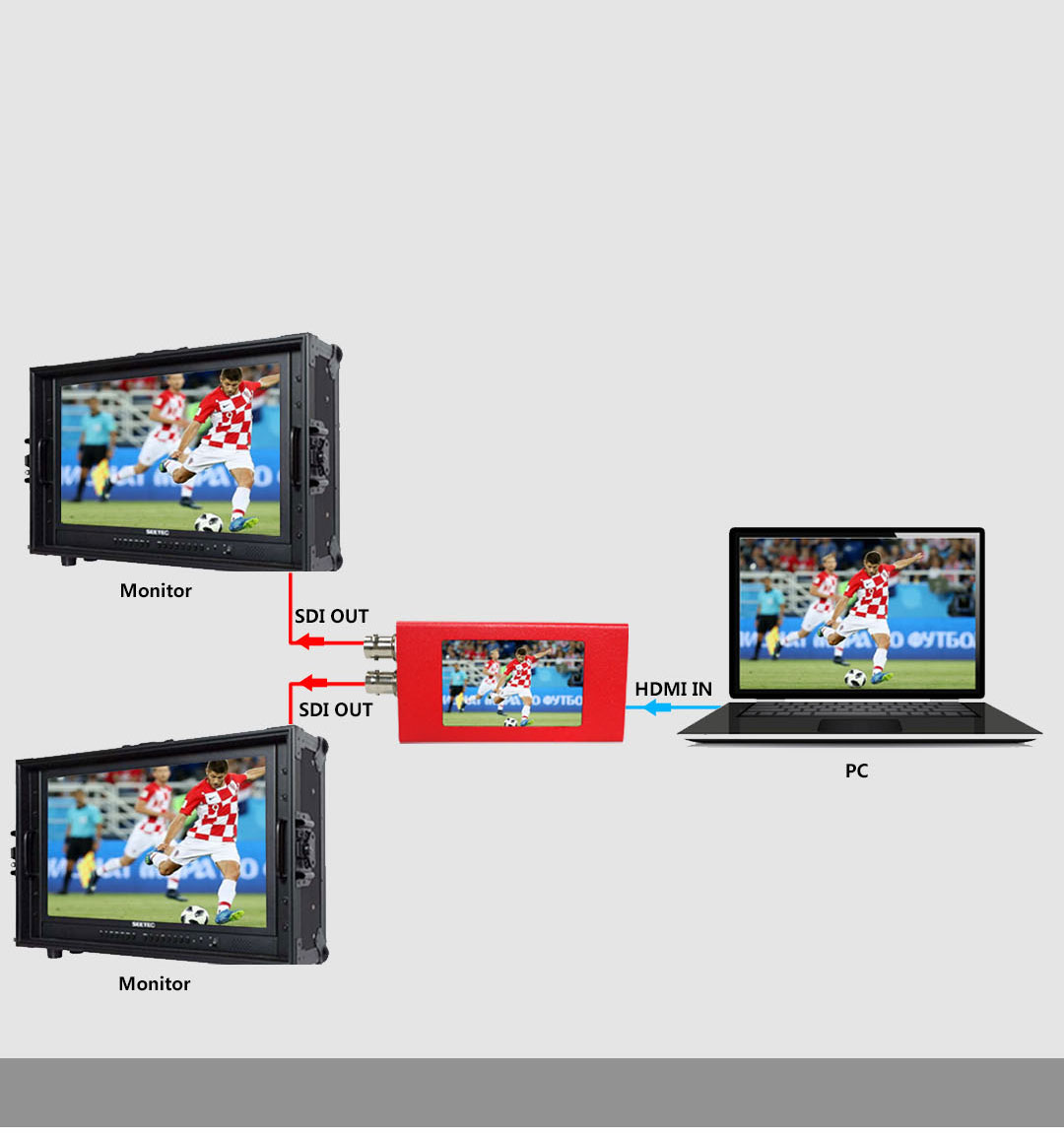

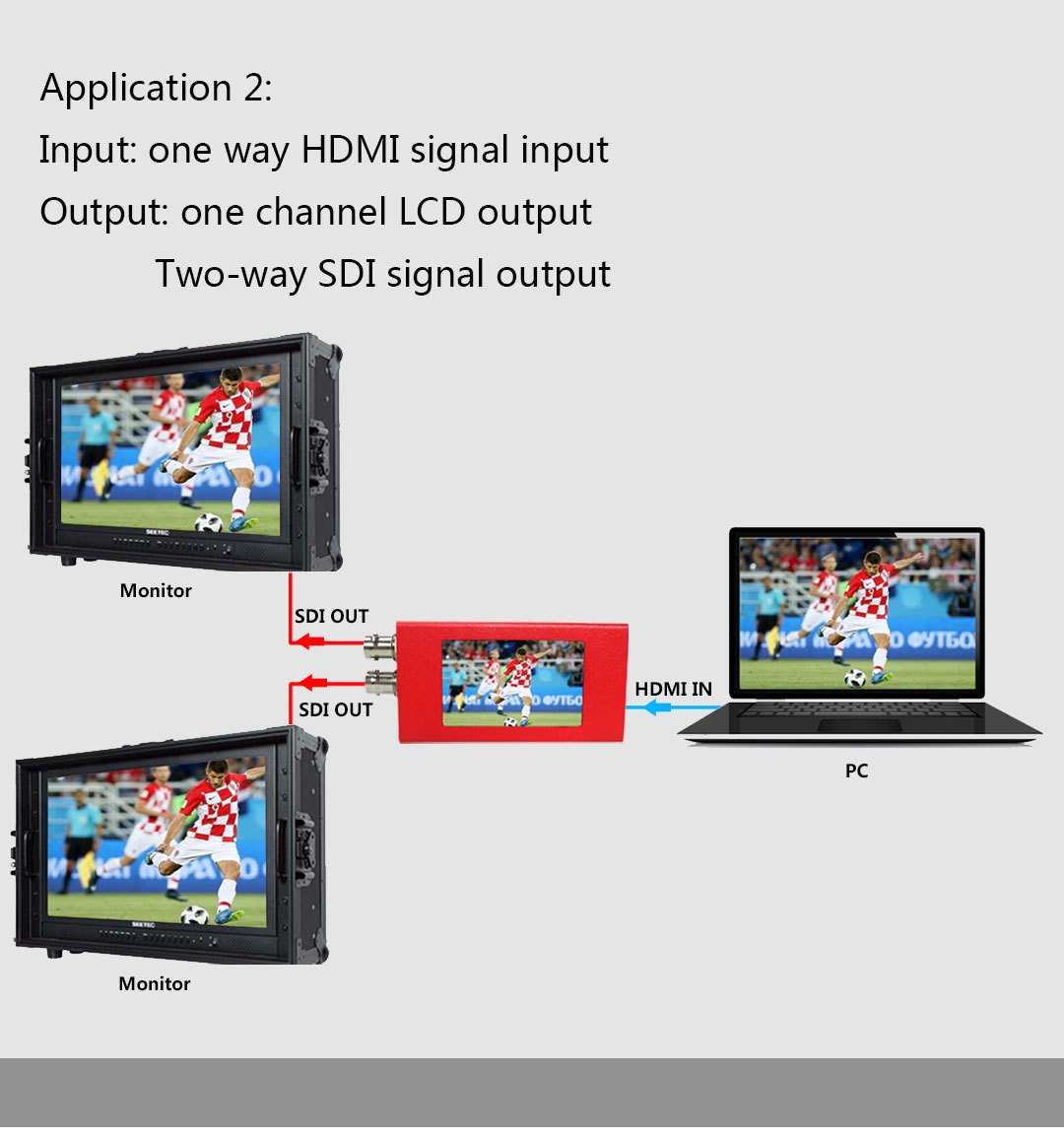

Application 2: Input: one way HDMI signal input Output: one channel LCD output  Two-way SDI signal output

MD1121 hot shoe hole design

Professional-grade HDMI HD video converter MD1121, MD1121 equipped with 1/4 hot shoe screws, convenient for professional users to fix equipment, just use the strange hand bracket to easily fix without field restrictions.

MD1121 is widely used

Professional-grade HDMI HD video converter MD1121 can be widely used in professional broadcast TV equipment, medical equipment, high-definition conference systems, high-definition teaching equipment, signal switching, security monitoring and multimedia advertising applications.

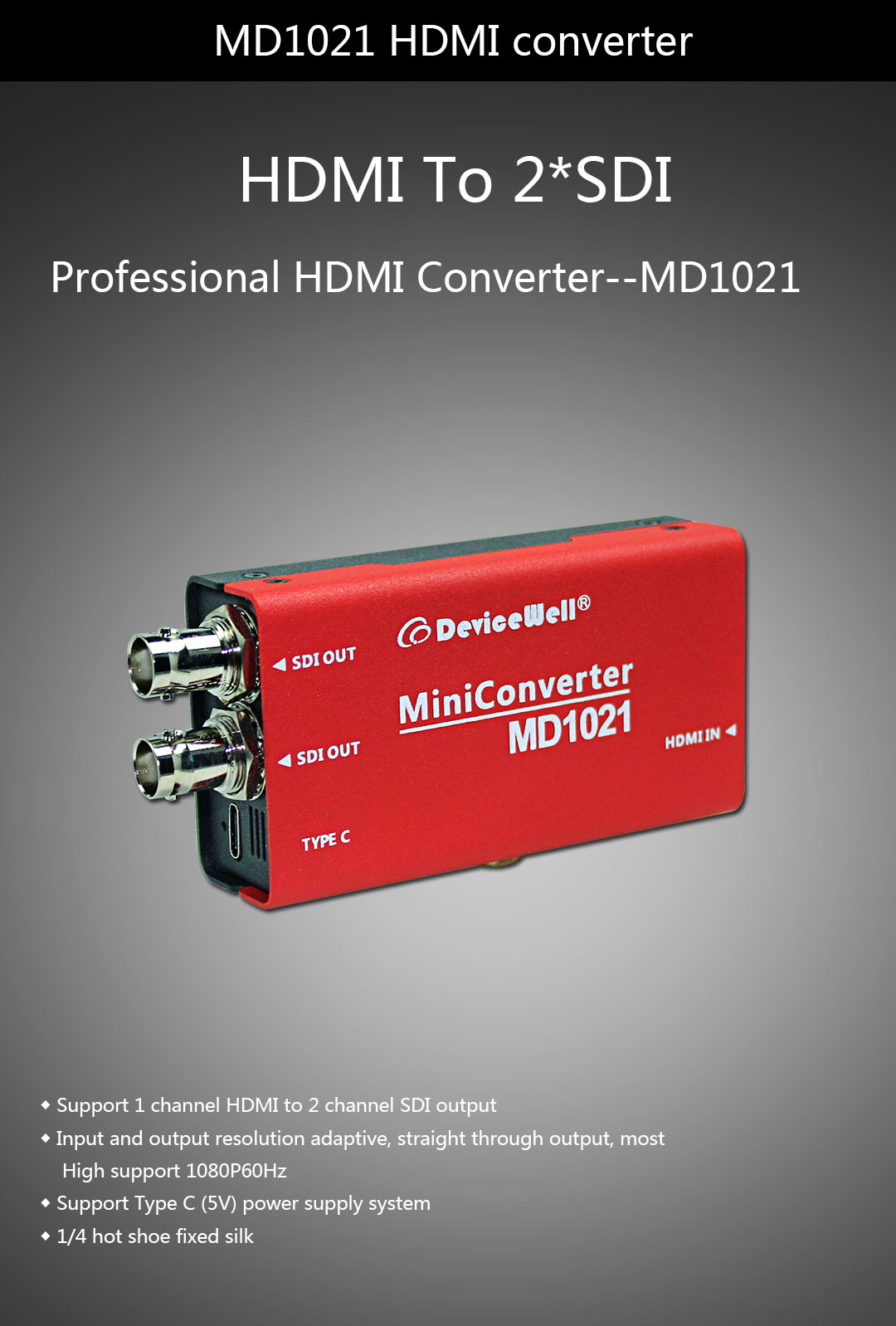

MD1021 HDMI converter

HDMI To 2*SDI

Professional HDMI Converter--MD1021



◆ Support 1 channel HDMI to 2 channel SDI output

◆ Input and output resolution adaptive, straight through output, most  High support 1080P60Hz

◆ Support Type C (5V) power supply system

◆ 1/4 hot shoe fixed silk

Downloading the instructions of the  MD1121 HDMI TO SDI converter of Devicewell



Serial No.	Material name	Version	modification date	Description/Remarks
1	MD1121 Specification download	1.0	Sep.12, 2024
2	MD1121 Photos download	1.0	Sep. 12, 2024
3	Others
