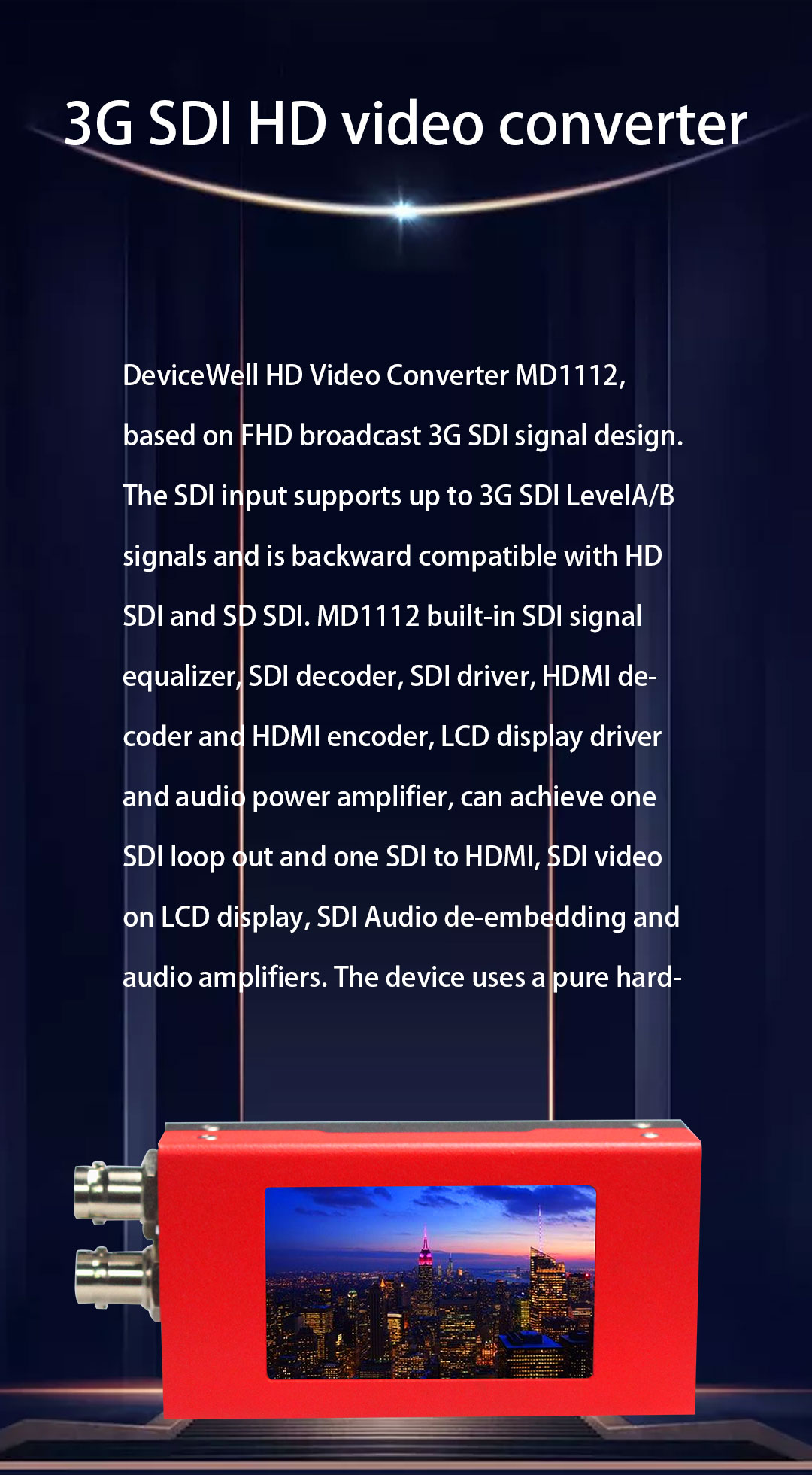

3G SDI HD video converter

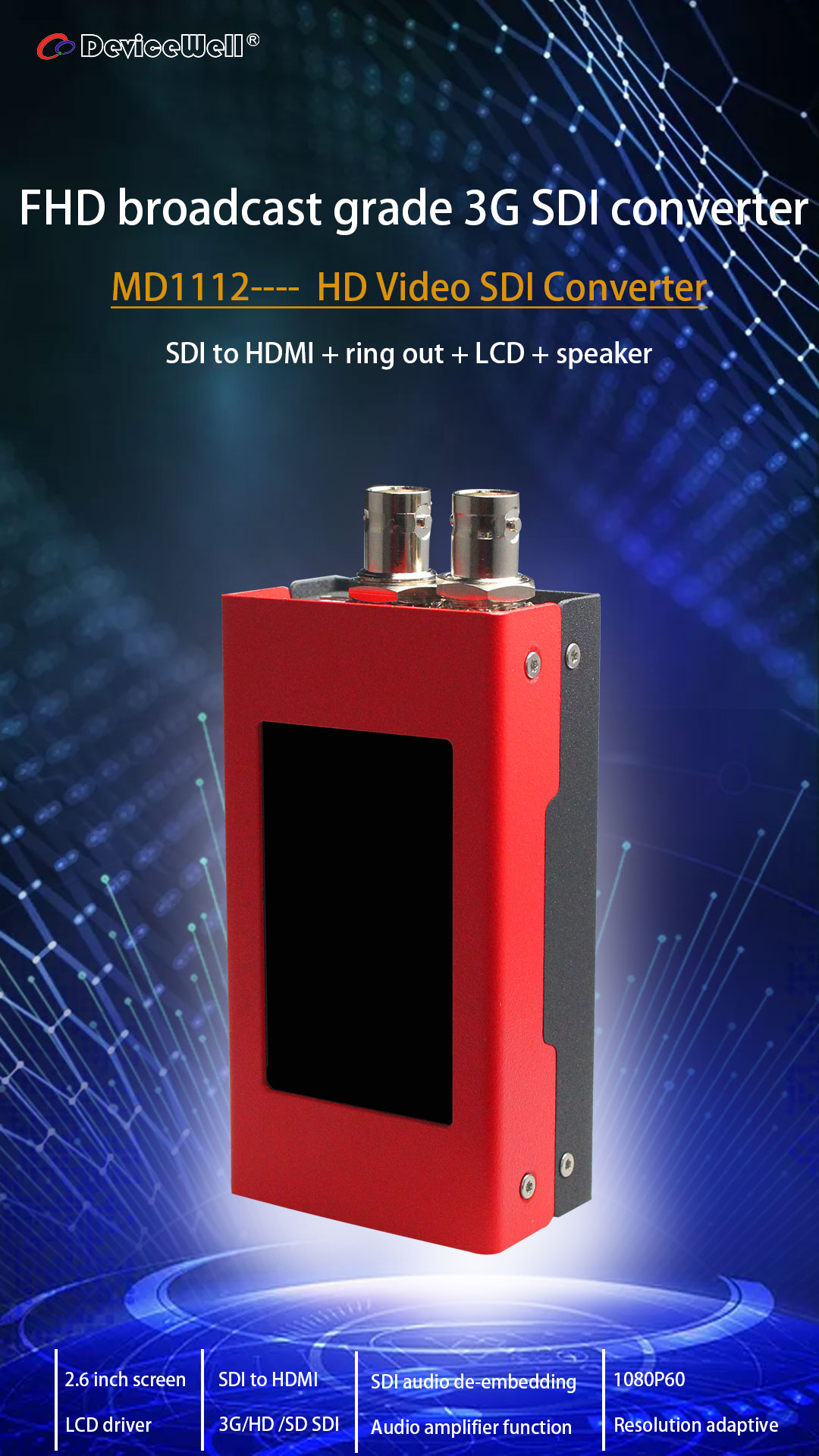

DeviceWell HD Video Converter MD1112, based on FHD broadcast 3G SDI signal design. The SDI input supports up to 3G SDI LevelA/B signals and is backward compatible with HD SDI and SD SDI. MD1112 built-in SDI signal equalizer, SDI decoder, SDI driver, HDMI decoder and HDMI encoder, LCD display driver and audio power amplifier, can achieve one SDI loop out and one SDI to HDMI, SDI video on LCD display, SDI Audio de-embedding and audio amplifiers. The device uses a pure hardware architecture with fast startup, low power consumption and no delay output.

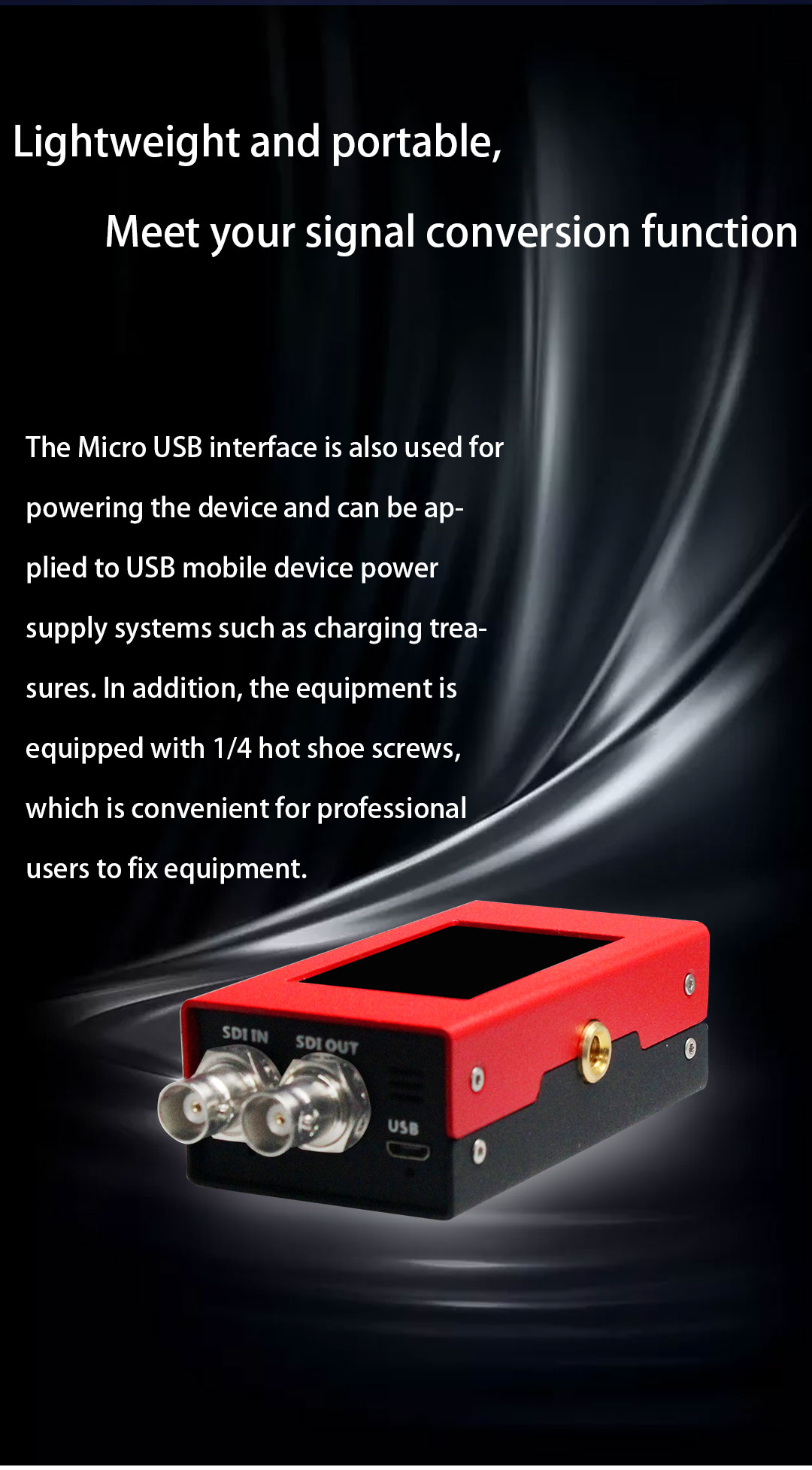

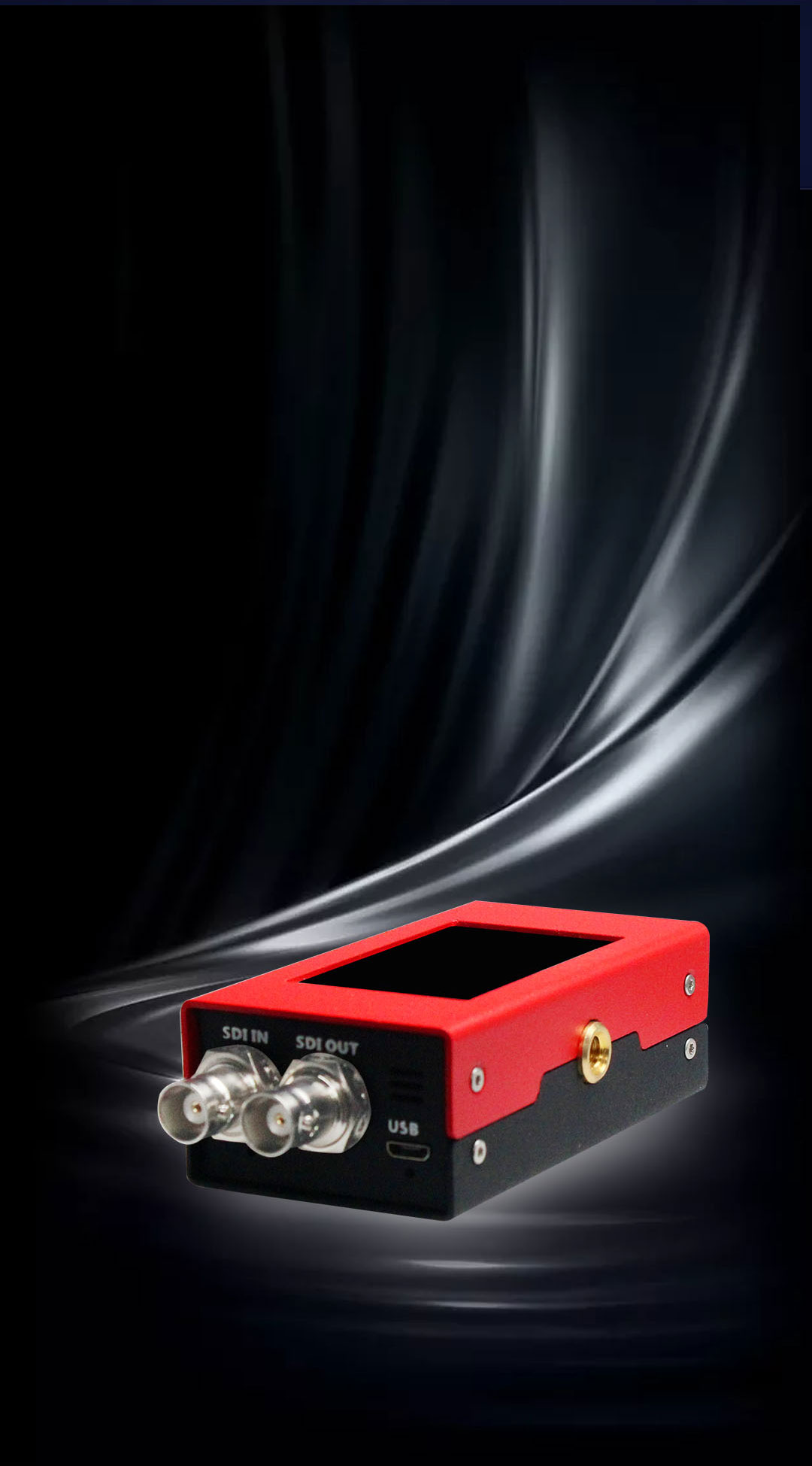

Lightweight and portable,Meet your signal conversion function

The Micro USB interface is also used for powering the device and can be applied to USB mobile device power supply systems such as charging treasures. In addition, the equipment is equipped with 1/4 hot shoe screws, which is convenient for professional users to fix equipment.

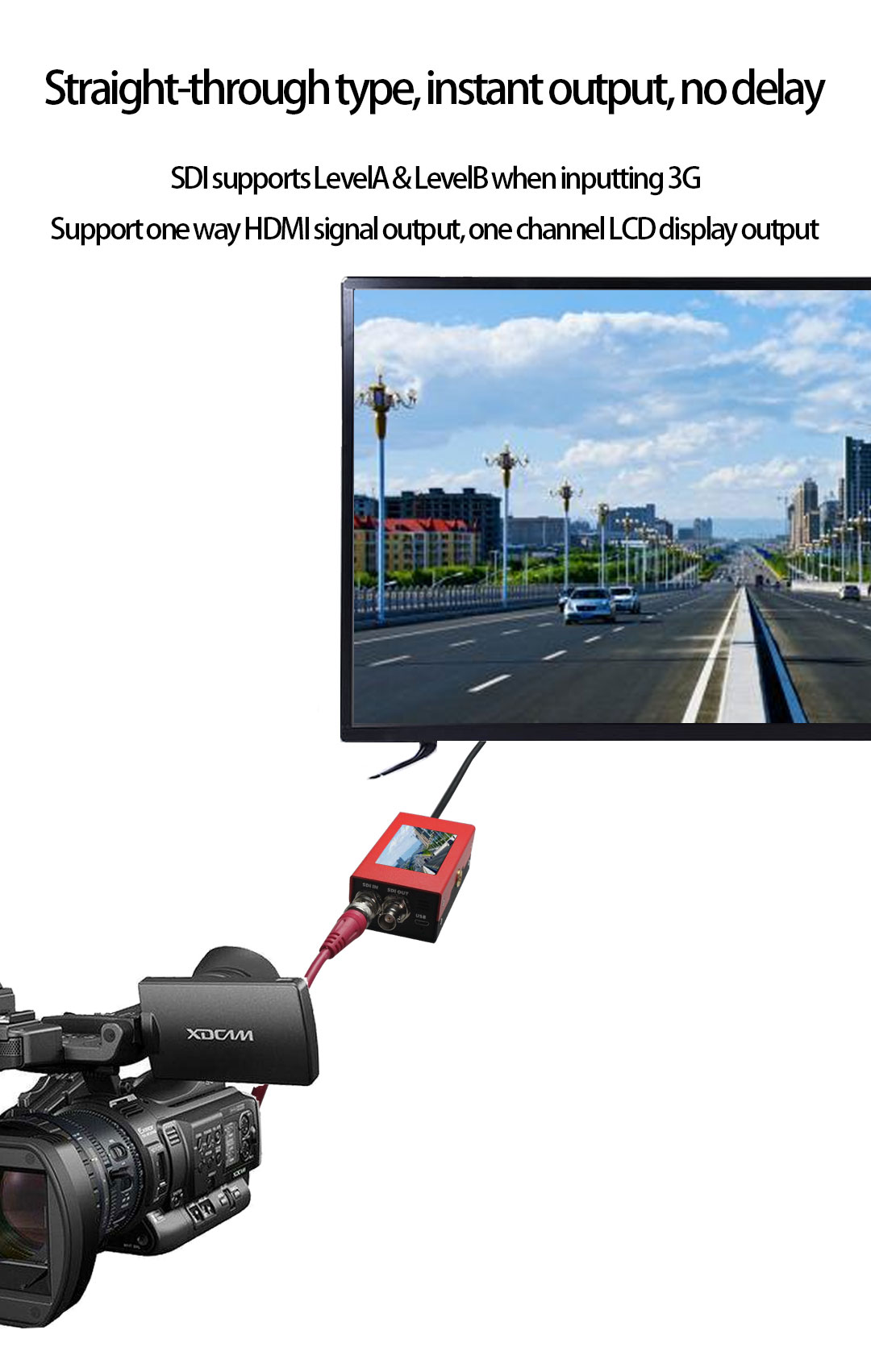

Straight-through type, instant output, no delay

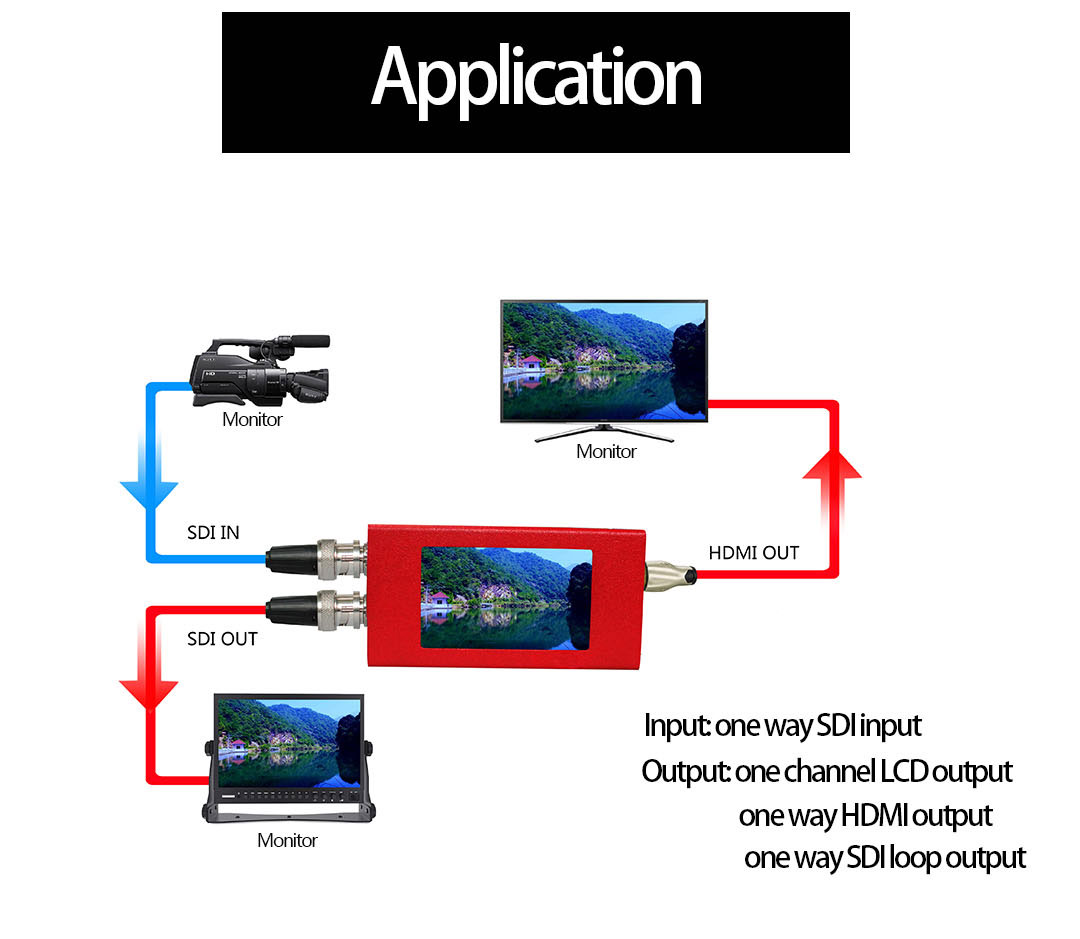

SDI supports LevelA & LevelB when inputting 3G,Support one way HDMI signal output, one channel LCD display output.

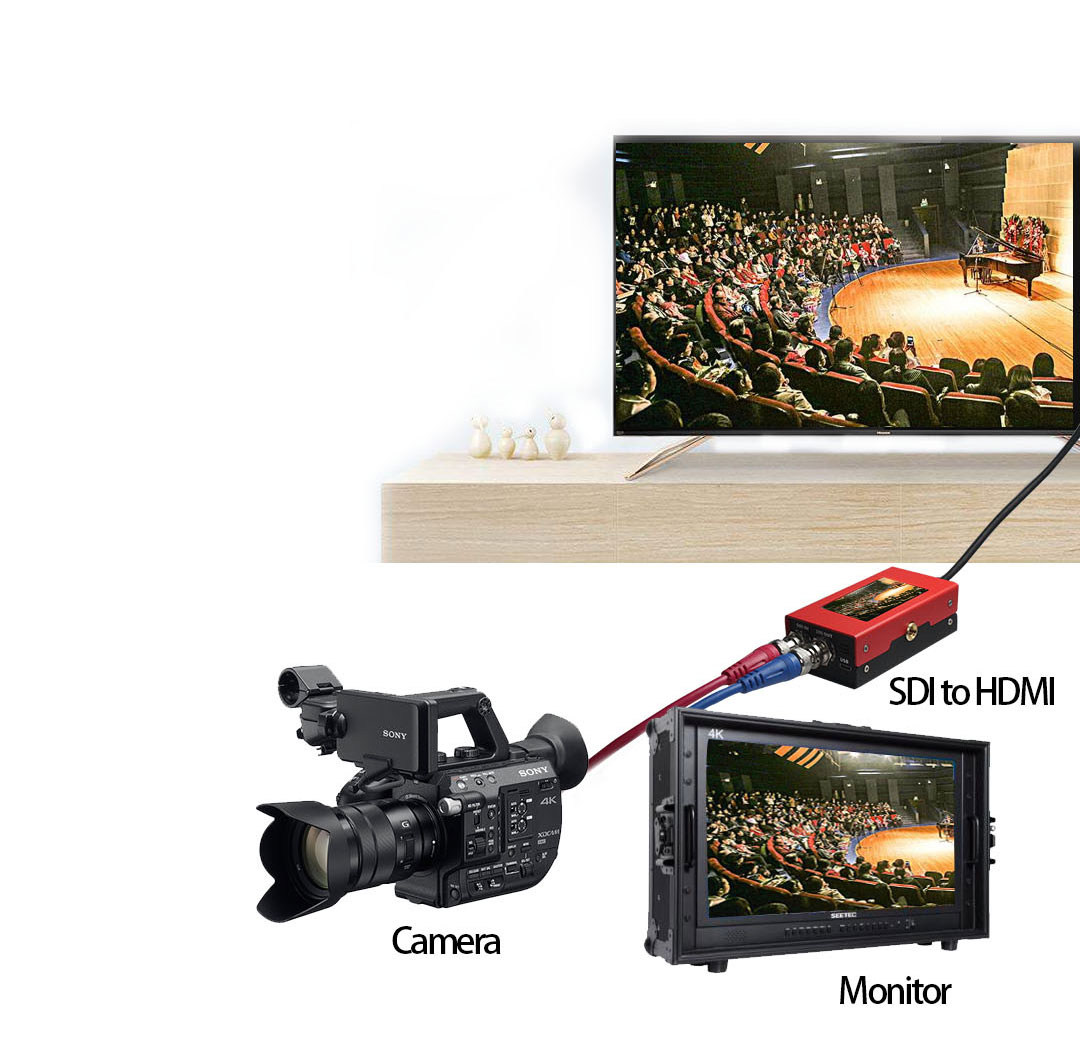

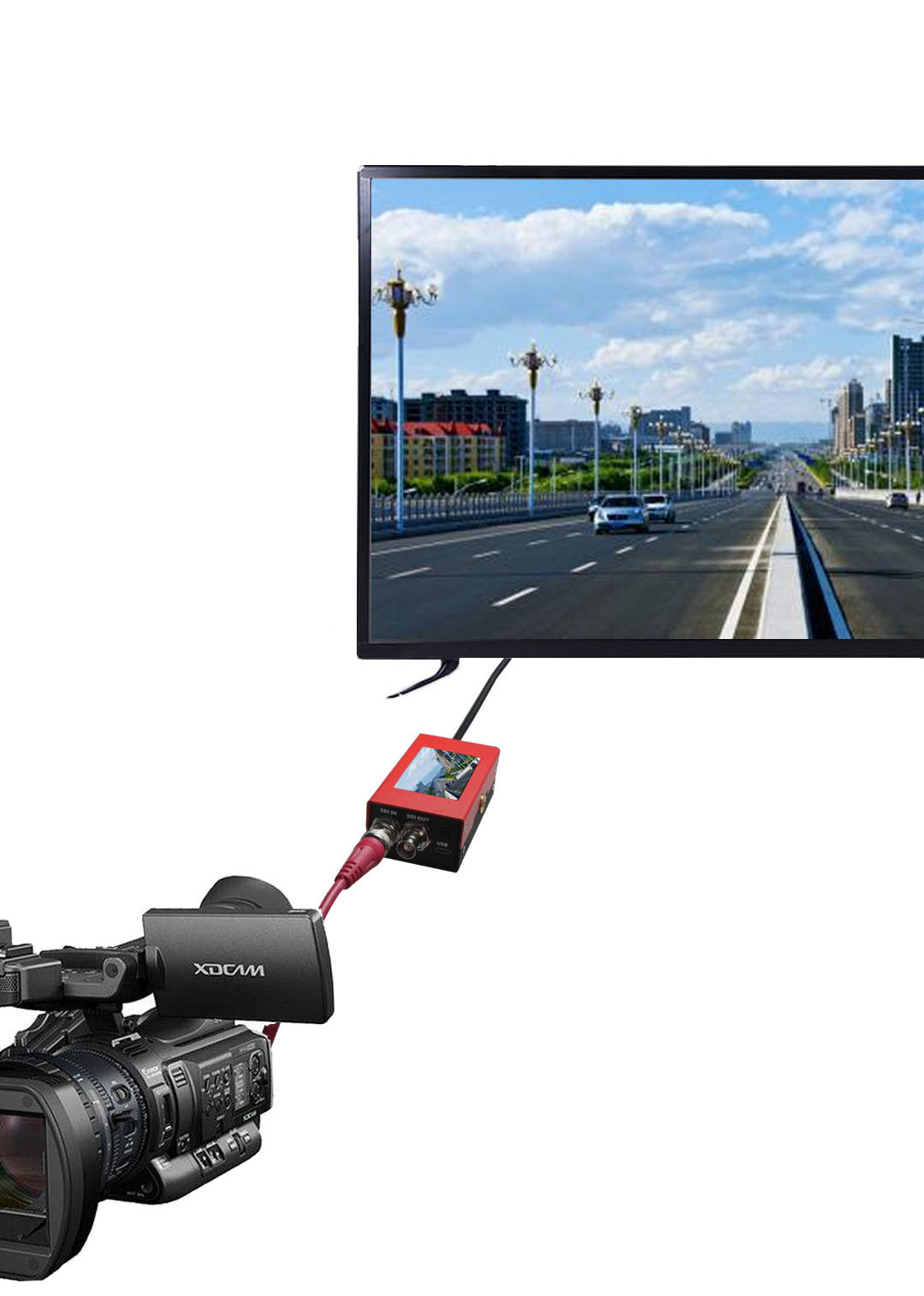

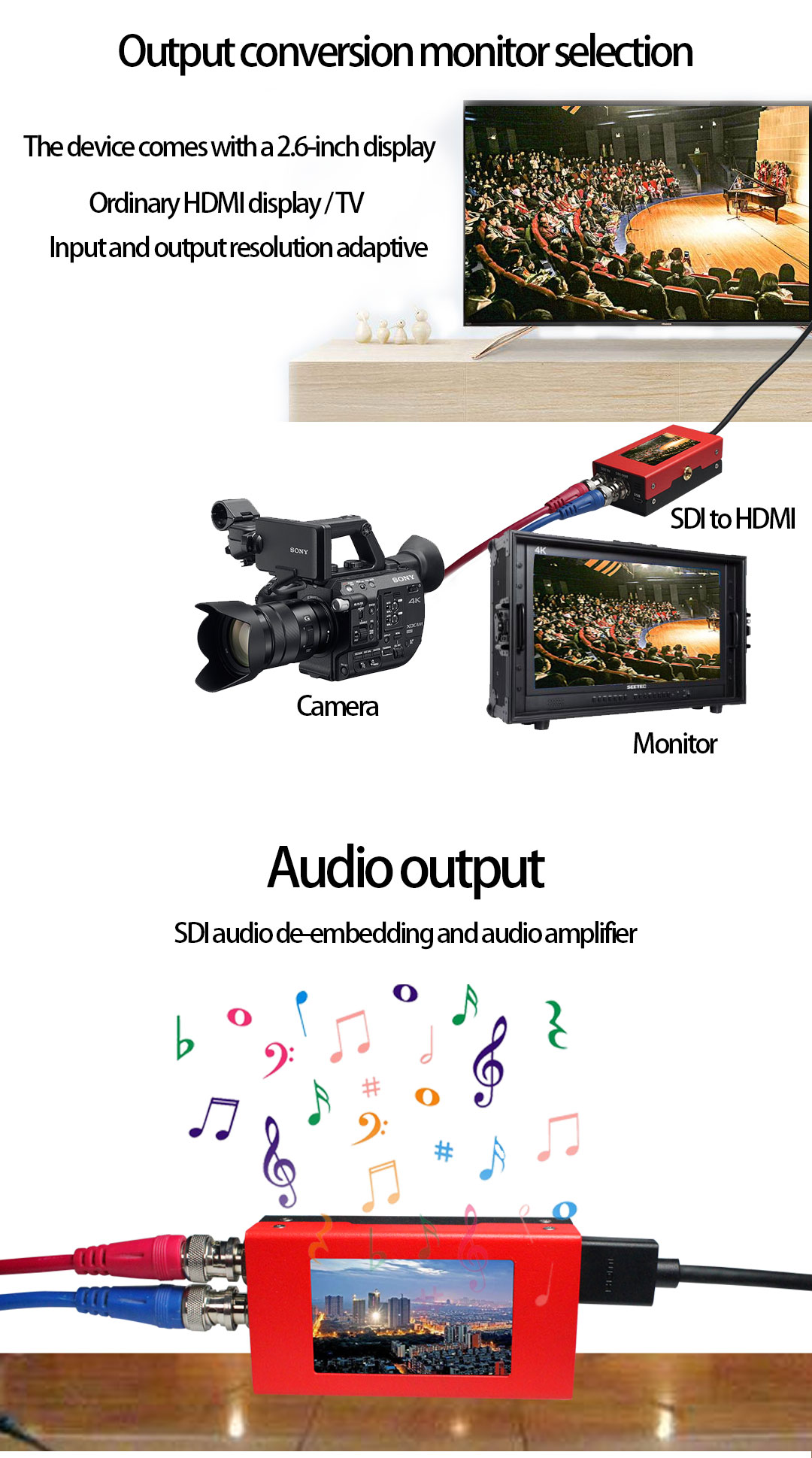

Output conversion monitor selection

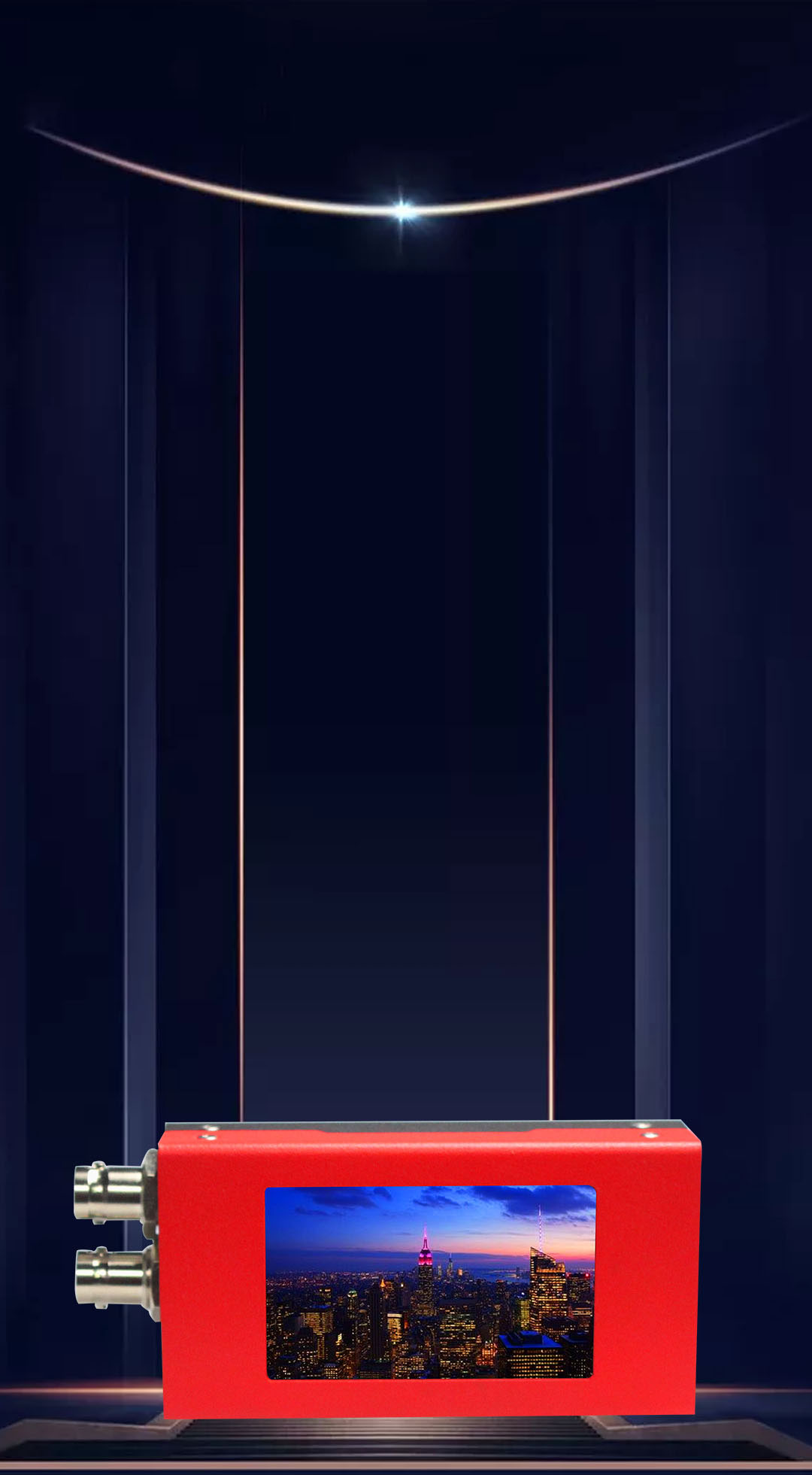

The device comes with a 2.6-inch display,Ordinary HDMI display / TV,Input and output resolution adaptive.



Product Features

◆SDI input supports 3G/HD/SD SDI

◆ Input and output resolution adaptive, through output,Supports up to 1080P60;

◆ SDI signal is displayed on the LCD

◆ SDI supports LevelA & LevelB when inputting 3G

◆ Support one way HDMI signal output

◆ Support one way SDI loop output

◆ USB (5V) power supply system

◆ 1/4 hot shoe fixing screw

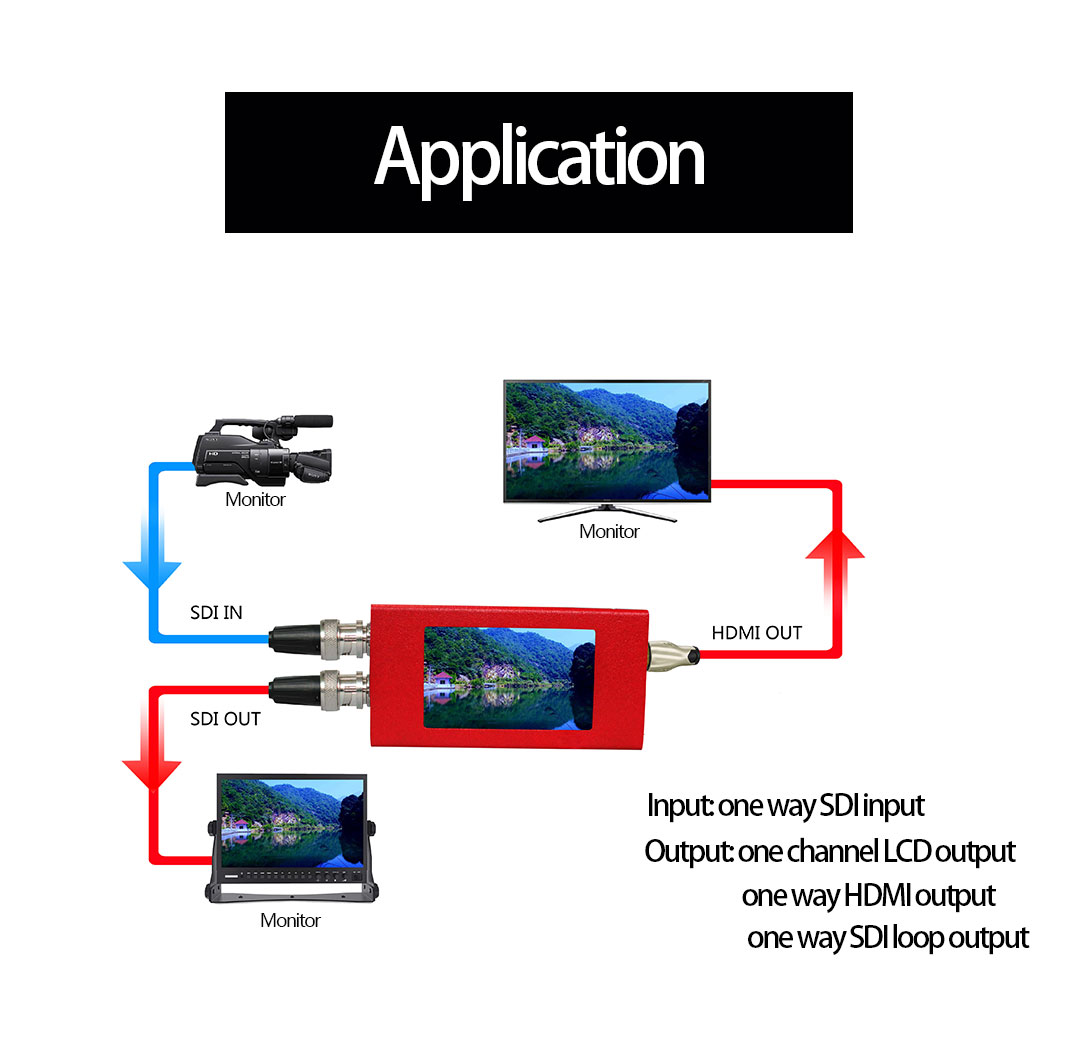

Application diversity

Can be widely used in professional broadcast television equipment, medical equipment, high-definition conference systems, high-definition teaching equipment, signal transmission, security monitoring and multimedia advertising applications.

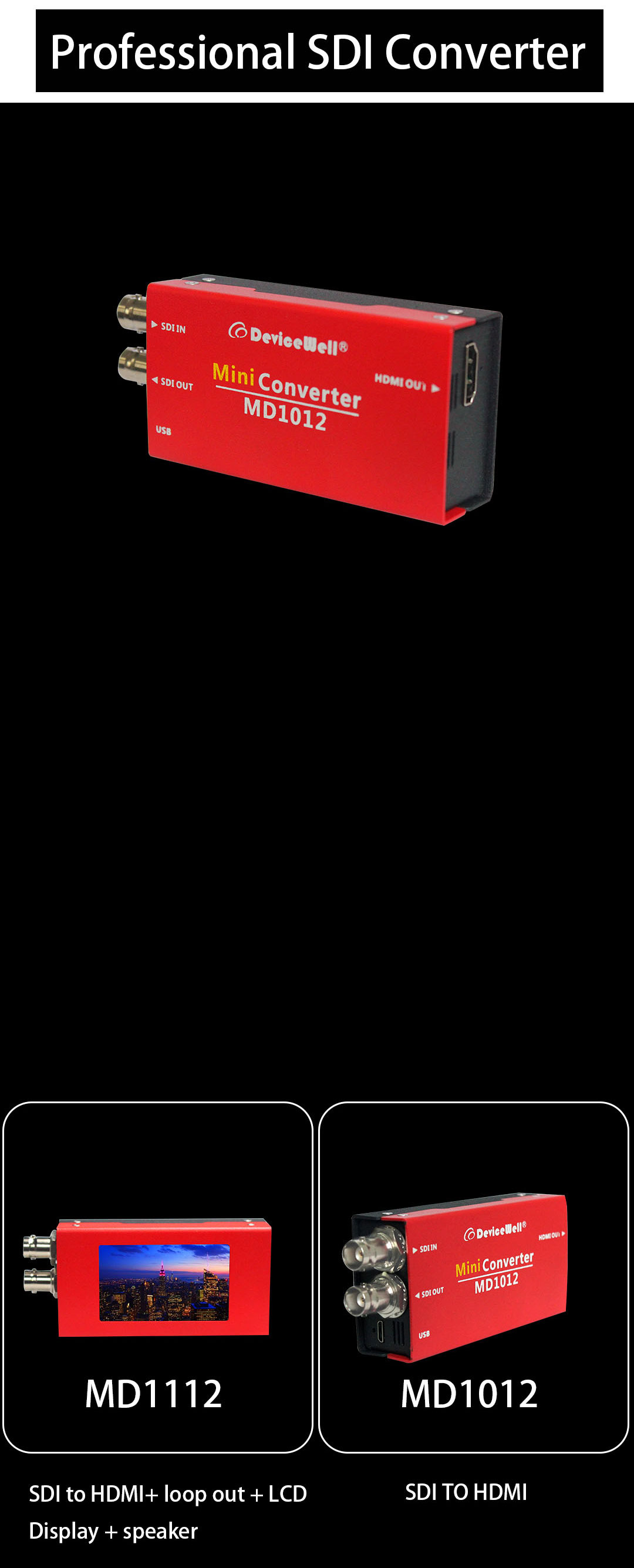

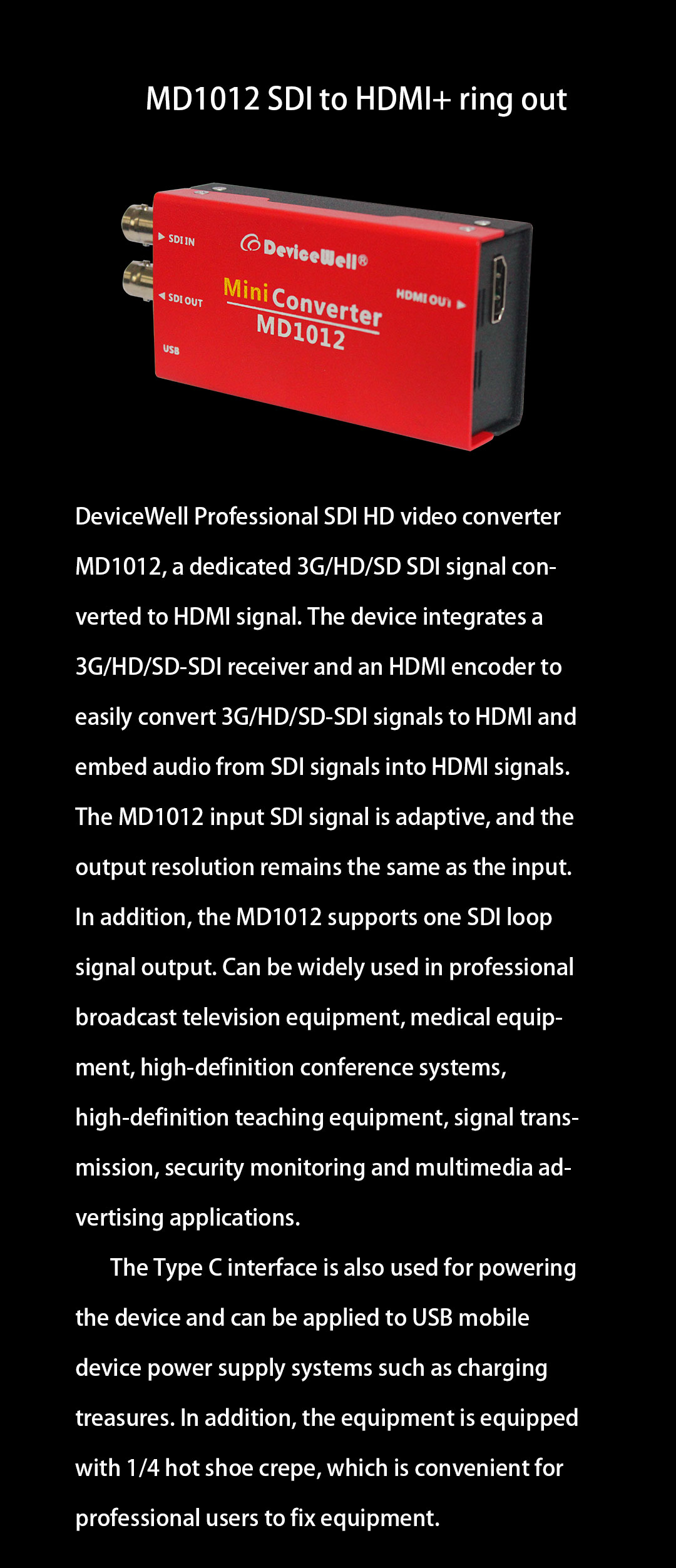

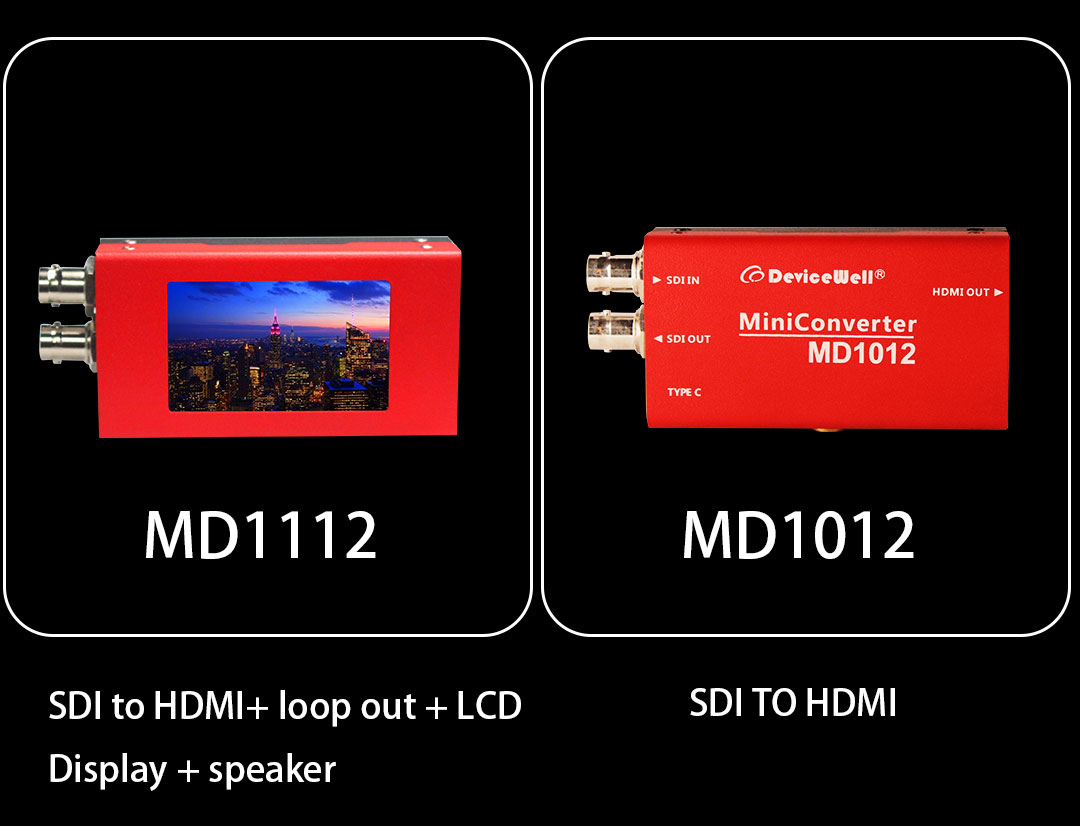

MD1012 SDI to HDMI+ ring out

DeviceWell Professional SDI HD video converter MD1012, a dedicated 3G/HD/SD SDI signal converted to HDMI signal. The device integrates a 3G/HD/SD-SDI receiver and an HDMI encoder to easily convert 3G/HD/SD-SDI signals to HDMI and embed audio from SDI signals into HDMI signals. The MD1012 input SDI signal is adaptive, and the output resolution remains the same as the input. In addition, the MD1012 supports one SDI loop signal output. Can be widely used in professional broadcast television equipment, medical equipment, high-definition conference systems, high-definition teaching equipment, signal transmission, security monitoring and multimedia advertising applications.  The Type C interface is also used for powering the device and can be applied to USB mobile device power supply systems such as charging treasures. In addition, the equipment is equipped with 1/4 hot shoe crepe, which is convenient for professional users to fix equipment.



Downloading the instructions of the  MD1112 SDI TO HDMI converter of Devicewell



Serial No.	Material name	Version	modification date	Description/Remarks
1	MD1112 Specification download	1.0	Sep. 11, 2024
2	MD1112 Photos download	1.0	Sep. 11, 2024
3	Others
