PD2007  12G SDI Optical Transceiver

DeviceWell 12G SDI optical transceiver, an optical signal transmission system designed based on broadcast-grade SDI signals. The device supports up to 12G SDI signals and is backward compatible with 6G SDI, 3G SDI, 1.5G SDI and 270M SDI signals. The equipment has built-in signal equalization, serial clock recovery and line driving. The devices are used in pairs, one of which supports 1 optical signal input and 2 independent SDI signal output. The other one supports one SDI signal input, which is converted into one optical output and one loop out. The device uses a detachable SFP optical module, a single-mode single-fiber design, and a standard transmission distance of 20KM. The corresponding module at different distances can be arbitrarily replaced according to different application scenarios. The equipment's SDI input signal frequency is automatically adapted, and it can automatically detect 12G / 6G / 3G / HD / SD-SDI signals, which can be applied to professional SDI video signals such as UHDTV / FHDTV / HDTV / SDTV, especially suitable for broadcast-grade ultra-high-definition digital Signal long-distance fiber transmission and application.  The device adopts MicroUSB 5V power supply system, which can be applied to USB device power supply system.

Full view, clearer

PD2007 12G SDI optical transceiver, 4K optical signal transmission system based on broadcast-grade SDI signal design, the highest resolution can reach 3840 * 2160 60Hz, the picture quality is clear, highlighting the 3D texture.

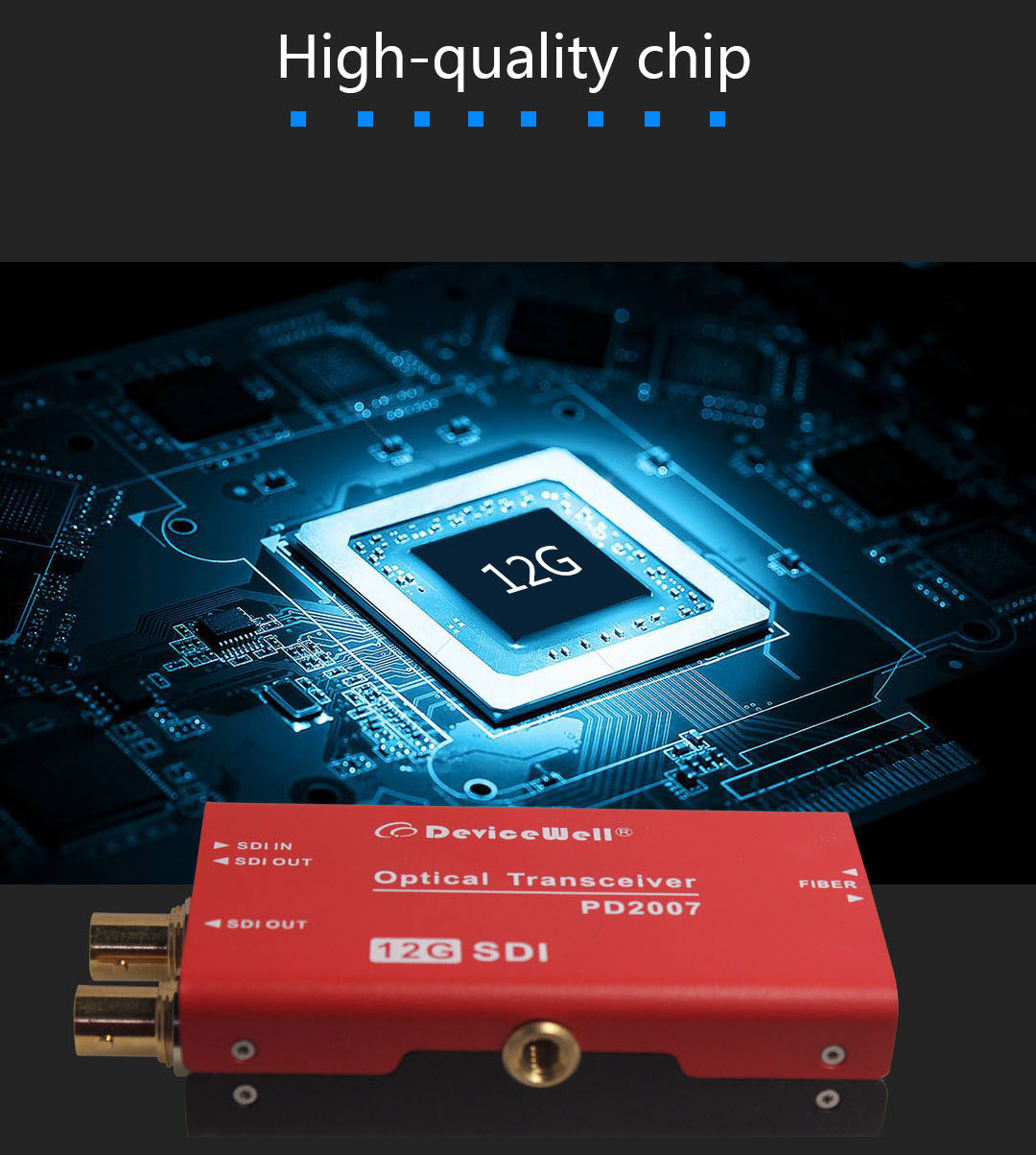

High-quality chip

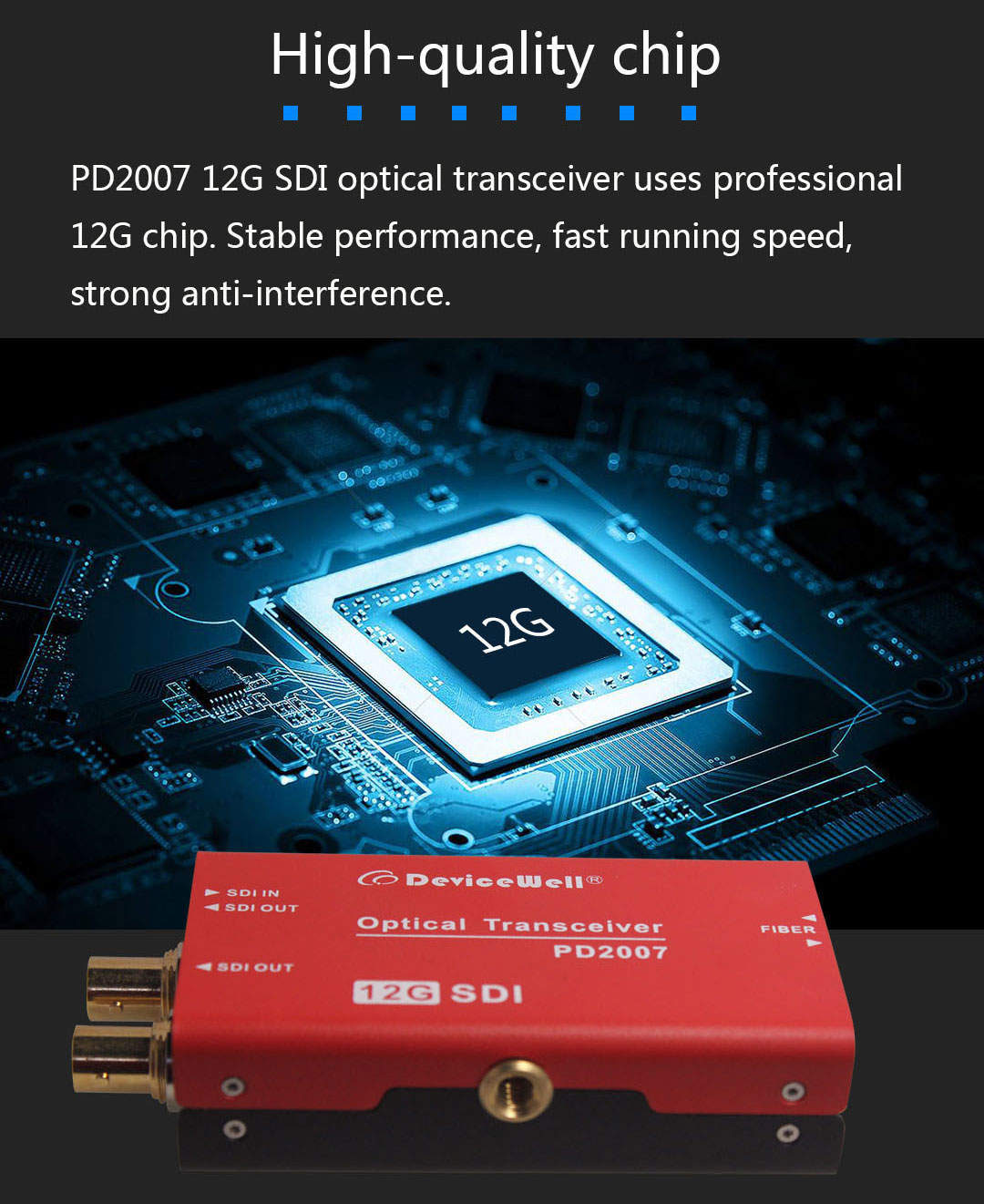

PD2007 12G SDI optical transceiver uses professional 12G chip. Stable performance, fast running speed, strong anti-interference.

Long distance transmission

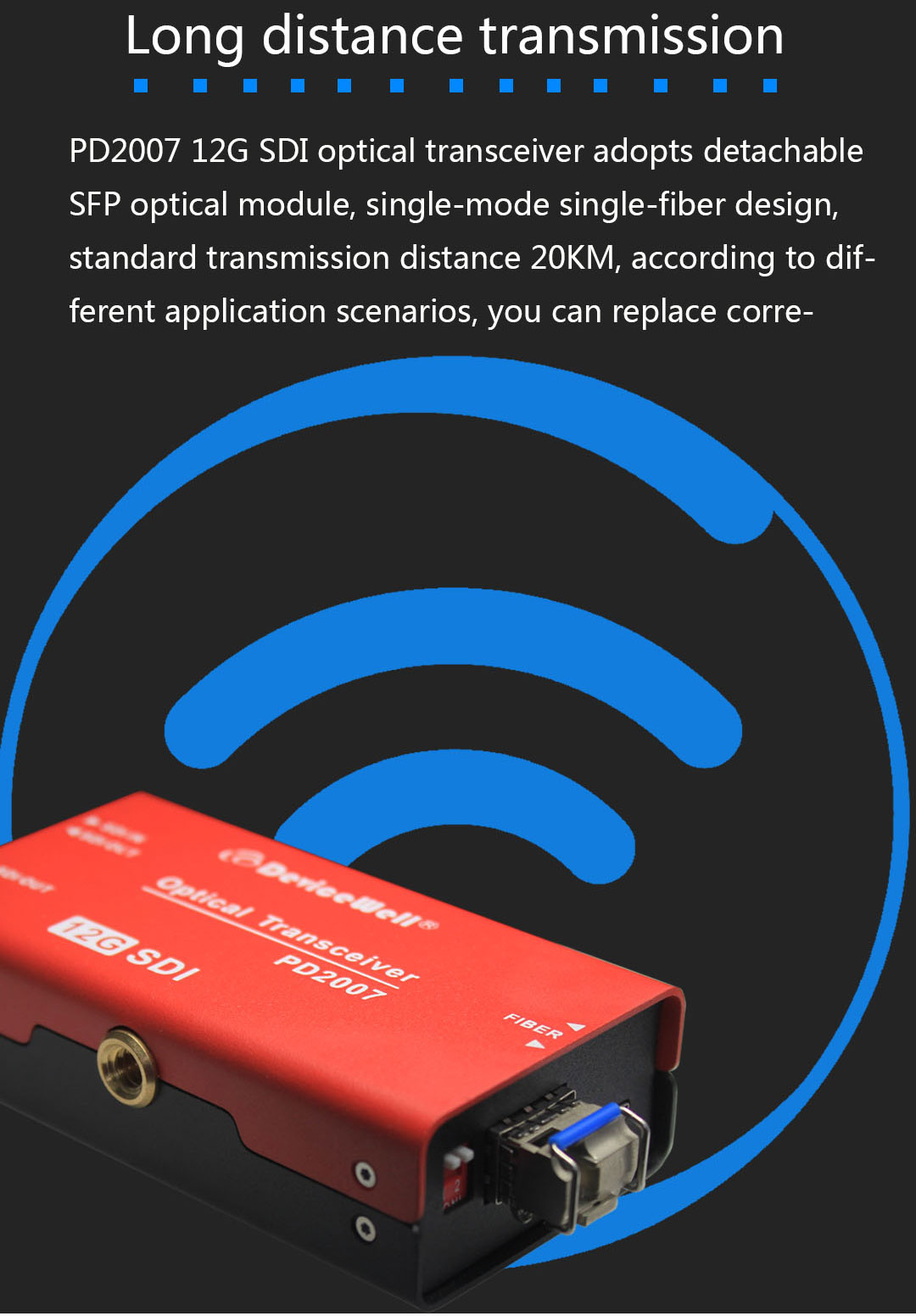

PD2007 12G SDI optical transceiver adopts detachable SFP optical module, single-mode single-fiber design, standard transmission distance 20KM, according to different application scenarios, you can replace corresponding modules at different distances.

Custom input and output

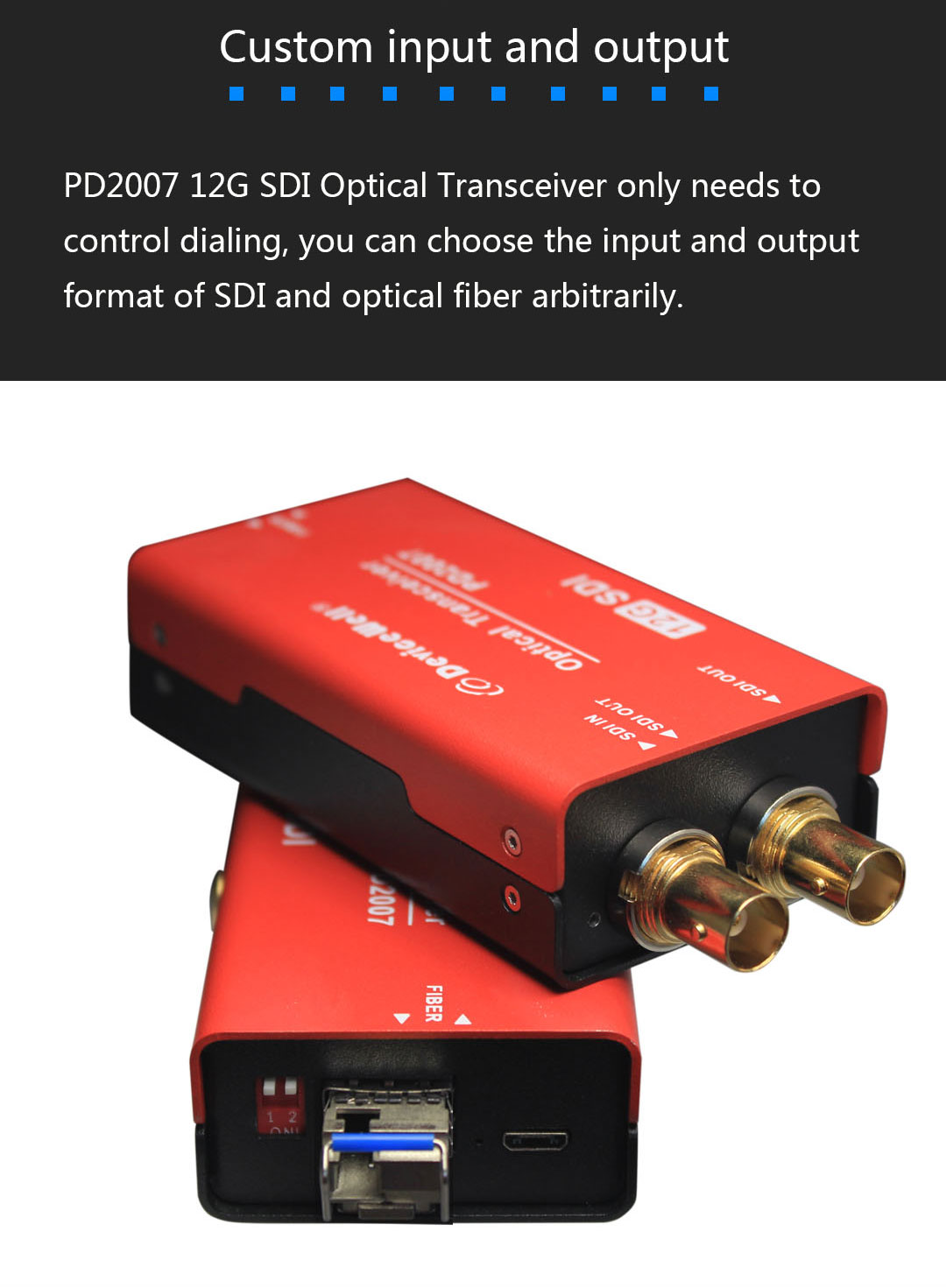

PD2007 12G SDI Optical Transceiver only needs to control dialing, you can choose the input and output format of SDI and optical fiber arbitrarily.

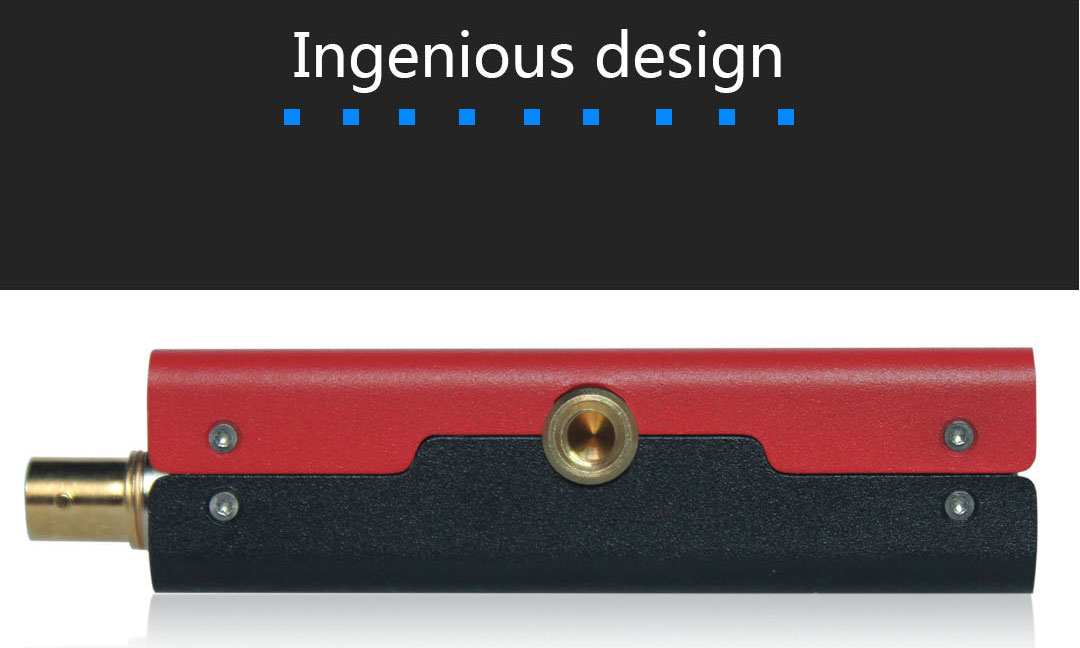

Ingenious design

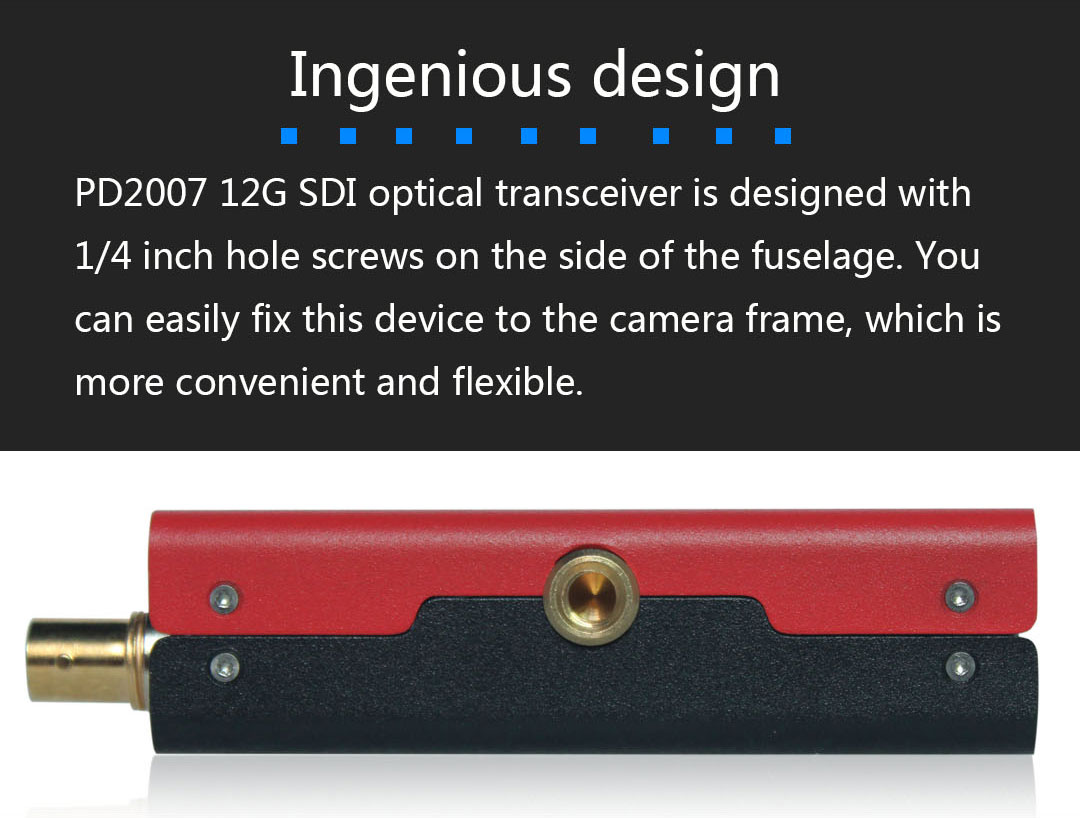

D2007 12G SDI optical transceiver is designed with 1/4 inch hole screws on the side of the fuselage. You can easily fix this device to the camera frame, which is more convenient and flexible.

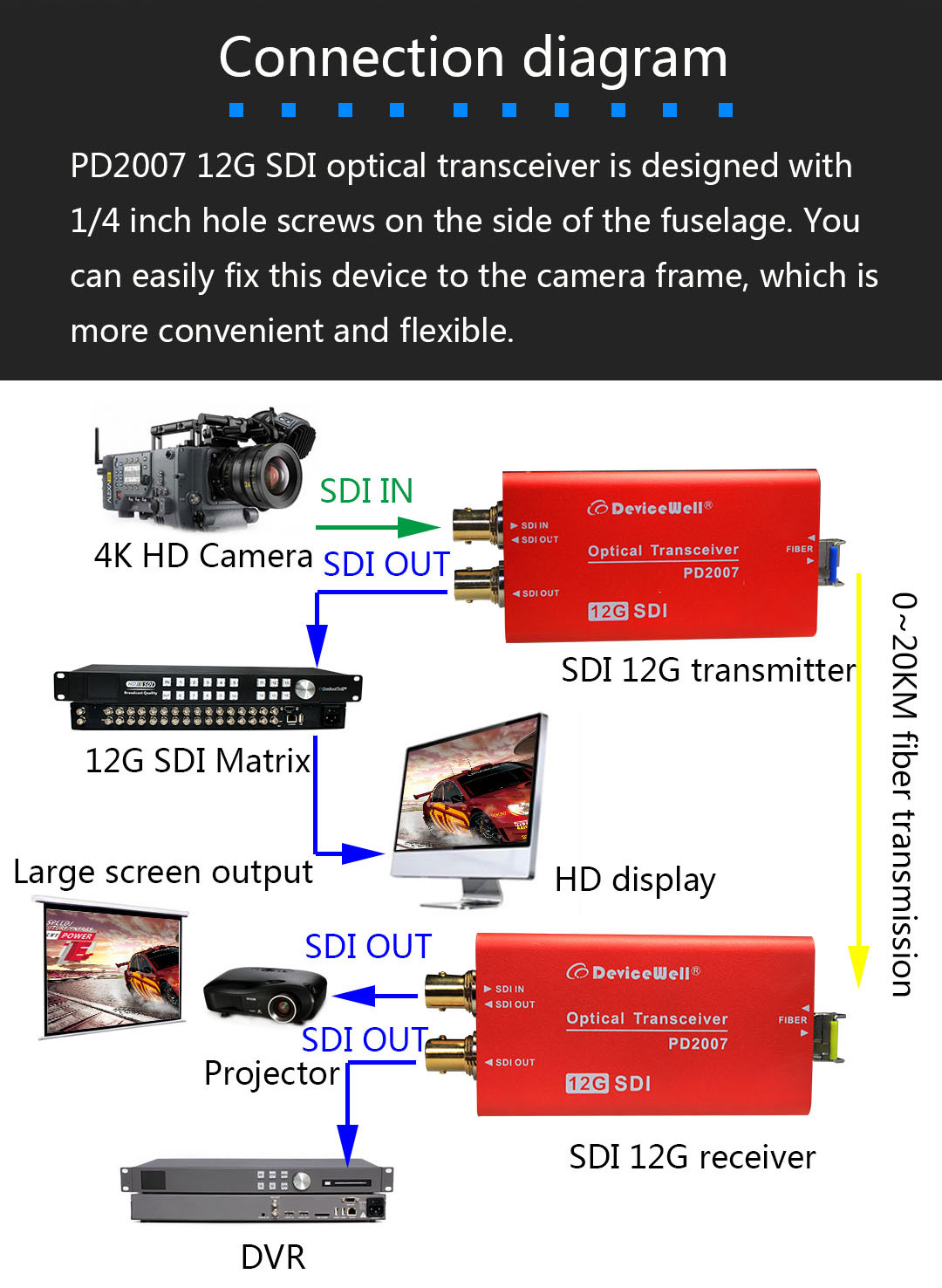

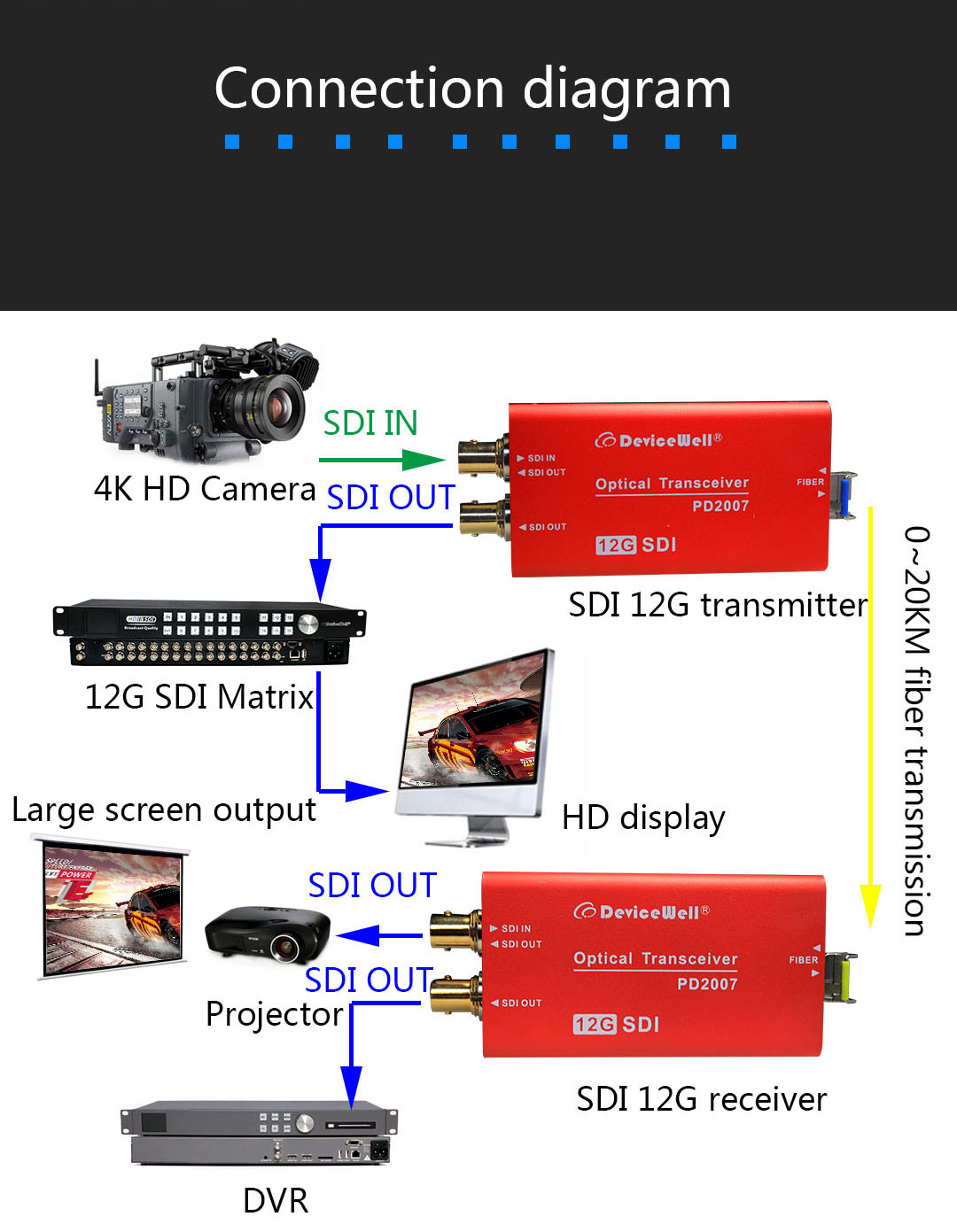

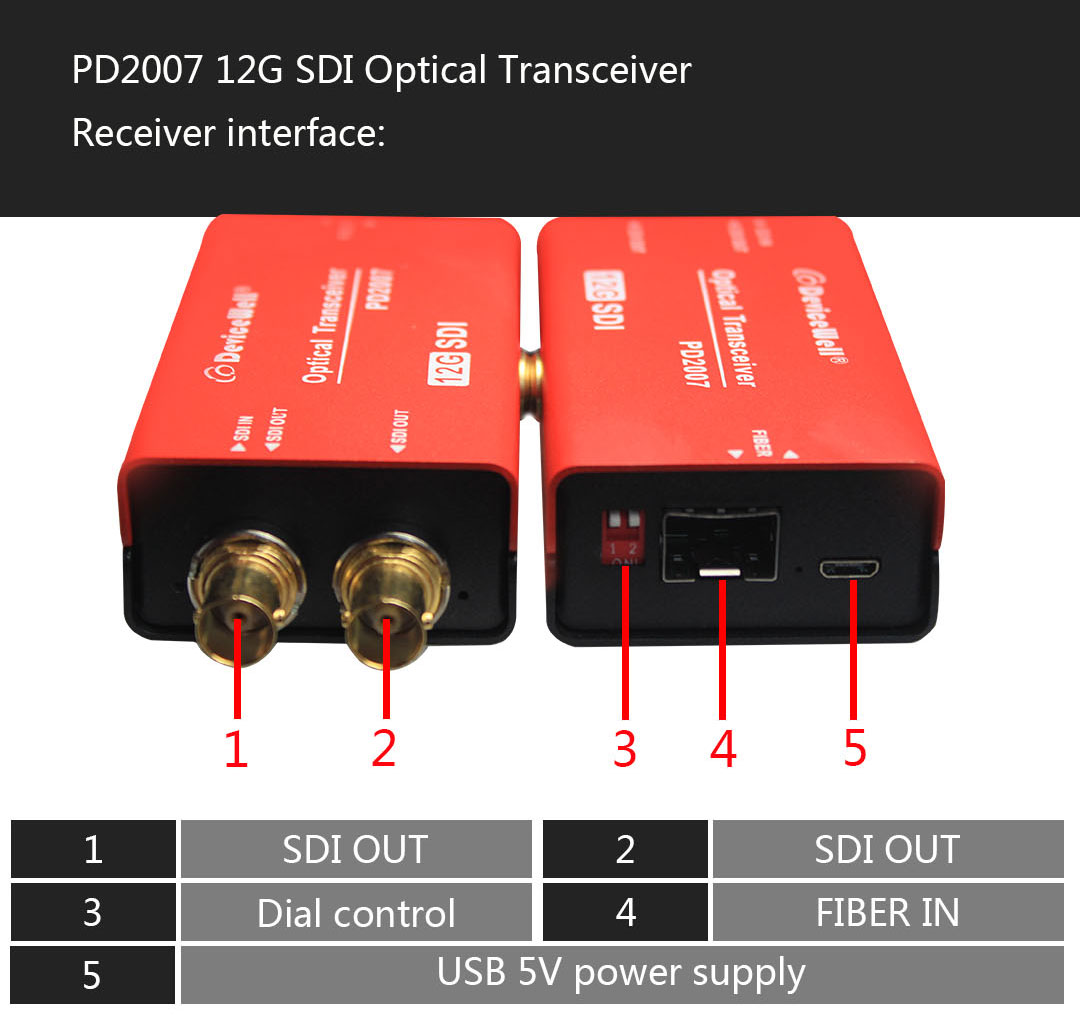

Connection diagram

PD2007 12G SDI optical transceiver is designed with 1/4 inch hole screws on the side of the fuselage. You can easily fix this device to the camera frame, which is more convenient and flexible.

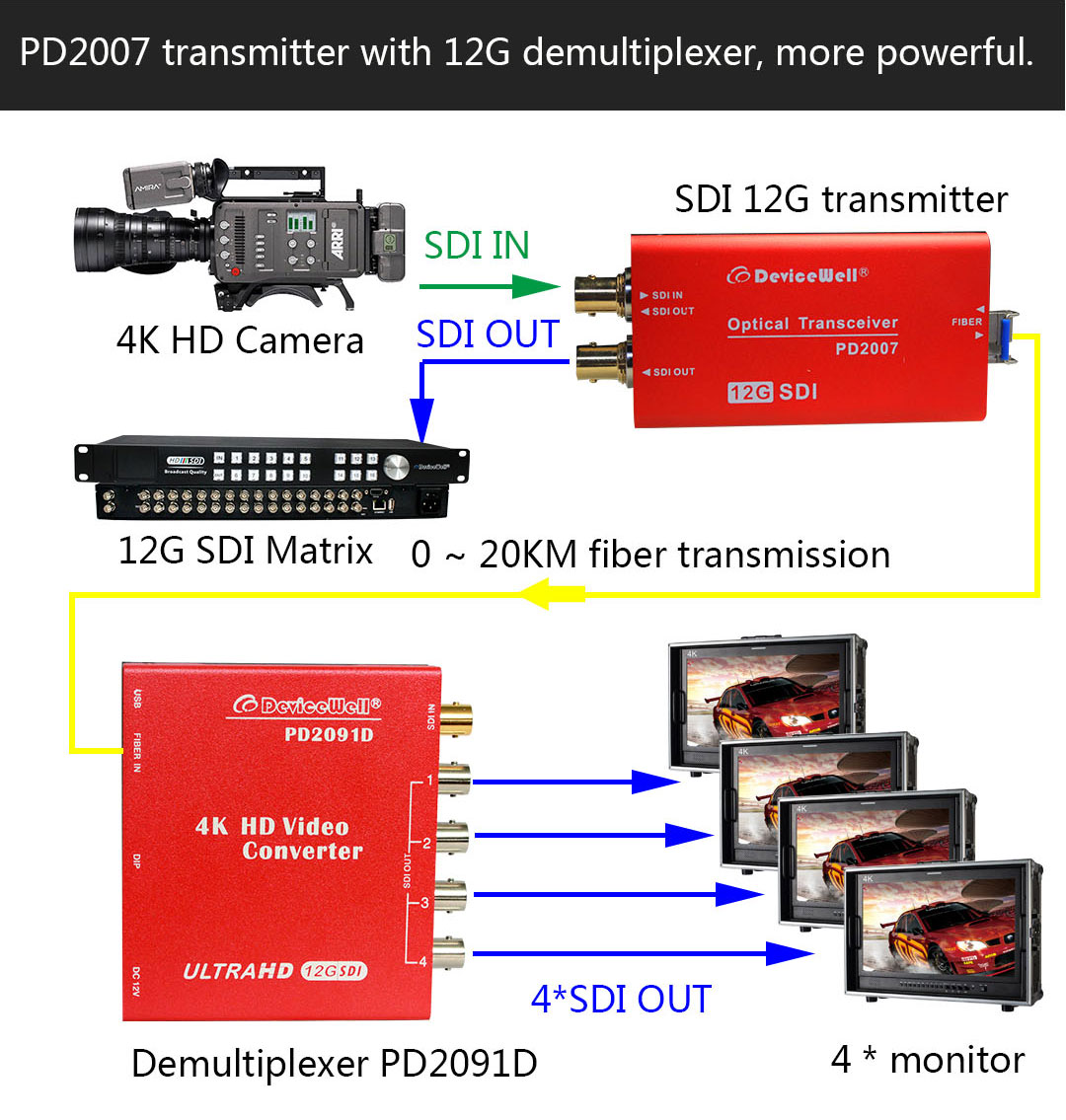

PD2007 transmitter with 12G demultiplexer, more powerful.

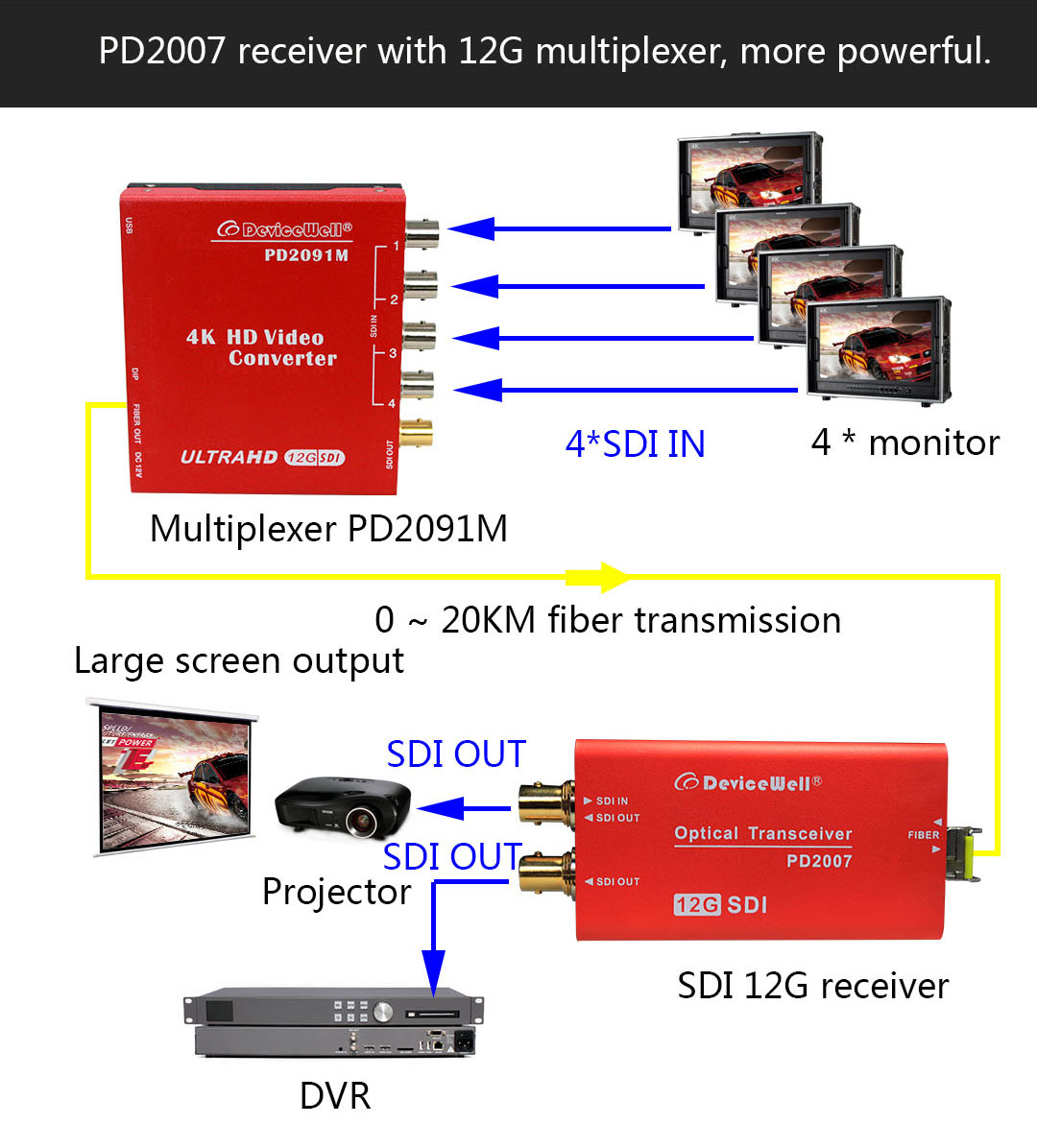

PD2007 receiver with 12G multiplexer, more powerful.

Applications

PD2007 12G SDI optical transceiver can be used for long-distance optical fiber transmission and application of broadcast-grade ultra-high-definition digital signals such as sports events, song and dance performances, weddings and multimedia teaching.
